Toyota YARIS Front Drive Shaft — Figure 4302

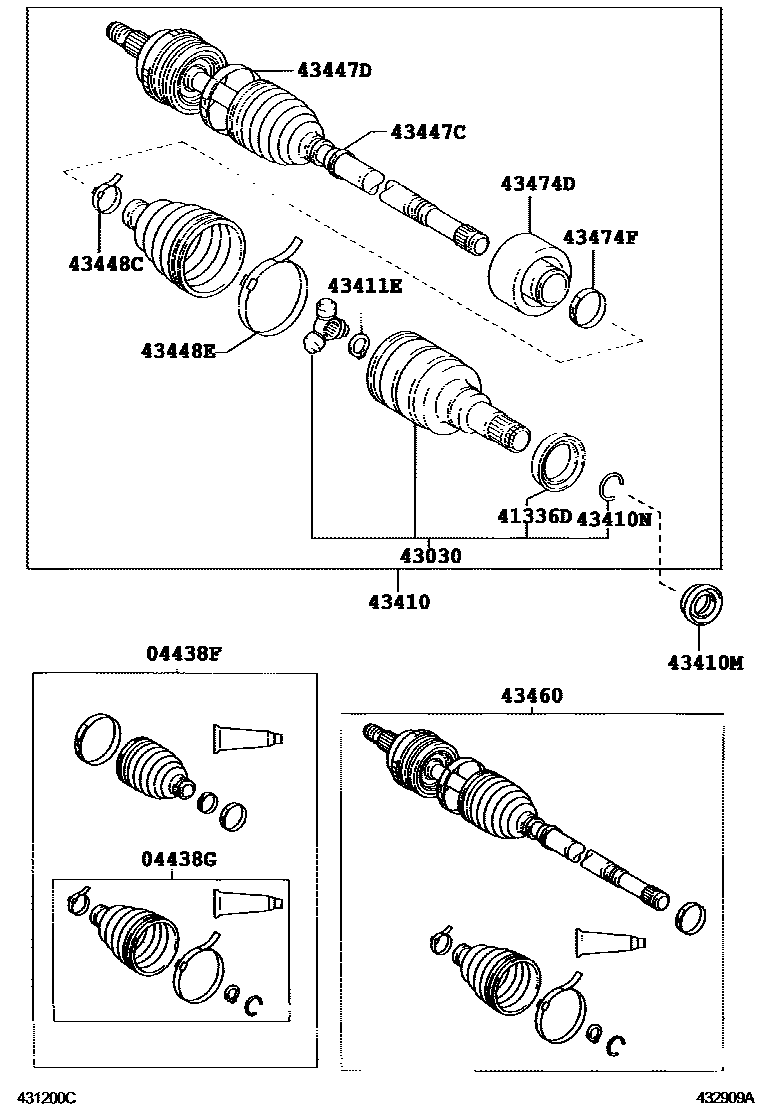

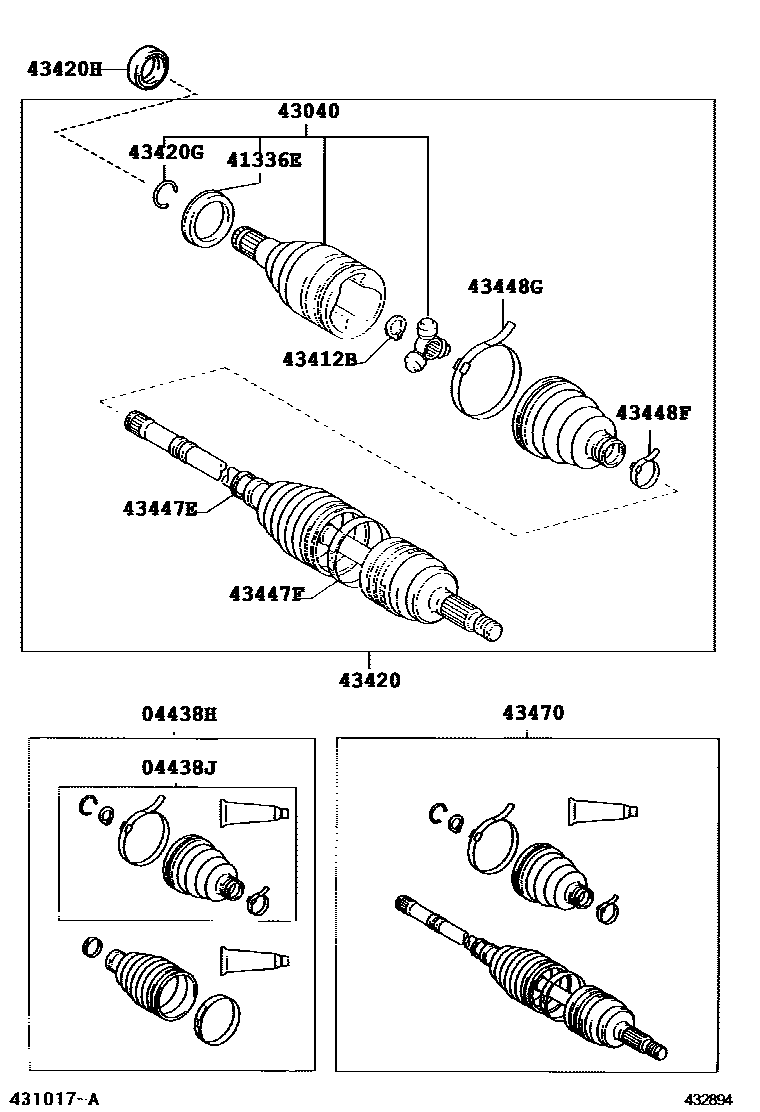

Toyota YARIS EPC diagram 4302, Front Drive Shaft, with 2 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04427-0D050 · 04427-12470 · 04427-52380 · 04427-52420 · 04427-52840 · 04427-52A20 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-0D050 · 04437-12310 · 04437-52310 · 04437-52330 · 04437-52450 · 04438-12A00 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04427-12540 · 04427-52380 · 04427-52840 · 04427-52A20 · 04428-0D050 · 04428-12740 · 04428-52780 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04437-0D050 · 04437-12310 · 04437-52310 · 04437-52450 · 04438-12A00 |
| 41336D | Right front driveshaft dust cover | 41336-0H010 · 41336-12010 · 41336-12060 |
| 41336E | Left front driveshaft dust cover | 41336-0H010 · 41336-12010 · 41336-12060 |
| 43030 | Right front drive shaft inner universal joint assembly | 43030-52040 · 43040-12120 · 43403-0W050 |
| 43040 | Left front drive shaft inner universal joint assembly | 43030-52040 · 43040-12120 · 43403-0W050 |
| 43410 | Right front driveshaft assembly | 43410-0W220 · 43410-52180 · 43410-52250 · 43410-52280 |
| 43410M | JOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MD | 90311-34033 · 90311-34039 · 90311-35057 · 90311-35062 |
| 43410N | Hole snap ring (for right front driveshaft) | 90080-52056 · 90521-26004 · 90521-27005 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-0D090 · 43425-12070 · 43425-52010 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-0D090 · 43425-12070 · 43425-52010 |
| 43420 | Left front drive shaft assembly | 43420-0W250 · 43420-52180 · 43420-52250 · 43420-52280 |
| 43420G | Hole snap ring (for left front driveshaft) | 90080-52056 · 90521-26004 · 90521-27005 |
| 43420H | JOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MG | 90311-34032 · 90311-34040 · 90311-35058 · 90311-35061 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-0H060 · 42345-12230 · 42345-52270 · 42345-74040 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-0H050 · 42345-12240 · 42345-52170 · 42345-74030 · 42345-74110 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-0H060 · 42345-12230 · 42345-52270 · 42345-74040 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-0H050 · 42345-12240 · 42345-52170 · 42345-74030 · 42345-74110 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-0D210 · 42345-12230 · 42345-52130 · 42345-52290 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-0D200 · 42345-12180 · 42345-52120 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-0D210 · 42345-12230 · 42345-52130 · 42345-52290 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-0D200 · 42345-12180 · 42345-52120 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-09M70 · 43460-59575 · 43460-59615 · 43460-59775 · 43460-59795 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-09L40 · 43470-59325 · 43470-59595 · 43470-59686 · 43470-59745 · 43470-59795 |
| 43474D | Right front driveshaft shock absorber | 43474-0D040 · 43474-12120 · 43474-52070 |
| 43474F | Clamp (for right front driveshaft shock absorber) | 42345-0D190 · 42345-14010 · 42345-16140 |
