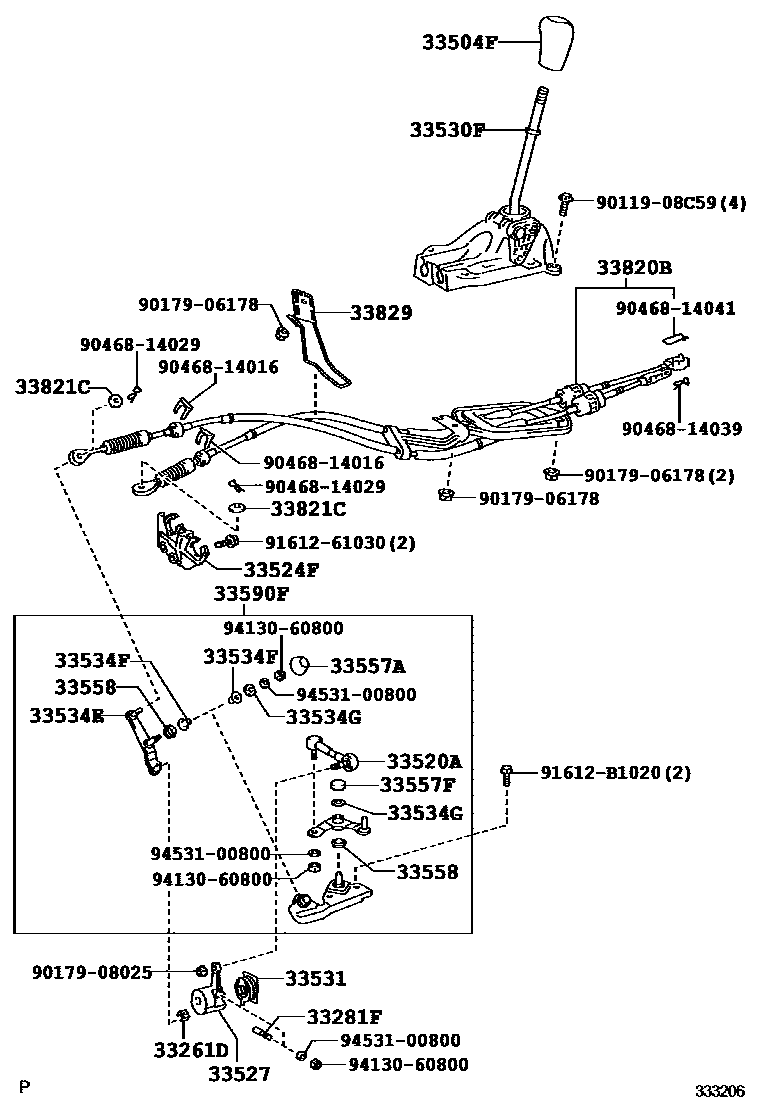

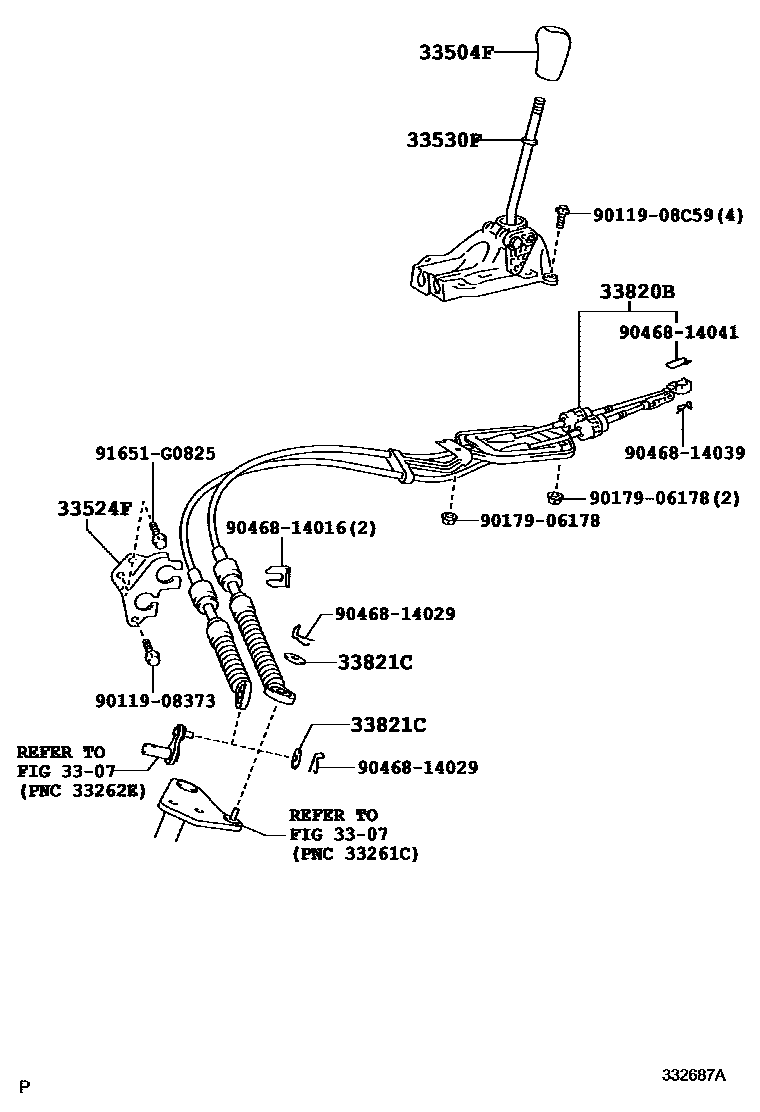

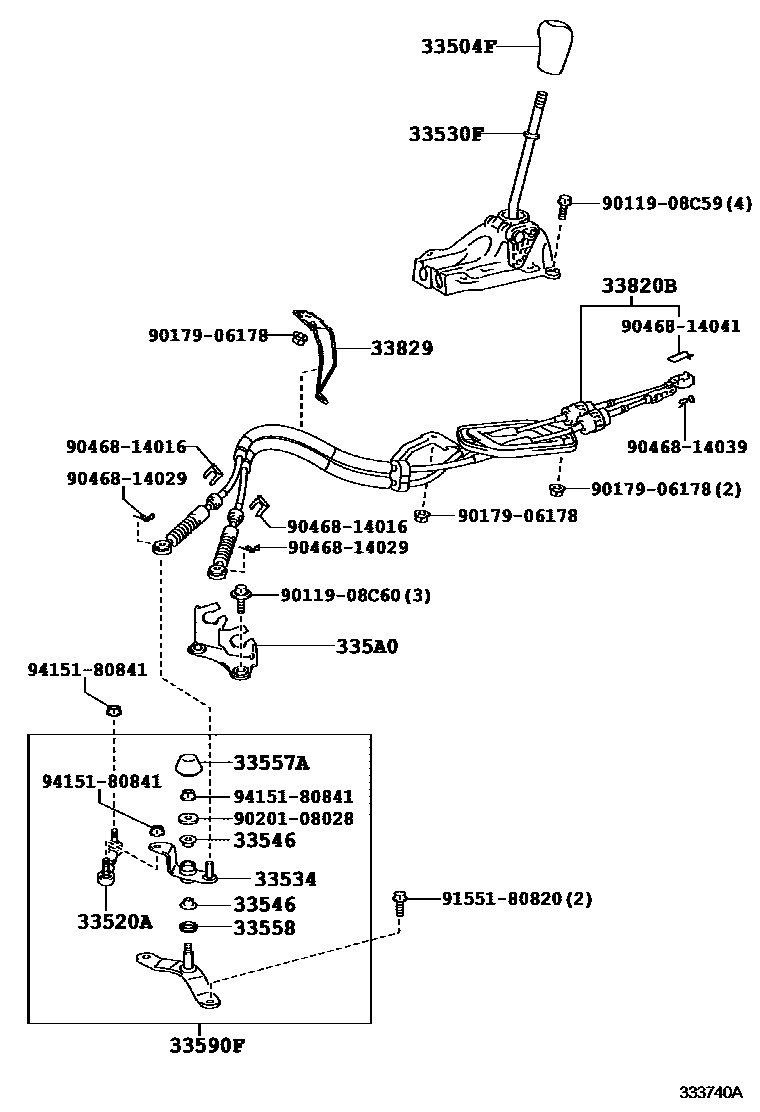

Toyota YARIS Shift Lever & Retainer — Figure 3312
Toyota YARIS EPC diagram 3312, Shift Lever & Retainer, with 3 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33261D | Bushing (for shift lever) | 33557-33010 |
| 33281F | Shift lever locking pin (for floor shift) | 33281-16020 |
| 33520A | Floor type shift control shaft assembly | 33520-52050 · 33520-52070 |
| 33524F | Lever housing bracket (for floor shift) | 33524-52030 · 33524-52050 |
| 33527 | Gear shift lever (for floor shift) | 33527-52011 |
| 33530F | Shift lever assembly (for floor shift) | 33530-52110 · 33530-52210 · 33530-52260 |
| 33531 | Dust boot (for shift lever) | 33531-17010 |
| 33534 | Gear selection right angle lever | 33534-52040 |
| 33534E | No. 2 gear selection right-angle lever | 33534-52020 |
| 33534F | Bushing (for No. 2 gear selector right-angle lever) | 90386-12022 |
| 33534G | Flat washer (for No. 2 gear selector right-angle lever) | 90201-08028 |
| 33546 | Bushing (for shift lever stop) | 33546-20020 |
| 33557A | No. 1 gear selection right-angle lever dust cover | 33557-32010 |
| 33557F | Control right-angle lever dust cover (for floor-mounted shifting) | 33557-20010 |
| 33558 | No. 2 gear selection right-angle lever dust cover | 33558-10030 |
| 33590F | Gear selection right-angle lever assembly (for floor shift) | 33590-52030 · 33590-52050 |
| 335A0 | Control cable bracket assembly | 335A0-52030 |
| 33820B | Transmission control cable assembly | 33820-52430 · 33820-52550 · 33820-52610 |
| 33821C | Flat Washer (for transmission control cable) | 90201-08267 |
| 33829 | Transmission control cable bracket | 33829-52091 · 33829-52092 |
