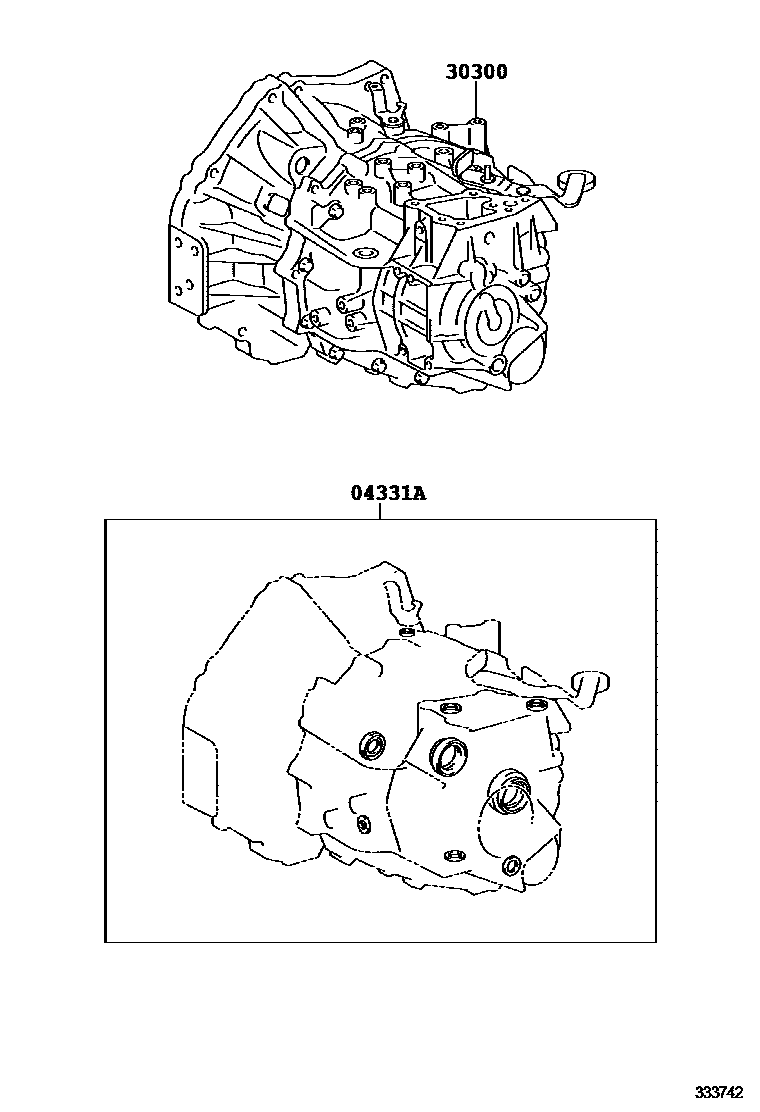

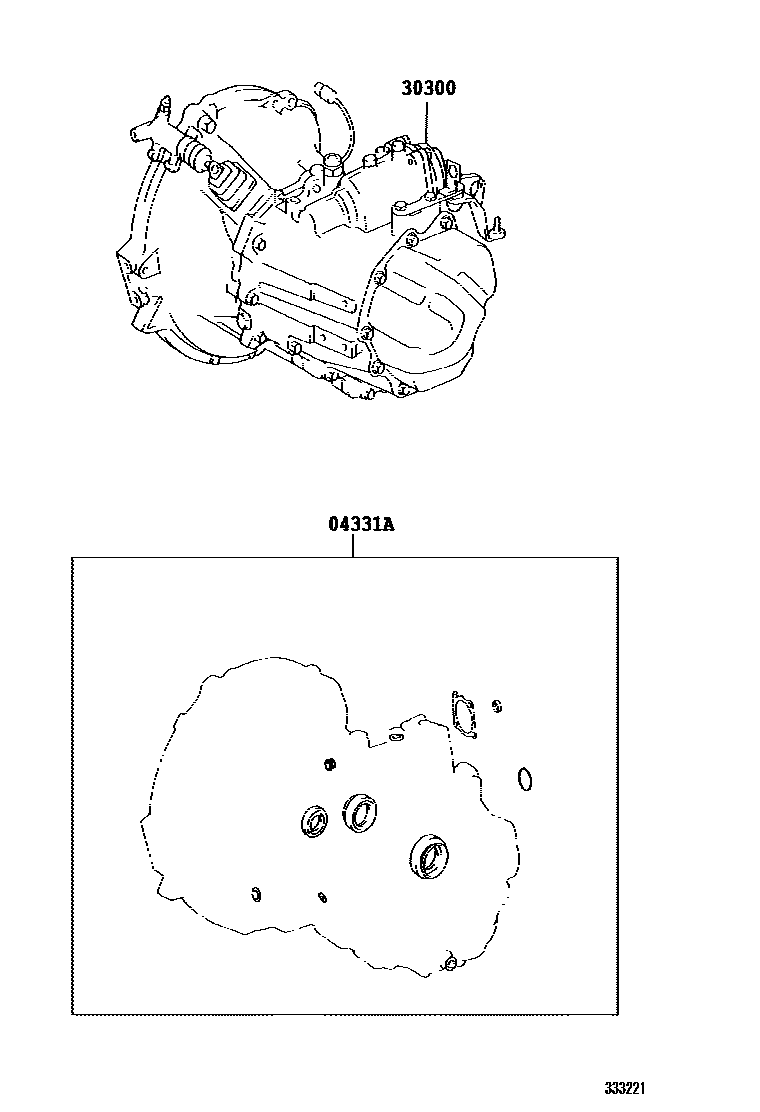

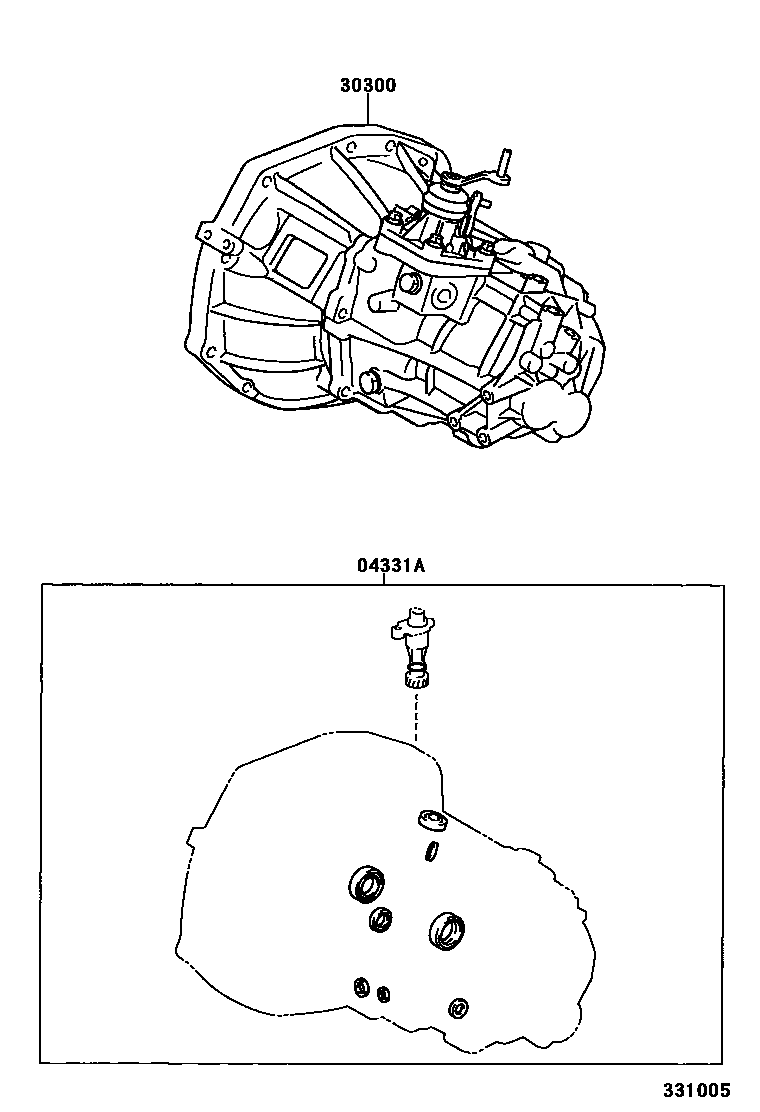

Toyota YARIS 传动桥或变速器总成和衬垫组件(MTM) — Figure 3301
Toyota YARIS EPC diagram 3301, 传动桥或变速器总成和衬垫组件(MTM), with 3 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04331A | Transaxle overhaul pad assembly (MTM) | 04331-12650 · 04331-20250 · 04331-52080 · 04331-52340 |
| 30300 | Manual transmission axle assembly | 30300-52460 · 30300-52461 · 30300-52462 · 30300-52463 · 30300-52500 · 30300-52560 · 30300-52561 · 30300-52630 · 30300-52631 |
