Toyota YARIS 离合器踏板和挠性软管 — Figure 3102

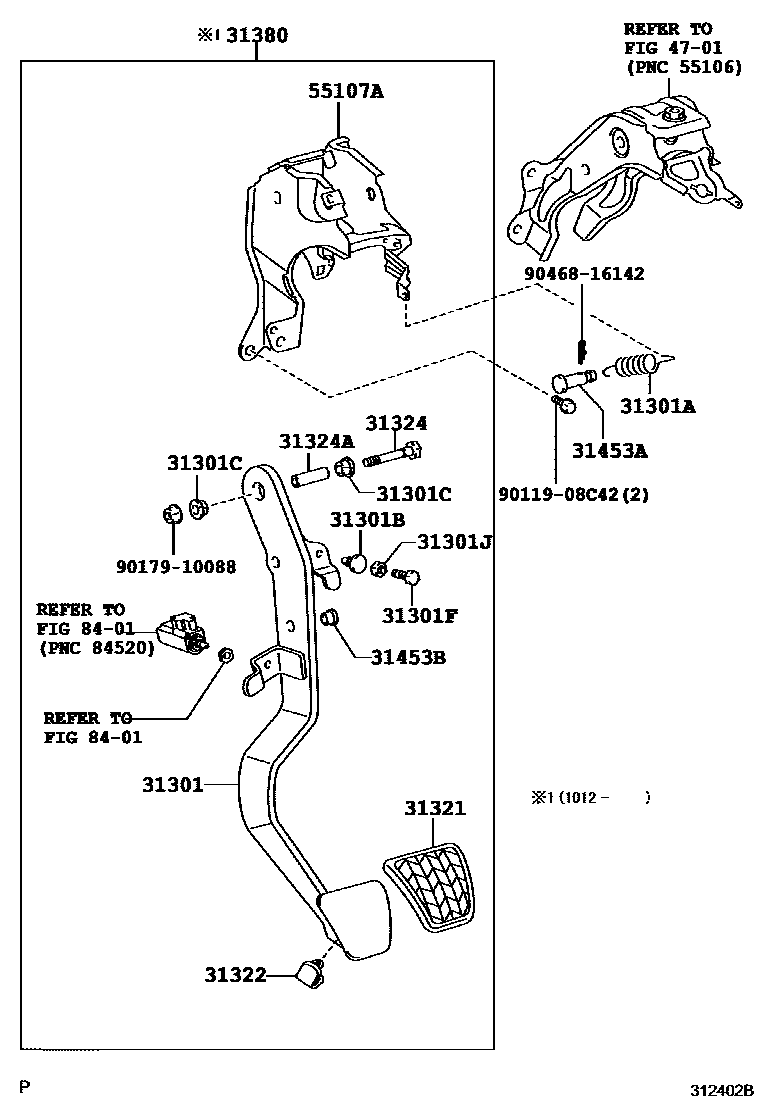

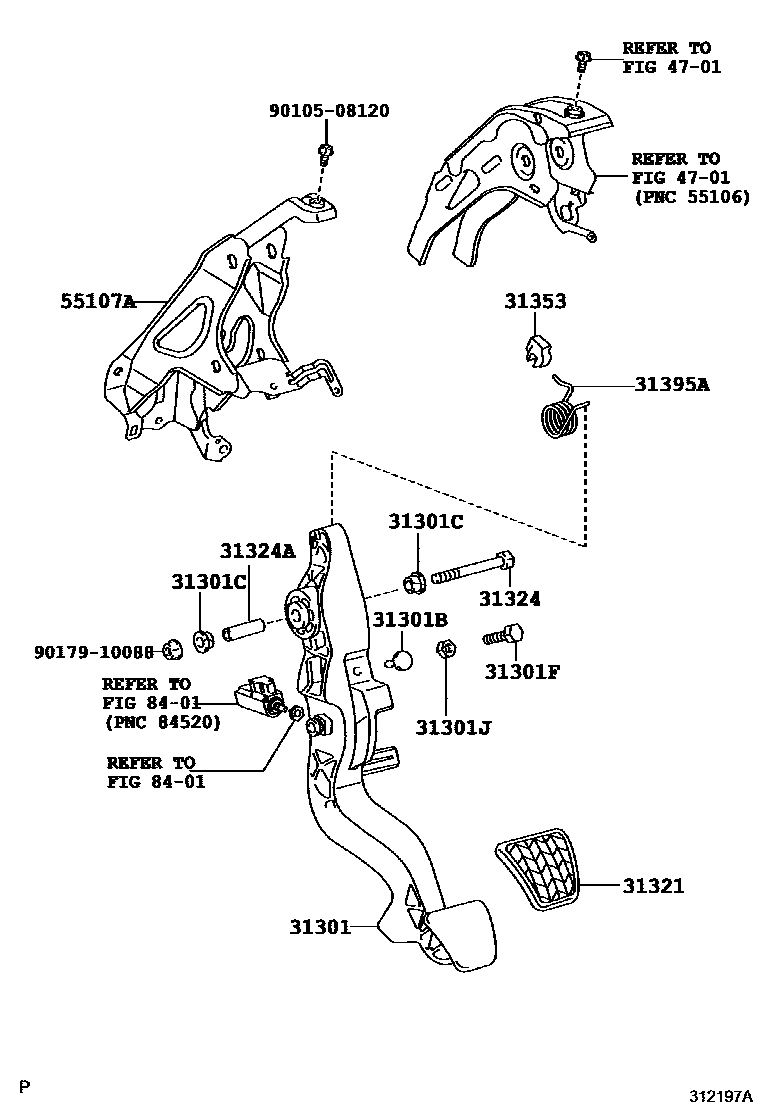

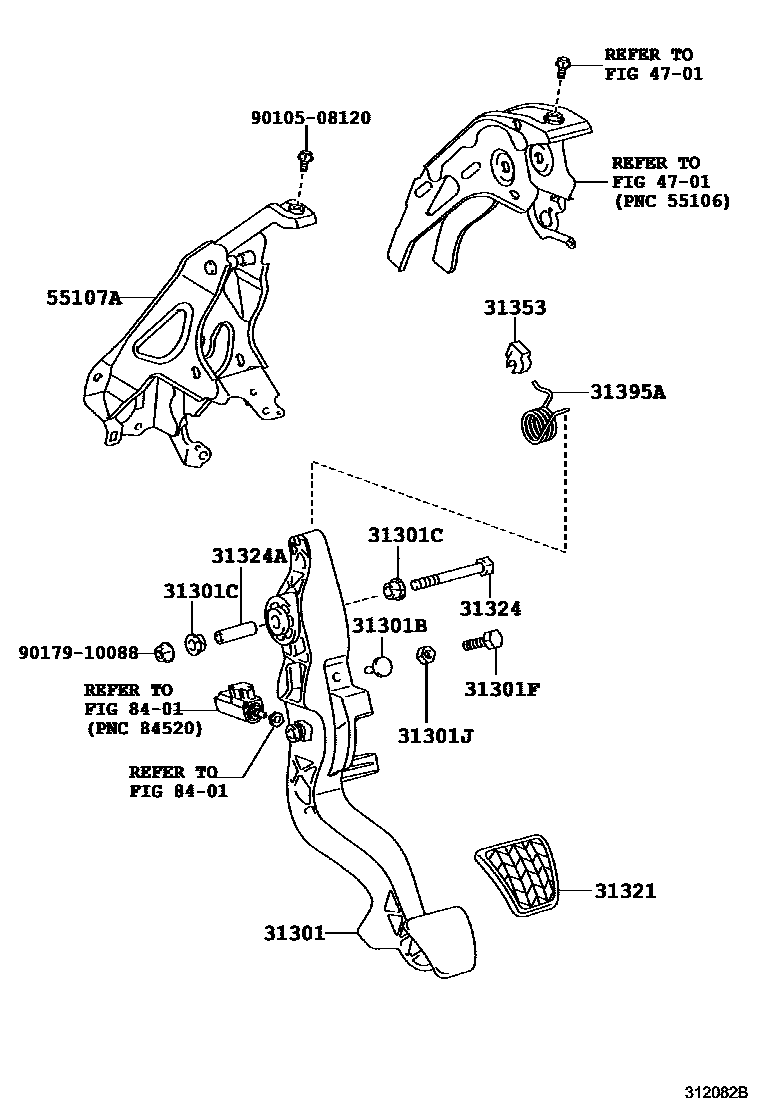

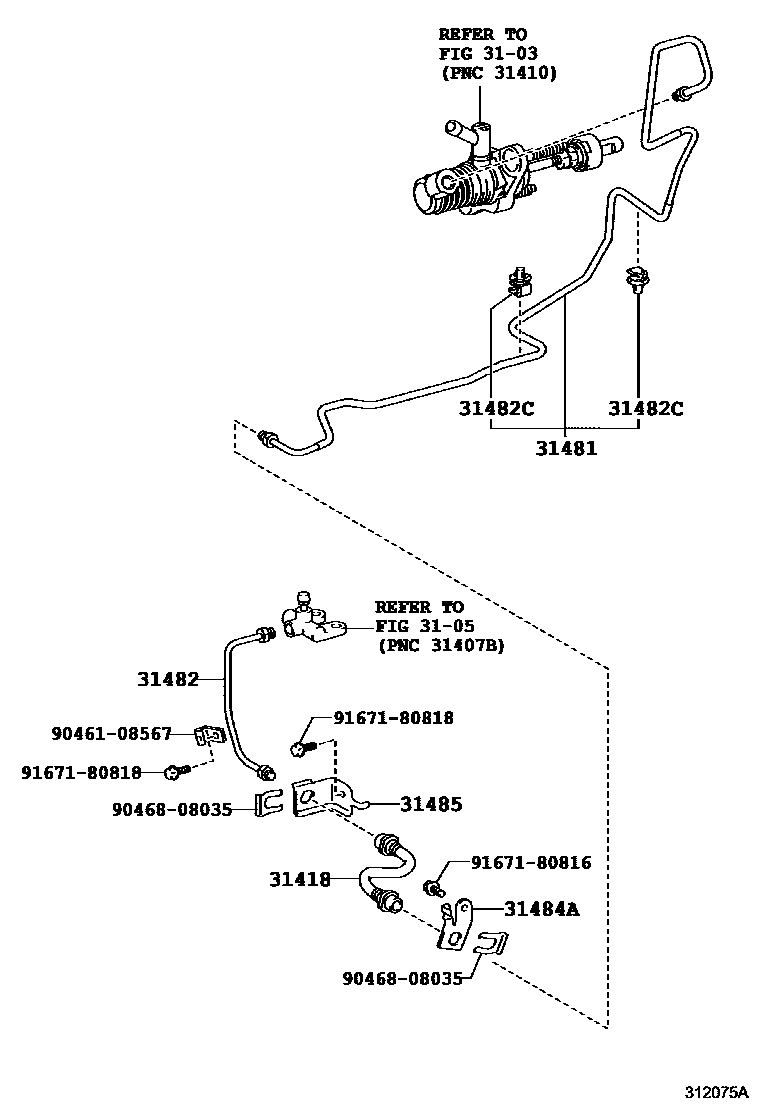

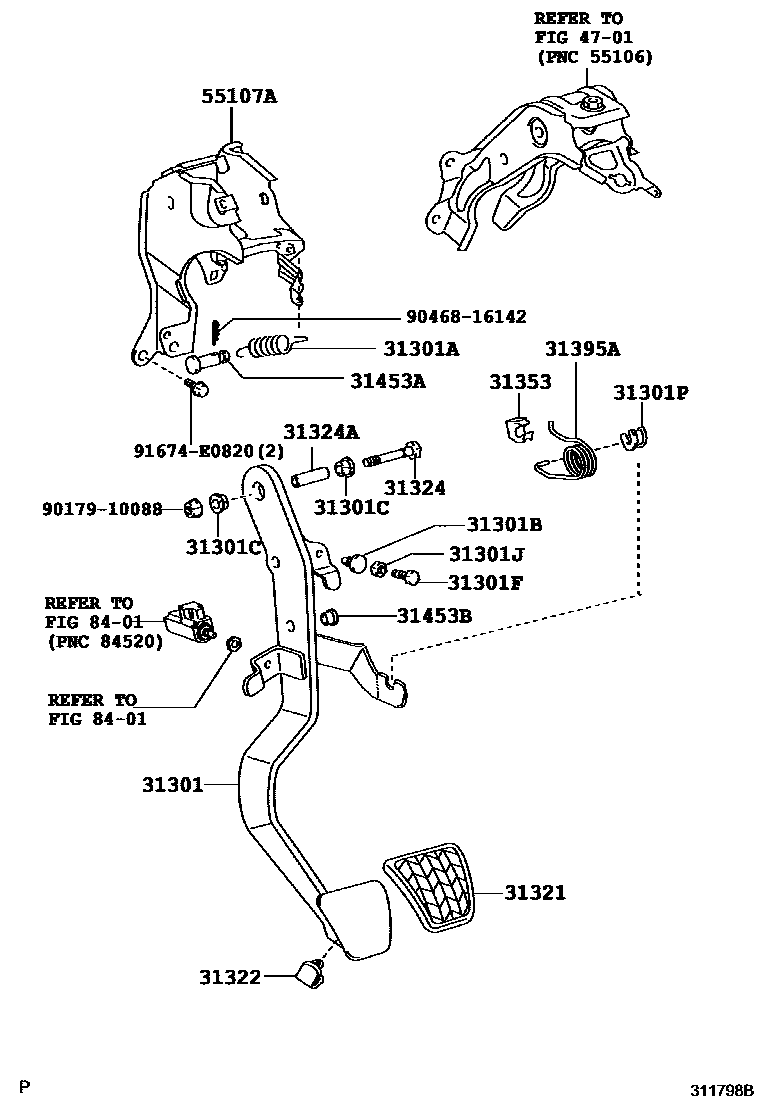

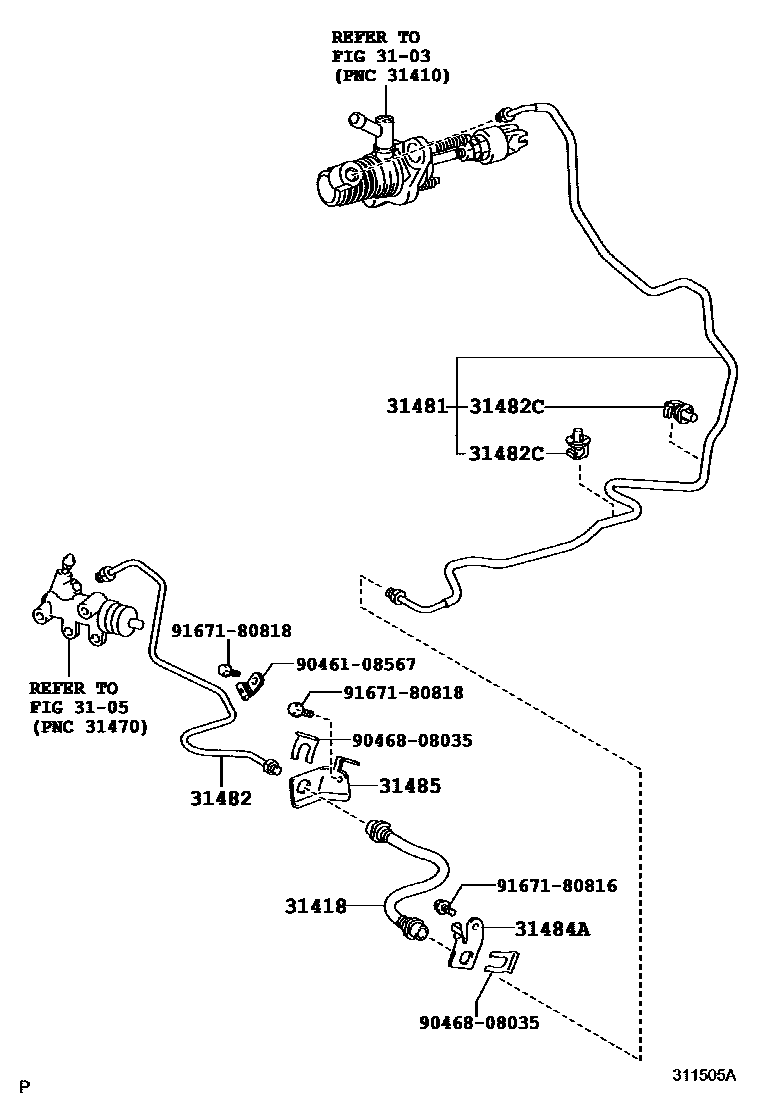

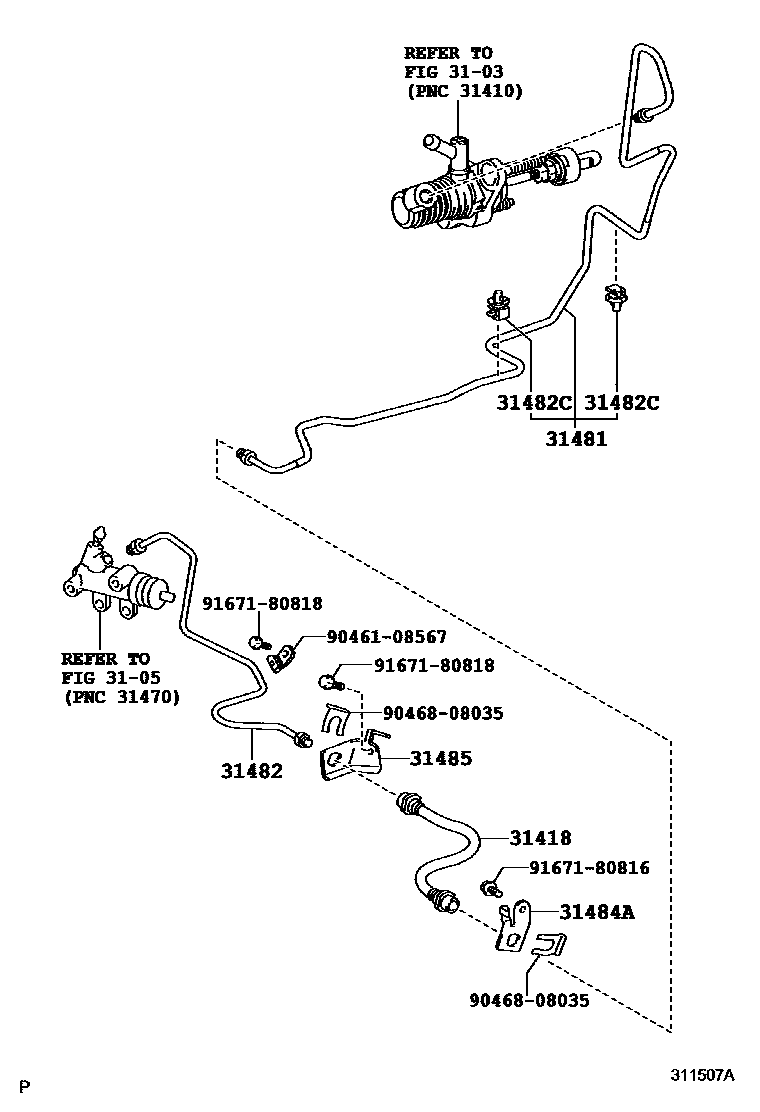

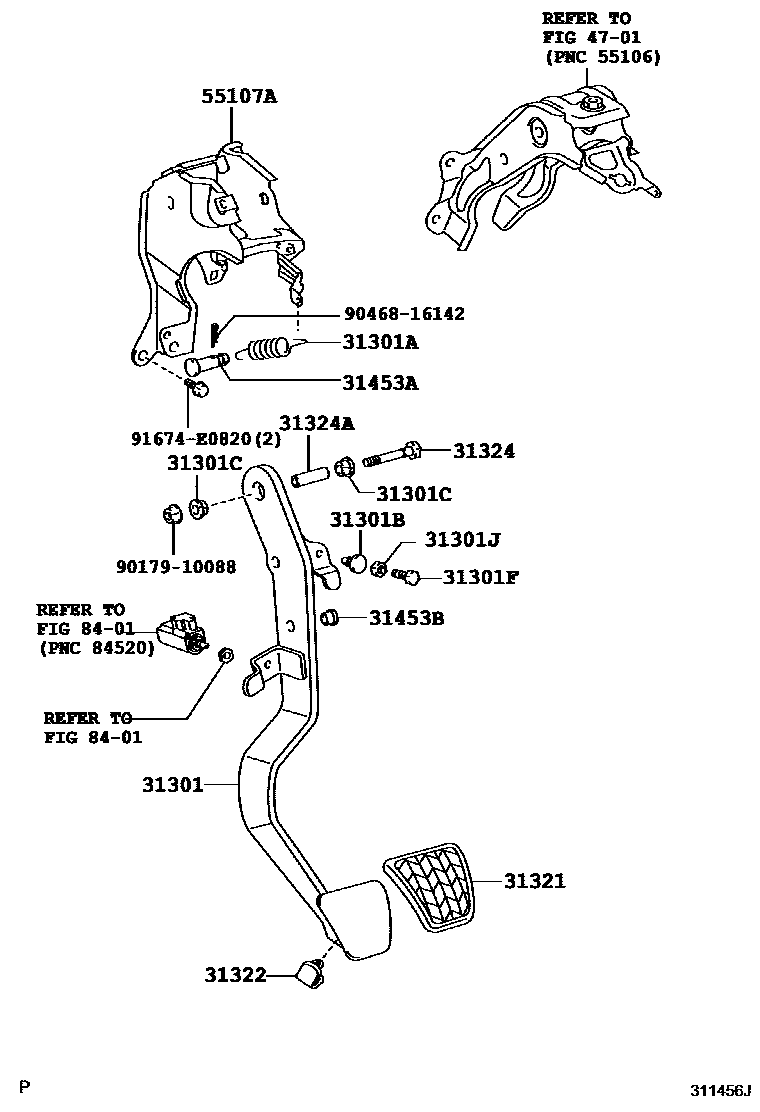

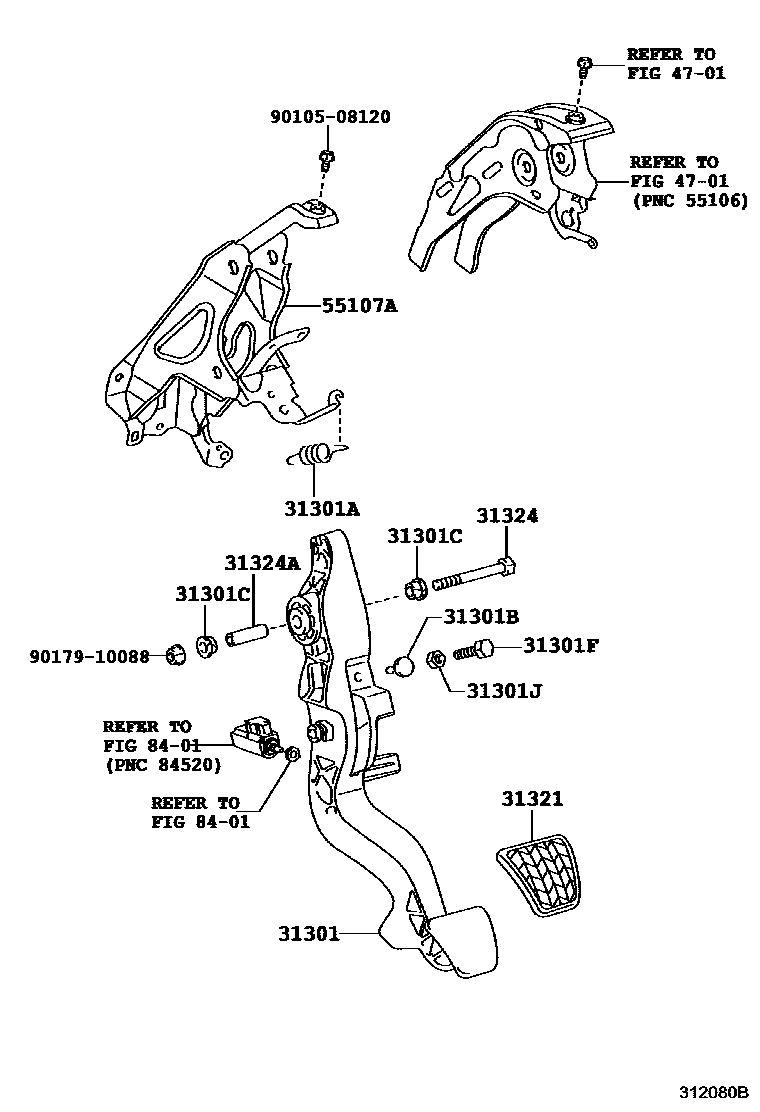

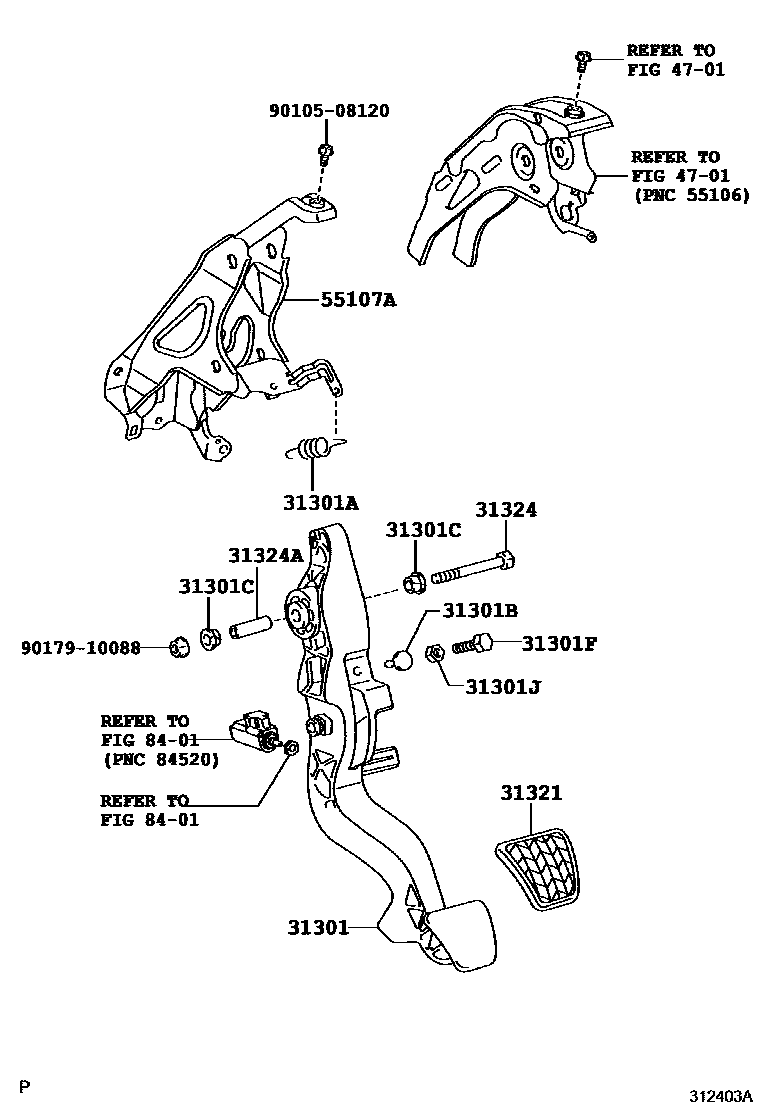

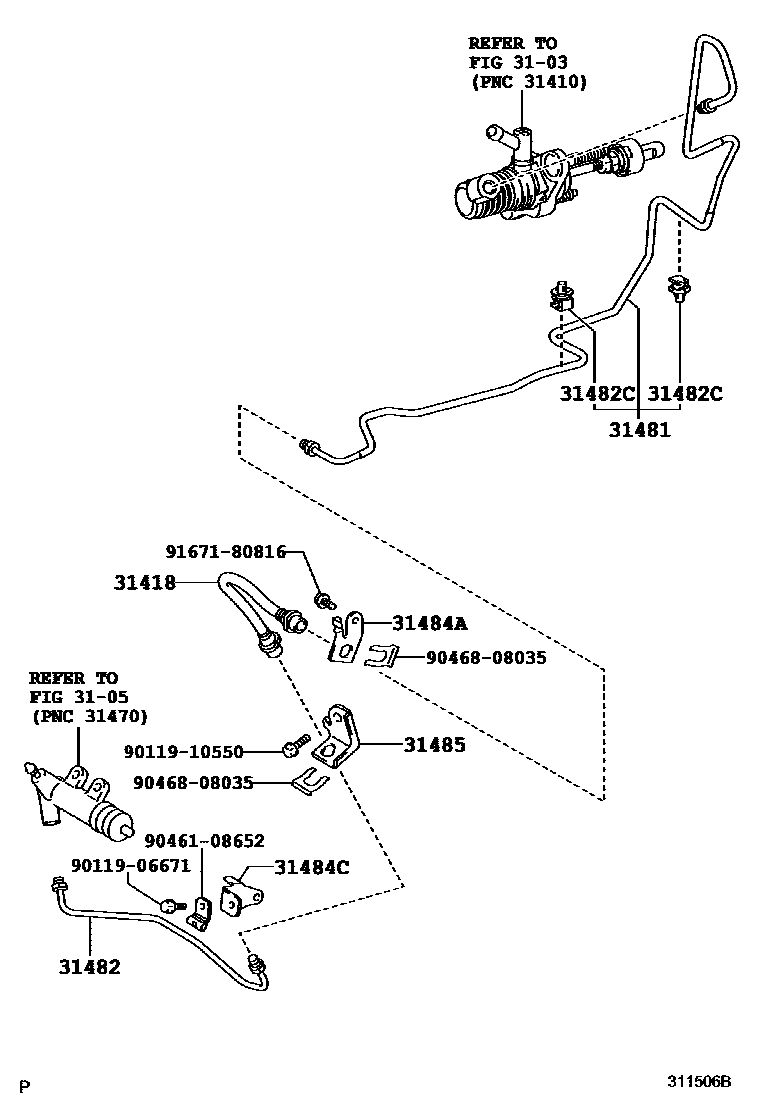

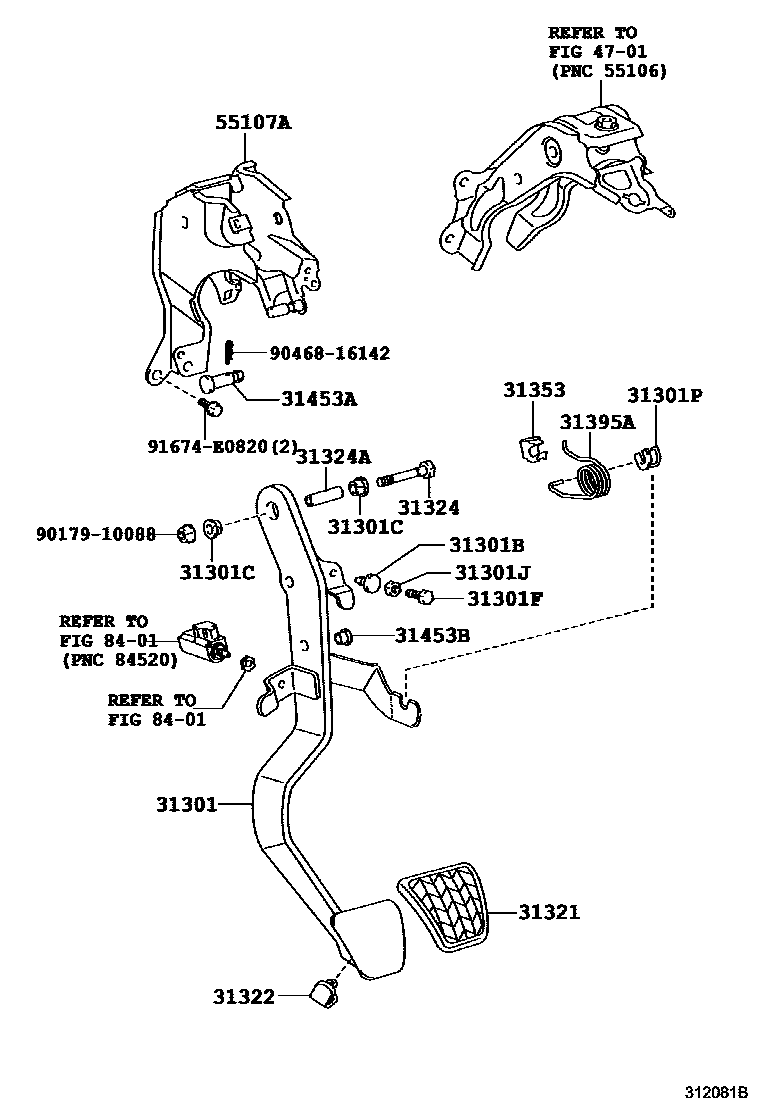

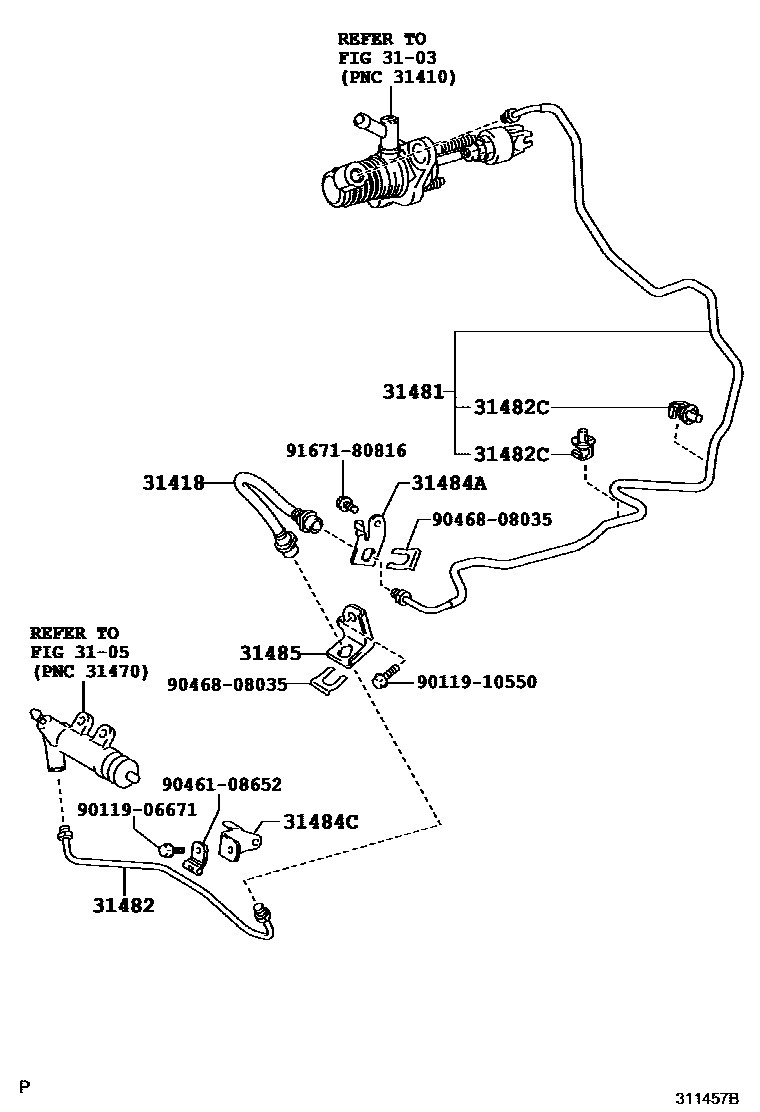

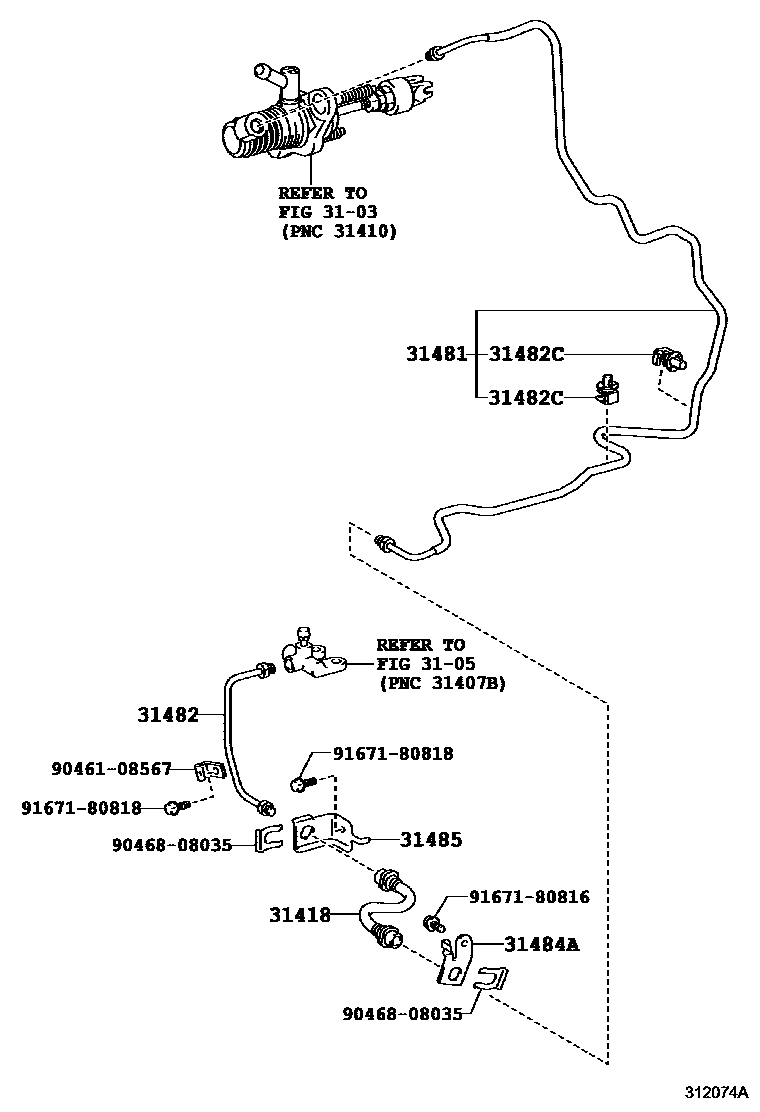

Toyota YARIS EPC diagram 3102, 离合器踏板和挠性软管, with 14 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31301 | Clutch pedal sub-assembly | 31301-52100 · 31301-52120 · 31301-52130 · 31301-52131 · 31301-52140 · 31301-52150 · 31311-52040 |
| 31301A | Spring (for clutch pedal) | 90507-14047 · 90507-14055 |
| 31301B | Cushion pad No. 1 (for clutch pedal) | 90541-06036 |
| 31301C | Bushing (for clutch pedal) | 90386-13015 |
| 31301F | Bolt (for clutch pedal stop) | 90101-10369 · 91112-61025 |
| 31301J | Nut (for clutch pedal stop) | 90170-10017 · 94130-61000 |
| 31301P | Bushing (for clutch pedal flip-up device) | 90389-06055 |
| 31321 | clutch pedal pad | 31321-52010 |
| 31322 | clutch pedal block | 31322-52010 |
| 31324 | clutch pedal shaft | 90101-10015 · 90101-10081 · 90105-10444 |
| 31324A | clutch pedal collar | 90387-10003 · 90387-10004 |
| 31353 | Clutch pedal spring retainer | 31353-26010 |
| 31380 | Pedal bracket assembly | 31380-52340 |
| 31395A | Pedal spring hook No. 1 | 31395-52010 · 31395-52030 |
| 31418 | clutch hose | 90947-02E09 · 90947-02E13 · 90947-02G28 |
| 31453A | Pin with hole (for clutch master cylinder push rod U-shaped clamp) | 90249-08051 |
| 31453B | Bushing (for clutch master cylinder push rod U-shaped clamp) | 90386-08002 · 90386-08033 |
| 31481 | Clutch master cylinder to flexible hose pipe | 31481-52100 · 31481-52110 · 31481-52120 |
| 31482 | Pipe from clutch release cylinder to flexible hose | 31482-52070 · 31482-52080 · 31482-52100 |
| 31482C | Clamp (for clutch tube) | 90949-01D17 |
| 31484A | No. 1 flexible hose bracket (for clutch) | 31484-52090 |
| 31484C | No. 1 clutch tube bracket | 31484-52150 |
| 31485 | No. 2 flexible hose bracket (for clutch) | 31484-52050 · 31484-52100 · 31484-52160 |
| 55107A | Clutch pedal bracket sub-assembly | 55107-52110 · 55107-52120 · 55107-52140 · 55107-52150 · 55107-52160 · 55107-52170 · 55107-52180 · 55107-52190 · 55107-52240 |
