Toyota YARIS 燃油喷射系统 — Figure 2211

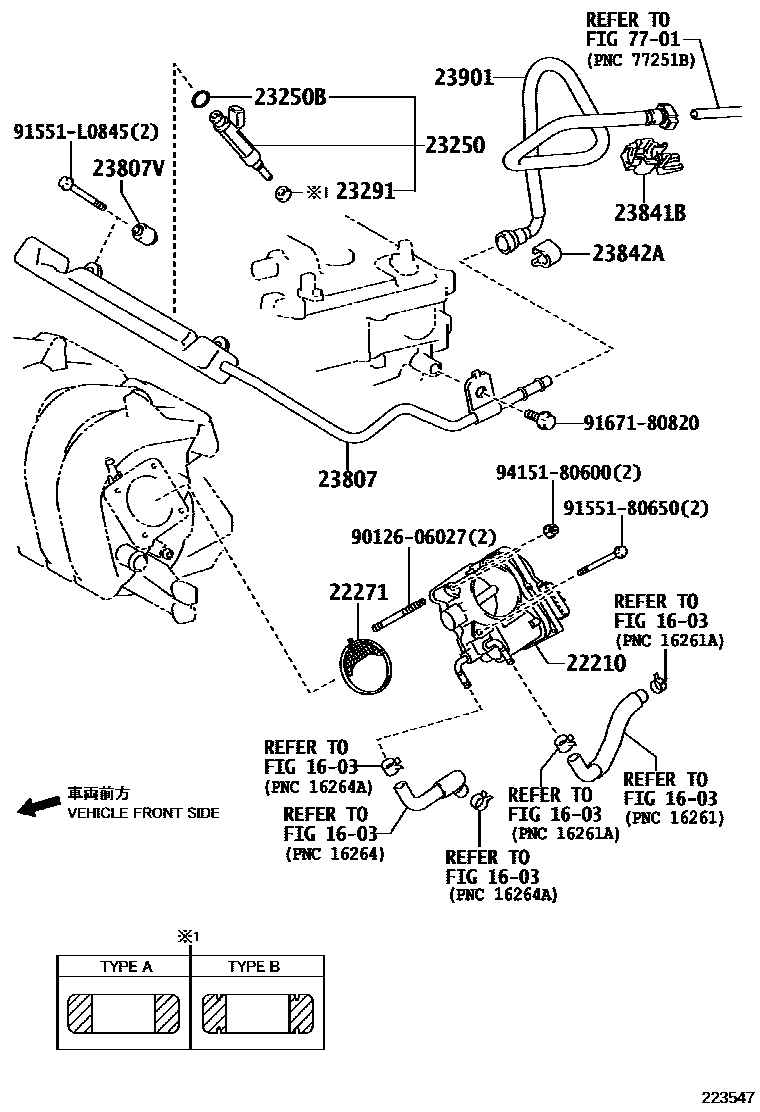

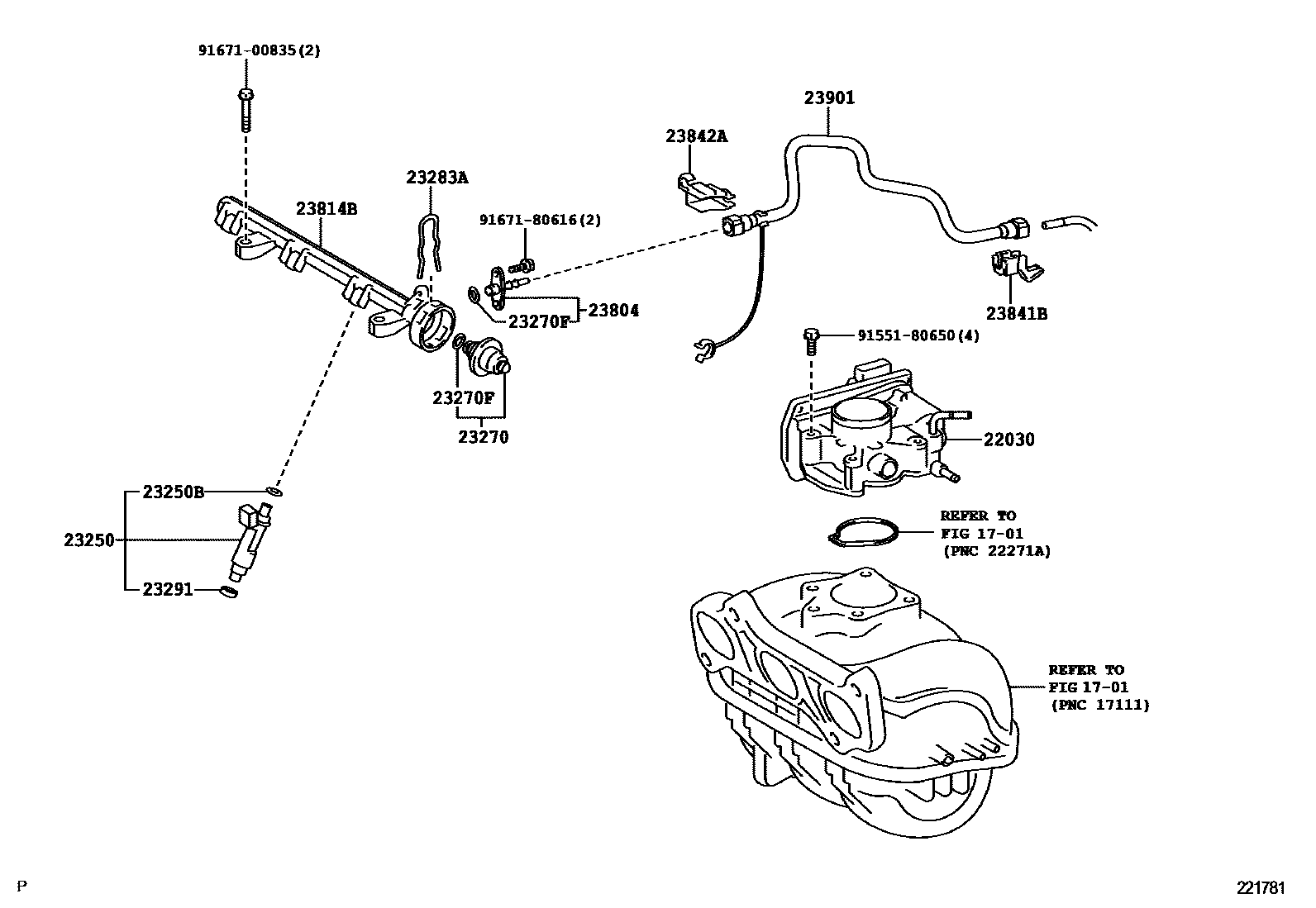

Toyota YARIS EPC diagram 2211, 燃油喷射系统, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22030 | Electronic throttle body assembly | 22030-0Q010 · 22030-0Q020 |
| 22210 | Throttle body assembly | 22030-37020 |
| 22271 | Throttle body gasket | 22271-75031 |
| 23250 | Fuel injector assembly | 23209-39145 · 23209-39146 · 23209-49085 |
| 23250B | O-ring (for fuel injector) | 90301-07033 · 90301-07037 |
| 23270 | Fuel pressure pulsation damper assembly | 23270-40010 |
| 23270F | O-ring (for pulsation damper) | 90301-07033 |
| 23283A | Fuel pressure regulator mount | 23283-40010 |
| 23291 | Injector vibration isolation pad | 23291-23010 · 23291-28020 · 23291-41010 · 23291-87701 |
| 23804 | No. 4 fuel pipe sub-assembly | 23804-40010 |
| 23807 | Oil pipe sub-assembly | 23814-37050 |
| 23807V | No. 1 spacer (for oil pipe) | 23891-37010 |
| 23814B | oil pipeline | 23814-40010 |
| 23841B | No. 1 fuel pipe clamp (for EFI) | 23841-21050 · 23841-28010 |
| 23842A | No. 2 fuel line clamp (for EFI) | 23842-22020 · 23842-40010 |
| 23901 | Fuel pipe sub-assembly | 23901-37020 · 23901-40020 |
