Toyota YARIS 起动机 — Figure 1904

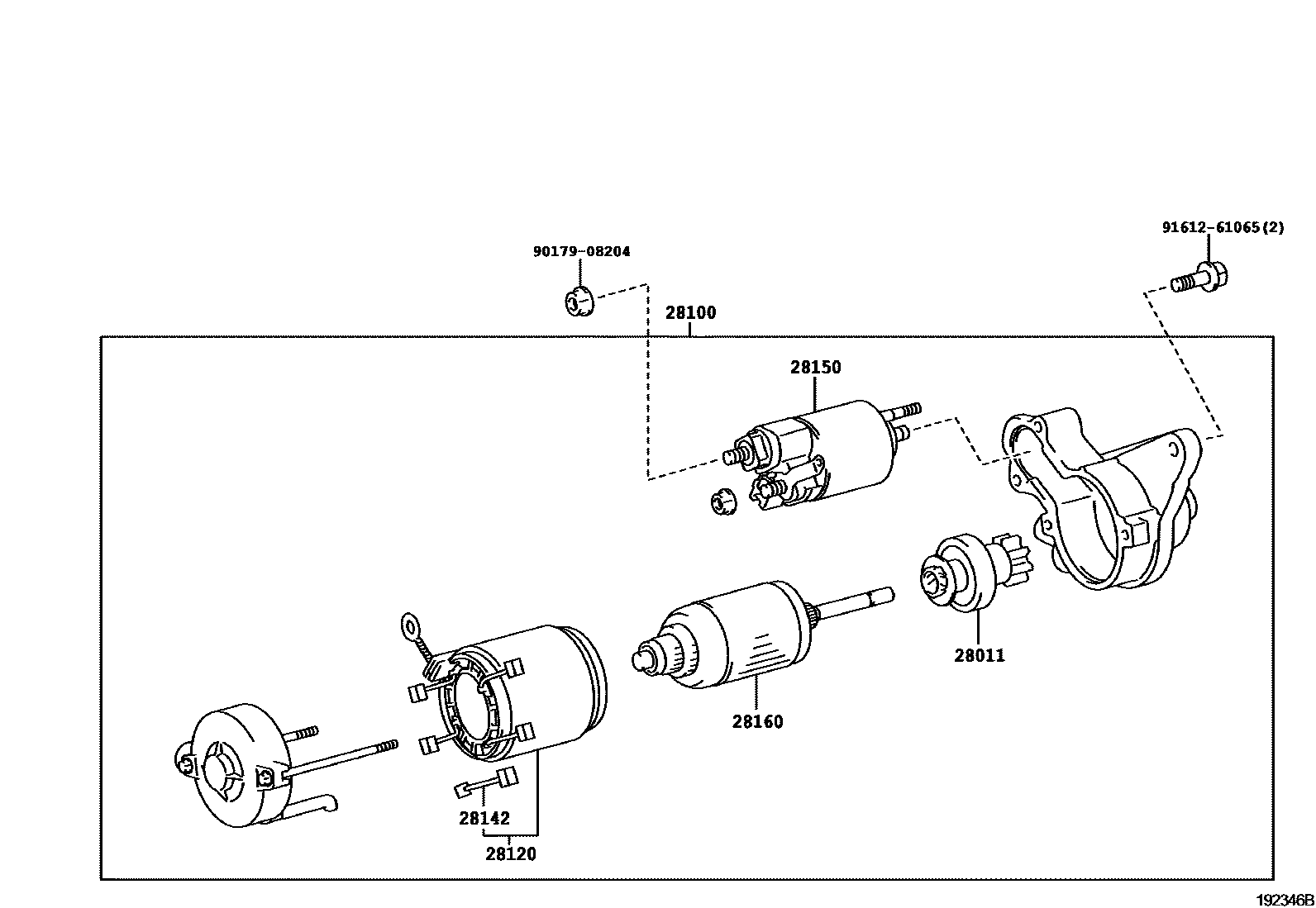

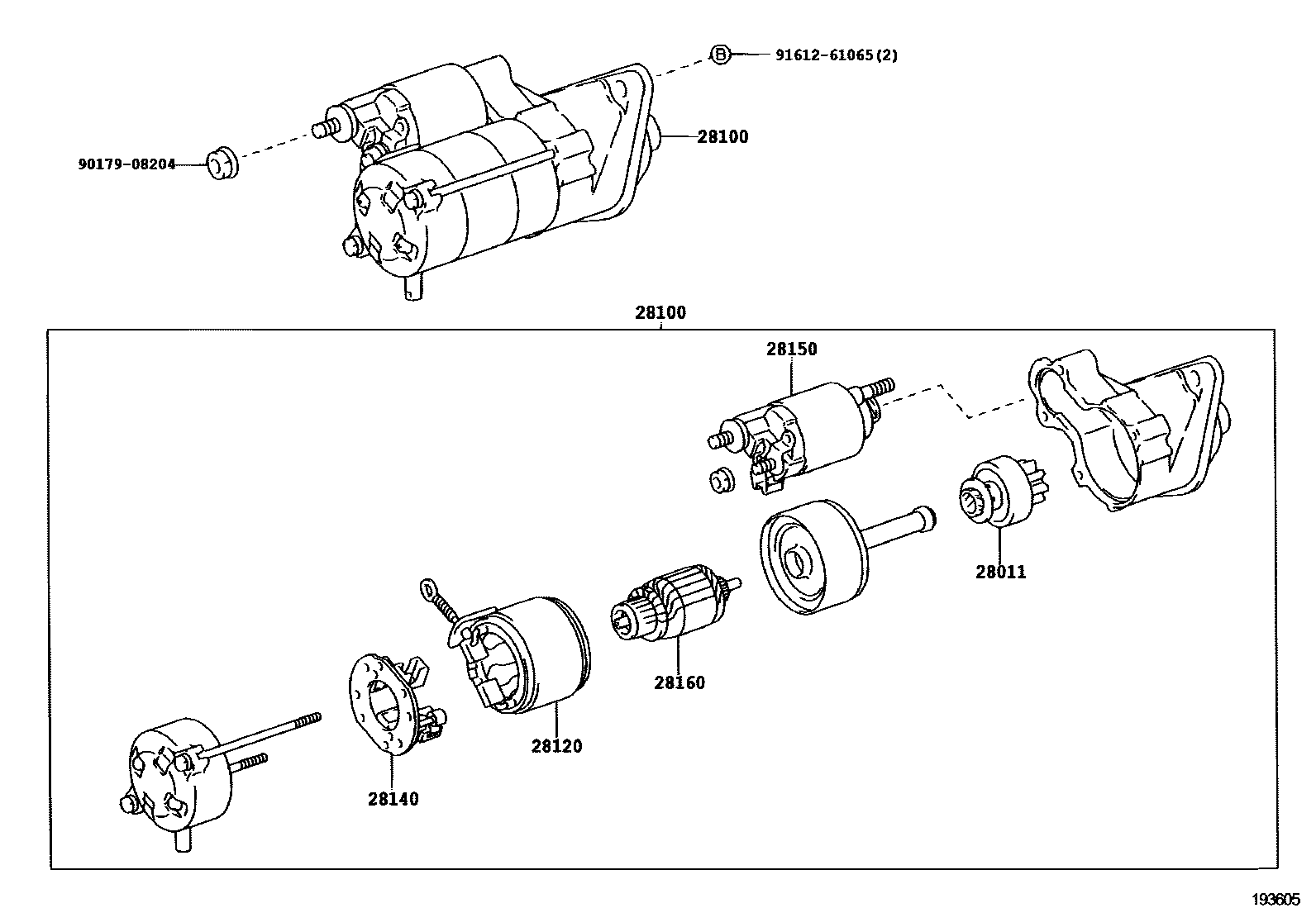

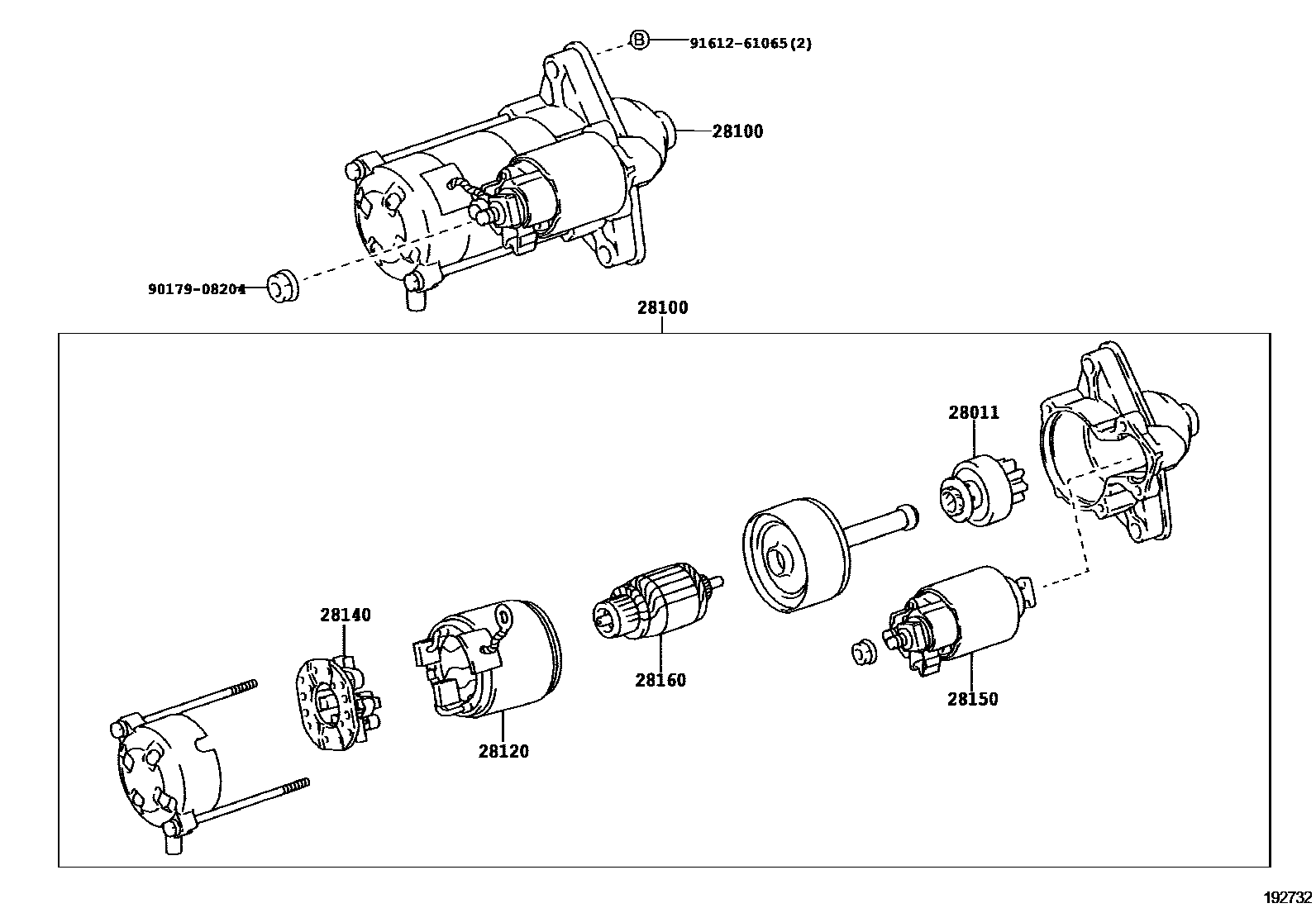

Toyota YARIS EPC diagram 1904, 起动机, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28011 | Starter clutch sub-assembly | 28011-23030 · 28011-40070 · 28011-70020 |
| 28100 | Starter assembly | 28100-37020 · 28100-37021 · 28100-37030 · 28100-37031 · 28100-40070 · 28100-40071 · 28100-40090 |
| 28120 | Starter yoke assembly | 28120-23020 · 28120-40120 · 28120-40130 · 28120-47120 · 28120-70020 · 28120-70050 |
| 28140 | Starter brush holder assembly | 28140-70020 |
| 28142 | starter brush | 28142-10020 |
| 28150 | Starter electromagnetic switch assembly | 28150-16160 · 28150-21020 · 28150-22100 · 28150-40070 |
| 28160 | Starter armature assembly | 28160-40070 · 28160-70021 · 28160-70050 |
