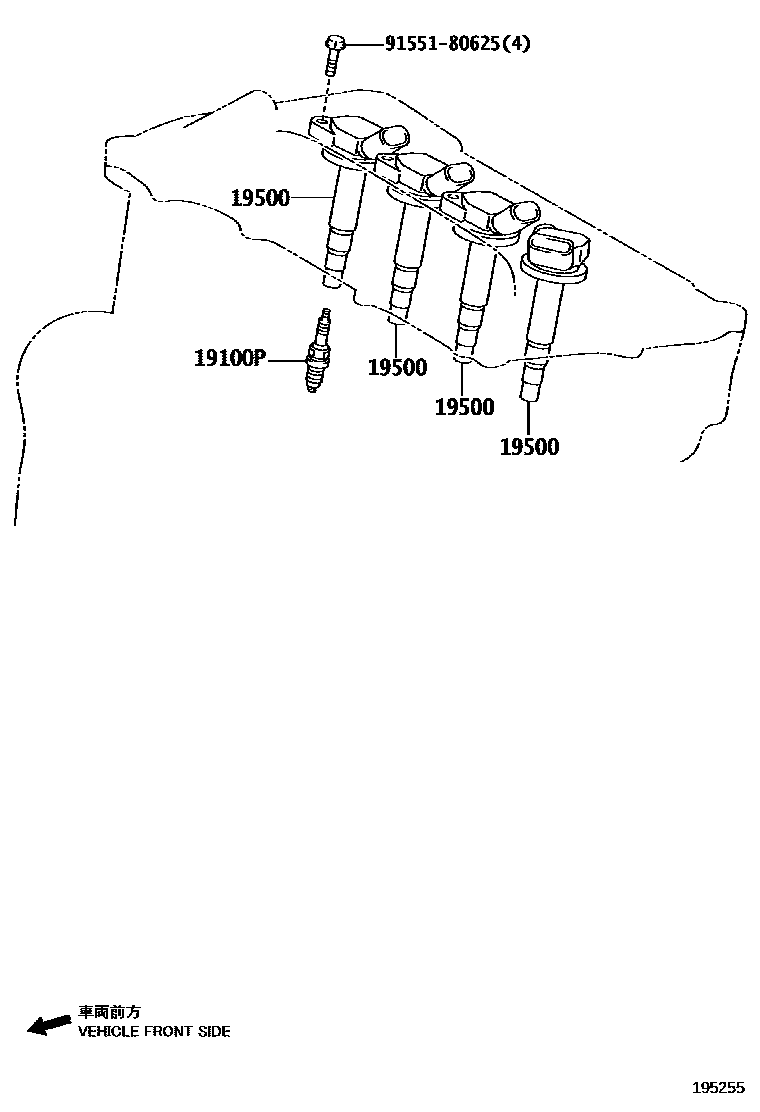

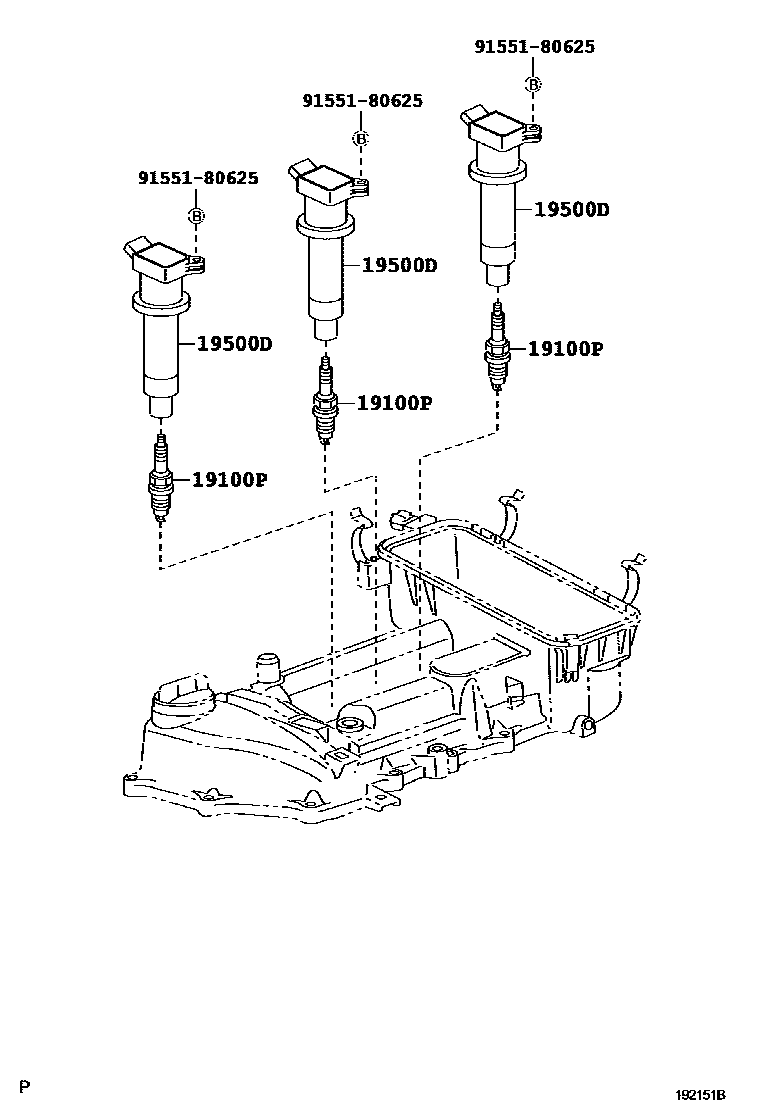

Toyota YARIS 点火线圈和火花塞 — Figure 1901
Toyota YARIS EPC diagram 1901, 点火线圈和火花塞, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100P | spark plug | 90919-01233 · 90919-01253 · 90919-W1001 · 90919-W1003 |
| 19500 | Ignition coil assembly | 90919-02252 |
| 19500D | No. 1 ignition coil | 90080-19019 · 90919-02239 · 90919-02262 |
