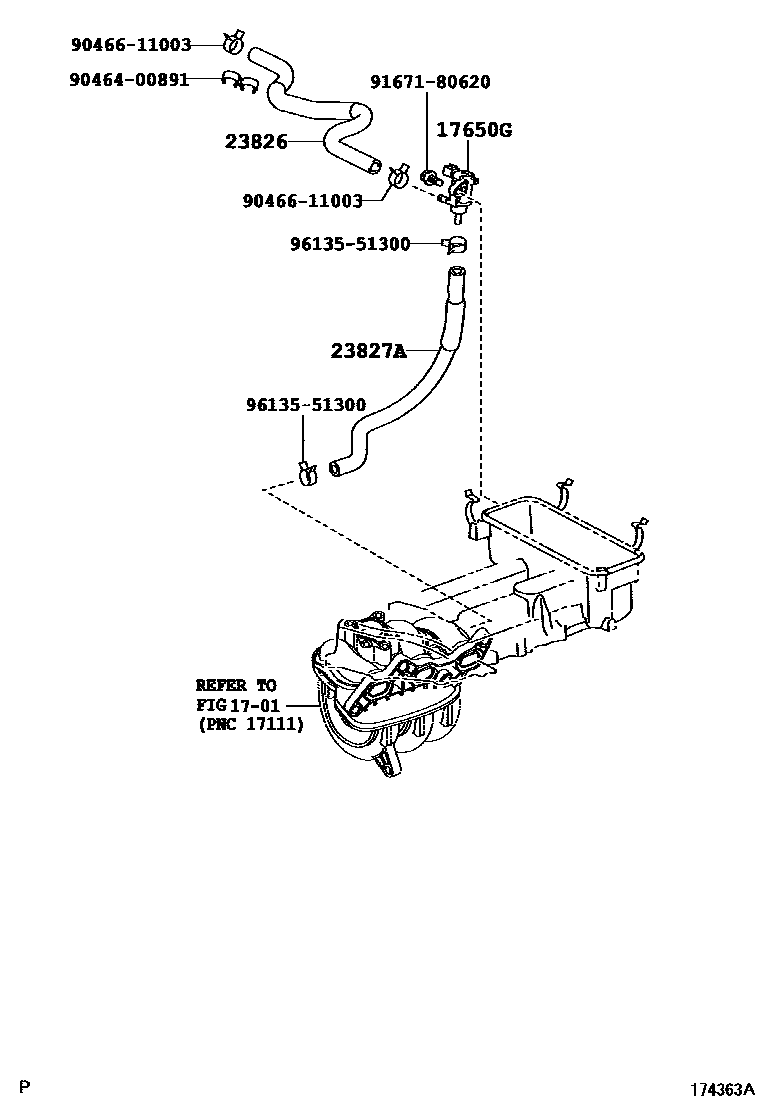

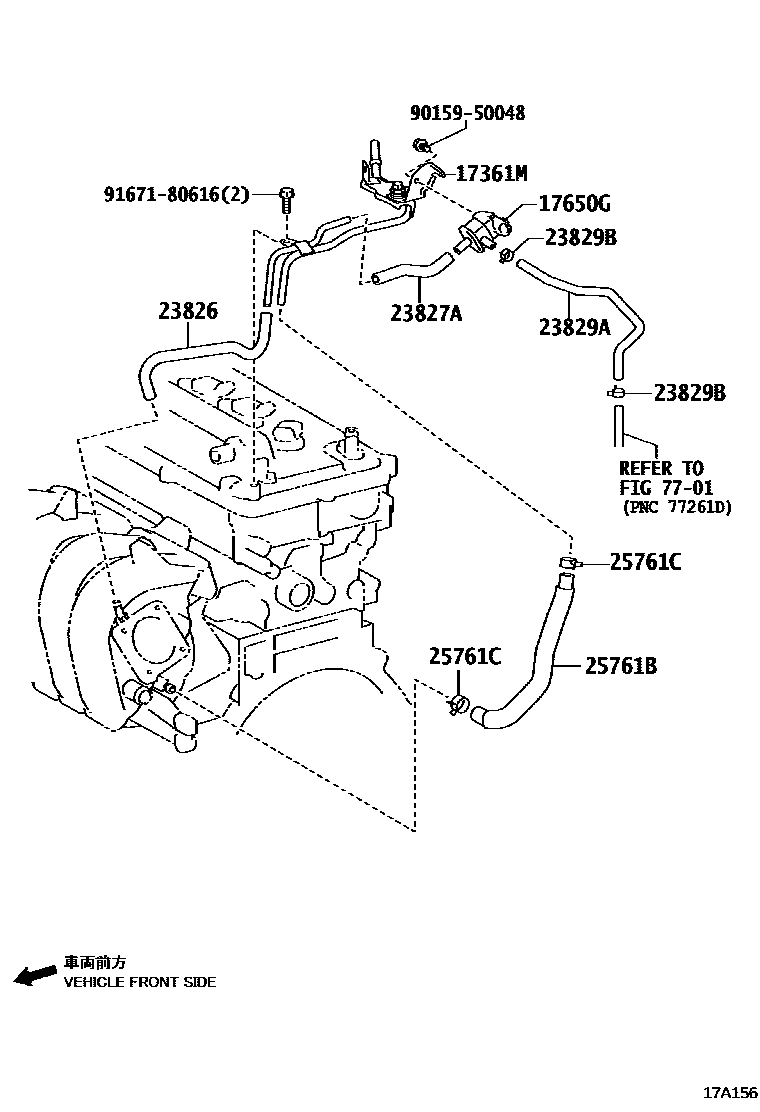

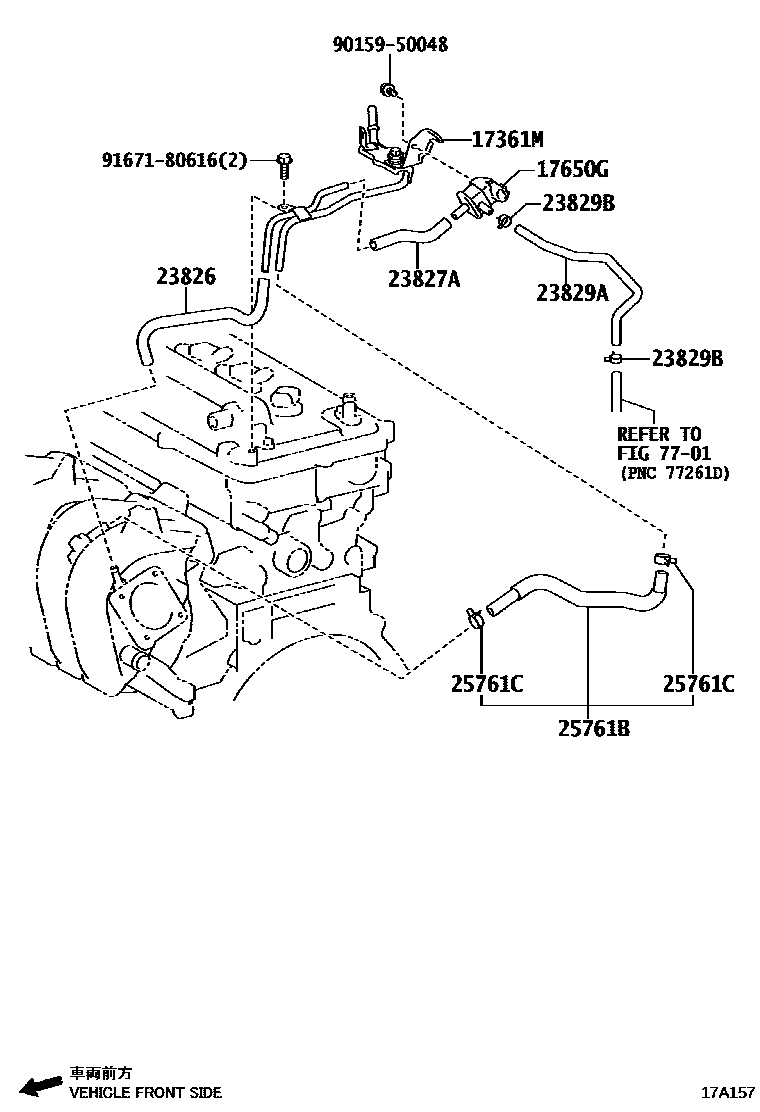

Toyota YARIS vacuum tube — Figure 1708
Toyota YARIS EPC diagram 1708, vacuum tube, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17361M | air tube | 17361-37010 · 17361-37011 |
| 17650G | Duty cycle controlled vacuum switching valve | 90910-12275 · 90910-12276 · 90910-WC001 |
| 23826 | No. 1 fuel vapor supply hose | 23826-37020 · 23826-37021 · 23826-40010 |
| 23827A | No. 2 fuel vapor supply hose | 23827-37020 · 23827-40011 |
| 23829A | Fuel vapor supply hose | 23826-37030 |
| 23829B | Clamp (for fuel vapor supply hose) | 90466-11003 |
| 25761B | No. 1 Vacuum Transfer Hose | 25761-37010 · 25761-37011 |
| 25761C | Clamp (No. 1 vacuum transfer hose) | 96133-41500 · 96136-41801 |
