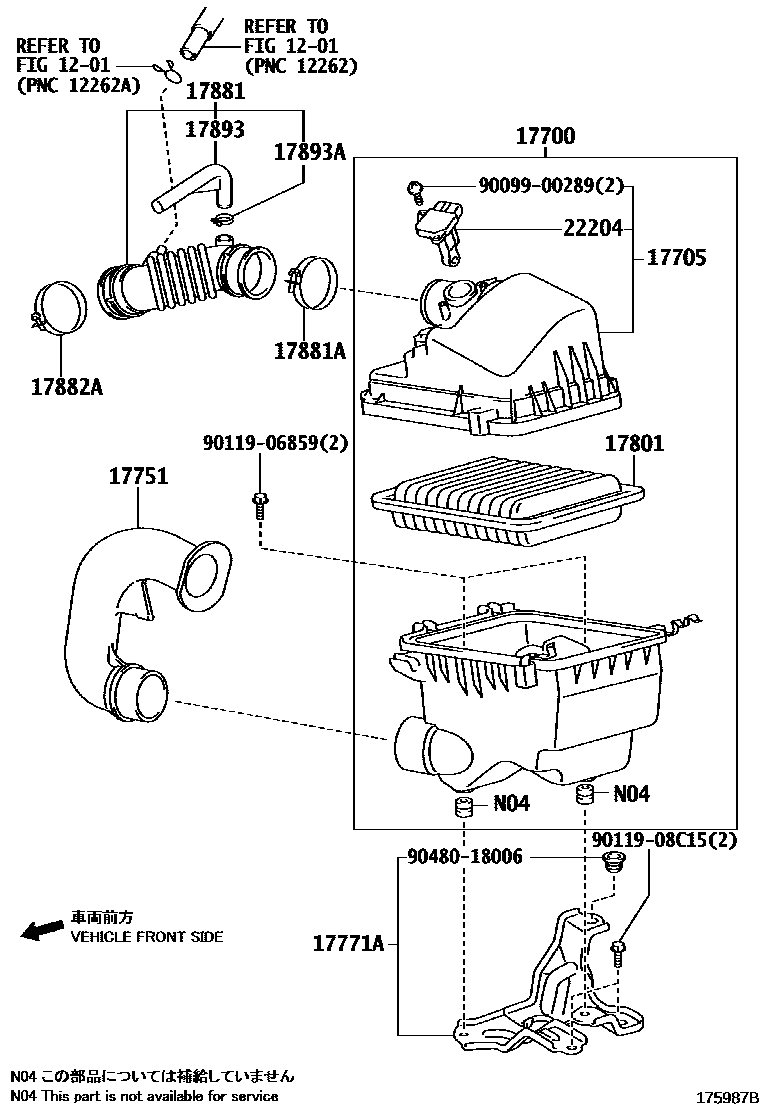

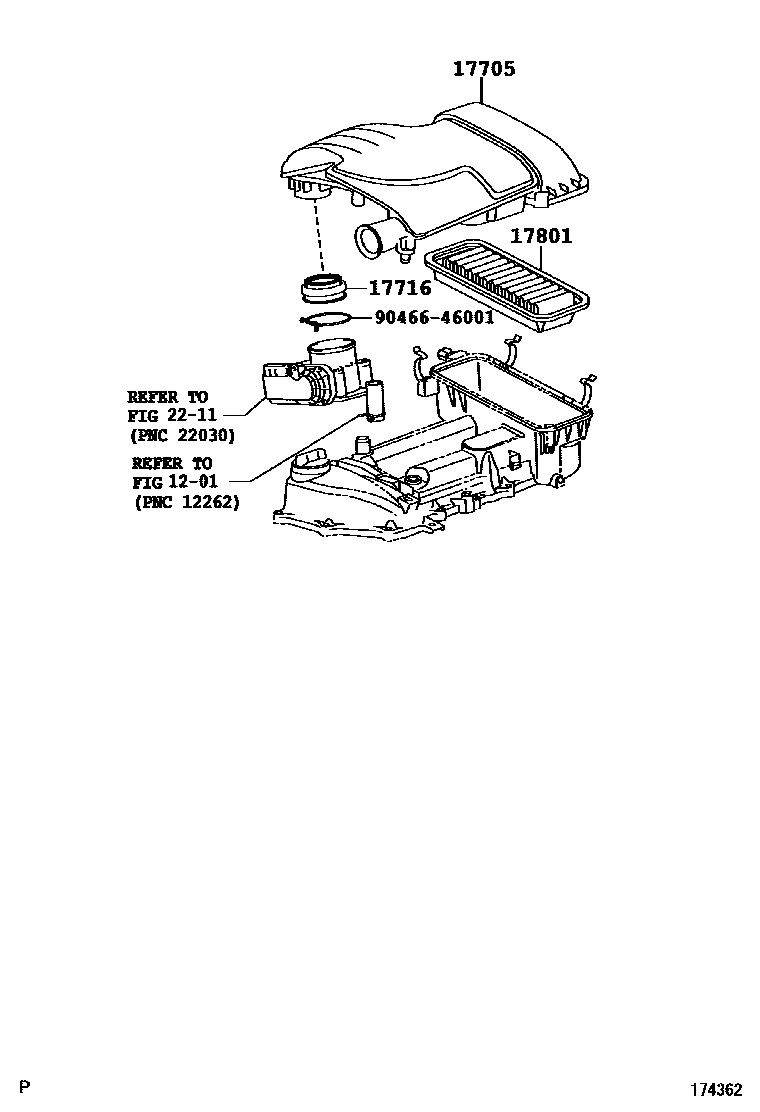

Toyota YARIS Air Cleaner — Figure 1703
Toyota YARIS EPC diagram 1703, Air Cleaner, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17700 | air filter assembly | 17700-37200 · 17700-37201 |
| 17705 | Air filter cover sub-assembly | 17705-0Q020 · 17705-37070 · 17705-37071 · 17705-40110 |
| 17716 | Air filter cover bracket | 17716-40031 |
| 17751 | No. 1 air filter air inlet | 17751-21160 |
| 17771A | air filter bracket | 17771-21050 |
| 17801 | Air filter element sub-assembly | 17801-0J020 · 17801-21050 · 17801-23030 |
| 17881 | No. 1 air cleaner hose | 17880-37050 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10780 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 96111-10780 |
| 17893 | Intake resonator | 17893-37020 |
| 17893A | hose clamp | 96111-10330 |
| 22204 | Intake air flow meter assembly | 22204-31010 · 22204-31020 |
