Toyota YARIS Exhaust Pipe — Figure 1702

Toyota YARIS EPC diagram 1702, Exhaust Pipe, with 2 images and 5 PNC and OE references.

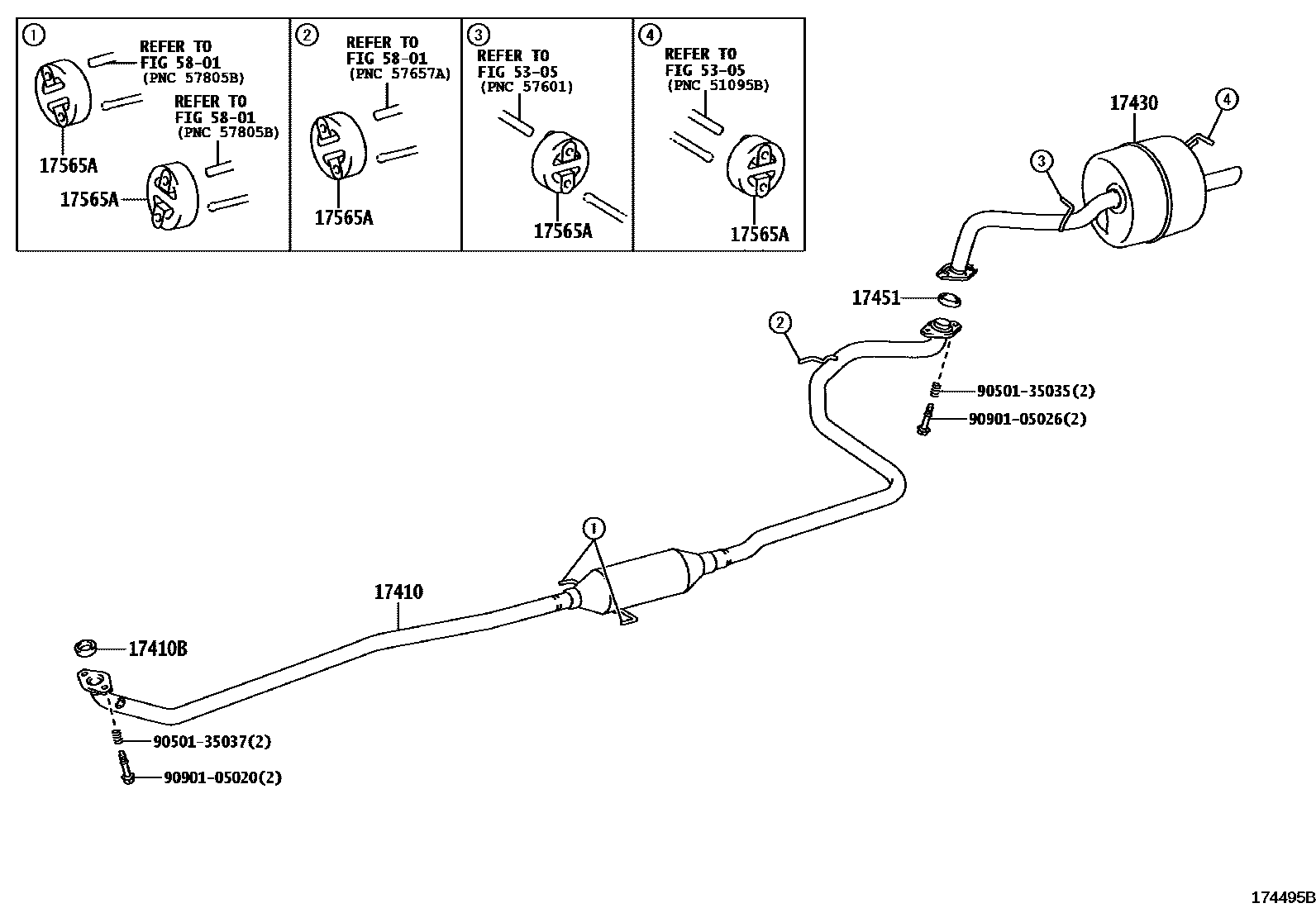

Toyota YARIS Exhaust Pipe EPC diagram — 174495B
Exhaust Pipe — 174495B (200508 – 999999)

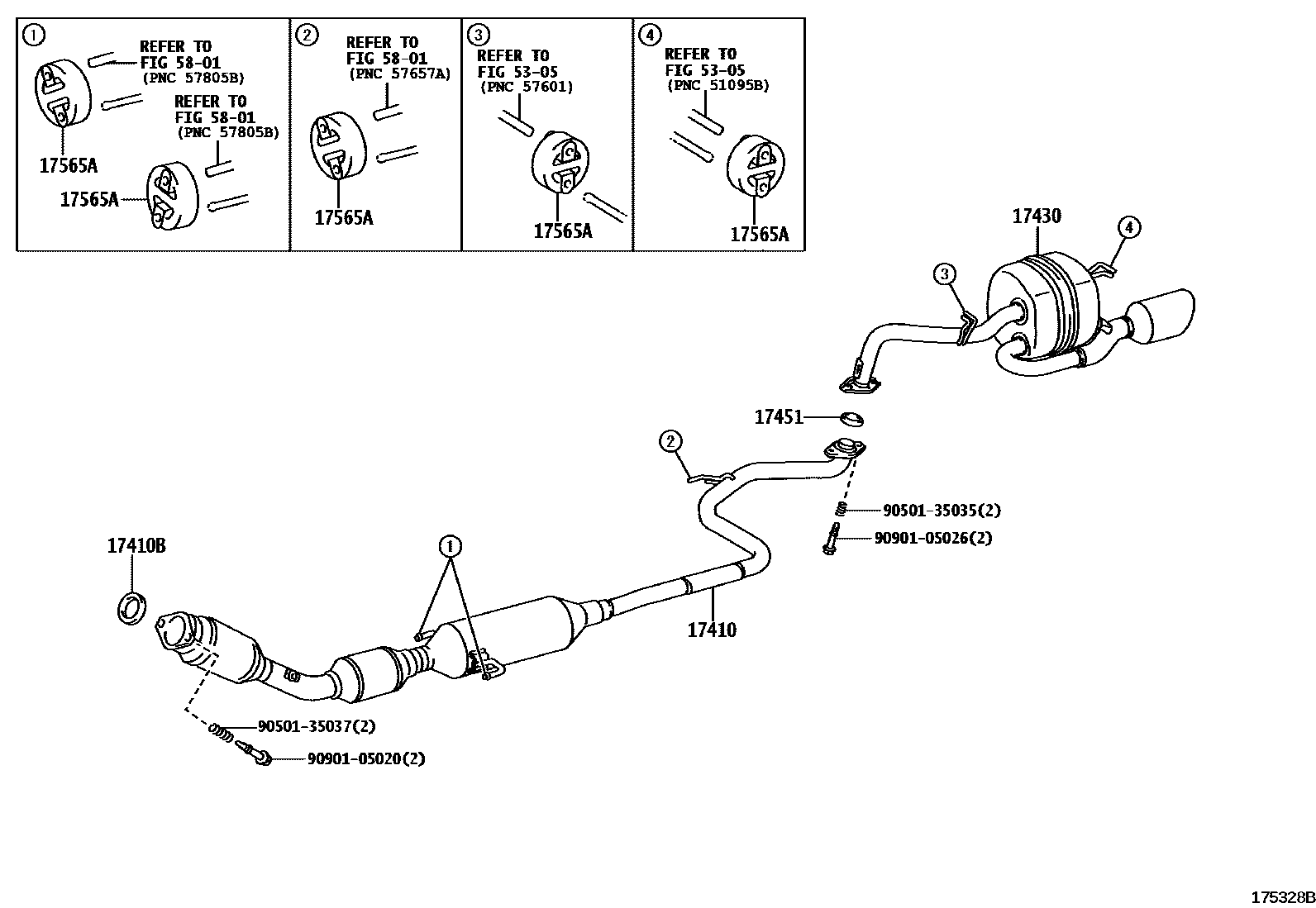

Toyota YARIS Exhaust Pipe EPC diagram — 175328B
Exhaust Pipe — 175328B (200611 – 999999)

PNC and OE references

PNCPart nameOE numbers
17410Front exhaust pipe assembly17410-37220 · 17410-37221 · 17410-40110 · 17410-40111 · 17410-40112 · 17410-40113 · 17410-40114
17410BExhaust pipe gasket17451-28040 · 17451-40010
17430Exhaust tailpipe assembly17430-37230 · 17430-40050 · 17430-40051
17451Exhaust pipe gasket17451-23040 · 17451-23041 · 17451-40020 · 17451-40030 · 17451-40031 · 17451-40032
17565ANo. 4 exhaust pipe lifting lug17565-40010 · 17565-47010
