Toyota YARIS Manifold — Figure 1701

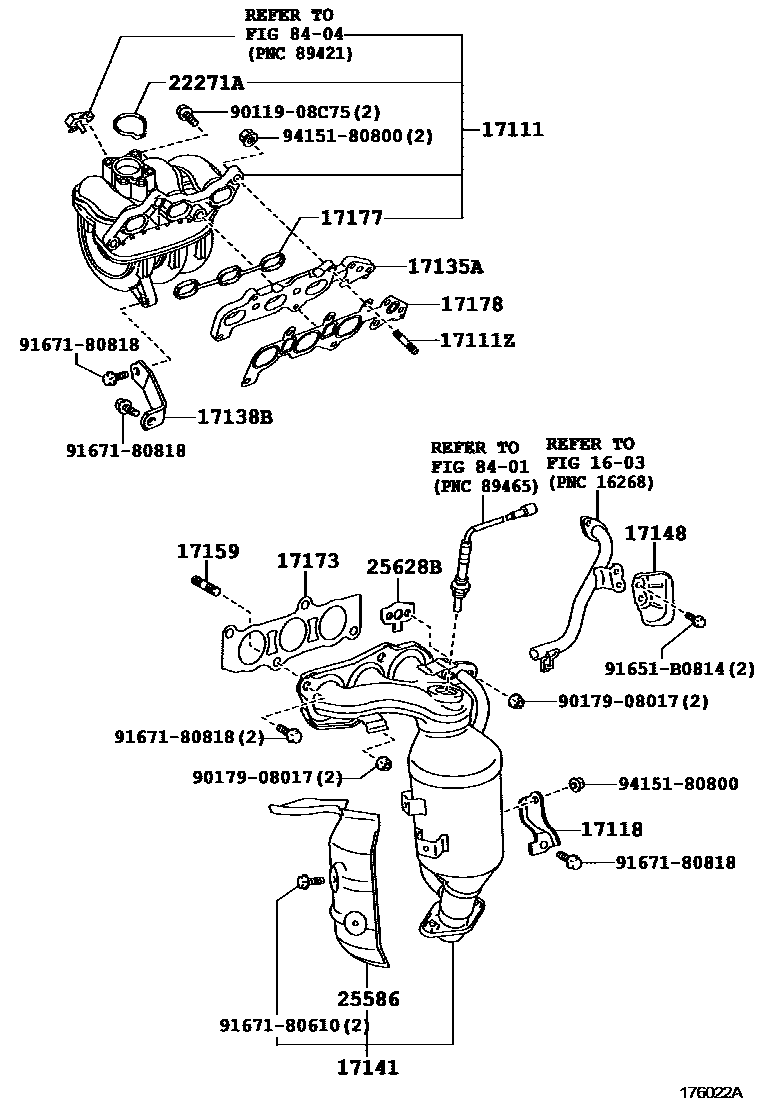

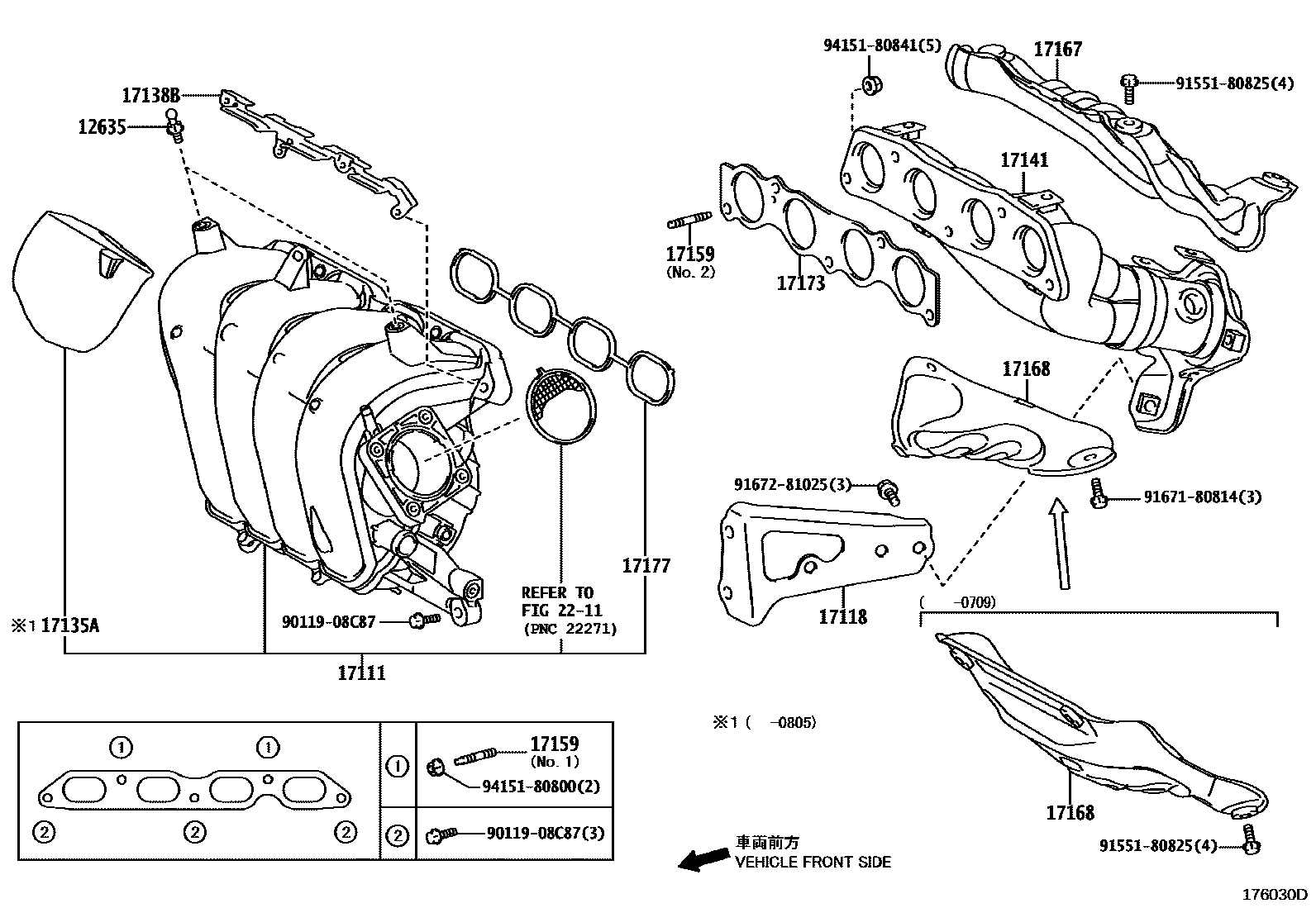

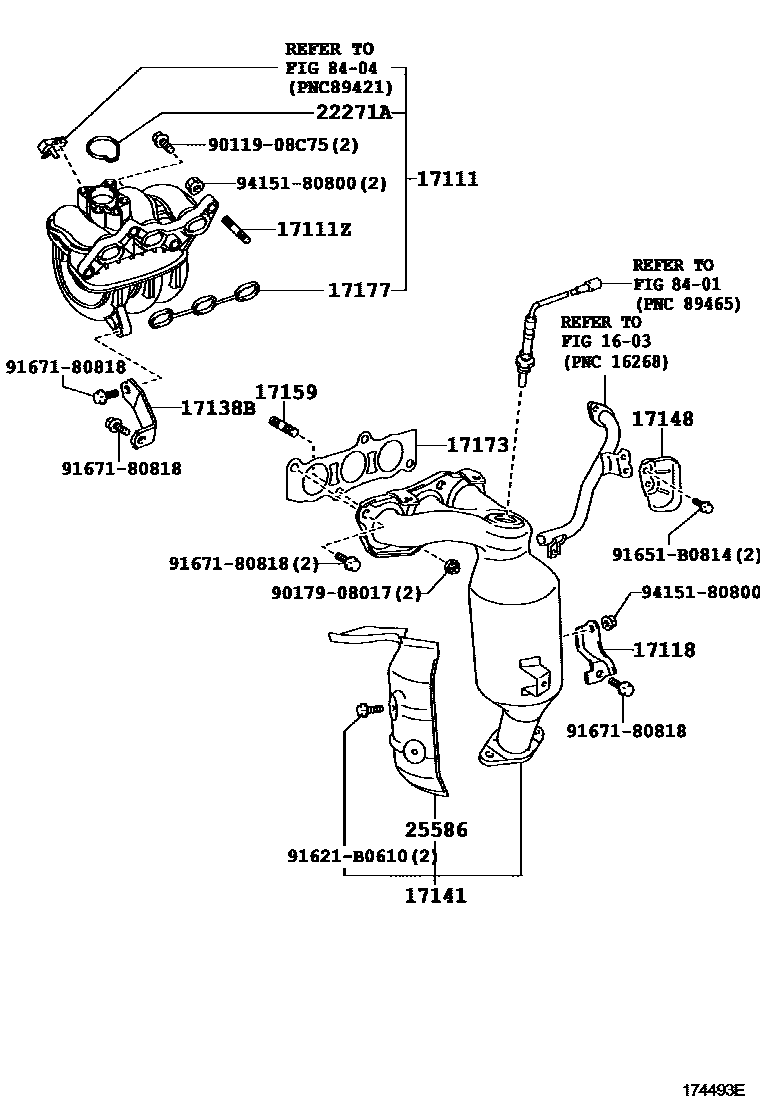

Toyota YARIS EPC diagram 1701, Manifold, with 3 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12635 | hood connector | 90109-06385 |
| 17111 | Intake Manifold | 17120-0Q020 · 17120-0Q030 · 17120-37020 · 17120-37021 · 17120-37022 |
| 17111Z | Stud bolts (for intake manifold to cylinder head) | 92122-80828 · 92122-80845 |
| 17118 | Manifold stays | 17118-0Q010 · 17118-37010 · 17118-40010 |
| 17135A | Intake manifold No. 1 heat shield | 17135-37010 · 17135-40020 |
| 17138B | Intake manifold stay | 17138-0Q010 · 17138-37010 · 17138-40040 |
| 17141 | exhaust manifold | 17140-0Q020 · 17140-40040 · 17141-37050 · 17141-37051 |
| 17148 | Exhaust manifold plate (for EGR intake) | 17148-40010 · 17148-40020 |
| 17159 | Studs (for manifold to cylinder head) | 90126-08026 · 90126-08052 · 90126-08055 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-37011 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-37030 · 17168-37100 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-37010 · 17173-40020 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17177-0Q010 · 17177-0Q020 · 17177-37030 · 17177-40020 |
| 17178 | No. 2 gasket (intake manifold to cylinder head) | 17178-40020 |
| 22271A | Throttle body gasket | 22271-40010 |
| 25586 | No. 1 manifold three-way catalytic converter vibration isolation pad | 25586-0Q020 · 25586-40040 |
| 25628B | EGR air intake gasket | 25628-0Q010 · 25628-40020 |
