Toyota YARIS RADIATOR & WATER OUTLET — Figure 1603

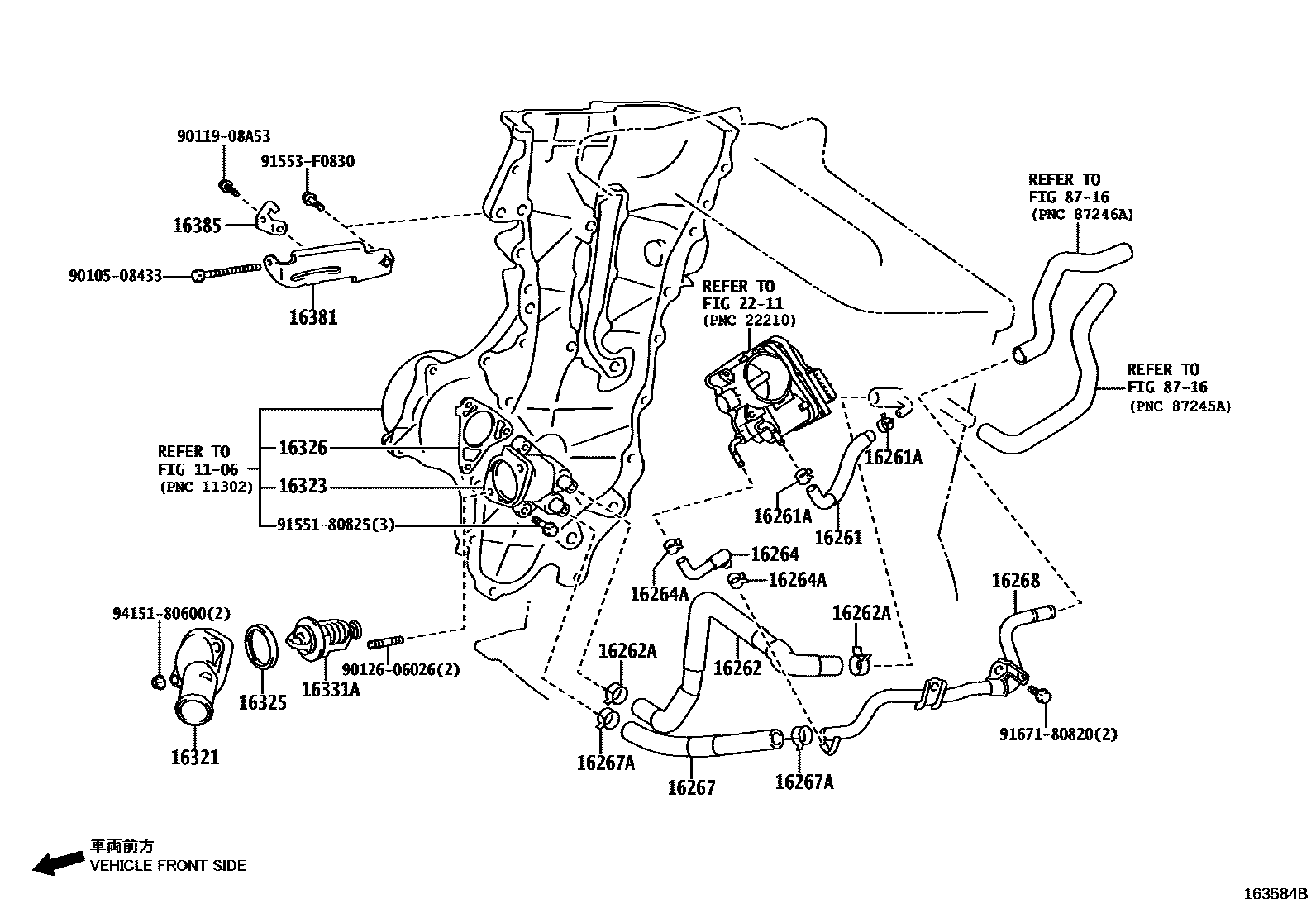

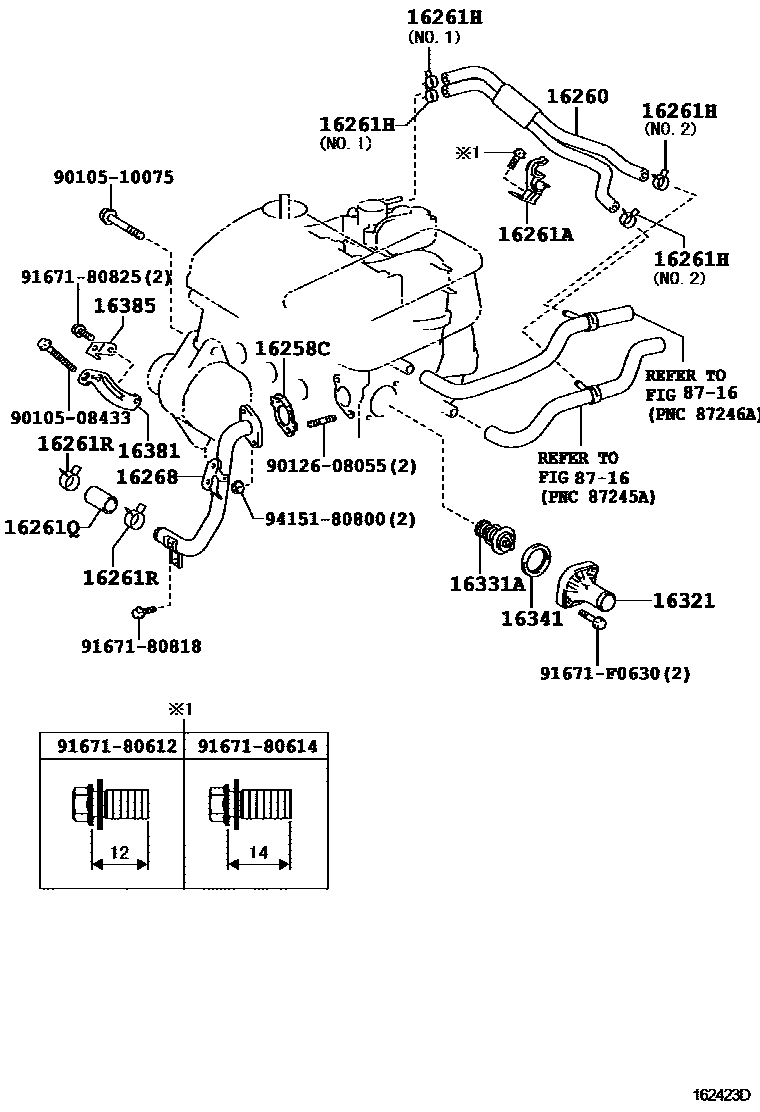

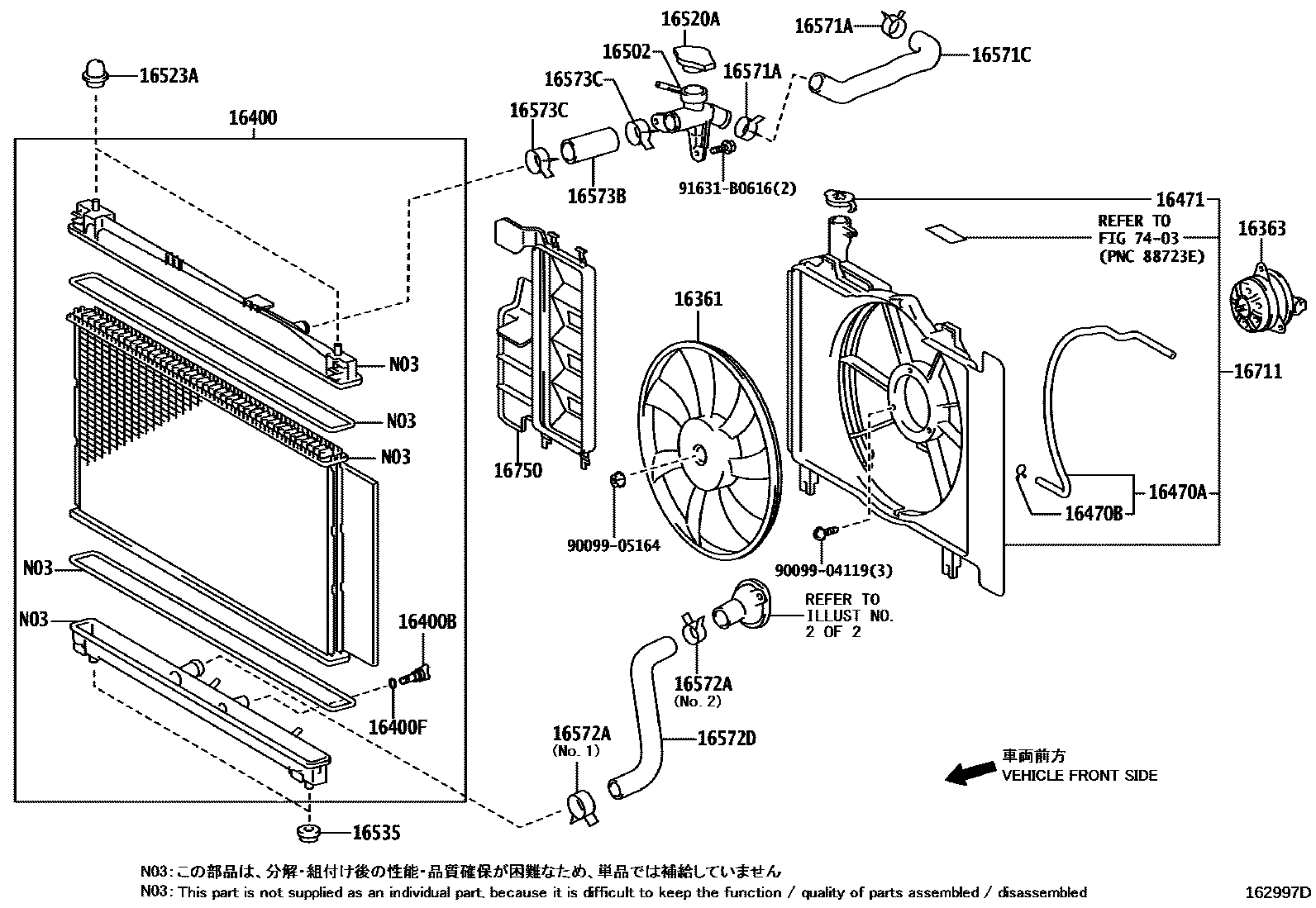

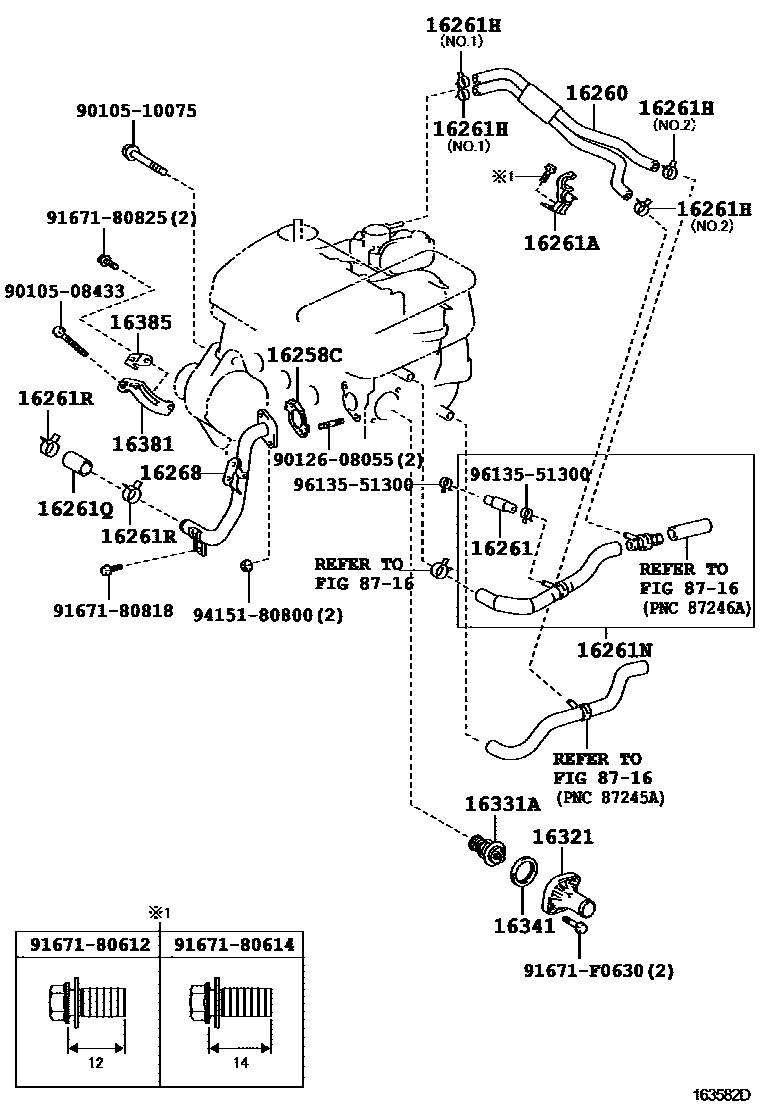

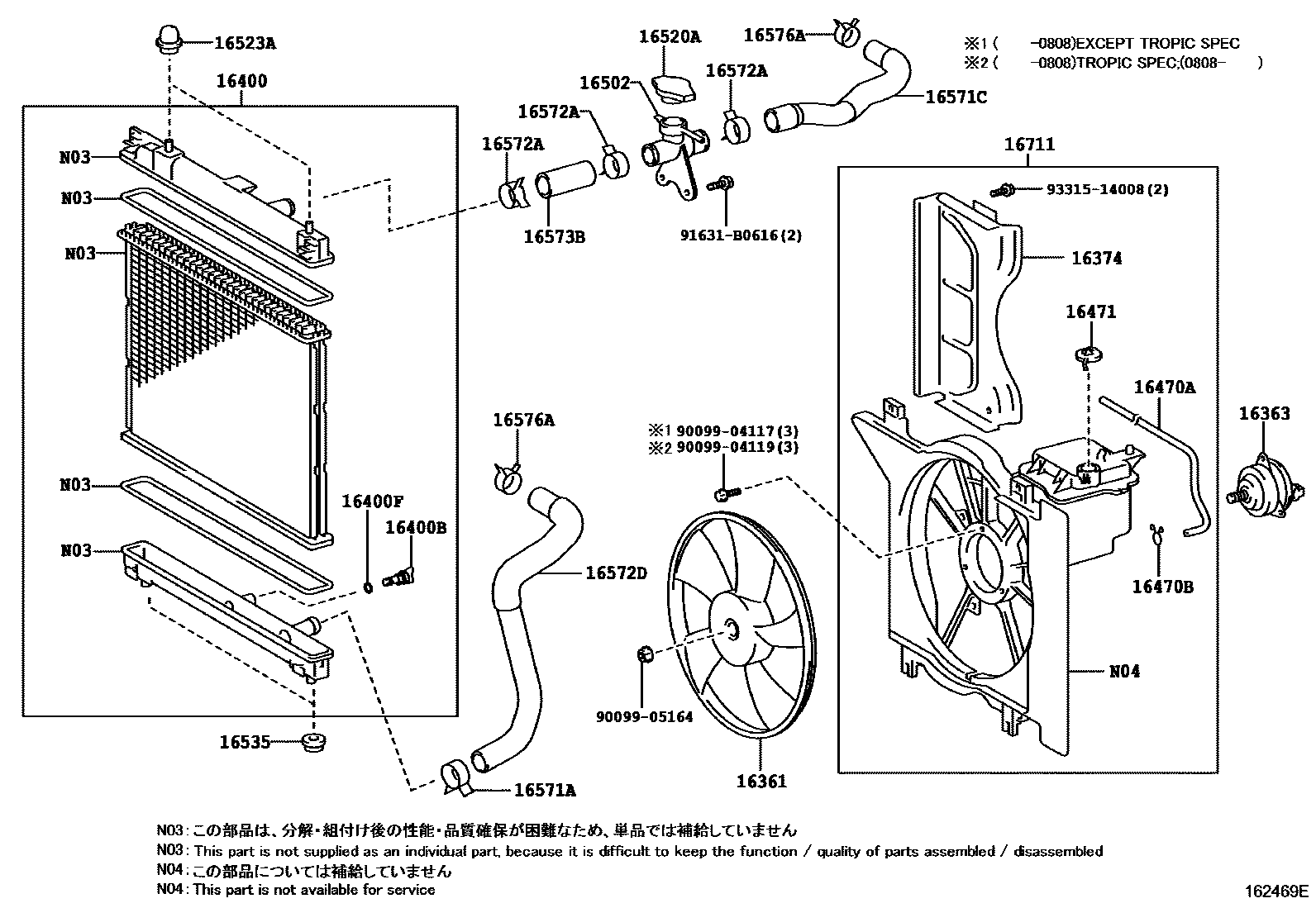

Toyota YARIS EPC diagram 1603, RADIATOR & WATER OUTLET, with 5 images and 45 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16258C | Gasket (for water bypass pipe) | 16258-40010 · 16258-40020 |
| 16260 | Water bypass hose assembly | 16260-40040 · 16260-40070 |
| 16261 | HOSE, WATER BY-PASS | 16261-37030 · 16261-37031 · 16261-40061 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 16581-40010 · 96137-41501 |
| 16261H | CLIP, WATER BY-PASS HOSE NO.1 | 90466-W0002 · 90466-W0003 · 96135-51300 |
| 16261N | HOSE, WATER BY-PASS, NO.2 | 16260-40012 |
| 16261Q | HOSE, WATER BY-PASS | 16261-40111 |
| 16261R | Clip or clip (for water bypass hose) | 90466-30001 |
| 16262 | water inlet hose | 16262-37010 |
| 16262A | Clamp (for water inlet hose) | 96136-42501 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-37030 · 16264-37031 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 96137-41501 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-37010 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 96136-42501 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-37030 · 16268-37031 · 16268-40040 · 16268-40050 |
| 16321 | water inlet | 16321-37010 · 16321-40010 |
| 16323 | HOUSING, WATER INLET | 16323-37010 · 16323-37020 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-28010 · 16325-62010 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16326-37010 |
| 16331A | thermostat | 90916-03129 · 90916-03134 · 90916-03144 · 90916-03145 |
| 16341 | GASKET, WATER OUTLET | 16341-35010 |
| 16361 | Fan | 16361-21090 · 16361-23070 · 16361-23080 |
| 16363 | cooling fan motor | 16363-23010 · 16363-28150 · 16363-28160 · 16363-28200 |
| 16374 | Cooling fan motor vibration isolation pad | 16366-40010 |
| 16381 | Fan belt adjustment lever | 16381-37010 · 16381-40041 · 16381-40070 |
| 16385 | Fan belt adjustment slider | 16385-37010 · 16385-40011 |
| 16400 | Radiator assembly | 16400-21310 · 16400-23170 |
| 16400B | Radiator drain switch screw plug | 16417-21280 |
| 16400F | Seal (for radiator drain switch) | 16492-21050 |
| 16470A | Hoses or tubes (for radiator reservoir) | 16378-37020 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90467-11085 |
| 16471 | Liquid storage tank cover sub-assembly | 16471-23030 |
| 16502 | Water injection port sub-assembly | 16502-23010 · 16502-37010 |
| 16520A | Water injection port cover sub-assembly | 16401-31480 · 16401-31520 · 16401-62100 |
| 16523A | Radiator bracket cushion | 16523-21030 |
| 16535 | Radiator lower support | 90480-22025 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90467-33006 · 90467-34004 |
| 16571C | Radiator hose No. 1 | 16571-37090 · 16571-40040 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90467-33006 · 90467-34004 · 90467-37005 |
| 16572D | Radiator hose No. 2 | 16572-37080 · 16572-40020 |
| 16573B | Radiator hose No. 3 | 16573-23010 · 16573-37030 |
| 16573C | No. 3 radiator hose clamp or clip | 90467-33006 |
| 16576A | No. 6 radiator hose clip | 90466-30001 |
| 16711 | fan cover | 16711-23090 · 16711-37050 · 16711-40030 |
| 16750 | Fan cover ventilation duct assembly | 16750-21020 |
