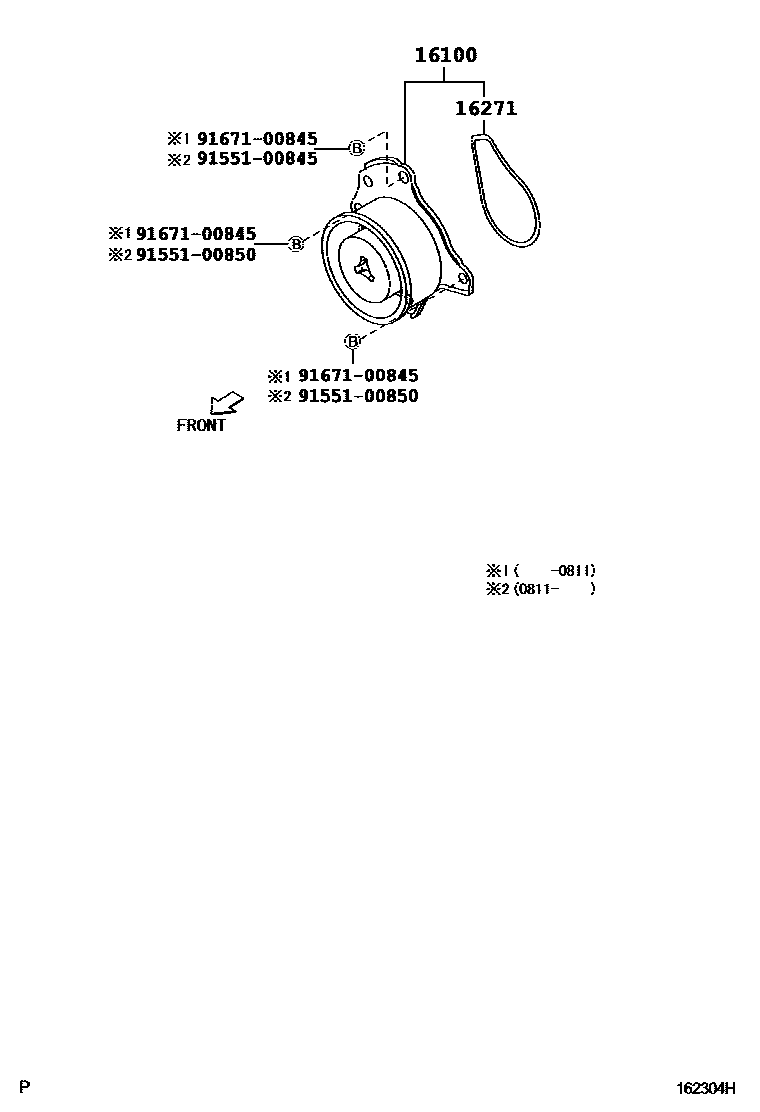

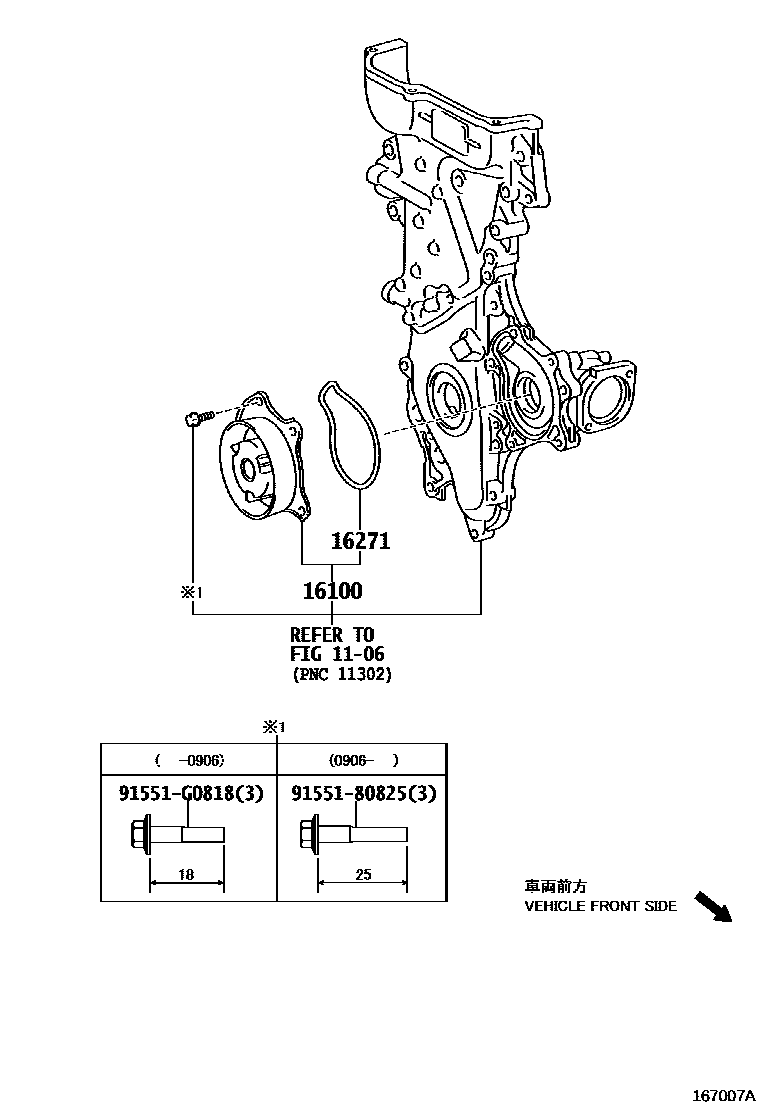

Toyota YARIS Water Pump — Figure 1601
Toyota YARIS EPC diagram 1601, Water Pump, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100 | Engine water pump assembly | 16100-39465 · 16100-39466 · 16100-80003 · 16100-80007 |
| 16271 | water pump gasket | 16271-37010 · 16271-40020 |
