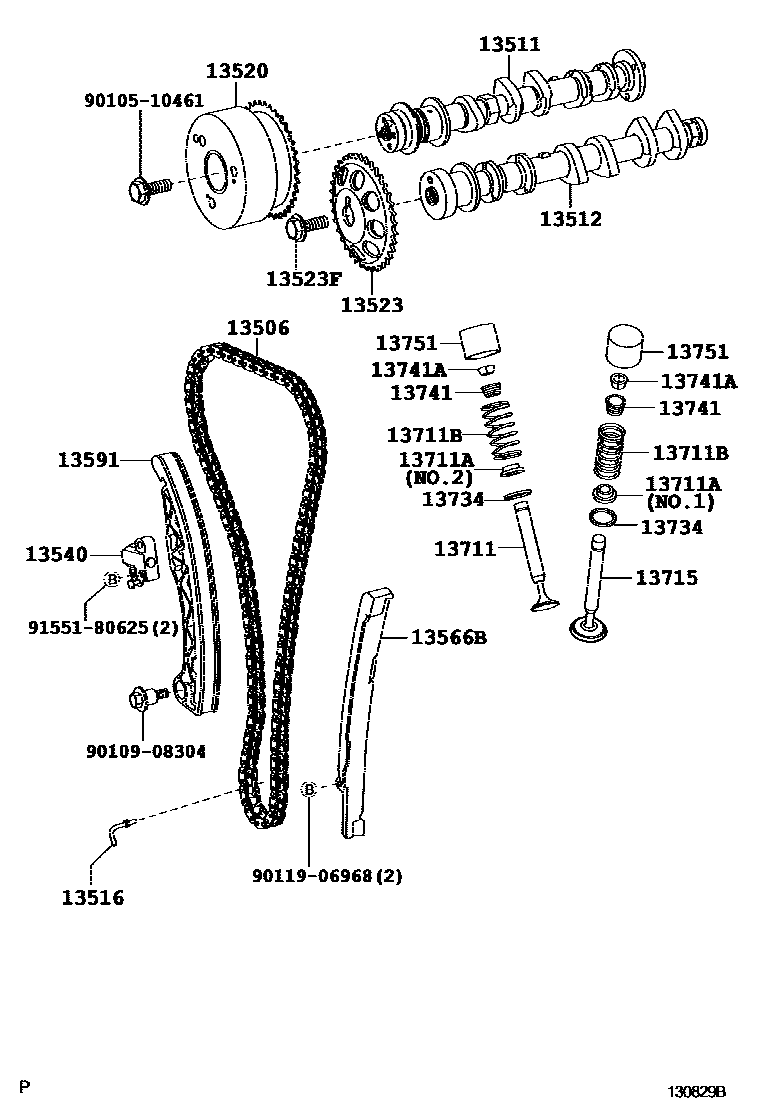

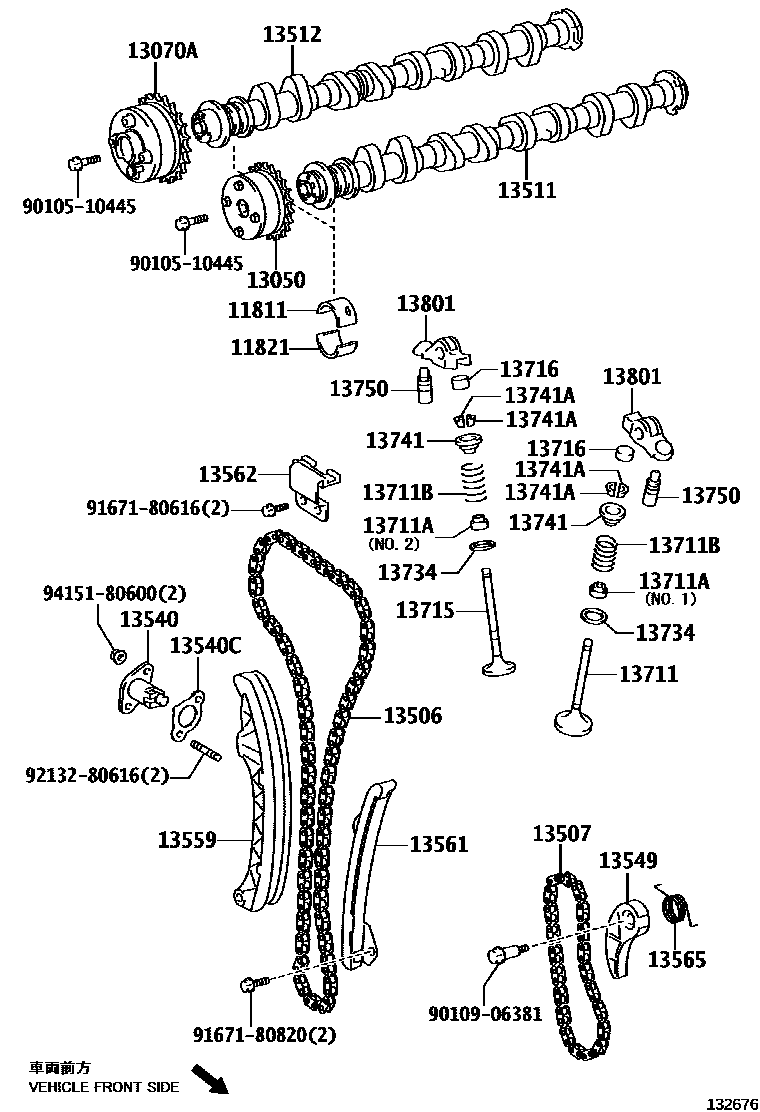

Toyota YARIS Camshaft & Valve — Figure 1302
Toyota YARIS EPC diagram 1302, Camshaft & Valve, with 2 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11811 | No. 1 camshaft bearing | 11811-37010 |
| 11821 | No. 2 camshaft bearing | 11821-37010 |
| 13050 | Camshaft timing gear assembly | 13050-0T010 · 13050-0T011 · 13050-0T021 · 13050-0T022 · 13050-37011 · 13050-37012 |
| 13070A | Exhaust camshaft timing gear assembly | 13070-37010 |
| 13506 | Chain sub-assembly | 13506-21020 · 13506-37010 · 13506-40010 |
| 13507 | No. 2 chain sub-assembly | 13507-28010 |
| 13511 | camshaft | 13501-37010 · 13501-37011 · 13501-40040 |
| 13512 | Camshaft No. 2 | 13502-37010 · 13502-40010 |
| 13516 | oil nozzle | 13516-40010 |
| 13520 | Camshaft timing sprocket assembly | 13520-40020 |
| 13523 | Camshaft timing gear or sprocket | 13523-22020 |
| 13523F | Bolt (for camshaft timing gear) | 90119-10889 |
| 13540 | No. 1 chain tensioner assembly | 13540-21020 · 13540-37010 · 13540-37020 · 13540-37030 |
| 13540C | Pad (for chain tensioner) | 13552-37010 |
| 13549 | chain tensioner pressure plate | 13549-37010 |
| 13559 | chain tensioner guide plate | 13559-37010 |
| 13561 | No. 1 chain shock absorber | 13561-37020 |
| 13562 | No. 2 chain shock absorber | 13562-37010 |
| 13565 | chain damper spring | 13565-37010 |
| 13566B | Timing chain guide plate | 13566-40020 |
| 13591 | Timing chain tensioner arm | 13591-40020 |
| 13711 | intake valve | 13711-37020 · 13711-40040 |
| 13711A | Oil seal or O-ring (for valve stem) | 90913-02092 · 90913-02093 · 90913-02101 · 90913-02112 |
| 13711B | Compression spring (for inner side) | 90501-25063 · 90501-31024 |
| 13715 | exhaust valve | 13715-37030 · 13715-40040 |
| 13716 | valve stem cover | 13716-75020 |
| 13734 | Valve spring seat | 13734-40010 · 13734-62020 |
| 13741 | Valve spring seat ring | 13741-20021 · 13741-22021 |
| 13741A | Valve spring seat lock plate | 90913-03028 · 90913-03031 |
| 13750 | Valve lash adjuster assembly | 13750-75020 |
| 13751 | valve lifter | 13751-23030 · 13751-23040 · 13751-23050 · 13751-23060 · 13751-23070 · 13751-23080 · 13751-23090 · 13751-23100 · 13751-23110 · 13751-23120 · 13751-23130 · 13751-23140 · 13751-23150 · 13751-23160 · 13751-23170 · 13751-23180 · 13751-23190 · 13751-23200 · 13751-23210 · 13751-23220 · 13751-23230 · 13751-23240 · 13751-23250 · 13751-23260 · 13751-23270 · 13751-23280 · 13751-23290 · 13751-23300 · 13751-23310 |
| 13801 | No. 1 valve rocker arm sub-assembly | 13801-23011 |
