Toyota YARIS Crankshaft & Piston — Figure 1301

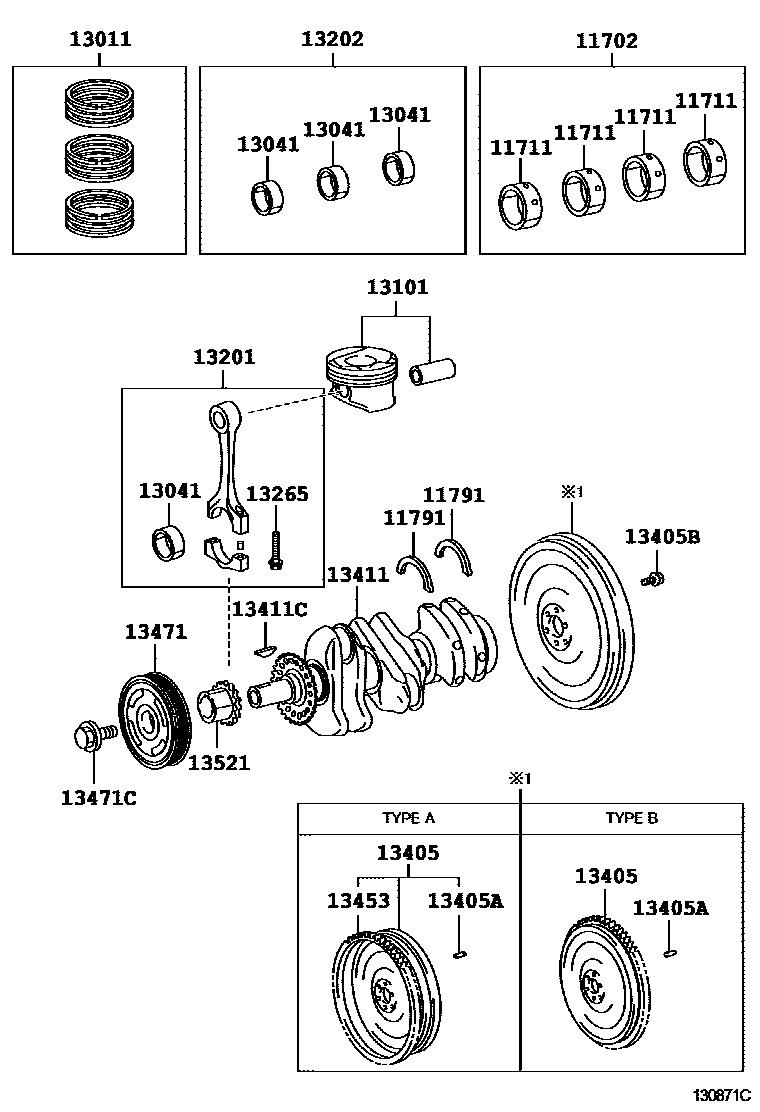

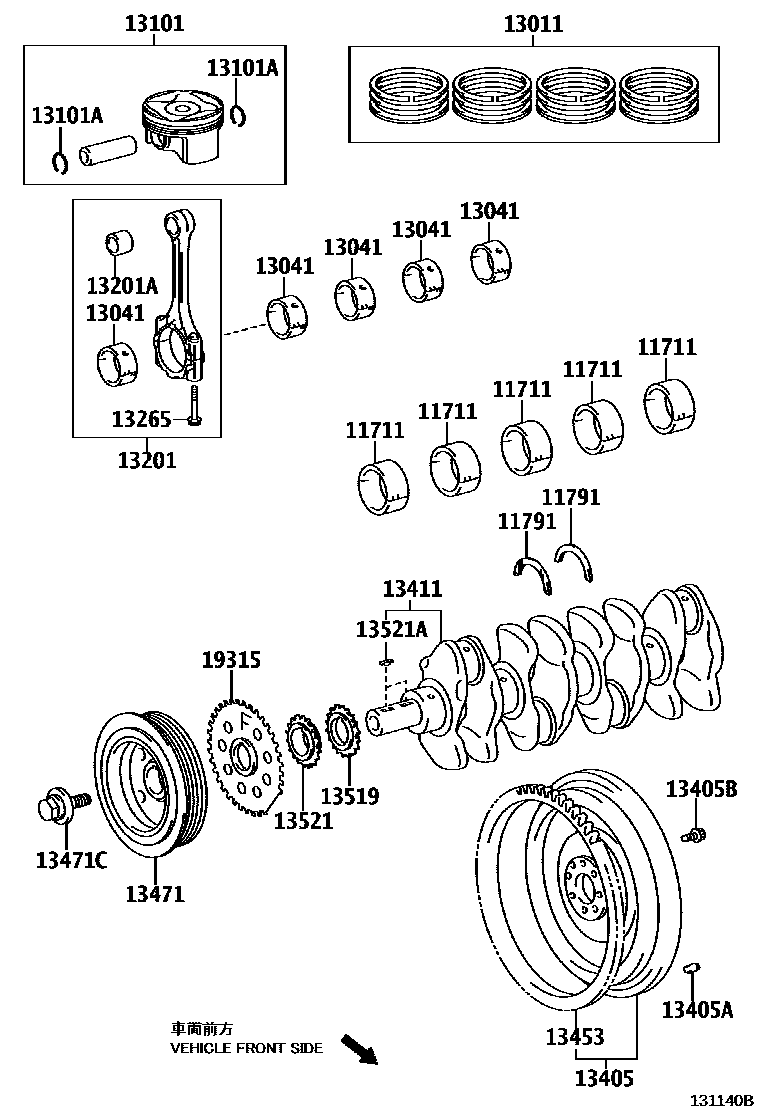

Toyota YARIS EPC diagram 1301, Crankshaft & Piston, with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11702 | crankshaft bearing assembly | 11704-40040 |
| 11791 | Thrust washer on crankshaft | 11791-22020 · 11791-40020 · 11792-40020 · 11793-40020 |
| 13011 | Piston ring assembly | 13011-0Q010 · 13011-37090 · 13011-40030 · 13011-40050 · 13011-40051 · 13011-40052 |
| 13101 | Piston sub-assembly with pin | 13101-37071 · 13101-40021 · 13101-40030 |
| 13101A | Bore snap ring (for piston pin) | 90520-20064 |
| 13201 | Connecting rod sub-assembly | 13201-39185 · 13201-49075 · 13201-49076 · 13201-49077 |
| 13201A | Bushing (for connecting rod small end) | 90999-73151 |
| 13202 | Connecting rod bearing assembly | 13204-40030 · 13204-40031 |
| 13265 | Connecting rod bolts | 13265-21020 · 13265-22020 |
| 13405 | Flywheel sub-assembly | 13405-0Q010 · 13405-37050 · 13405-40070 |
| 13405A | Direct sales (for flywheel) | 90250-08054 · 90250-08120 |
| 13405B | Flywheel fixing bolt | 90105-10463 · 90913-01027 |
| 13411 | crankshaft | 13401-0Q010 · 13401-37020 · 13401-40030 |
| 13411C | Direct sales (for crankshaft) | 90280-04001 |
| 13453 | flywheel ring gear | 13453-0T010 · 13453-10010 · 13453-23020 |
| 13471 | crankshaft pulley | 13470-0Q010 · 13470-37020 · 13470-40010 · 13470-40040 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90119-14106 |
| 13519 | Oil pump driving gear | 13519-37010 |
| 13521 | Crankshaft timing gear or sprocket | 13521-37010 · 13521-40020 |
| 13521A | Key (for crankshaft timing gear) | 90280-04003 |
| 19315 | No. 1 crankshaft angle signal plate | 19315-37010 · 19315-37020 |
