Toyota YARIS Ventilation Hose — Figure 1201

Toyota YARIS EPC diagram 1201, Ventilation Hose, with 2 images and 8 PNC and OE references.

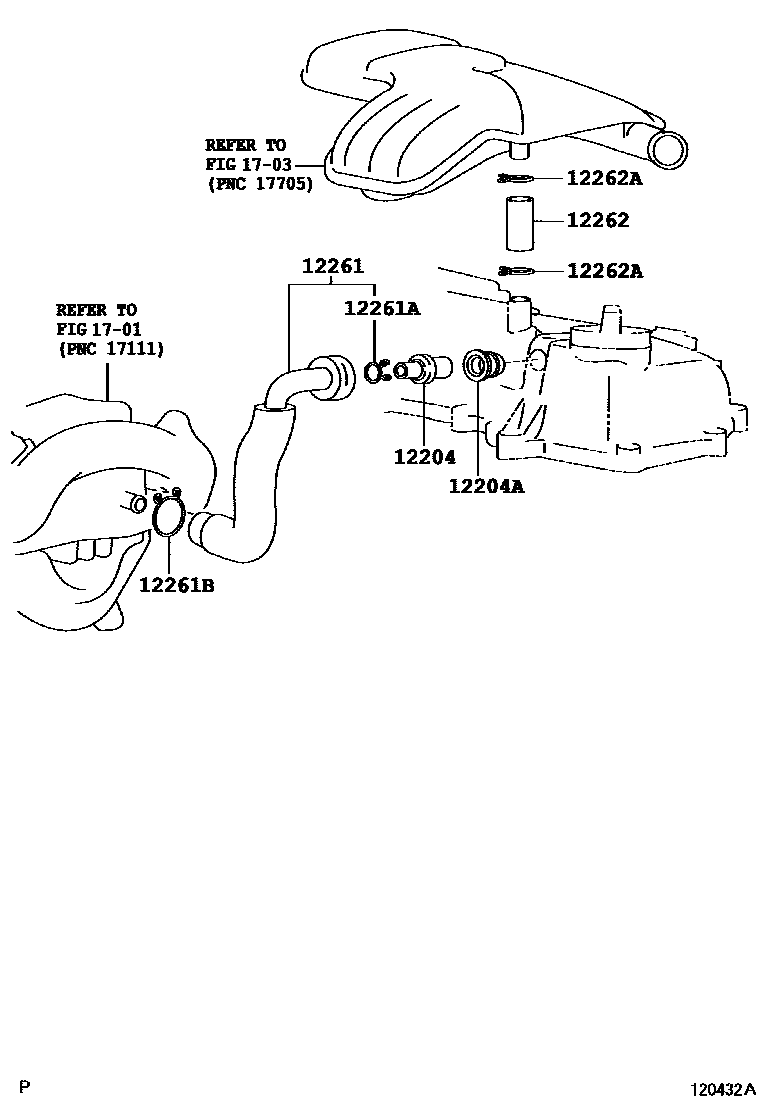

Toyota YARIS Ventilation Hose EPC diagram — 120432A
Ventilation Hose — 120432A (200508 – 999999)

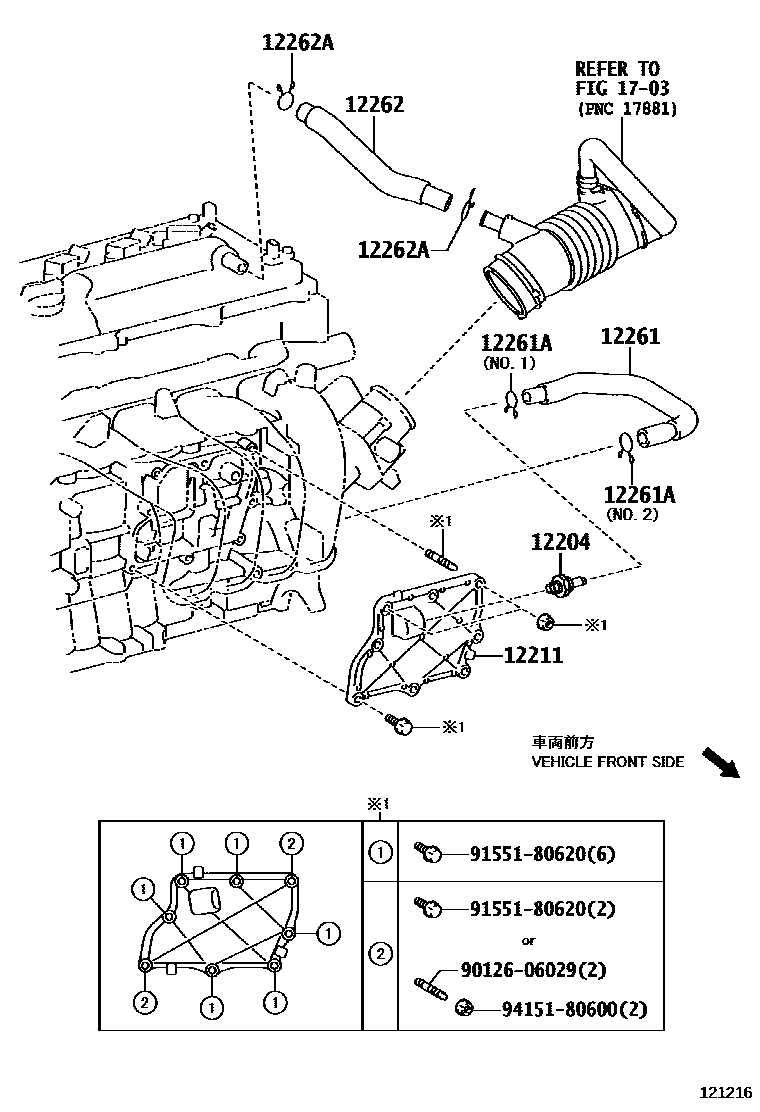

Toyota YARIS Ventilation Hose EPC diagram — 121216
Ventilation Hose — 121216 (200611 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-37010 · 12204-40030
12204AGasket (for ventilation system)90480-18014
12211Ventilation box No. 112211-37010
12261Ventilation Hose12261-37040 · 12261-37080 · 12261-40020
12261AClip or clip (for vent hose)90467-15120 · 90467-22010 · 90467-23002
12261BClip or clip (for vent hose)96137-52501
12262Ventilation hose No. 212262-37020 · 12262-40020
12262AClamp (for vent hose No. 2)90467-21004 · 90467-23002
