Toyota YARIS Engine Mounting — Figure 1107

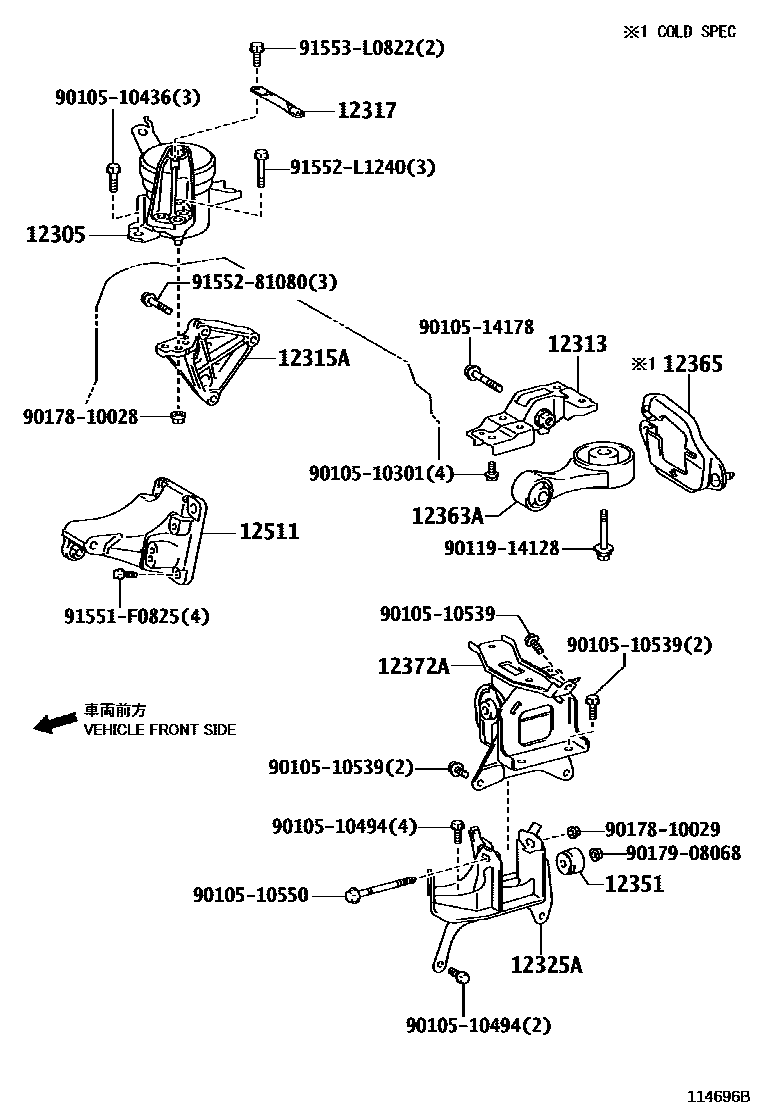

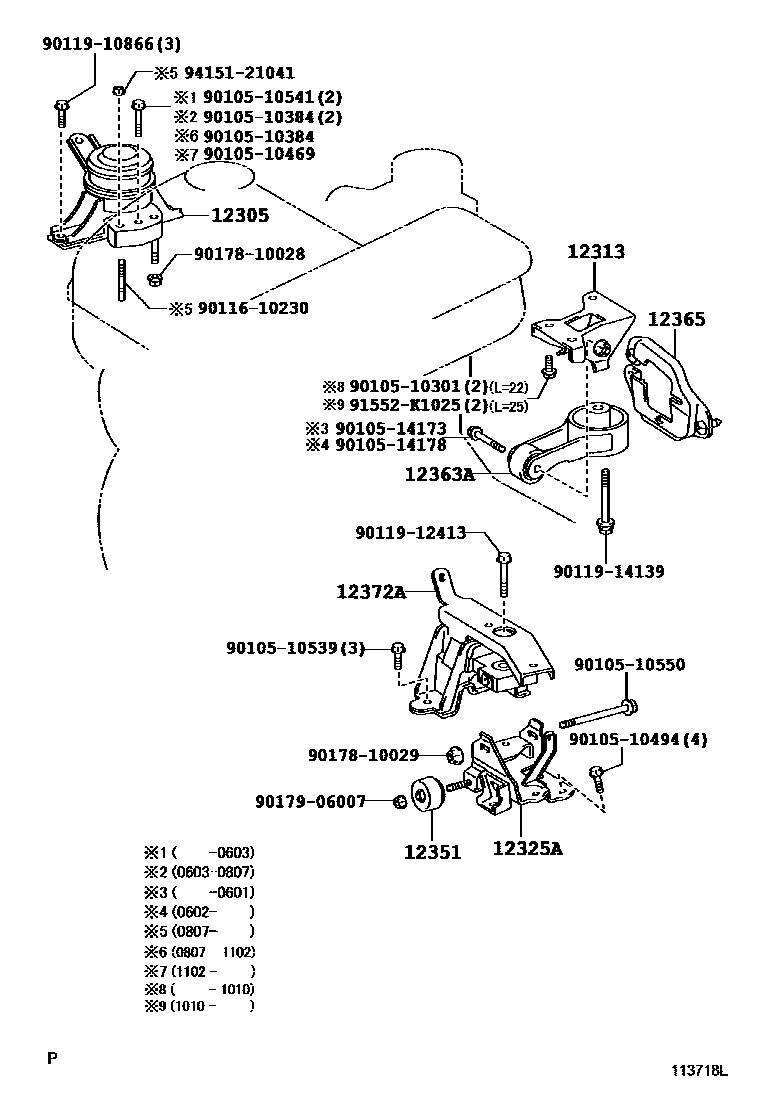

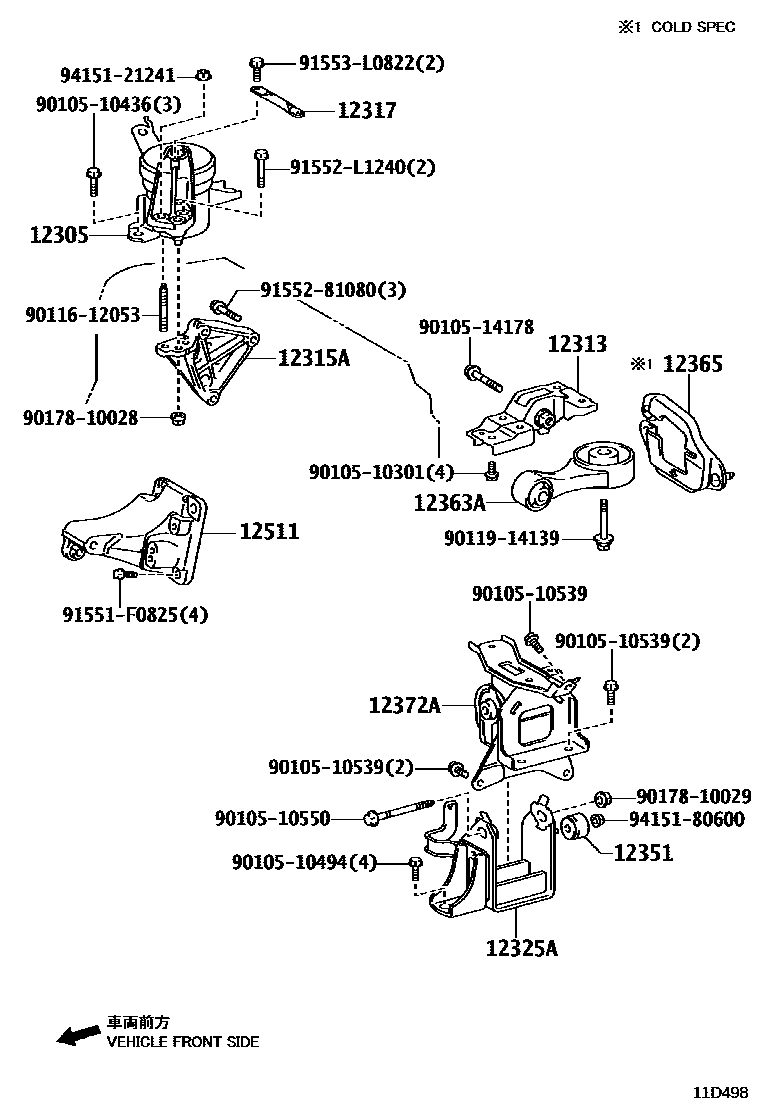

Toyota YARIS EPC diagram 1107, Engine Mounting, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12305 | Engine right side mounting vibration isolation pad sub-assembly | 12305-37040 · 12305-37190 · 12305-40050 · 12305-40070 · 12305-40071 |
| 12313 | Engine mount control bracket (for transversely mounted engines) | 12313-37010 · 12313-40010 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-37040 |
| 12317 | Engine right mounting bracket | 12317-37010 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-37030 · 12325-37100 · 12325-40010 |
| 12351 | engine mount shock absorber | 12351-21070 · 12351-21100 · 12351-37100 |
| 12363A | Engine movement control lever | 12363-37010 · 12363-40010 |
| 12365 | Engine motion control lever cover | 12365-40010 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-37020 · 12372-37140 · 12372-37141 · 12372-40010 |
| 12511 | No. 1 generator bracket | 12511-37010 |
