Toyota YARIS Timing Gear Cover & Rear End Plate — Figure 1106

Toyota YARIS EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 2 images and 7 PNC and OE references.

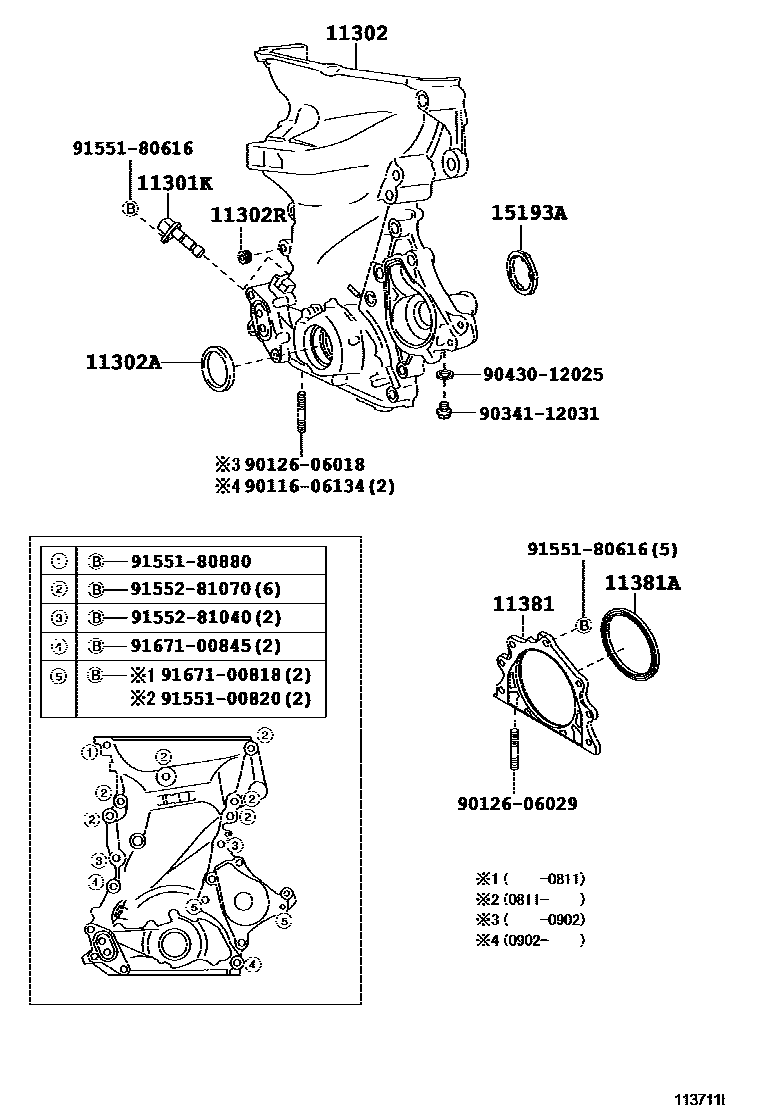

Toyota YARIS Timing Gear Cover & Rear End Plate EPC diagram — 113711I
Timing Gear Cover & Rear End Plate — 113711I (200508 – 999999)

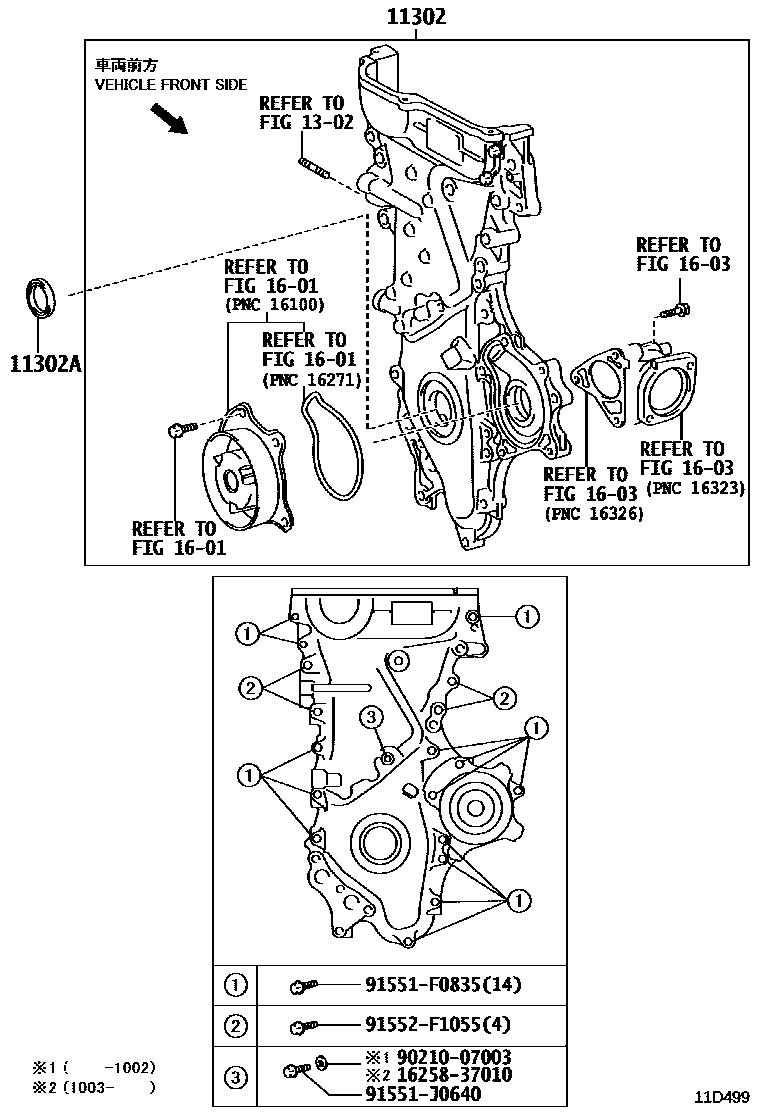

Toyota YARIS Timing Gear Cover & Rear End Plate EPC diagram — 11D499
Timing Gear Cover & Rear End Plate — 11D499 (200611 – 999999)

PNC and OE references

PNCPart nameOE numbers
11301Kcrankshaft position sensor90919-05062 · 90919-W5002
11302TIMING CHAIN OR BELT COVER SUB-ASSY11310-37020 · 11310-40040 · 11310-40041
11302AOil seal (for timing chain or timing belt cover)90311-38089 · 90311-38091 · 90311-38092
11302RNo. 1 sealing plug (for timing gear cover)90344-53006
11381RETAINER, ENGINE REAR OIL SEAL11381-40010
11381ASEAL, ENGINE REAR OIL90311-73002 · 90311-73004
15193Aoil pump gasket15193-40010
