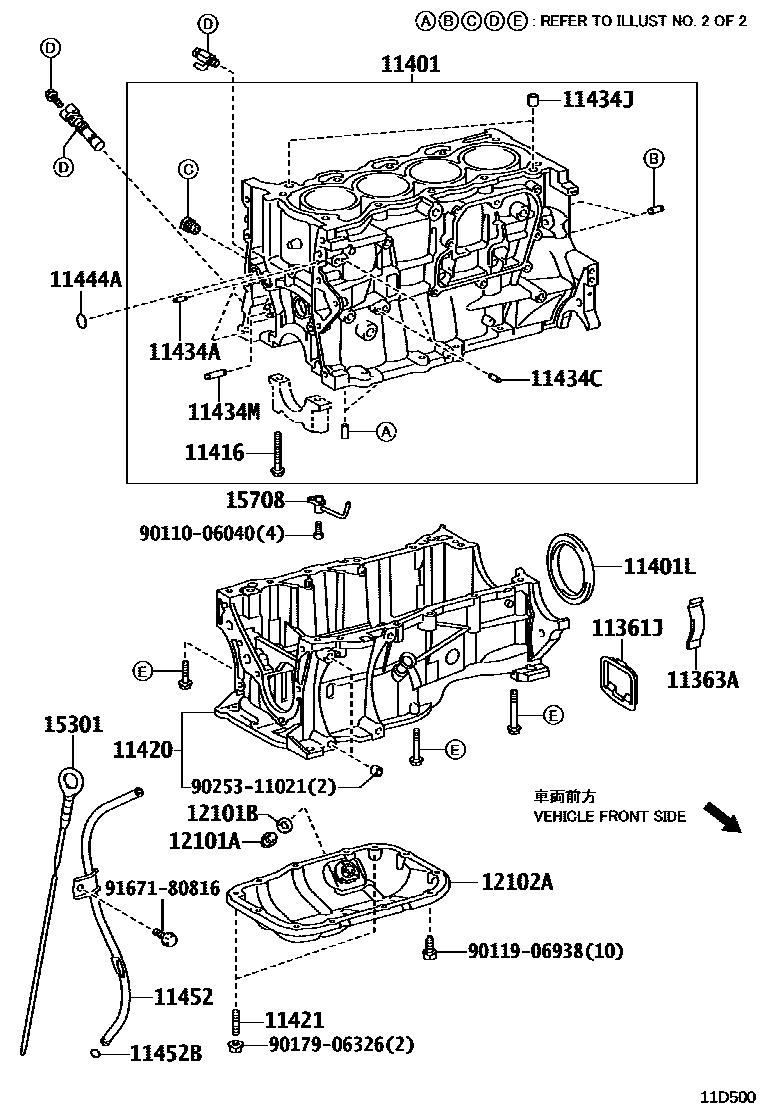

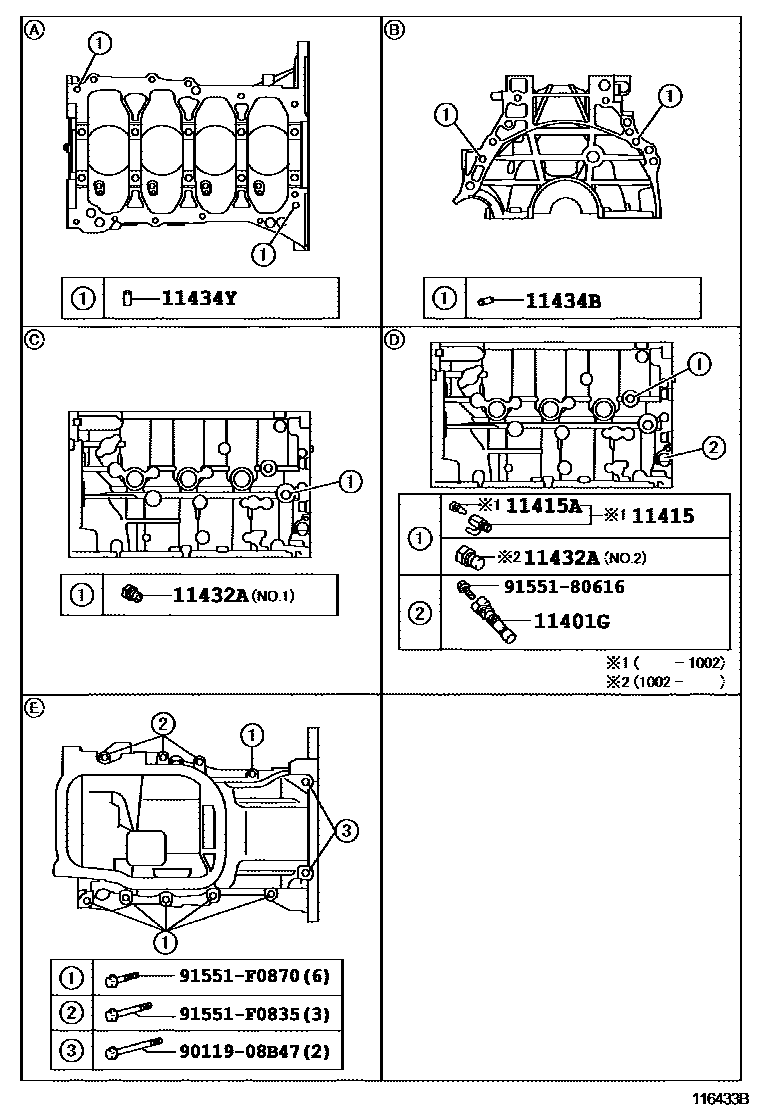

Toyota YARIS Cylinder Block — Figure 1105
Toyota YARIS EPC diagram 1105, Cylinder Block, with 3 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11361J | Flywheel housing bottom cover | 11361-21011 · 11361-23020 |
| 11363A | Flywheel housing side cover | 11363-0Q010 · 11363-21010 · 11363-40010 |
| 11401 | Cylinder block sub-assembly | 11401-40040 · 11401-40041 · 11410-39025 · 11410-39055 · 11410-39057 |
| 11401G | crankshaft position sensor | 90919-05070 |
| 11401L | SEAL, ENGINE REAR OIL | 90311-76002 |
| 11415 | Water release switch sub-assembly (for cylinder block) | 90910-09129 |
| 11415A | Water drain switch screw plug (for cylinder block) | 90910-09087 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90105-10531 · 90910-02163 |
| 11420 | Reinforce crankcase assembly | 11420-37010 |
| 11421 | Stud bolts (for oil pan) | 90126-06015 |
| 11432A | No. 1 headed tapered thread plug | 90345-52001 · 90345-53006 |
| 11434A | Direct sales (for timing gear cover assembly) | 90250-04097 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-10113 |
| 11434C | Direct sales (for cylinder head components) | 90250-04097 · 90253-12002 |
| 11434D | Direct sales (for engine rear oil seal) | 90250-06003 |
| 11434G | Direct sales (for end plates) | 90250-10232 |
| 11434J | Ring pin (for cylinder head assembly) | 90253-13001 |
| 11434M | Direct pin (for chain tensioner) | 90250-10030 |
| 11434Y | Direct sales (for oil pan) | 90250-08074 · 90250-08120 |
| 11444A | O-ring | 96723-24020 |
| 11445 | Cylinder block water jacket spacer | 11445-40010 |
| 11452 | Engine oil level gauge guide | 11409-40020 · 11452-37010 |
| 11452B | O-ring (for oil level gauge guide) | 96721-19010 |
| 11459 | Oil level gauge guide bracket | 11459-40010 |
| 12101 | Oil pan sub-assembly | 12101-0Q020 · 12101-40100 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-12012 · 90341-12032 |
| 12101B | Gasket (for oil pan drain plug) | 90430-12031 |
| 12102A | No. 2 oil pan sub-assembly | 12102-37010 |
| 12216F | ventilation baffle | 12216-40020 |
| 15301 | Engine oil level scoring assembly | 15301-37010 · 15301-40070 |
| 15708 | No. 1 oil nozzle sub-assembly | 15708-37010 · 15708-37011 |
