Toyota YARIS Cylinder Head — Figure 1104

Toyota YARIS EPC diagram 1104, Cylinder Head, with 3 images and 36 PNC and OE references.

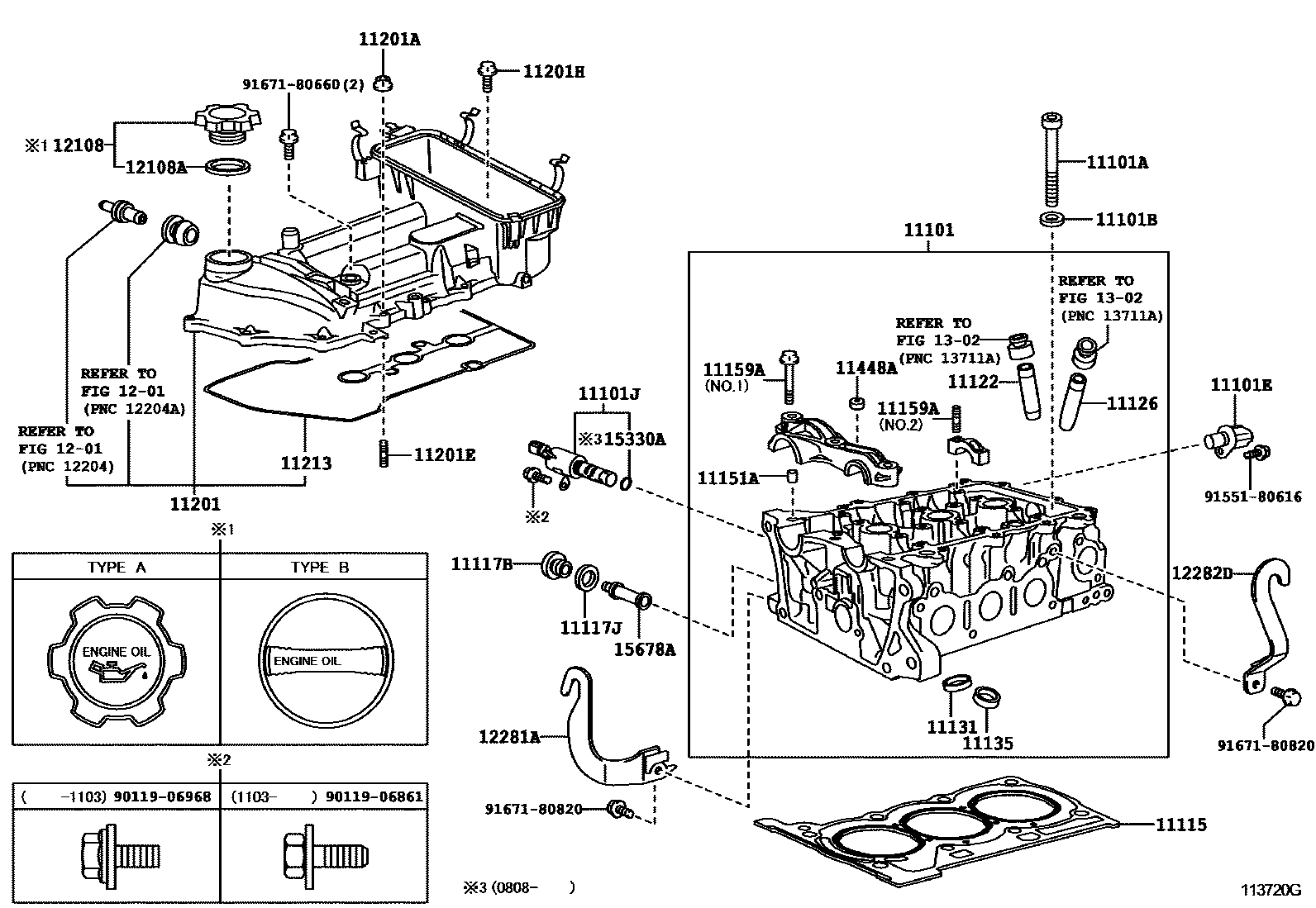

Toyota YARIS Cylinder Head EPC diagram — 113720G
Cylinder Head — 113720G (200508 – 999999)

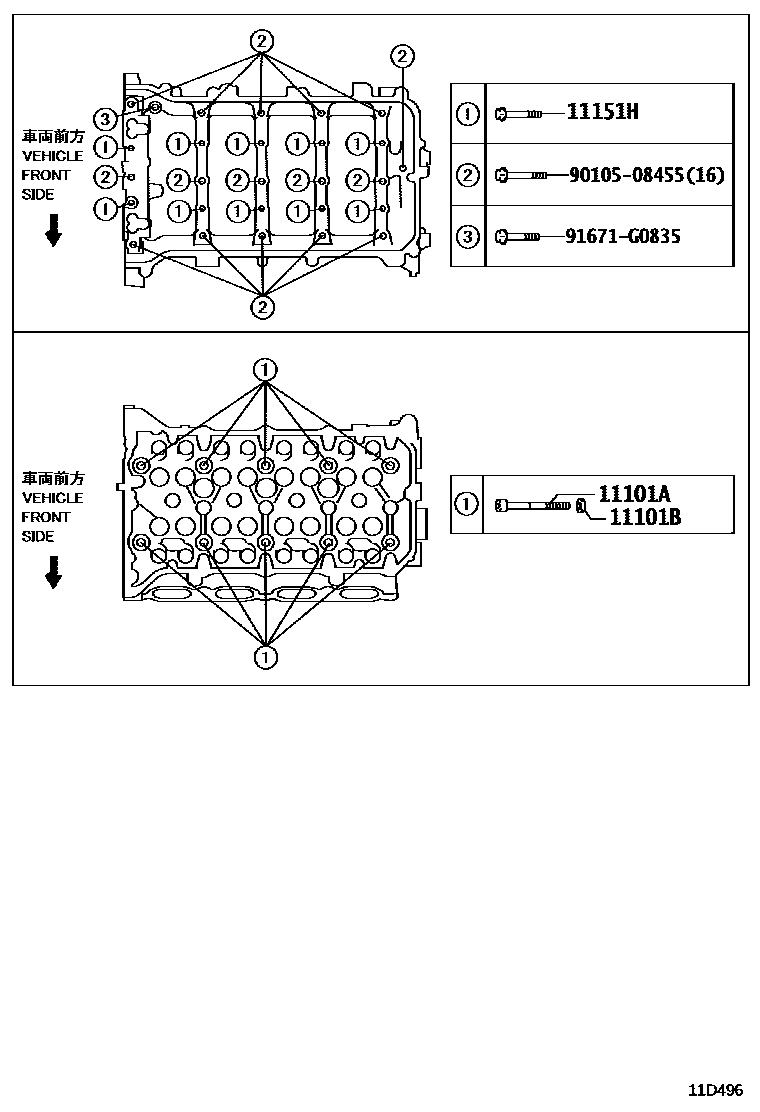

Toyota YARIS Cylinder Head EPC diagram — 11D496
Cylinder Head — 11D496 (200611 – 999999)

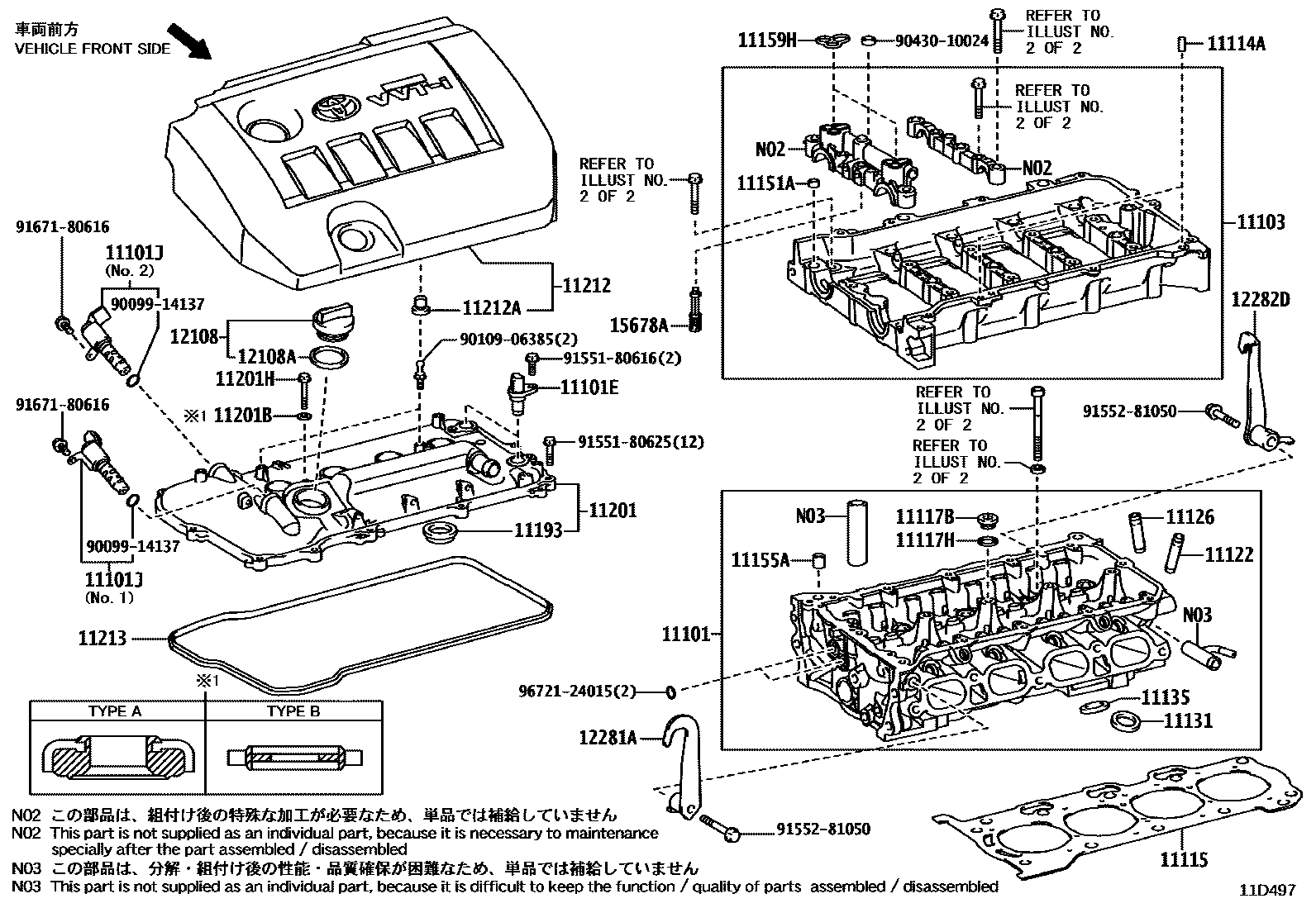

Toyota YARIS Cylinder Head EPC diagram — 11D497
Cylinder Head — 11D497 (200611 – 999999)

PNC and OE references

PNCPart nameOE numbers
11101CYLINDER HEAD SUB-ASSY11101-39675 · 11101-40031 · 11101-40040 · 11101-40041
11101ABOLT (FOR CYLINDER HEAD)90910-02151 · 90910-02166
11101BFlat Washer (for cylinder head assembly)90201-10136 · 90201-10344
11101ECam position sensor90919-05060 · 90919-W5001 · 90919-W5003
11101JCamshaft timing oil control valve assembly15330-37010 · 15330-37020 · 15330-40020
11103Camshaft housing sub-assembly11103-37020
11114Adirect selling90250-06001
11115GASKET, CYLINDER HEAD11115-37030 · 11115-37050 · 11115-37051 · 11115-40060
11117BNo. 2 headed tapered thread plug90341-14013 · 90341-20002
11117HGasket (for coolant hole)90430-20004
11117JGasket (for cylinder head thread plug)90430-14009
11122BUSH, INTAKE VALVE GUIDE11122-21010 · 11122-31050 · 11123-21010 · 11123-31050
11126BUSH, EXHAUST VALVE GUIDE11122-21010 · 11123-21010 · 11126-31030 · 11127-31030
11131intake valve seat11131-37020 · 11131-40020 · 11132-37020 · 11132-40020
11135Exhaust valve seat11135-37020 · 11135-40020 · 11136-37020 · 11136-40020
11151ARing pin (for securing camshaft bearing cap)90253-11005 · 90253-13005
11151HBolts (for mounting camshaft bearing cap to camshaft housing)90119-07009
11155APIN, RING W/HEAD90253-12002
11159ABOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP)90109-06080 · 91671-E0845
11159HCamshaft bearing cover oil hole gasket11159-37010
11193spark plug bushing gasket11193-37020
11201CYLINDER HEAD COVER SUB-ASSY11201-37030 · 11201-37031 · 11201-37032 · 11210-40130
11201ACap nut (for cylinder head cover)94151-80600
11201BGasket (for cylinder head cover)16258-37010 · 90210-06013
11201EStuds (for cylinder head cover assembly)92132-80625
11201HBolts (for cylinder head cover)91551-80670 · 91671-80630
11212No. 2 cylinder head cover11212-37020 · 11212-37021
11212ACylinder head cover cushion90480-16049
11213GASKET, CYLINDER HEAD COVER11213-37030 · 11213-40030
11448ACylinder head oil orifice11448-23010
12108OIL FILLER CAP SUB-ASSY12180-38010 · 12180-40020 · 12180-55010
12108AGASKET (FOR OIL FILLER CAP)90430-35001 · 90430-37140
12281AEngine No. 1 hanger12281-37020 · 12281-37021 · 12281-40030 · 12281-40032
12282DENGINE HANGER, NO.212282-37010 · 12282-37011 · 12282-40010
15330AO-ring (for camshaft timing oil control valve)90099-14137
15678AOil control valve filter15678-21010 · 15678-37010
