Toyota YARIS Engine Overhaul Gasket Kit — Figure 1103

Toyota YARIS EPC diagram 1103, Engine Overhaul Gasket Kit, with 6 images and 2 PNC and OE references.

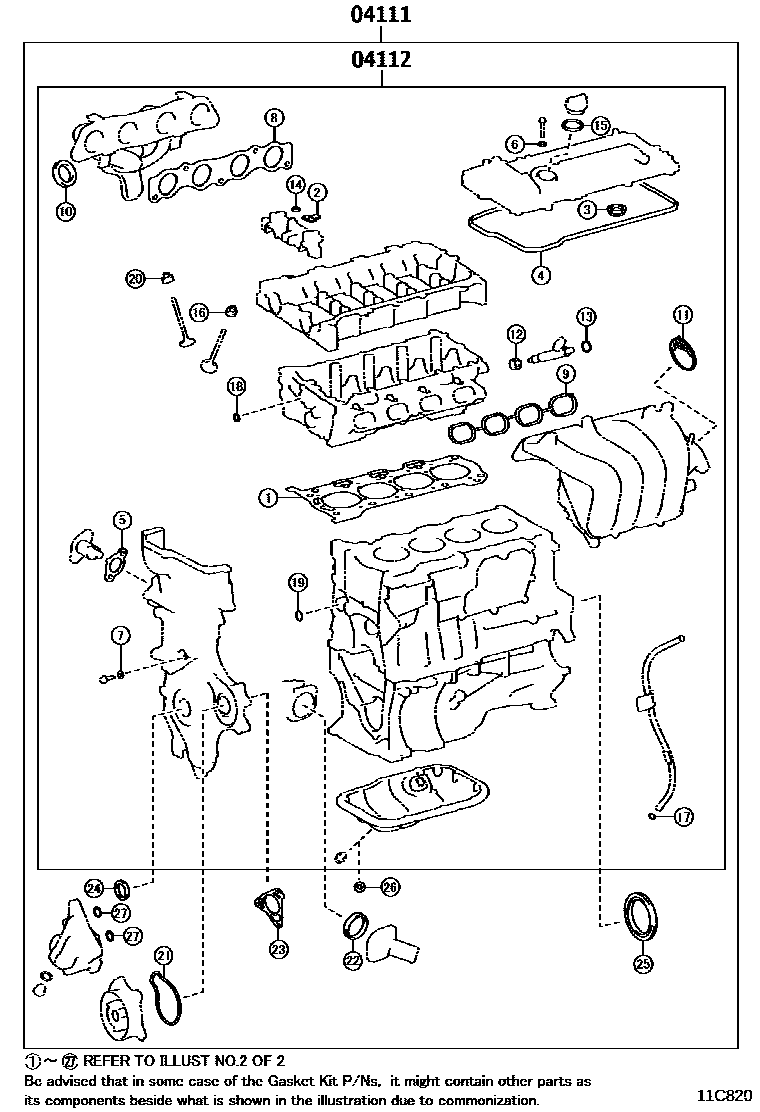

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 11C820
Engine Overhaul Gasket Kit — 11C820 (200611 – 201006)

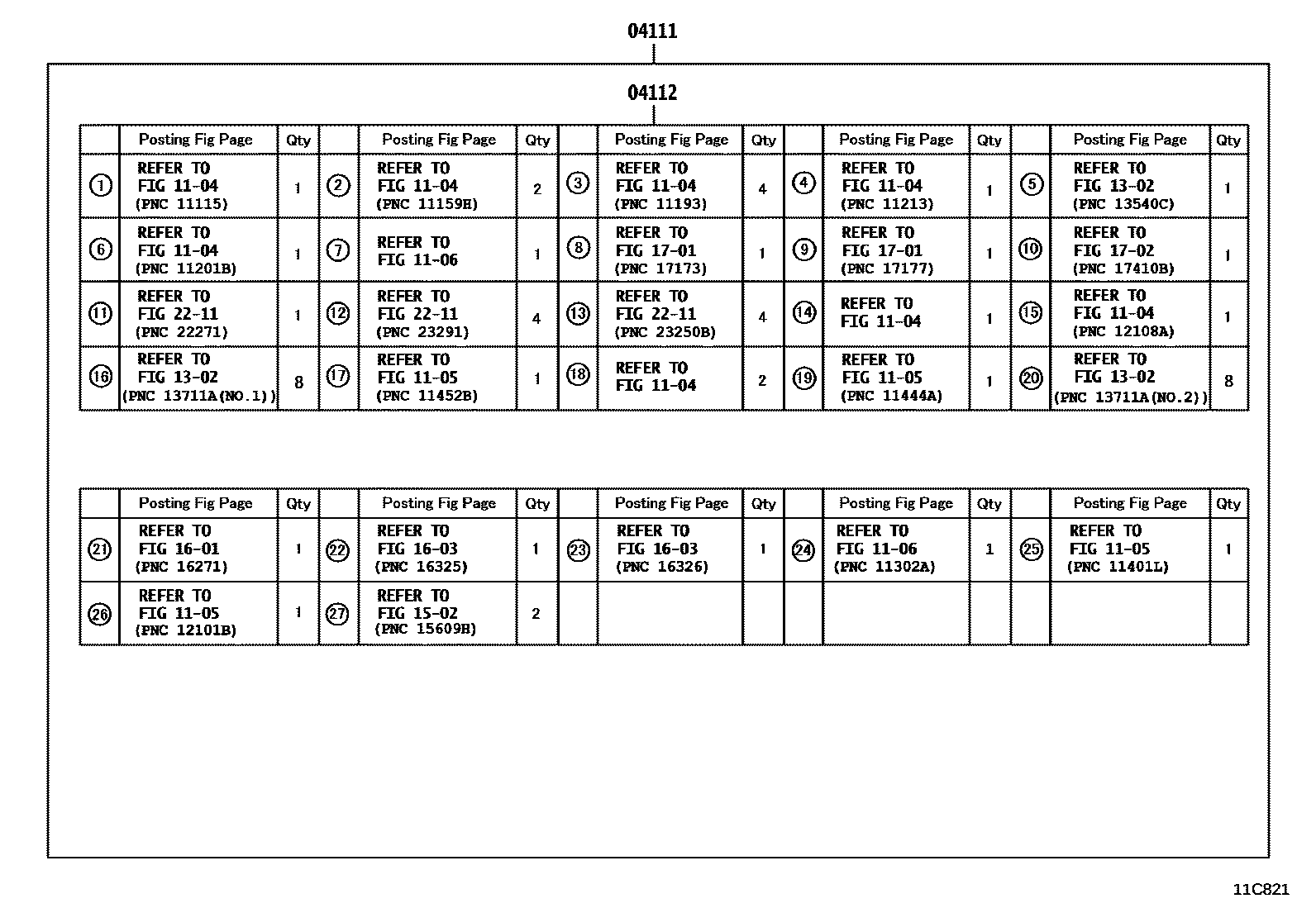

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 11C821
Engine Overhaul Gasket Kit — 11C821 (200611 – 201006)

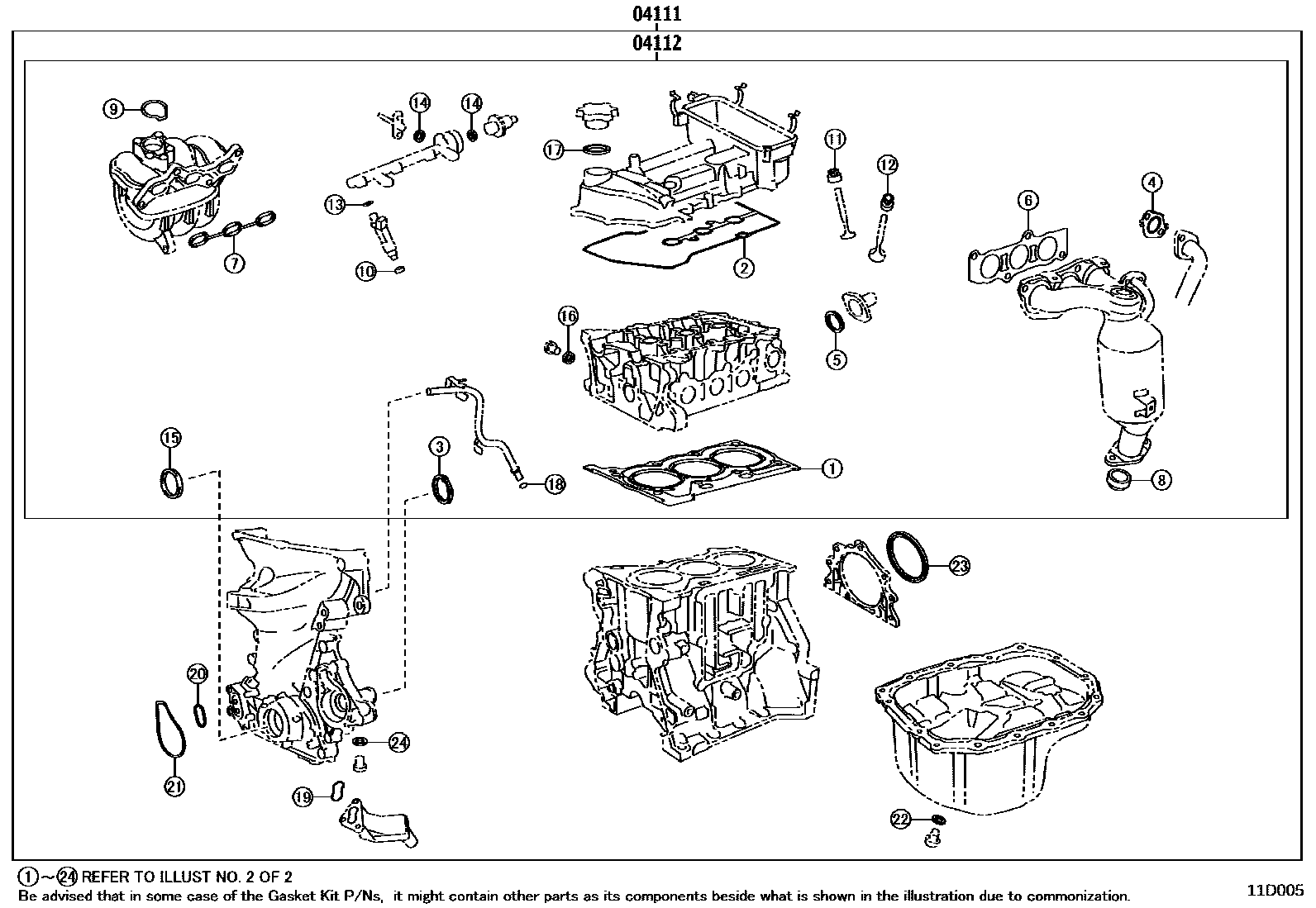

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 11D005
Engine Overhaul Gasket Kit — 11D005 (200508 – 999999)

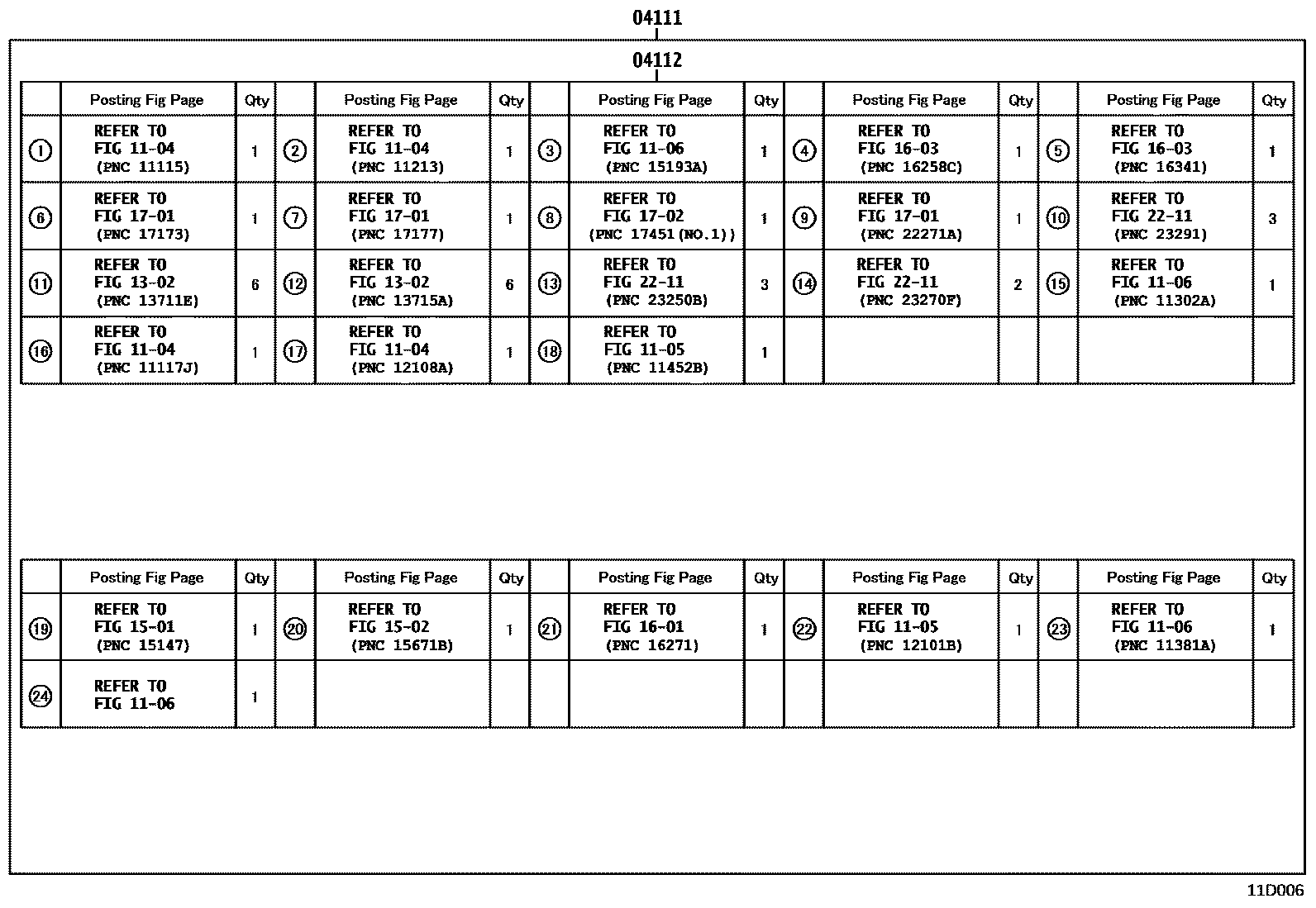

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 11D006
Engine Overhaul Gasket Kit — 11D006 (200508 – 999999)

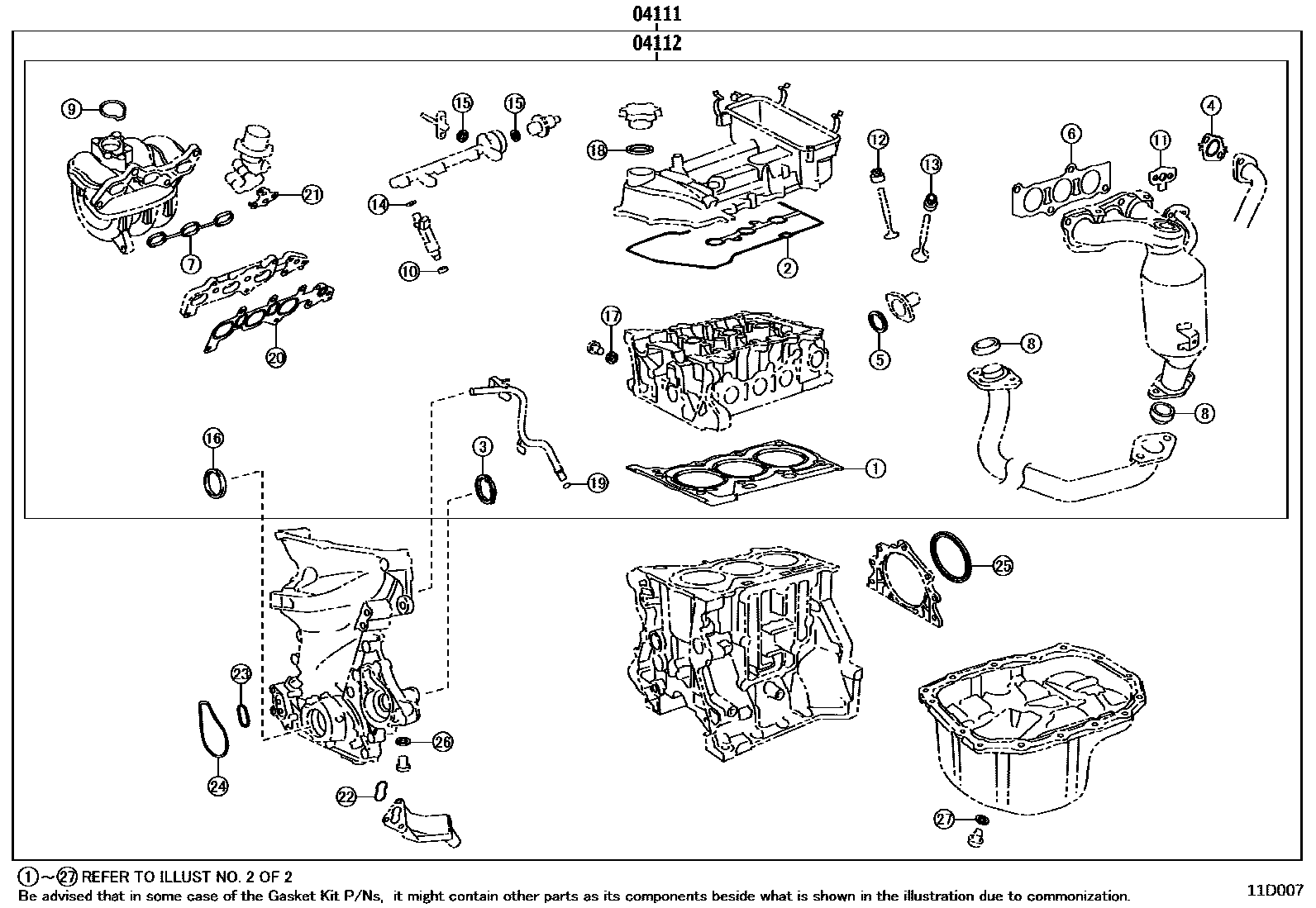

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 11D007
Engine Overhaul Gasket Kit — 11D007 (200808 – 201106)

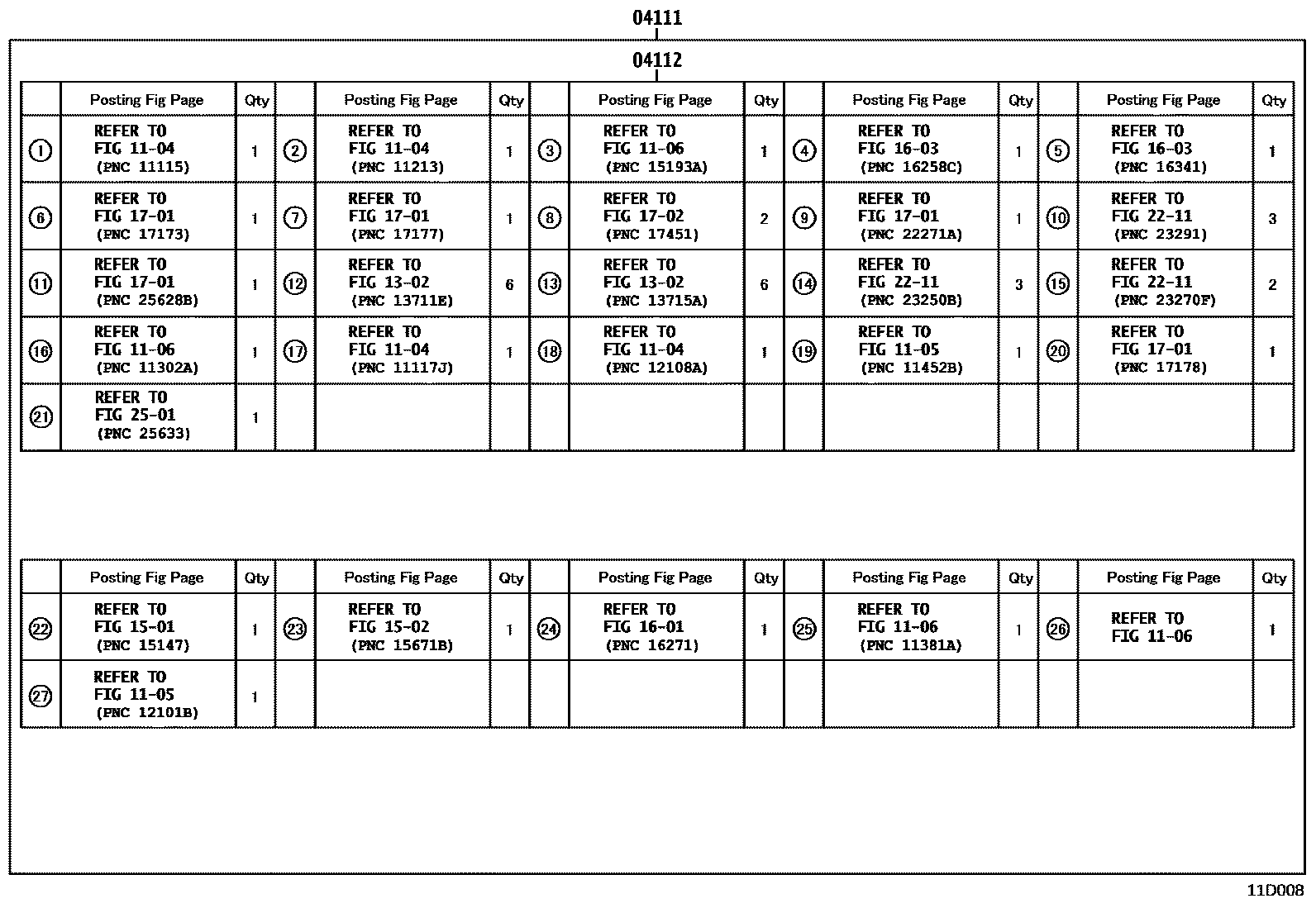

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 11D008
Engine Overhaul Gasket Kit — 11D008 (200808 – 201106)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-09040 · 04111-0Q021 · 04111-37110 · 04111-37111 · 04111-37112 · 04111-40071 · 04111-40072 · 04111-40073
04112Engine valve grinding pad assembly04112-09040 · 04112-0Q021 · 04112-37090 · 04112-37091 · 04112-37092 · 04112-40031 · 04112-40032 · 04112-40033
