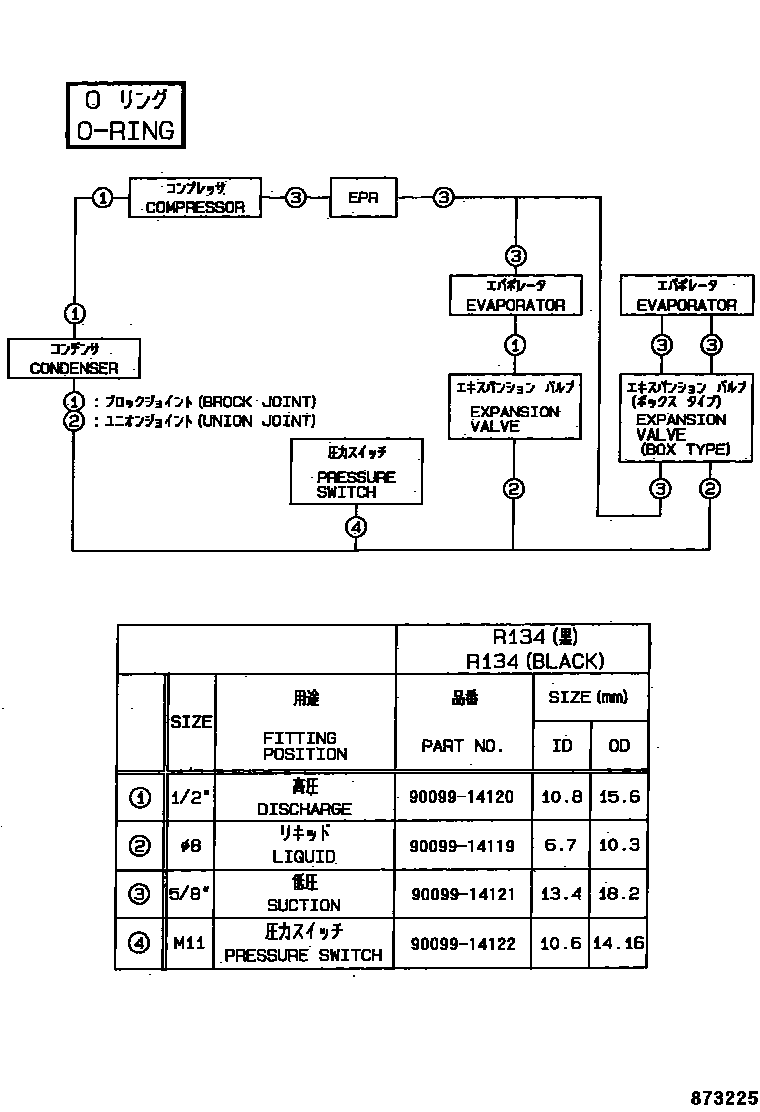

Toyota YARIS Heating & Air Conditioning - Cooler Piping — Figure 8718

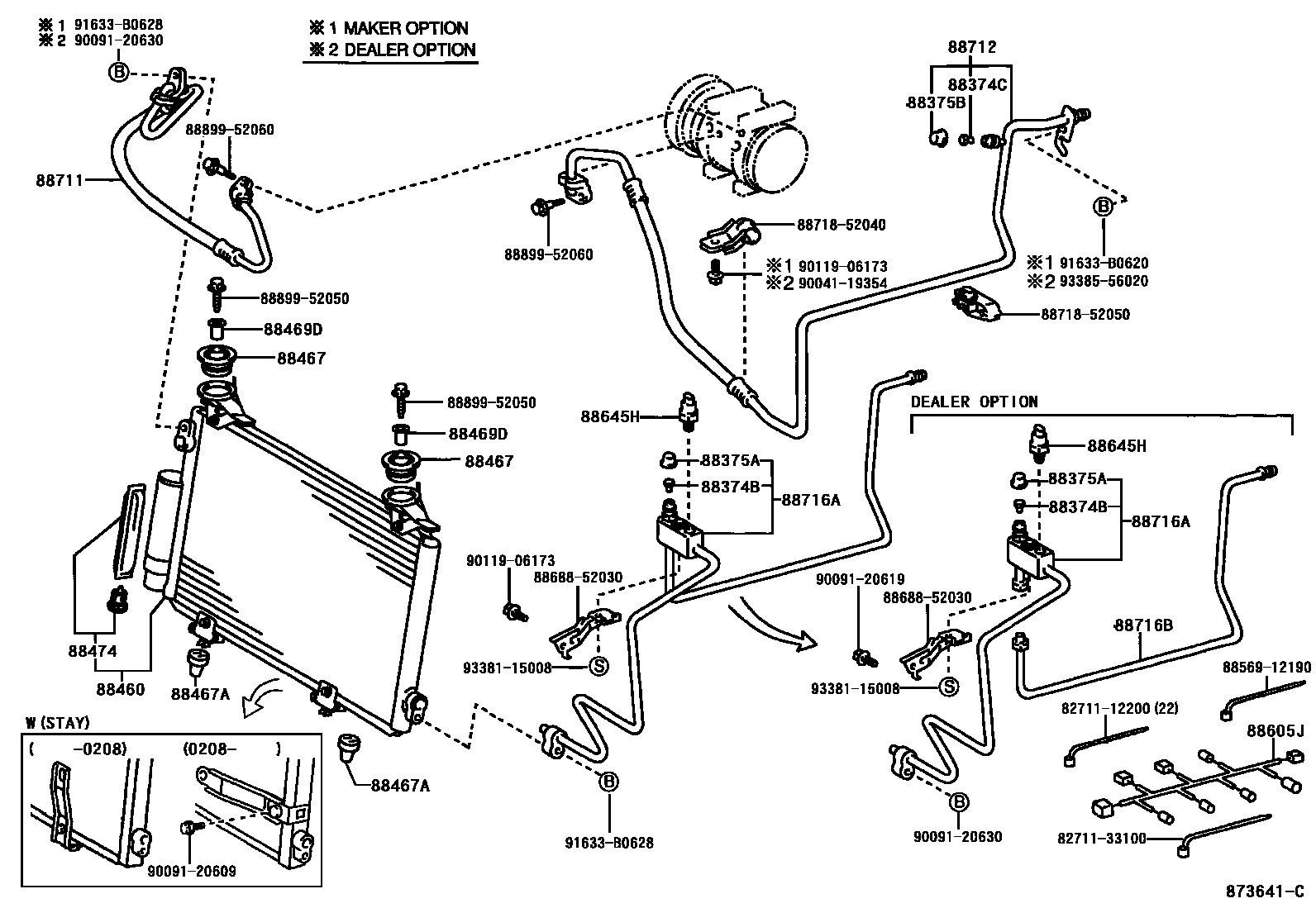

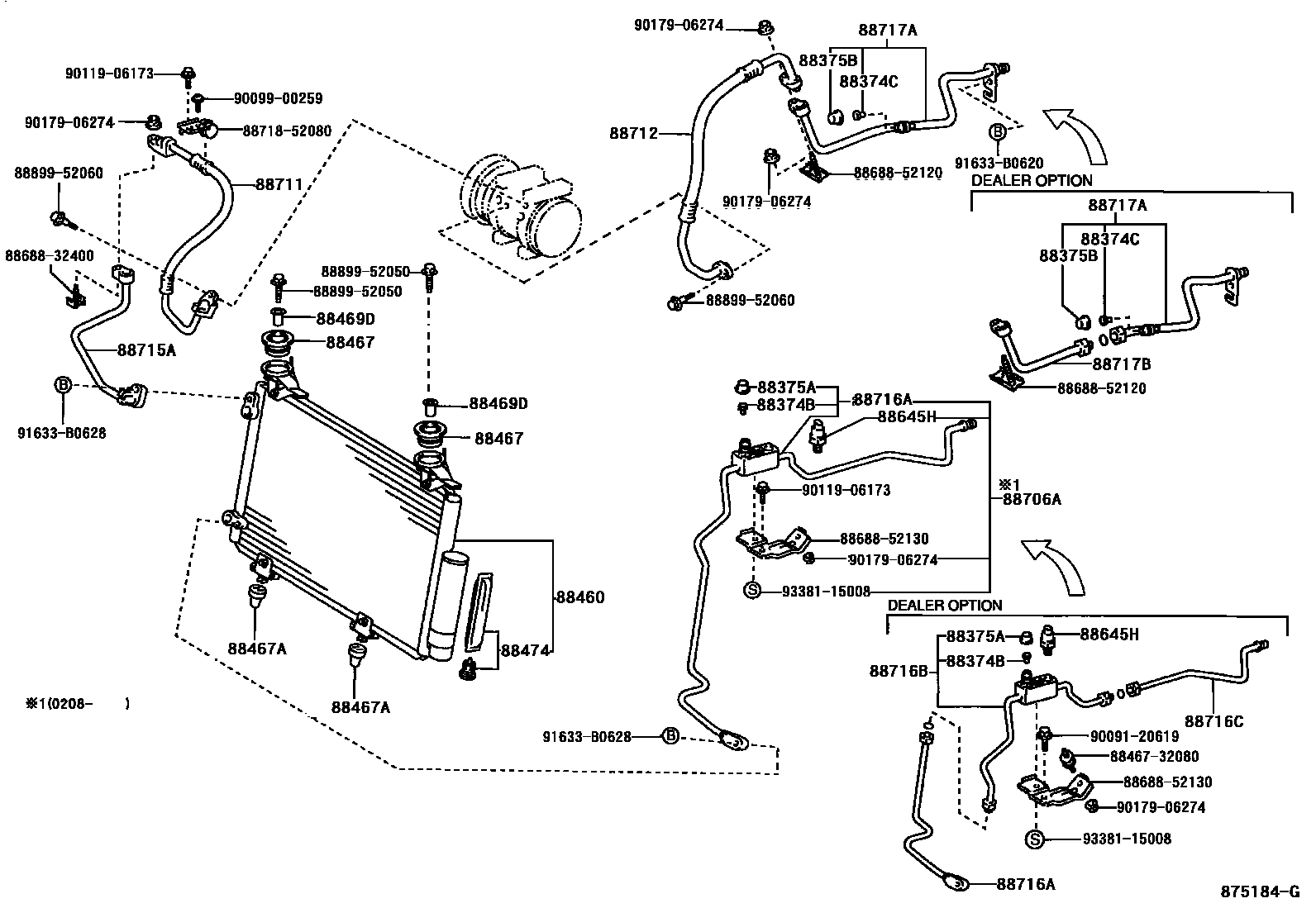

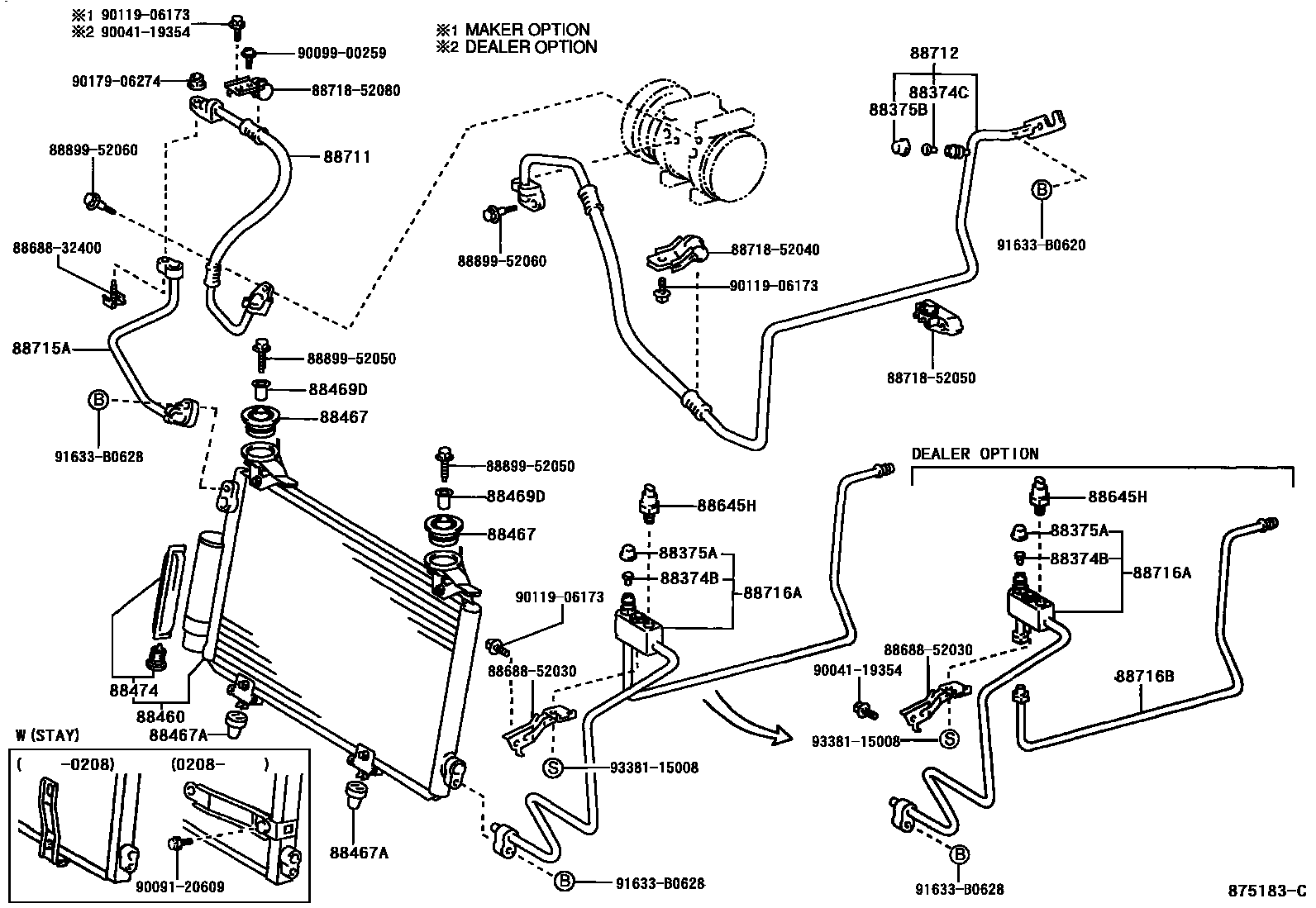

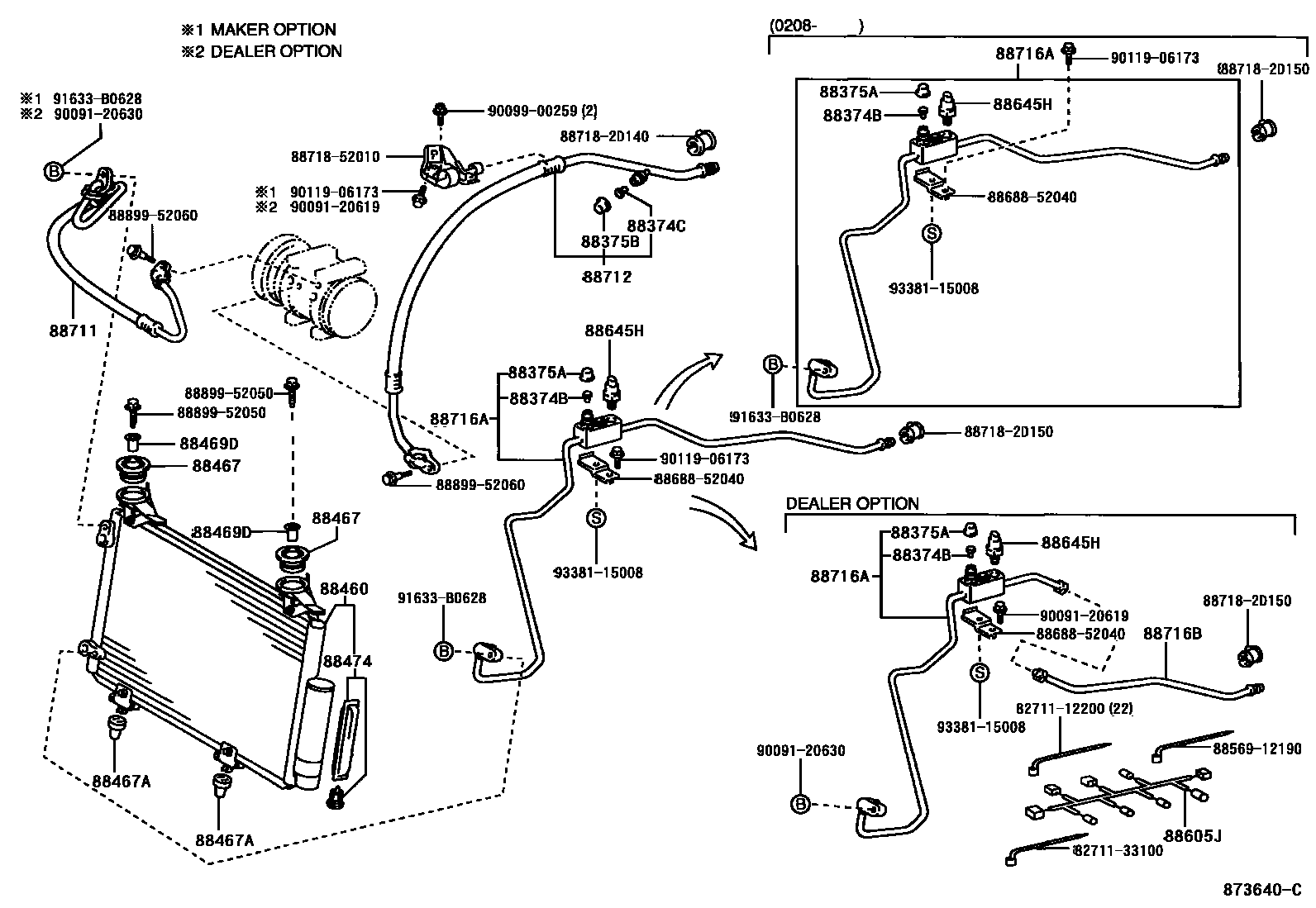

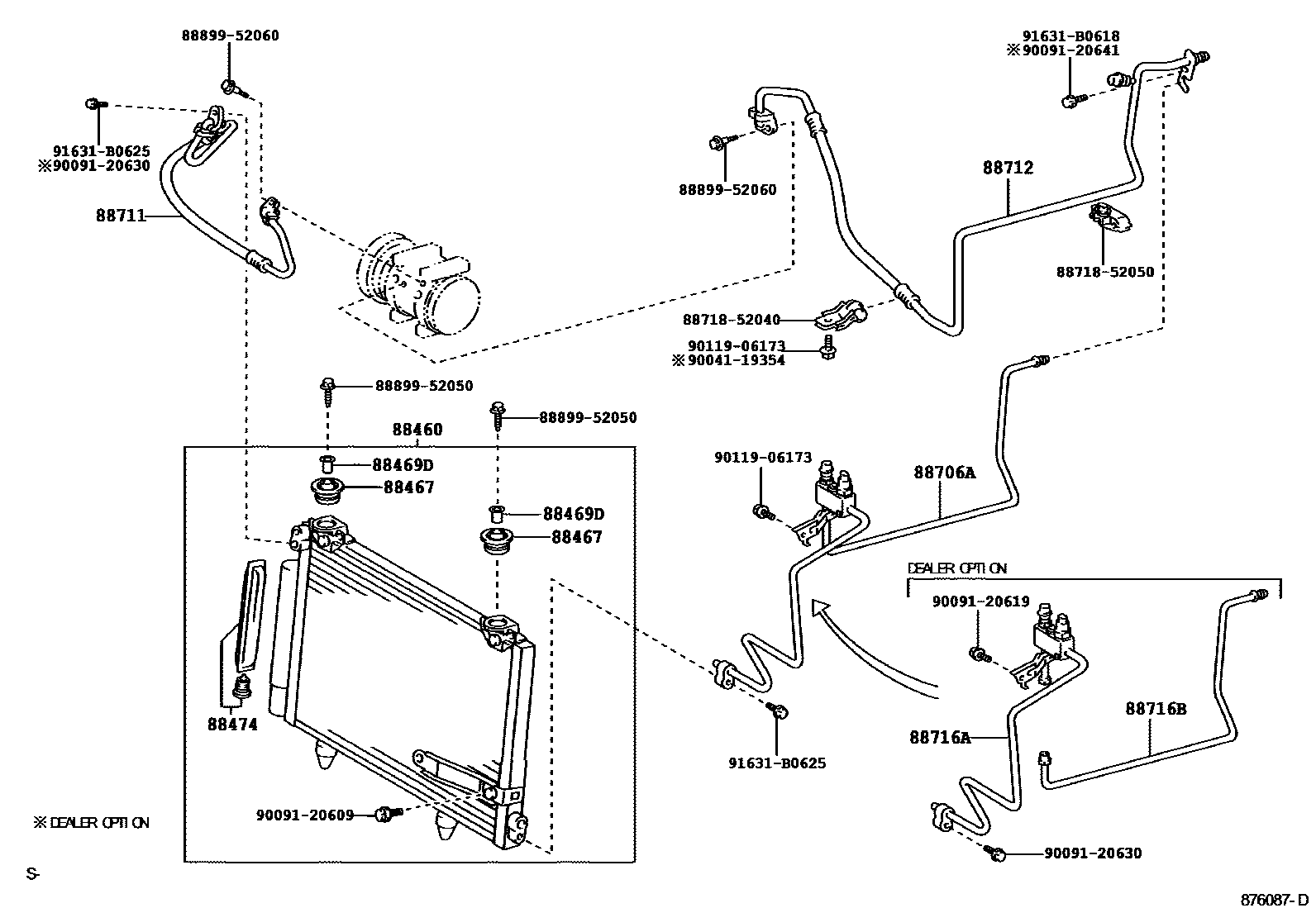

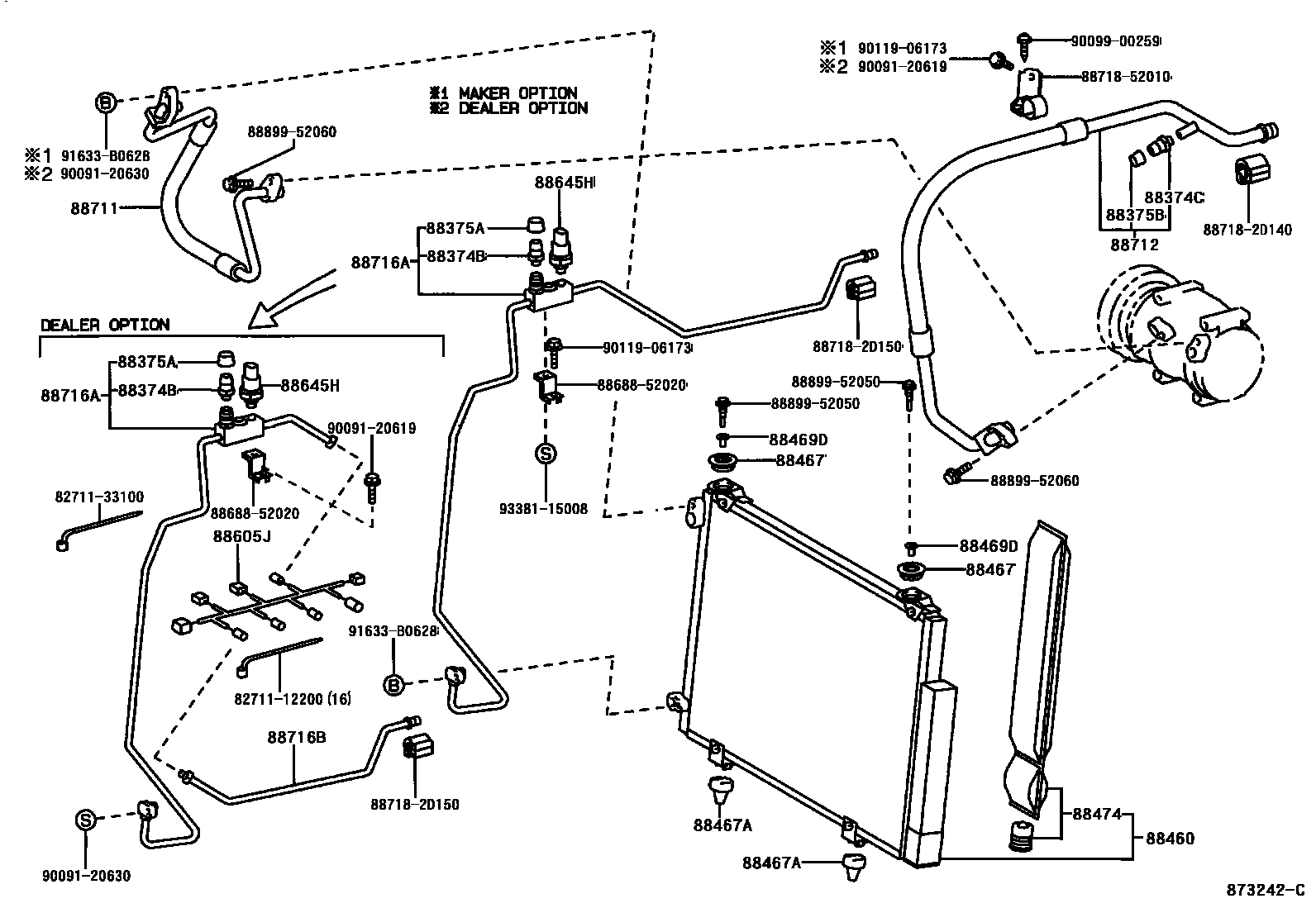

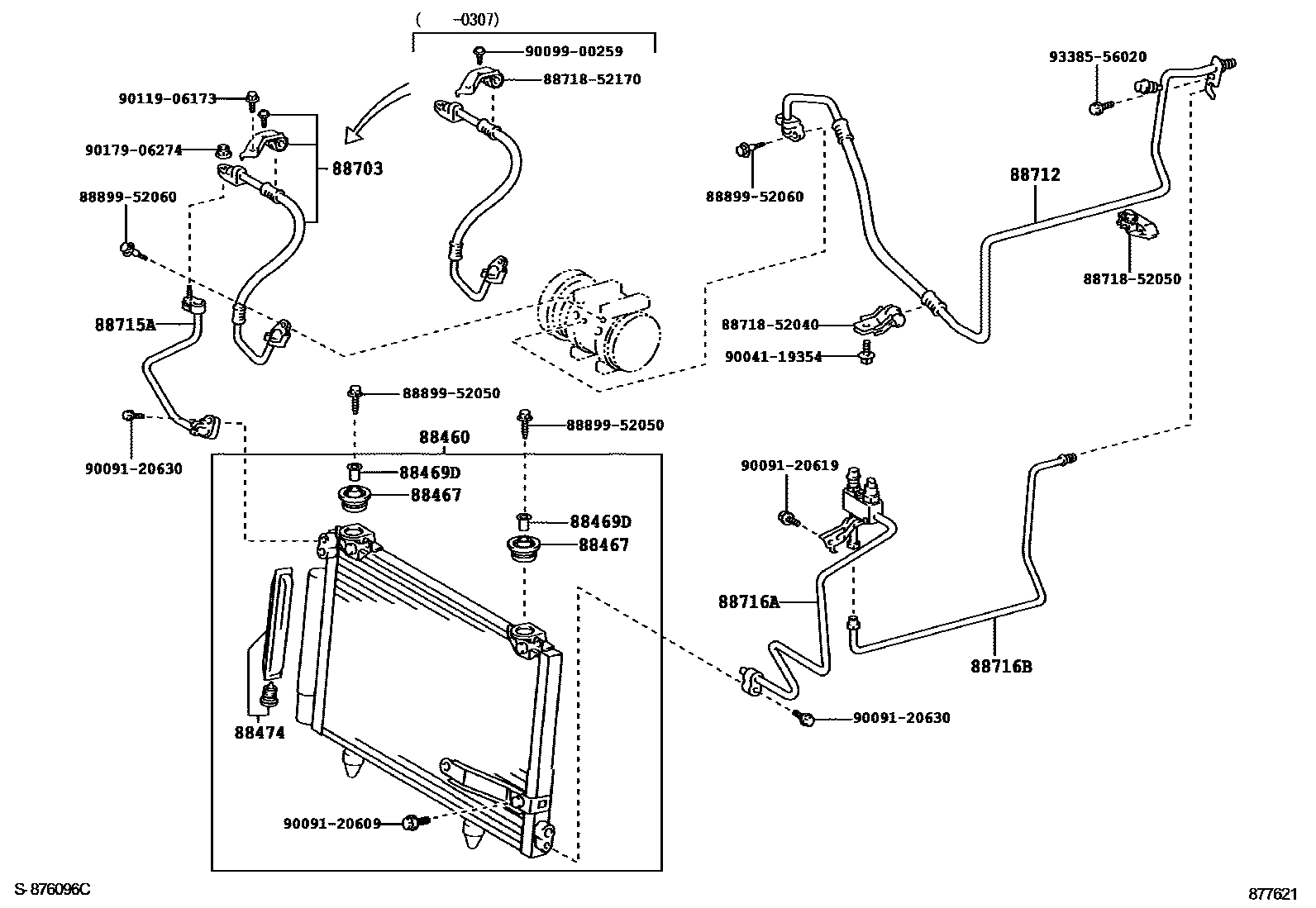

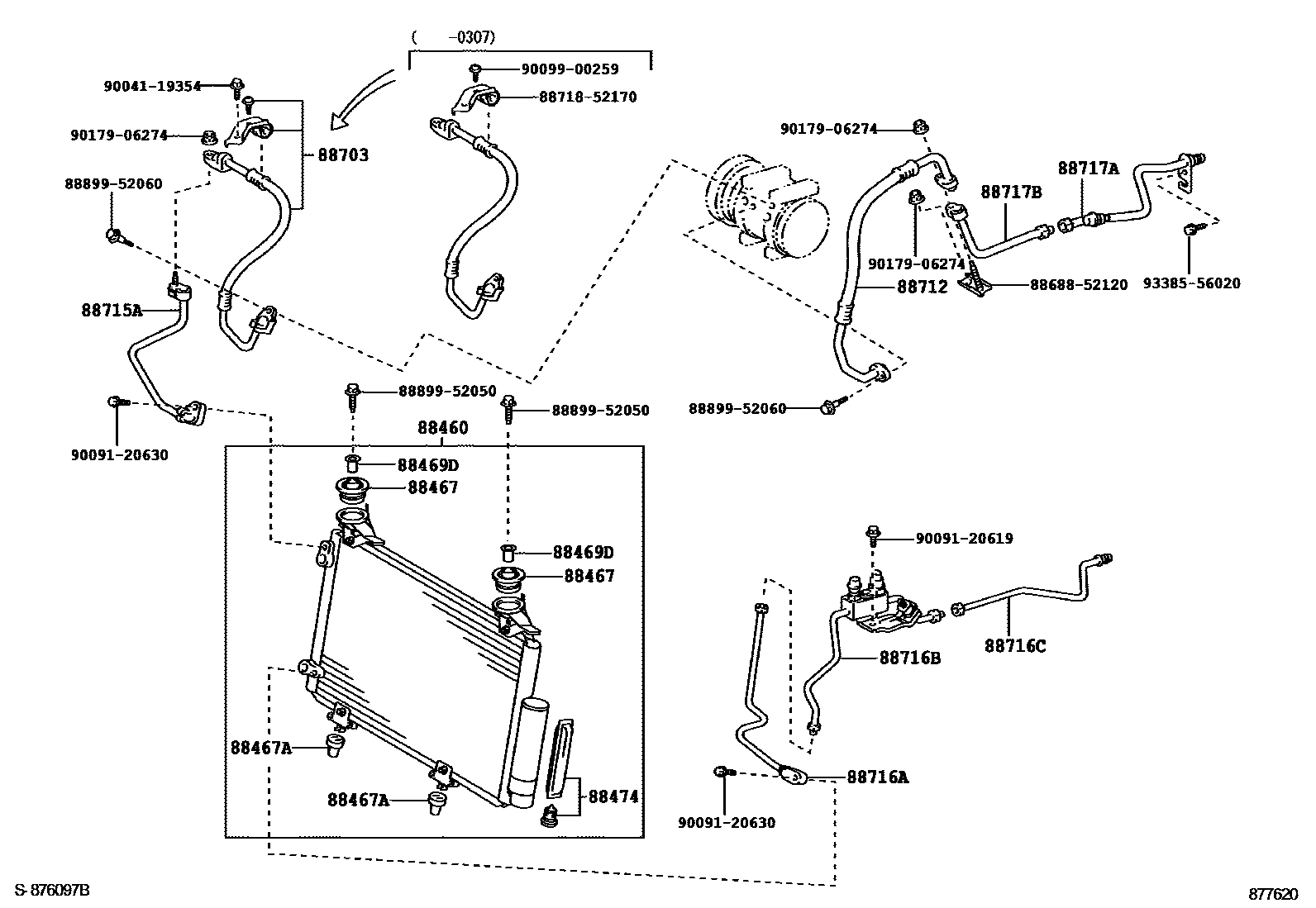

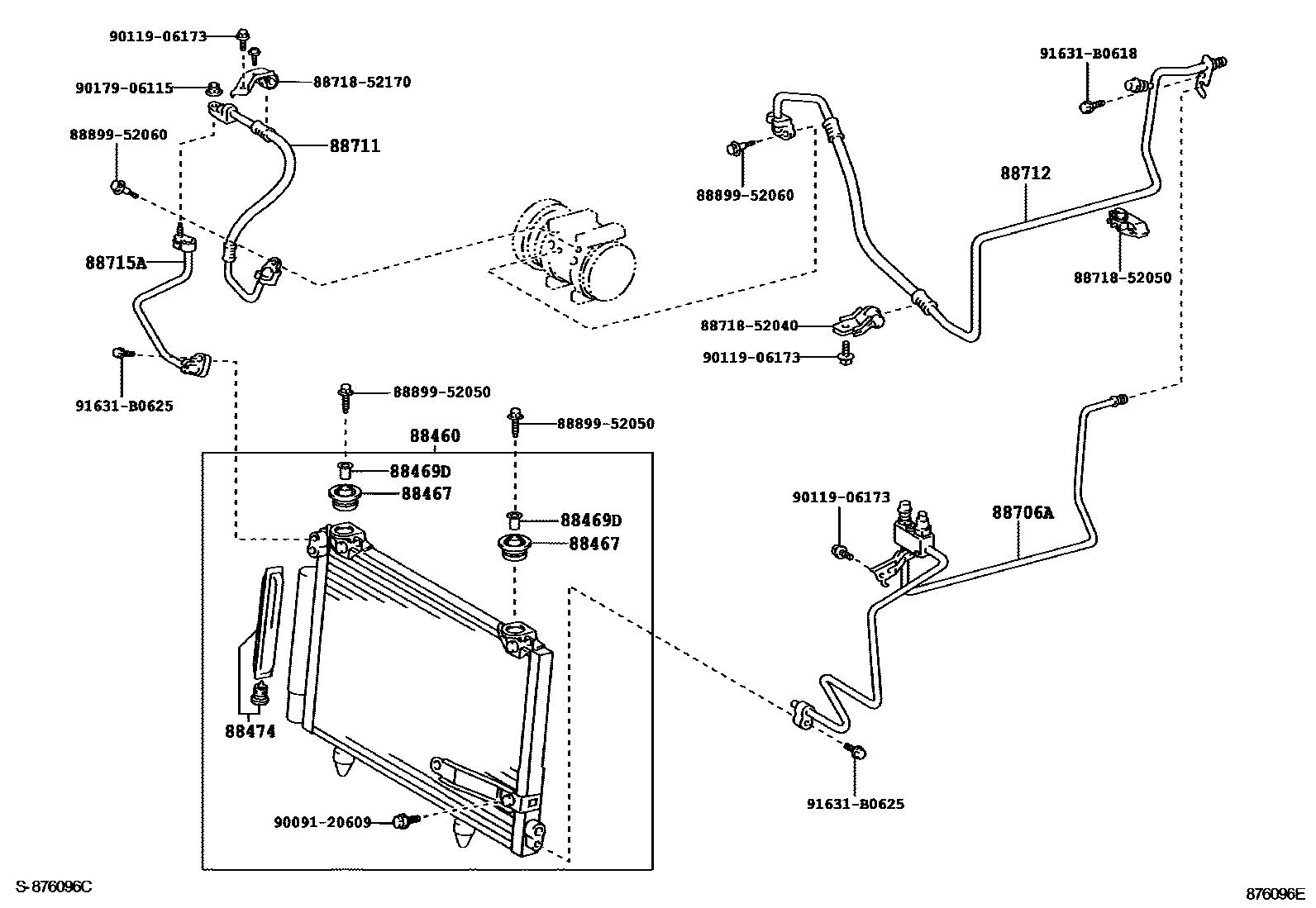

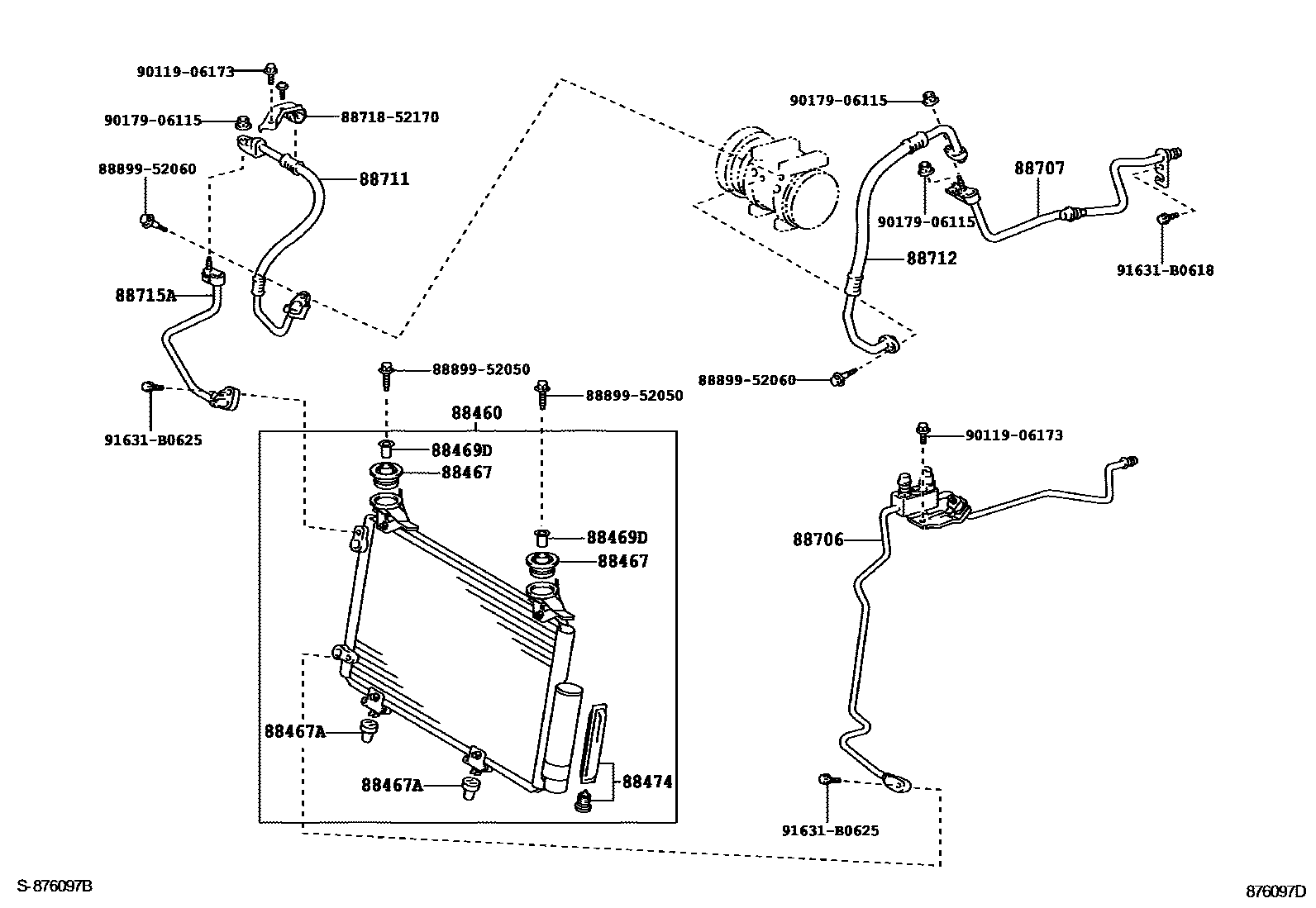

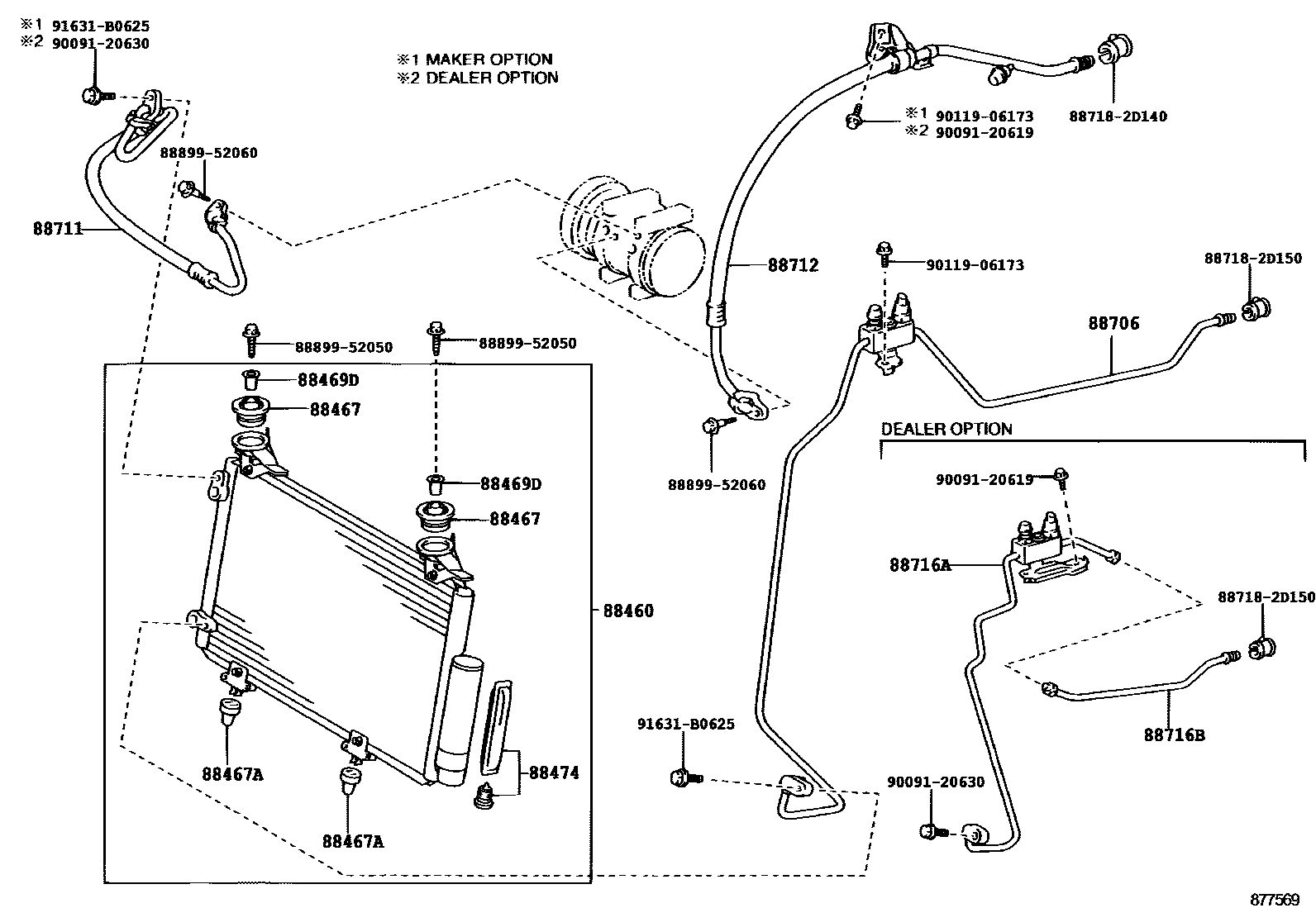

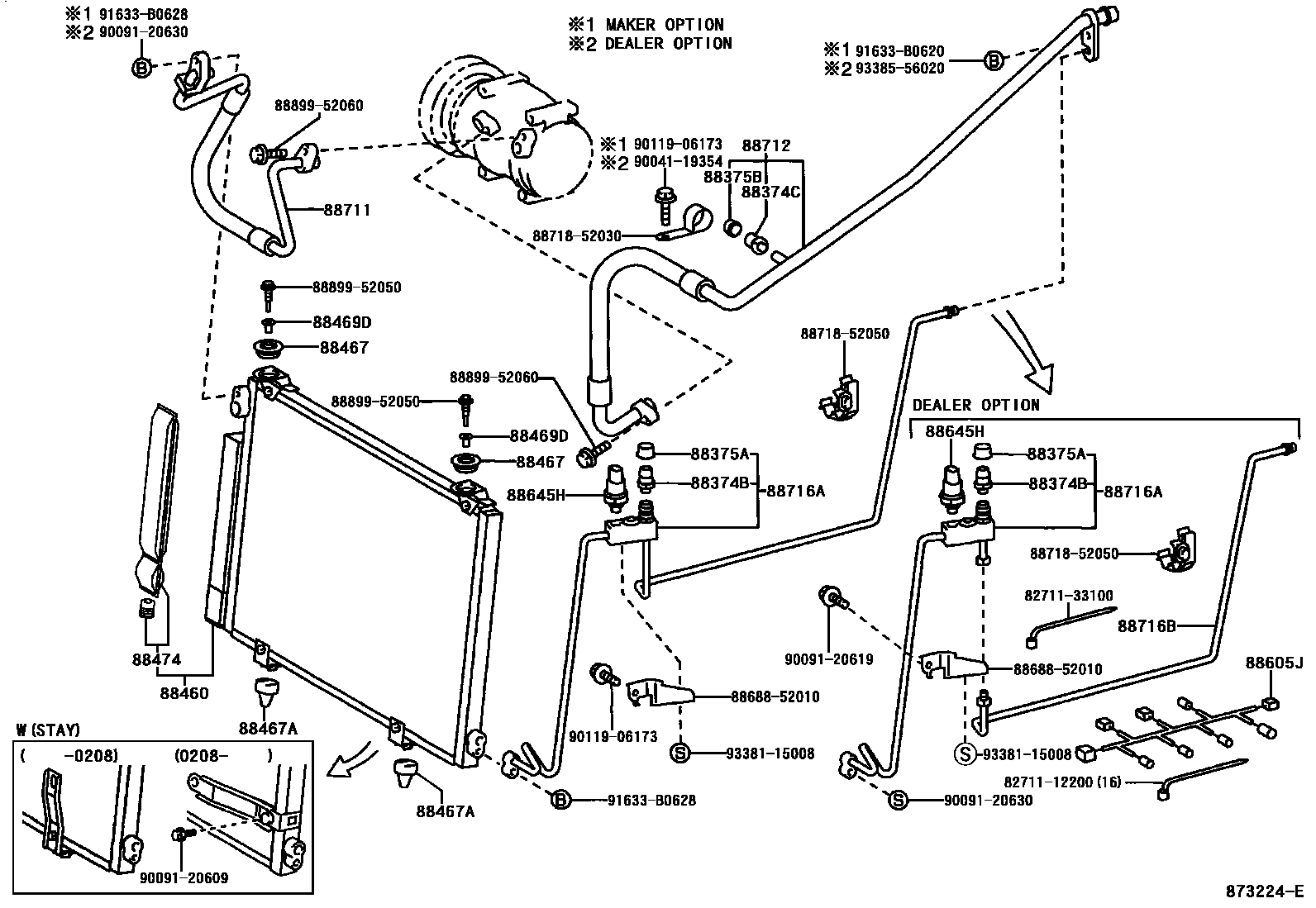

Toyota YARIS EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 13 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 · 88374-33070 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375A | Repair valve cover (for cooler tube) | 88375-30280 |
| 88375B | No. 1 maintenance valve cover | 88375-30290 |
| 88460 | Air conditioning condenser assembly | 88450-52161 · 88450-52170 · 88450-52180 · 88450-52181 · 88460-52010 · 88460-52020 · 88460-52050 |
| 88467 | No. 1 air conditioning condenser buffer pad | 88467-12180 · 88467-52010 |
| 88467A | No. 2 air conditioning condenser buffer pad | 88467-52020 |
| 88469D | No. 1 condenser bracket collar | 88469-52010 |
| 88474 | cooler dryer | 88474-17010 · 88474-47010 |
| 88605J | Air conditioning wiring harness sub-assembly | 88605-52060 · 88605-52070 · 88605-52110 · 88605-52120 |
| 88645H | No. 1 pressure switch | 88645-60030 |
| 88703 | Discharge hose sub-assembly | 88703-52080 |
| 88706 | Liquid pipe sub-assembly | 88706-52260 · 88706-52270 |
| 88706A | Liquid pipe A sub-assembly | 88706-52040 · 88706-52200 · 88706-52270 |
| 88707 | Suction pipe sub-assembly | 88707-52010 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-52010 · 88711-52020 · 88711-52021 · 88711-52050 · 88711-52140 · 88711-52170 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88704-52060 · 88712-52010 · 88712-52020 · 88712-52030 · 88712-52040 · 88712-52050 · 88712-52090 · 88712-52100 · 88712-52150 · 88712-52160 |
| 88715A | Cooler refrigerant discharge pipe A | 88715-52050 · 88715-52060 |
| 88716A | Cooler refrigerant liquid pipe A | 88706-52100 · 88706-52260 · 88706-52310 · 88716-52010 · 88716-52030 · 88716-52040 · 88716-52060 · 88716-52080 · 88716-52110 · 88716-52160 · 88716-52170 · 88716-52210 · 88716-52290 · 88716-52420 |
| 88716B | Cooler refrigerant liquid pipe B | 88706-52340 · 88716-52050 · 88716-52070 · 88716-52120 · 88716-52140 · 88716-52200 · 88716-52360 · 88716-52380 |
| 88716C | Cooler refrigerant liquid pipe C | 88716-52220 |
| 88717A | Cooler refrigerant suction pipe A | 88717-52010 · 88717-52040 |
| 88717B | Cooler refrigerant suction pipe B | 88707-52020 · 88717-52030 |
