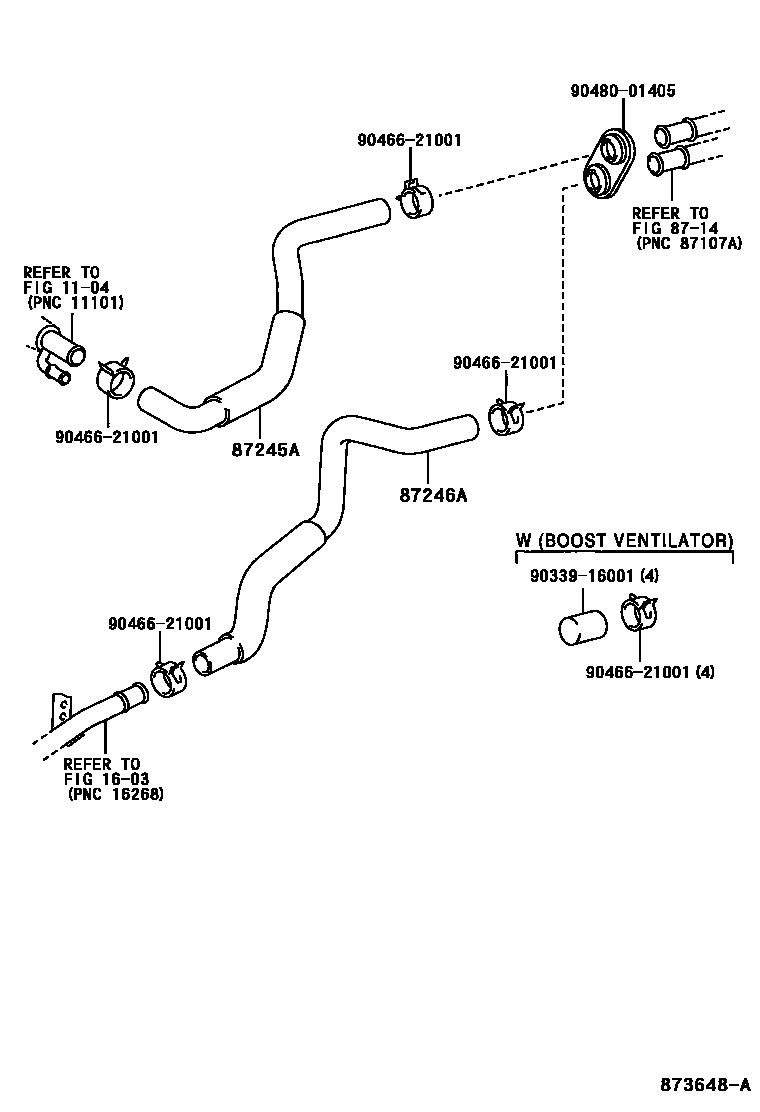

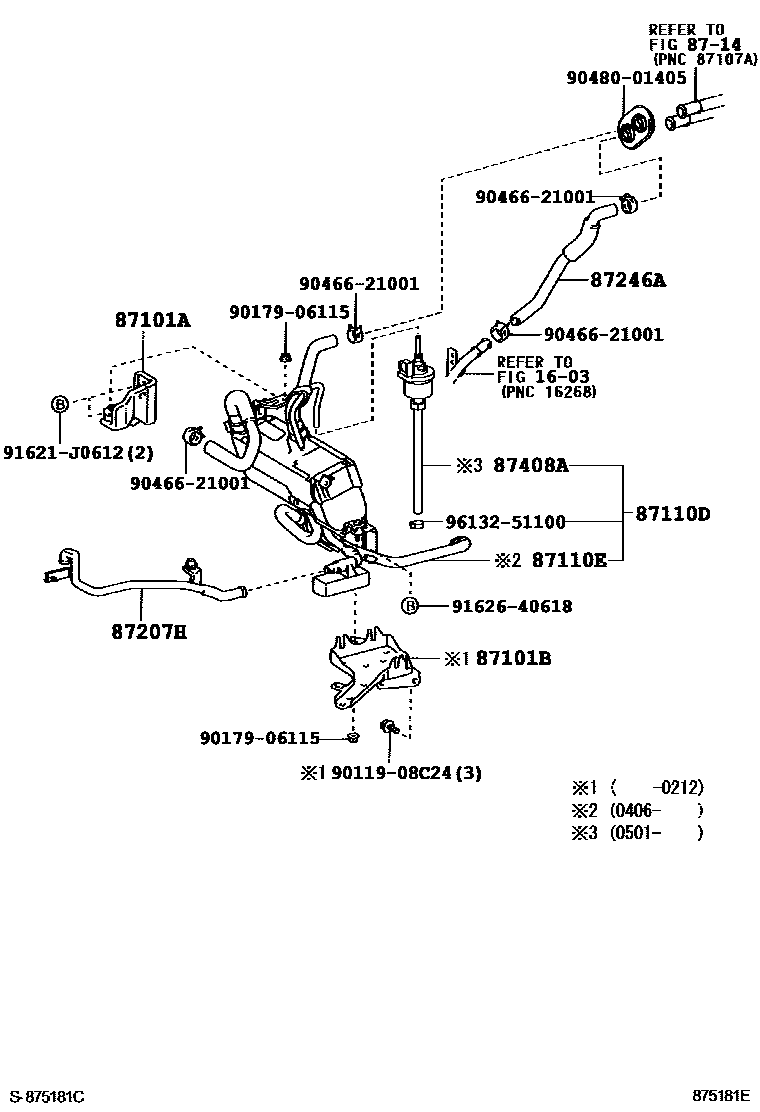

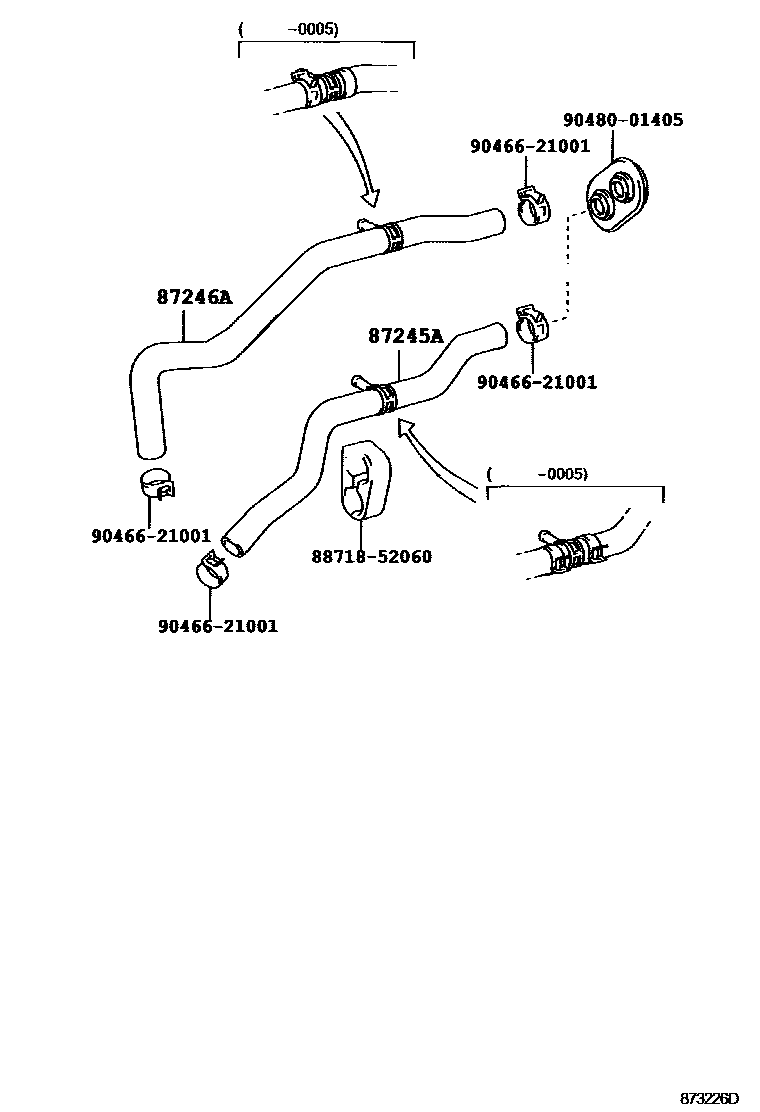

Toyota YARIS 暖风和空调系统 - 水管 — Figure 8716
Toyota YARIS EPC diagram 8716, 暖风和空调系统 - 水管, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87101A | No. 1 heater bracket sub-assembly | 87101-52010 |
| 87101B | No. 2 heater bracket sub-assembly | 44590-52051 |
| 87110D | heater assembly | 87100-52010 · 87100-52011 · 87100-52012 |
| 87110E | heater assembly | 87110-05030 · 87110-05031 |
| 87207H | Vacuum tube sub-assembly | 87207-52010 |
| 87245A | Heater water inlet hose A | 87209-52010 · 87209-52011 · 87209-52030 · 87209-52031 · 87245-52010 · 87245-52050 |
| 87246A | Heater outlet hose A | 87209-52020 · 87209-52021 · 87245-52020 · 87245-52060 |
| 87408A | Fuel pump sub-assembly | 87408-05011 |
