Toyota YARIS 后视镜 — Figure 8701

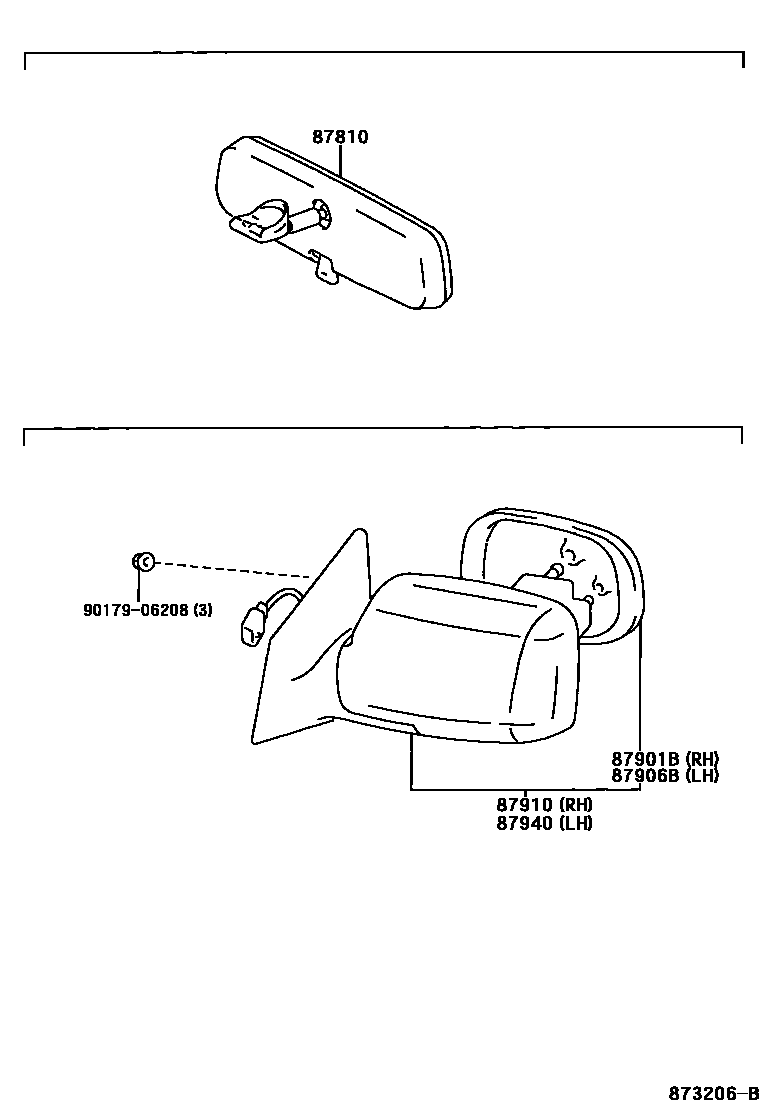

Toyota YARIS EPC diagram 8701, 后视镜, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-0W030 · 87810-52040 |
| 87901B | Right exterior rearview mirror sub-assembly | 87931-1A820 · 87931-52120 |
| 87906B | Left exterior rearview mirror sub-assembly | 87961-1E820 · 87961-52100 |
| 87910 | Right exterior rearview mirror assembly | 87910-52030 · 87910-52031 · 87910-52080 · 87910-52081 · 87910-52120 · 87910-52121 · 87910-52130 · 87910-52131 · 87910-52150 · 87910-52151 |
| 87940 | Left exterior rearview mirror assembly | 87940-52030 · 87940-52031 · 87940-52060 · 87940-52061 · 87940-52100 · 87940-52101 · 87940-52110 · 87940-52111 · 87940-52130 · 87940-52131 |
