Toyota YARIS 后清洗器 — Figure 8504

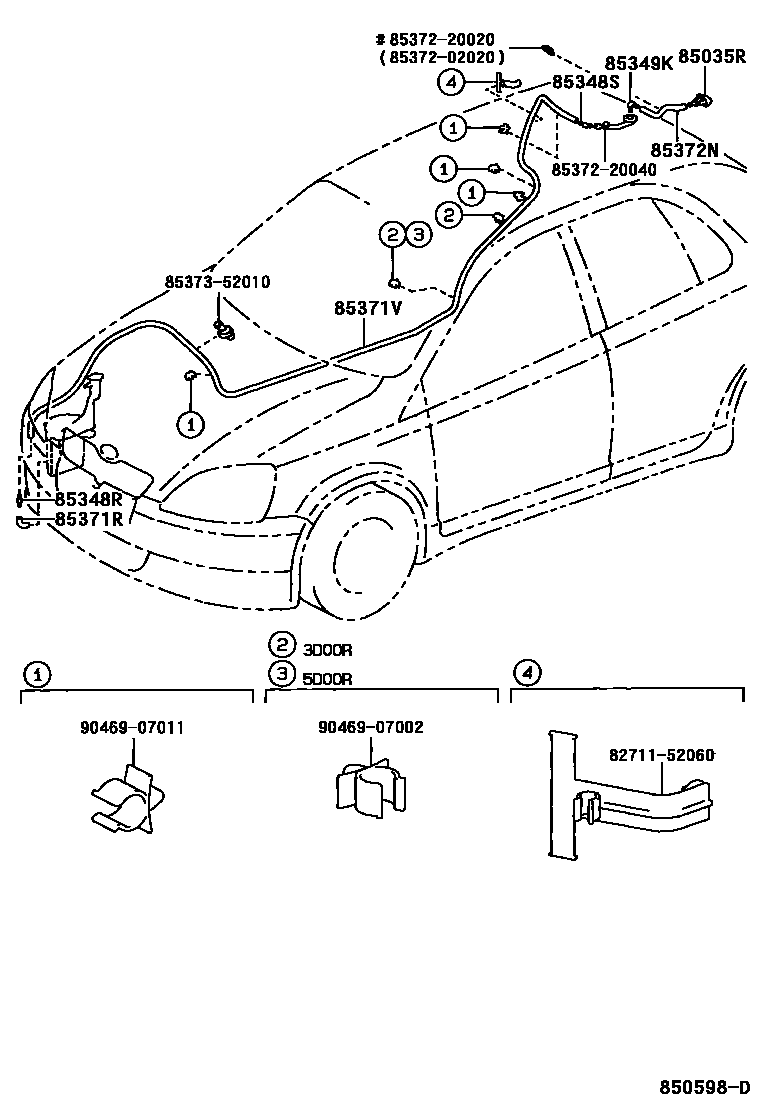

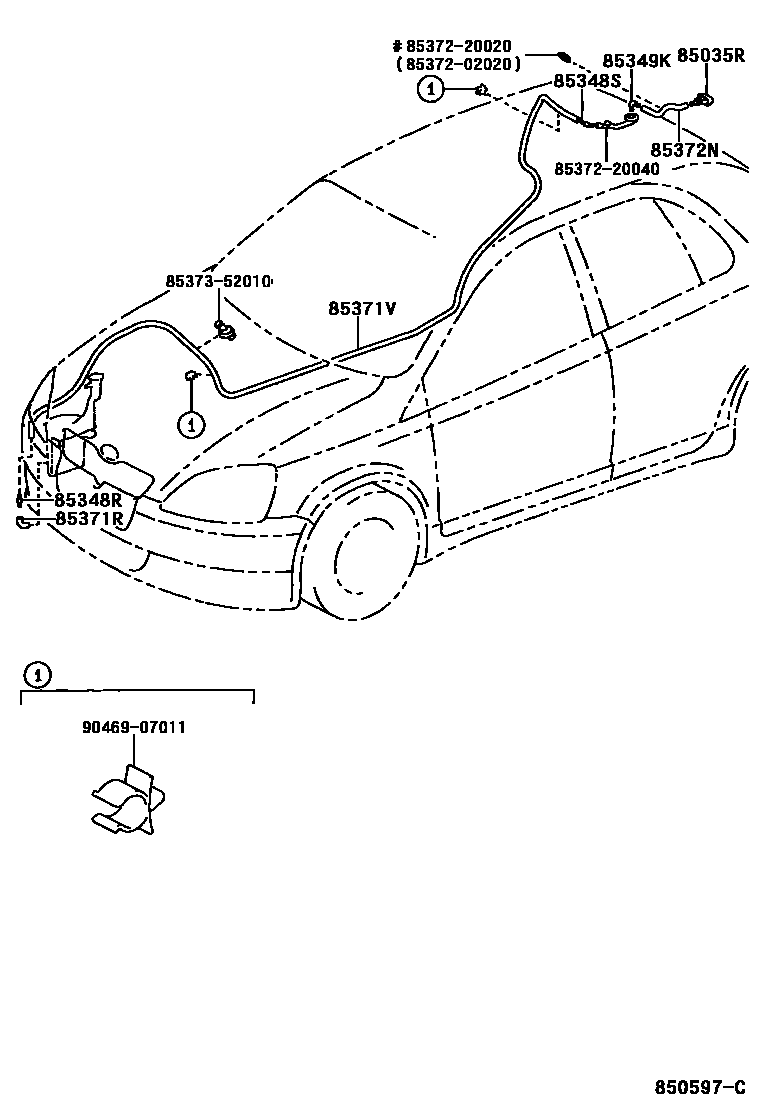

Toyota YARIS EPC diagram 8504, 后清洗器, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035R | Rear washer nozzle sub-assembly | 85391-52010 |
| 85348R | No. 1 rear washer hose connector | 85349-89122 |
| 85348S | No. 1 rear cleaner elbow joint | 85355-20200 |
| 85349K | No. 2 rear cleaner elbow joint | 85355-20200 · 85377-52210 |
| 85371V | Rear washer hose (from fitting to fitting) | 90099-59247 |
