Toyota YARIS 挡风玻璃刮水器 — Figure 8501

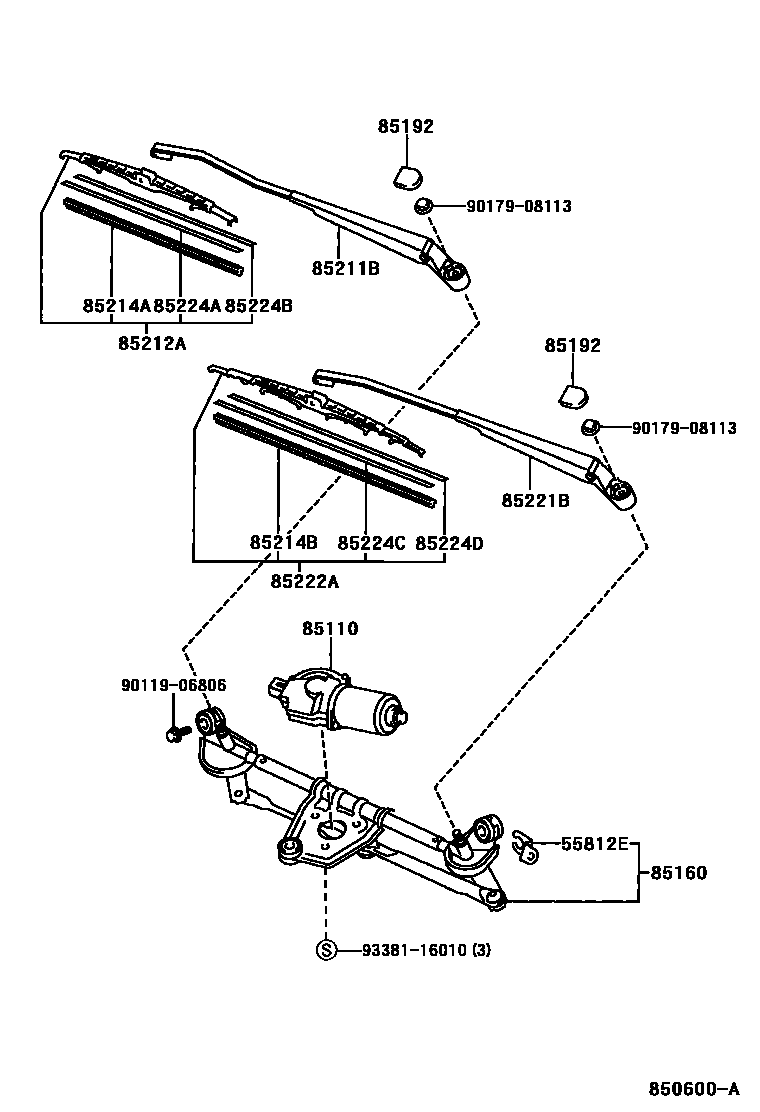

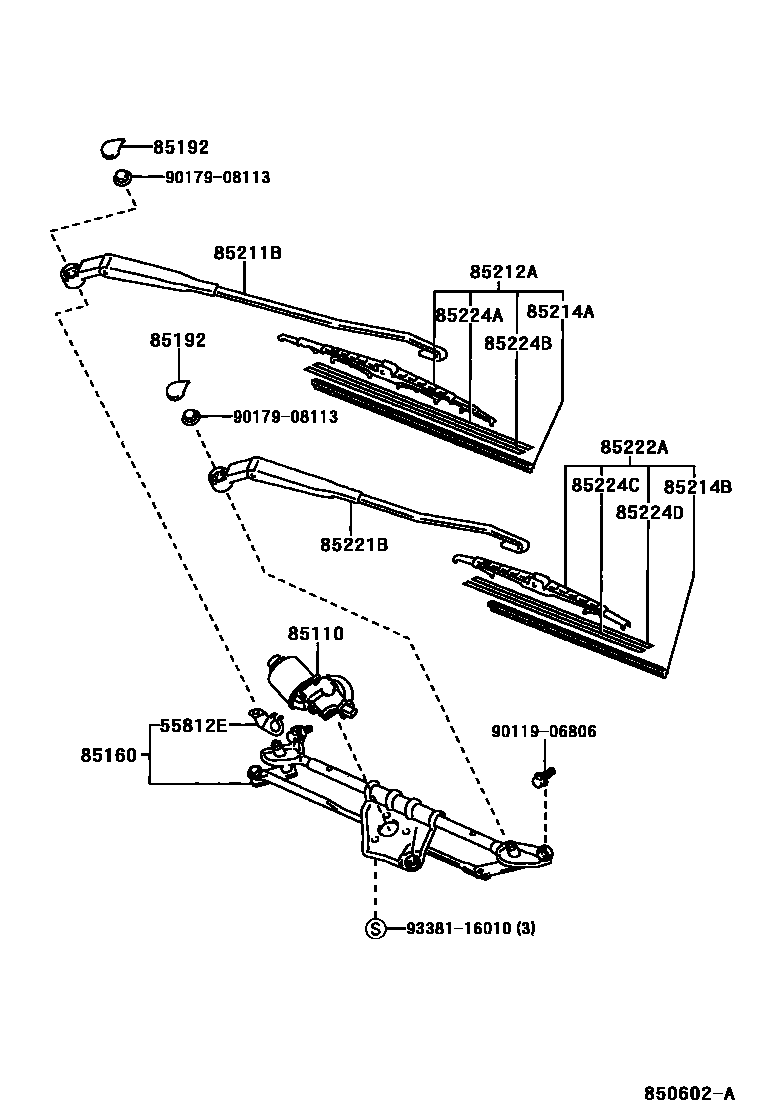

Toyota YARIS EPC diagram 8501, 挡风玻璃刮水器, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55812E | Front ventilation device bracket | 55812-52030 · 55812-52040 |
| 85110 | Windshield wiper motor assembly | 85110-52010 · 85110-52040 |
| 85160 | Windshield wiper connecting rod assembly | 85150-52010 · 85150-52020 |
| 85192 | windshield wiper arm cover | 85192-12800 |
| 85211B | Right front wiper arm | 85211-52010 · 85211-52030 |
| 85212A | Right front wiper blade | 85212-52010 · 85212-52040 |
| 85214A | Right wiper rubber strip | 85214-44080 · 85214-48030 · 85214-52030 · 85214-68010 |
| 85214B | Left wiper rubber strip | 85214-26020 · 85214-44080 · 85214-48030 · 85214-68010 |
| 85221B | Left front wiper arm | 85221-52010 · 85221-52030 |
| 85222A | Left front wiper blade | 85222-26060 · 85222-52020 · 85222-52140 |
| 85224A | No. 1 wiper rubber strip back plate | 85224-20280 · 85224-44031 |
| 85224B | No. 2 wiper rubber strip back plate | 85224-20280 · 85224-44031 |
| 85224C | No. 3 wiper rubber strip back plate | 85224-20280 · 85224-44070 |
| 85224D | No. 4 wiper rubber strip back plate | 85224-20280 · 85224-44070 |
