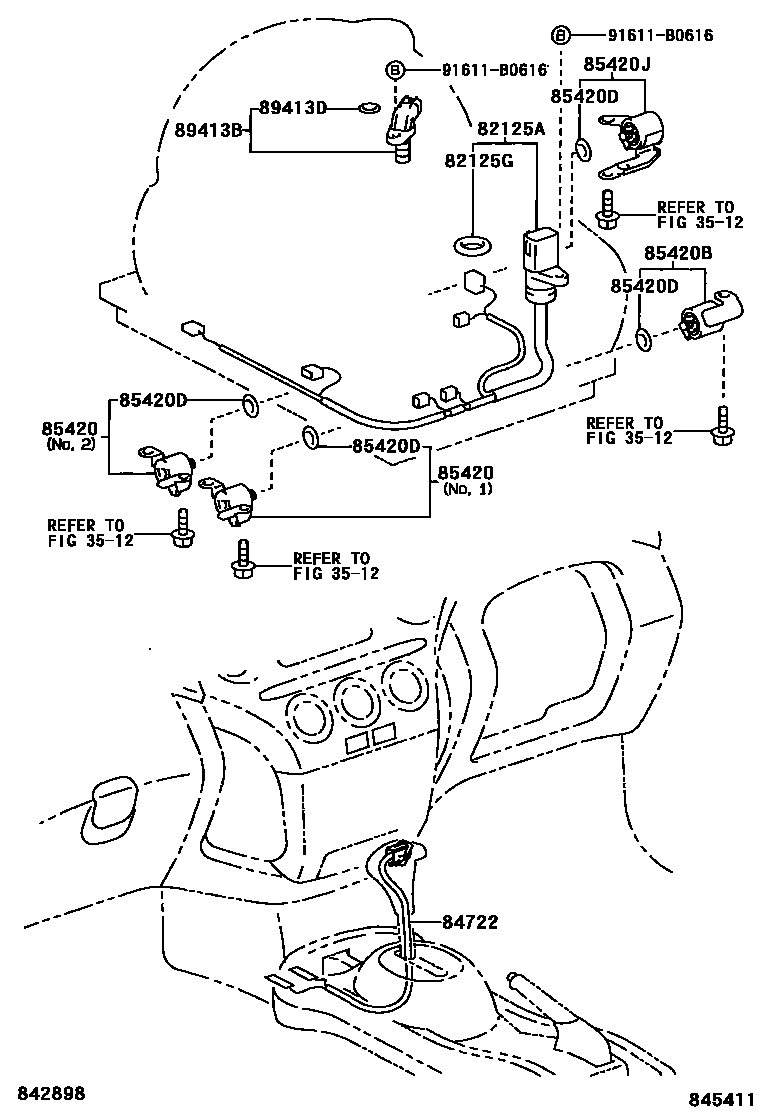

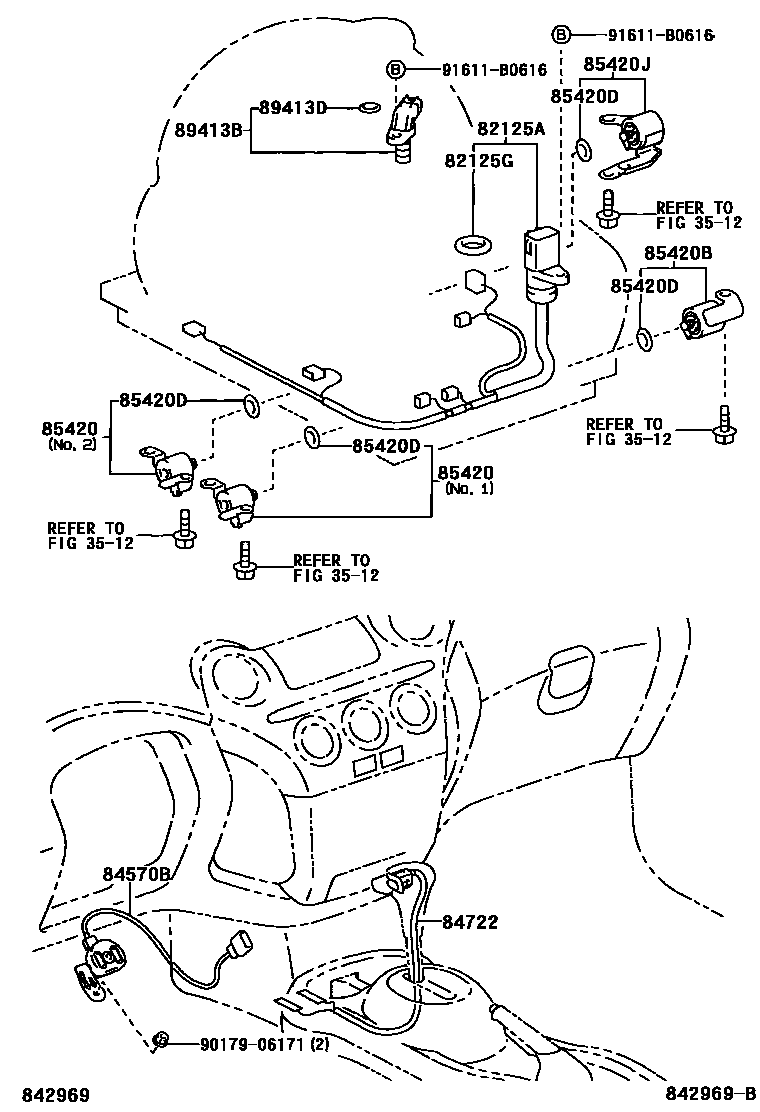

Toyota YARIS 超速档和电子控制变速器 — Figure 8410
Toyota YARIS EPC diagram 8410, 超速档和电子控制变速器, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82125A | Transmission wiring harness | 82125-52020 |
| 82125G | O-ring (for transmission wiring harness) | 90301-21009 |
| 84570B | Forced downshift switch assembly | 84570-52010 |
| 85420 | Transmission solenoid valve assembly | 35250-52020 · 85420-52010 · 85420-52020 |
| 85420B | Transmission solenoid valve assembly | 35250-52050 · 85420-52030 · 85420-52040 |
| 85420D | O-ring (for transmission solenoid valve) | 90301-06004 |
| 85420J | Transmission solenoid valve assembly | 35250-52060 · 35250-52070 · 85420-52050 · 85420-52060 |
| 89413B | Transmission speed sensor | 89413-32010 |
| 89413D | O-ring (for transmission speed sensor) | 90301-11008 |
