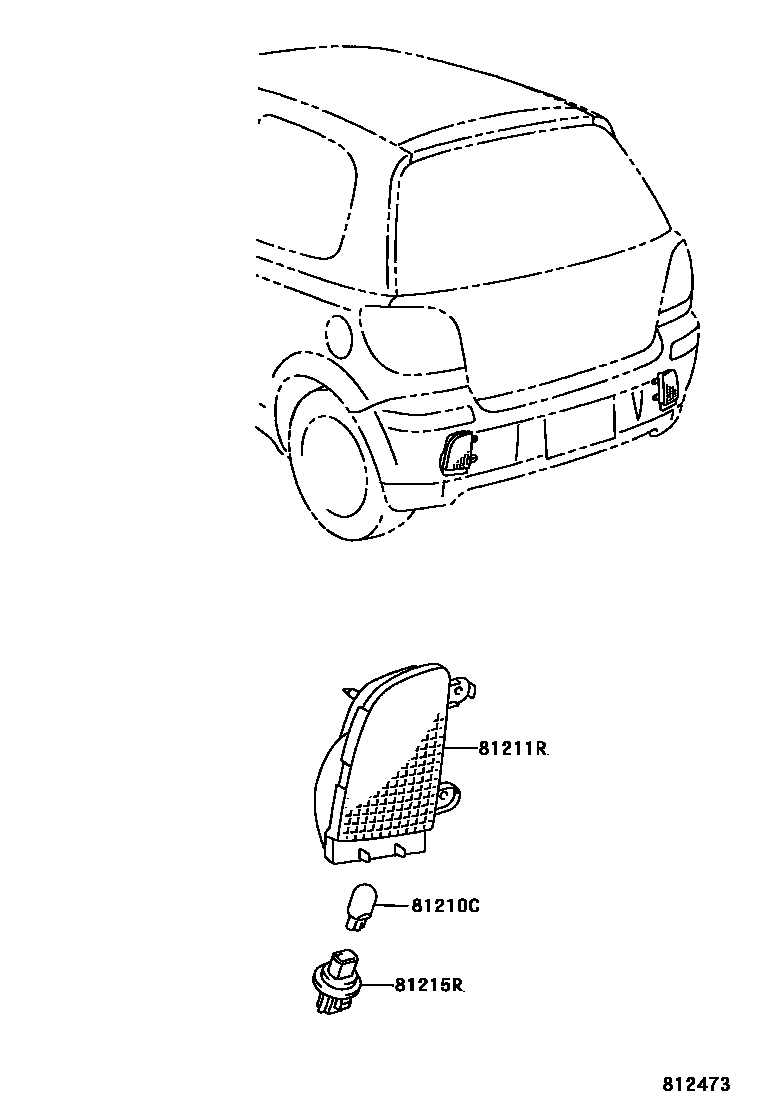

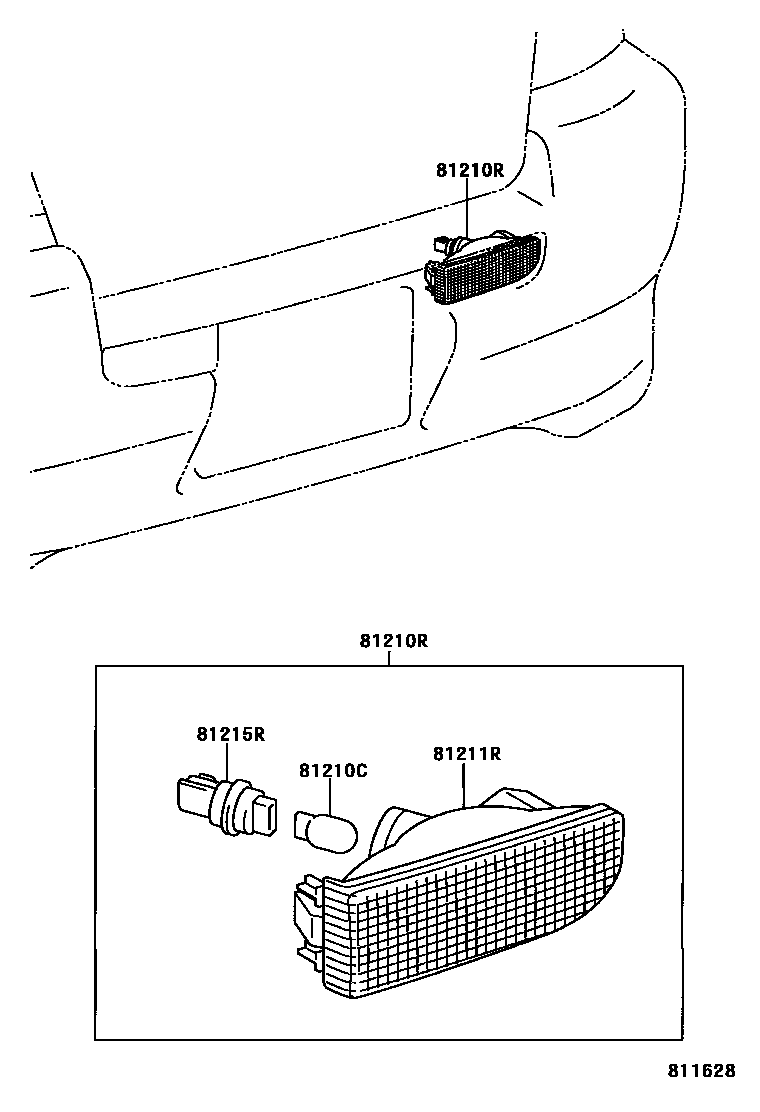

Toyota YARIS 后雾灯 — Figure 8116
Toyota YARIS EPC diagram 8116, 后雾灯, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81210C | Rear fog light bulb | 90981-13043 |
| 81210R | Rear fog light assembly | 81580-52030 · 81590-52020 |
| 81211R | Rear fog light cover | 81581-52030 · 81581-52130 · 81591-52020 · 81591-52070 |
| 81215R | Rear fog light lamp holder and wiring harness | 90075-99080 |
