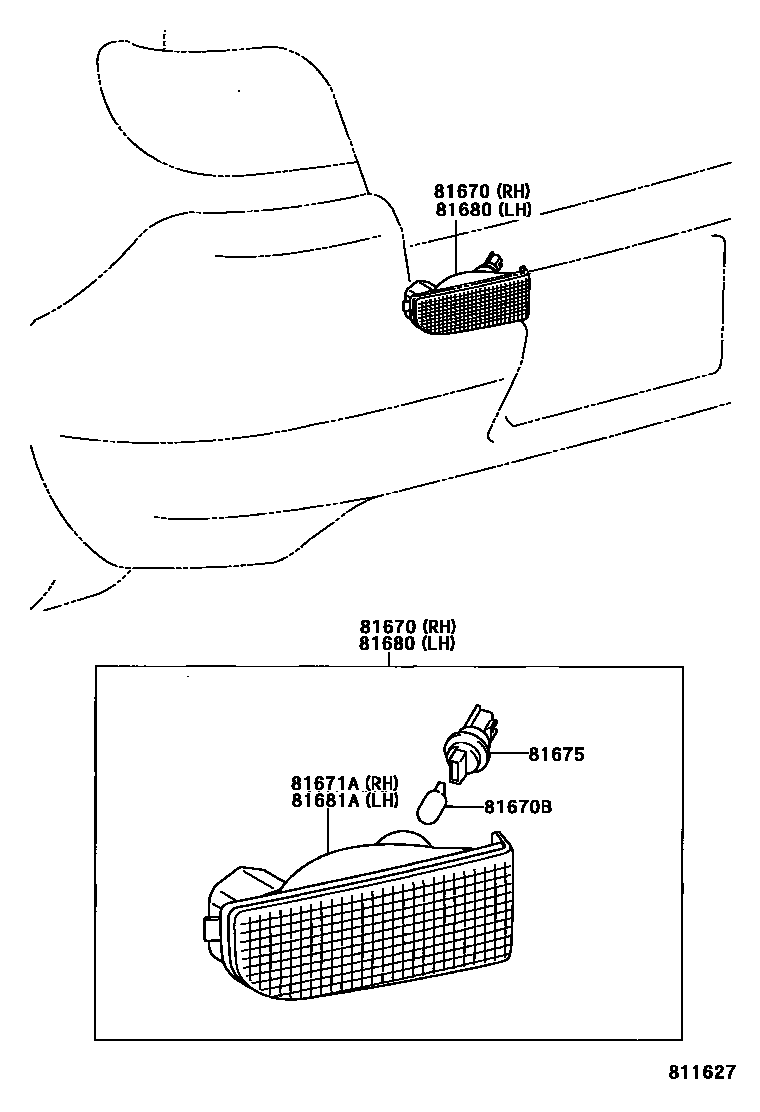

Toyota YARIS 倒车灯 — Figure 8112
Toyota YARIS EPC diagram 8112, 倒车灯, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81670 | Right reversing light assembly | 81670-52010 |
| 81670B | Bulb (for reversing lights) | 90981-13043 |
| 81671A | Reversing light shade and body | 81671-52010 |
| 81675 | Reversing light holder and wiring harness | 90075-99080 |
| 81680 | Left reversing light assembly | 81680-52010 |
| 81681A | Left reversing light shade and body | 81681-52010 |
