Toyota YARIS Fog Lamp — Figure 8102

Toyota YARIS EPC diagram 8102, Fog Lamp, with 2 images and 7 PNC and OE references.

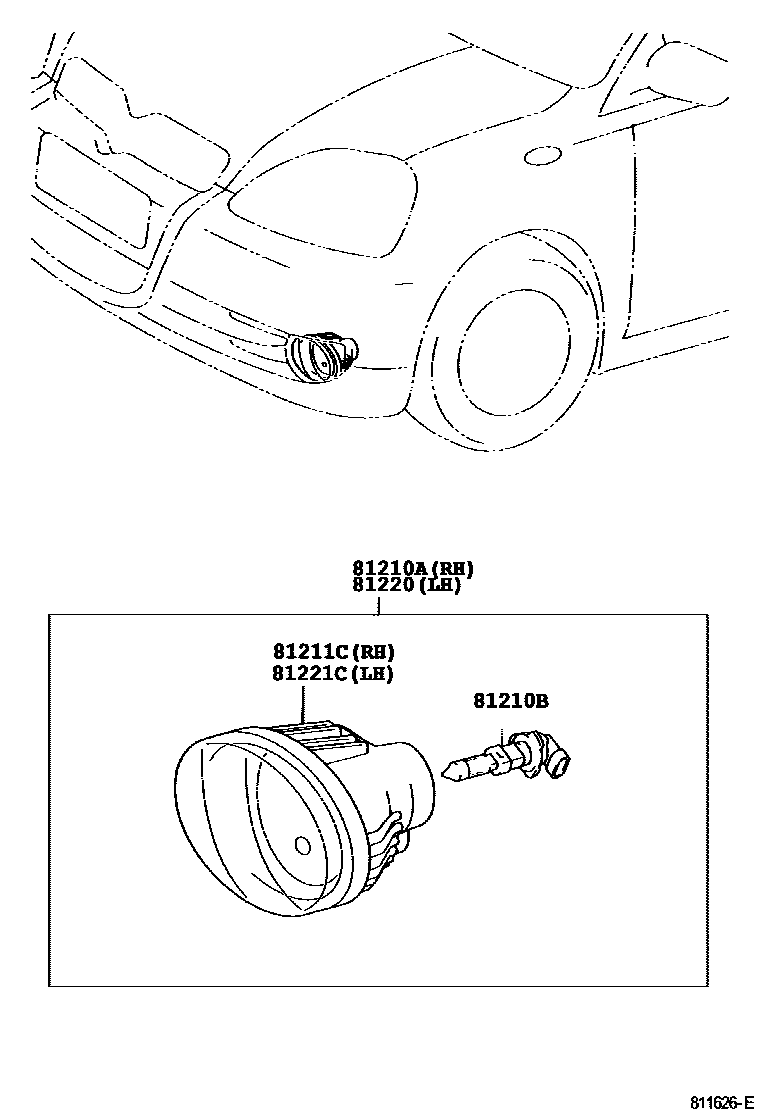

Toyota YARIS Fog Lamp EPC diagram — 811626E
Fog Lamp — 811626E (200101 – 999999)

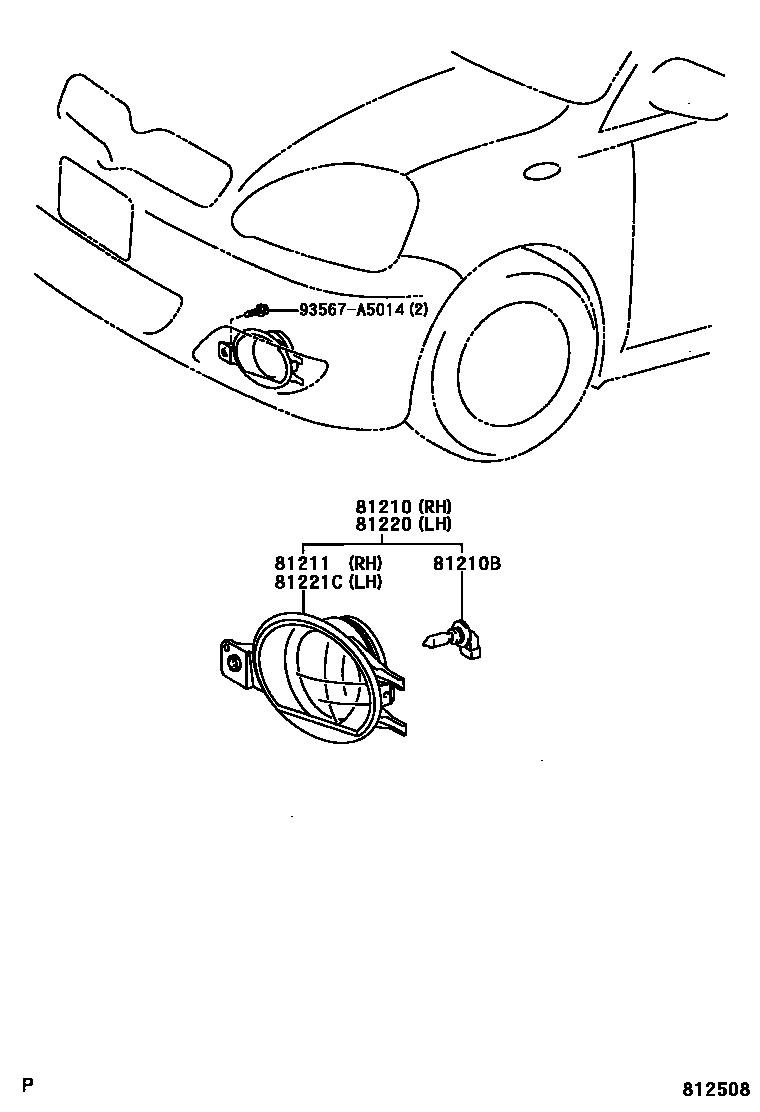

Toyota YARIS Fog Lamp EPC diagram — 812508
Fog Lamp — 812508 (200212 – 999999)

PNC and OE references

PNCPart nameOE numbers
81210Fog light assembly81210-0D020
81210ARight fog light assembly81210-52050 · 81210-52051
81210Bfog light bulb90080-81040 · 90981-13047 · 90981-WD009
81211fog lamp shade81211-0D020
81211CRight fog light assembly81211-52050 · 81211-52051
81220Left fog light assembly81220-0D020 · 81220-52050 · 81220-52051
81221CLeft fog light assembly81221-0D020 · 81221-52050 · 81221-52051
