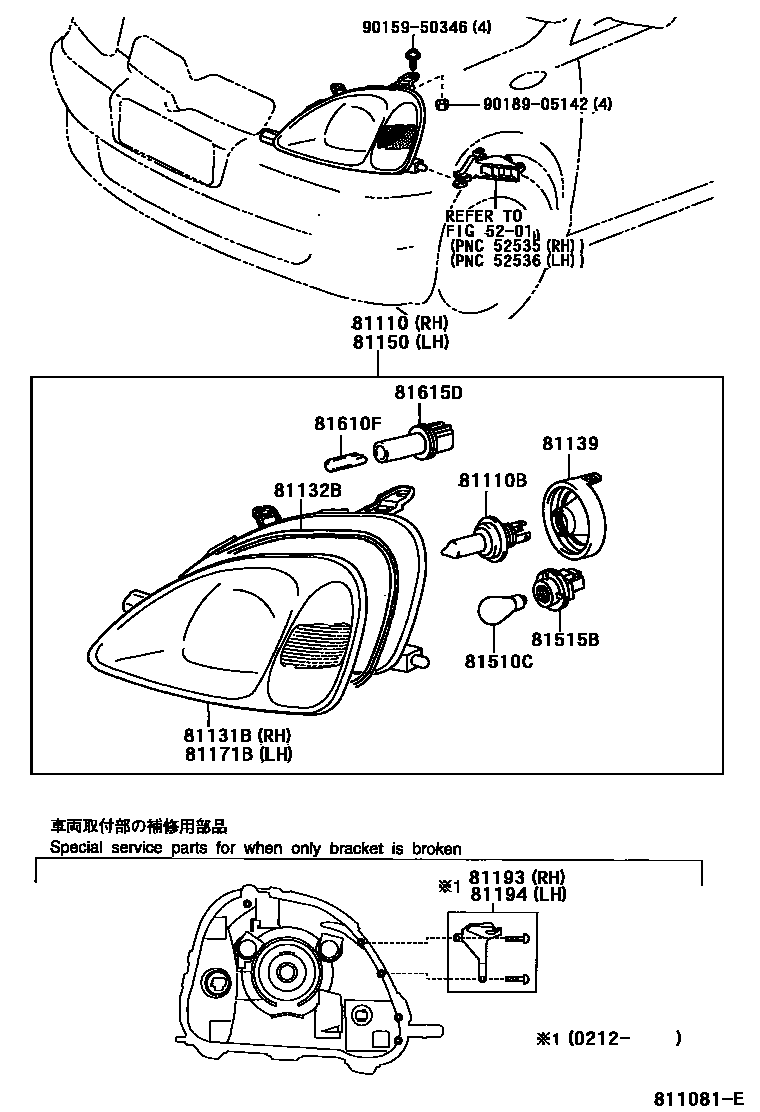

Toyota YARIS Headlamp — Figure 8101
Toyota YARIS EPC diagram 8101, Headlamp, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110 | Right headlight assembly | 81110-52020 · 81110-52021 · 81110-52030 · 81110-52031 · 81110-52050 · 81110-52120 · 81110-52130 · 81110-52140 · 81110-52141 · 81110-52150 · 81110-52151 · 81110-52340 · 81110-52350 · 81110-52360 · 81110-52370 |
| 81110B | Bulb (for headlight No. 1) | 90981-13055 · 90981-13058 · 90981-22003 |
| 81131B | Right headlight lampshade | 81131-52020 · 81131-52030 · 81131-52340 · 81131-52350 |
| 81132B | Headlight cover gasket | 81132-52020 · 81132-52021 · 81172-52020 |
| 81139 | Headlight lamp holder cover | 81139-52010 |
| 81150 | Left headlight assembly | 81150-52020 · 81150-52021 · 81150-52030 · 81150-52031 · 81150-52120 · 81150-52130 · 81150-52140 · 81150-52141 · 81150-52150 · 81150-52151 · 81150-52340 · 81150-52350 · 81150-52360 · 81150-52370 |
| 81171B | Left headlight lampshade | 81171-52020 · 81171-52030 · 81171-52340 · 81171-52350 |
| 81193 | Right headlight upper protective ring | 81193-52010 |
| 81194 | Left headlight upper protective ring | 81194-52010 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15011 · 99132-11210 |
| 81515B | Front turn signal lamp holder | 81515-12520 · 81515-42050 |
| 81610F | Light bulb (for width indicator light) | 99132-12050 |
| 81615D | Width light lamp holder | 81615-12590 · 90075-60004 |
