Toyota YARIS 安全带和儿童保护座椅 — Figure 7104

Toyota YARIS EPC diagram 7104, 安全带和儿童保护座椅, with 3 images and 3 PNC and OE references.

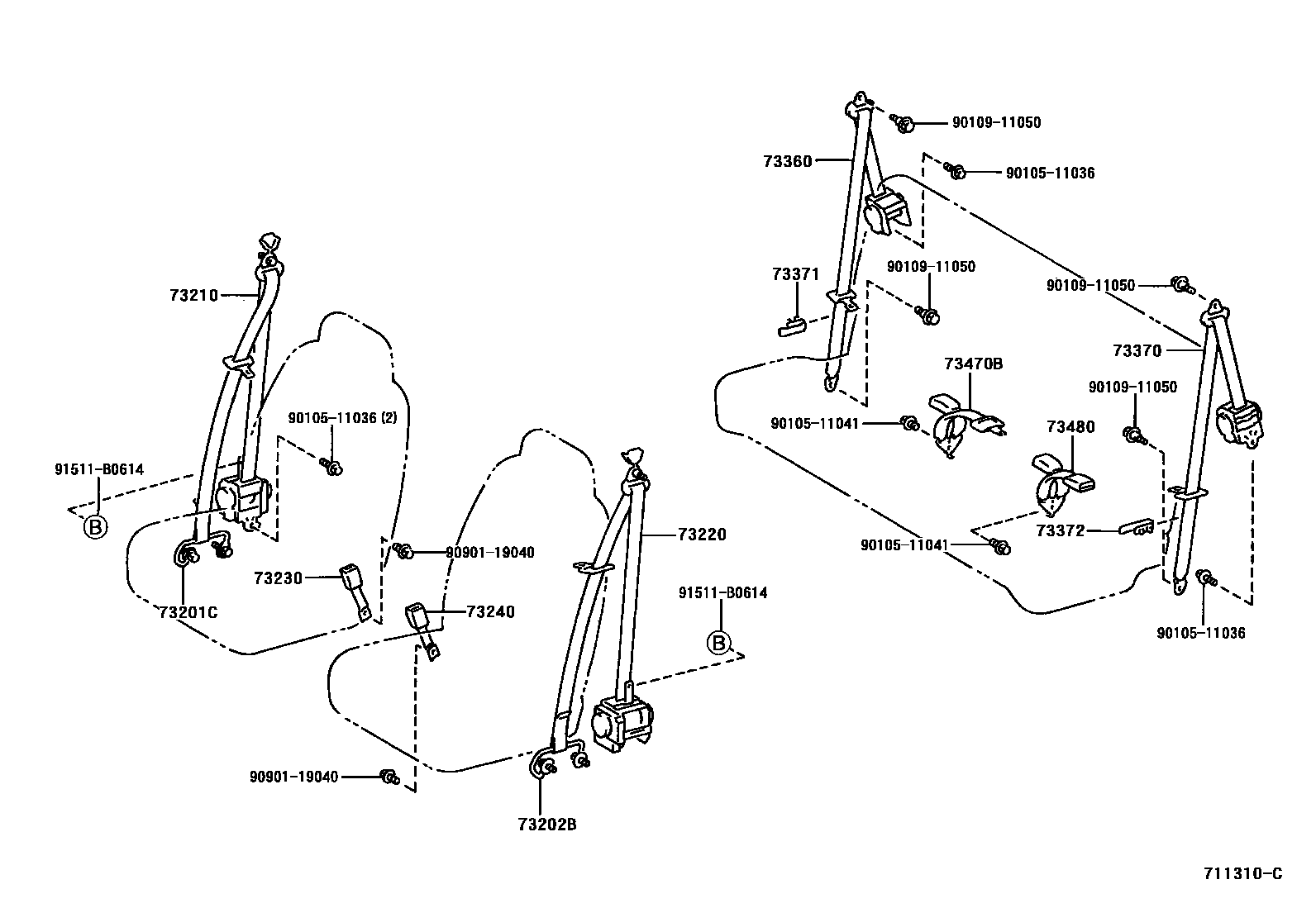

Toyota YARIS 安全带和儿童保护座椅 EPC diagram — 711310C — 安全带和儿童保护座椅 — 711310C (199901 – 999999)

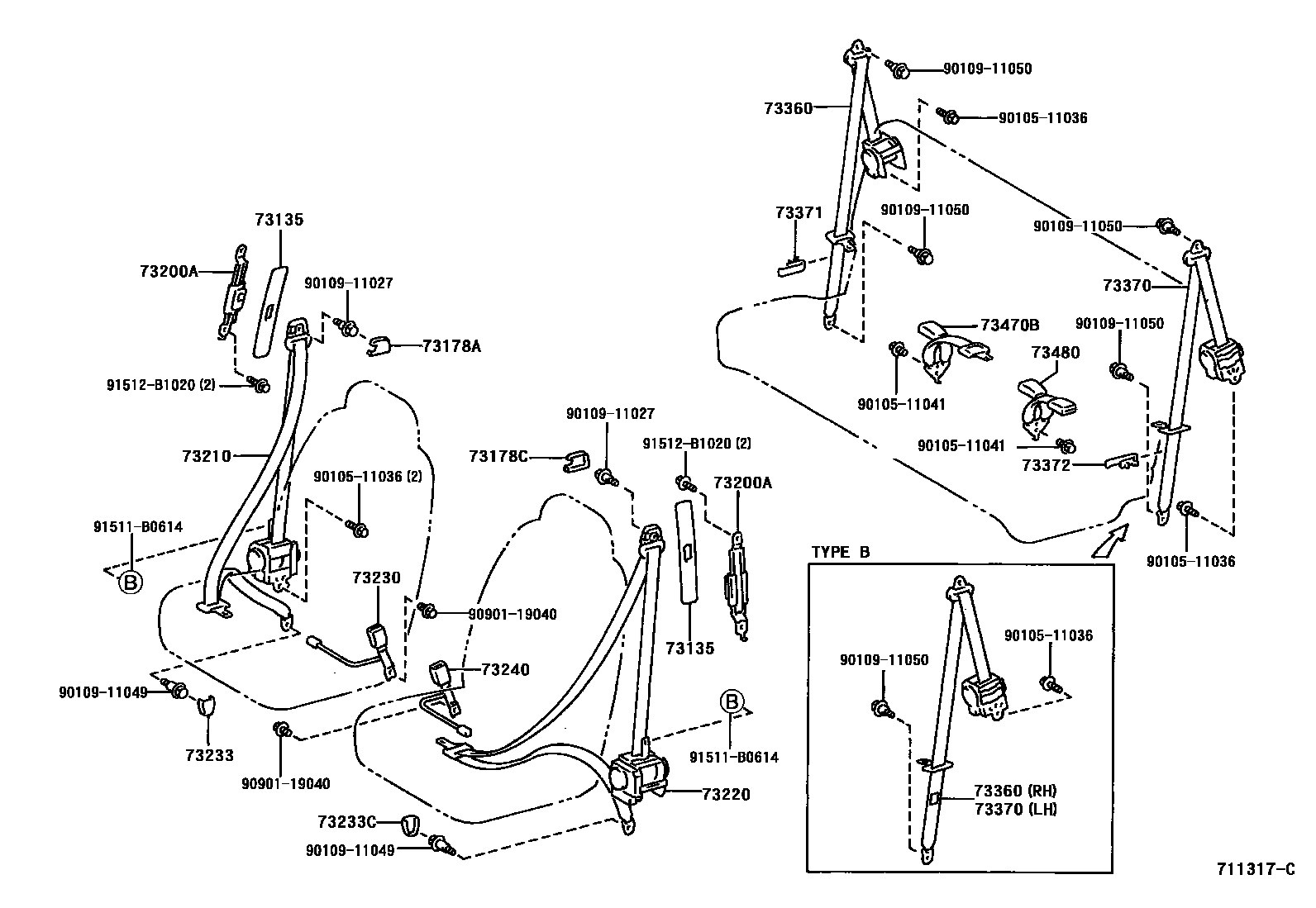

Toyota YARIS 安全带和儿童保护座椅 EPC diagram — 711317C — 安全带和儿童保护座椅 — 711317C (199901 – 999999)

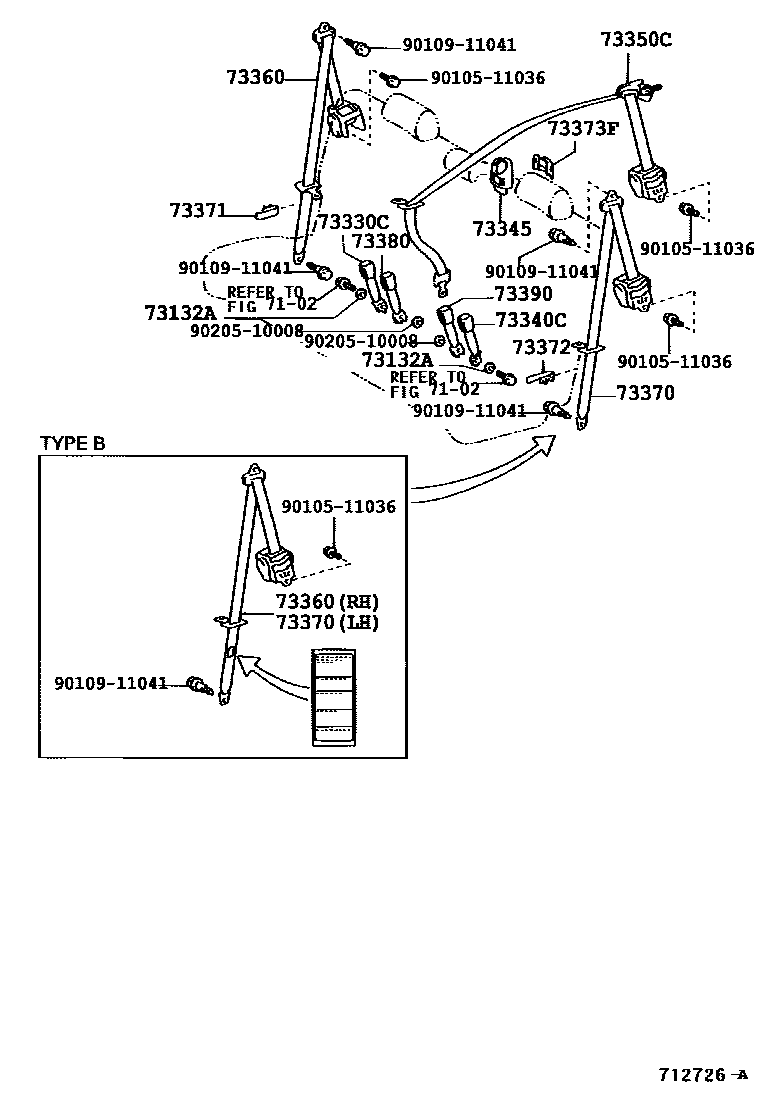

Toyota YARIS 安全带和儿童保护座椅 EPC diagram — 712726A — 安全带和儿童保护座椅 — 712726A (200212 – 999999)

PNC and OE references

PNC	Part name	OE numbers
73132A	seat belt holder ring	73132-52010
73201C	Front right seat outer seat belt lever sub-assembly	73201-52010
73202B	Front left seat outer seat belt lever sub-assembly	73202-52010
