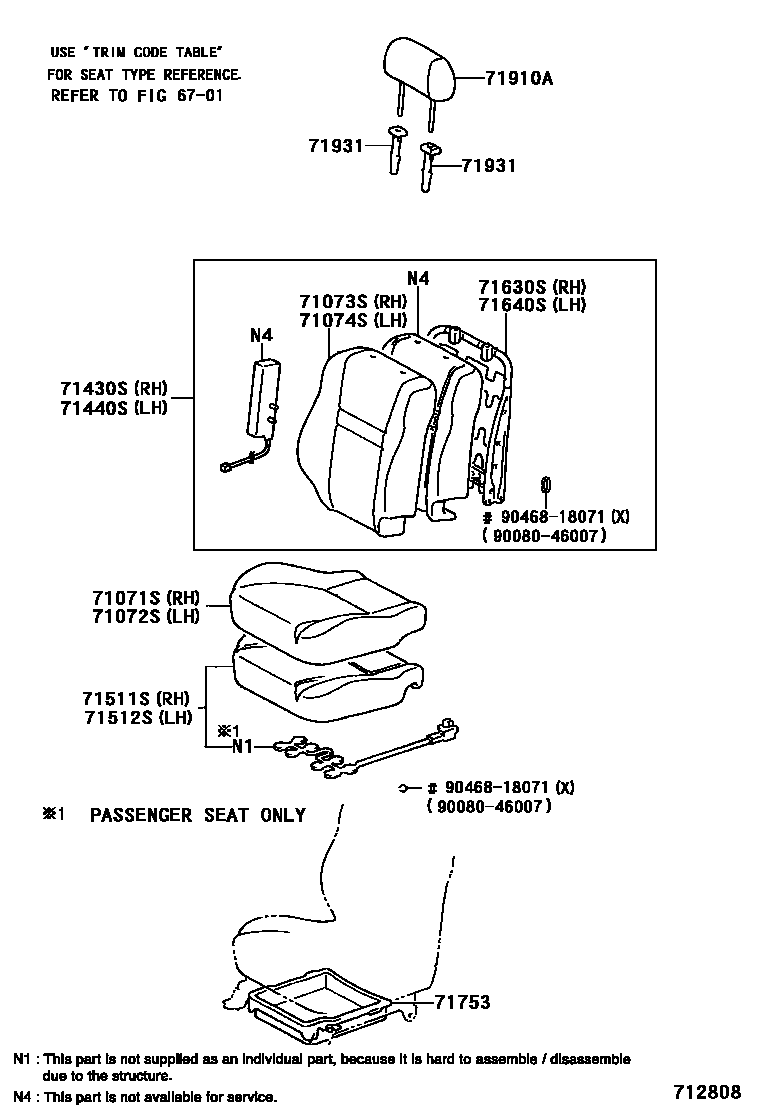

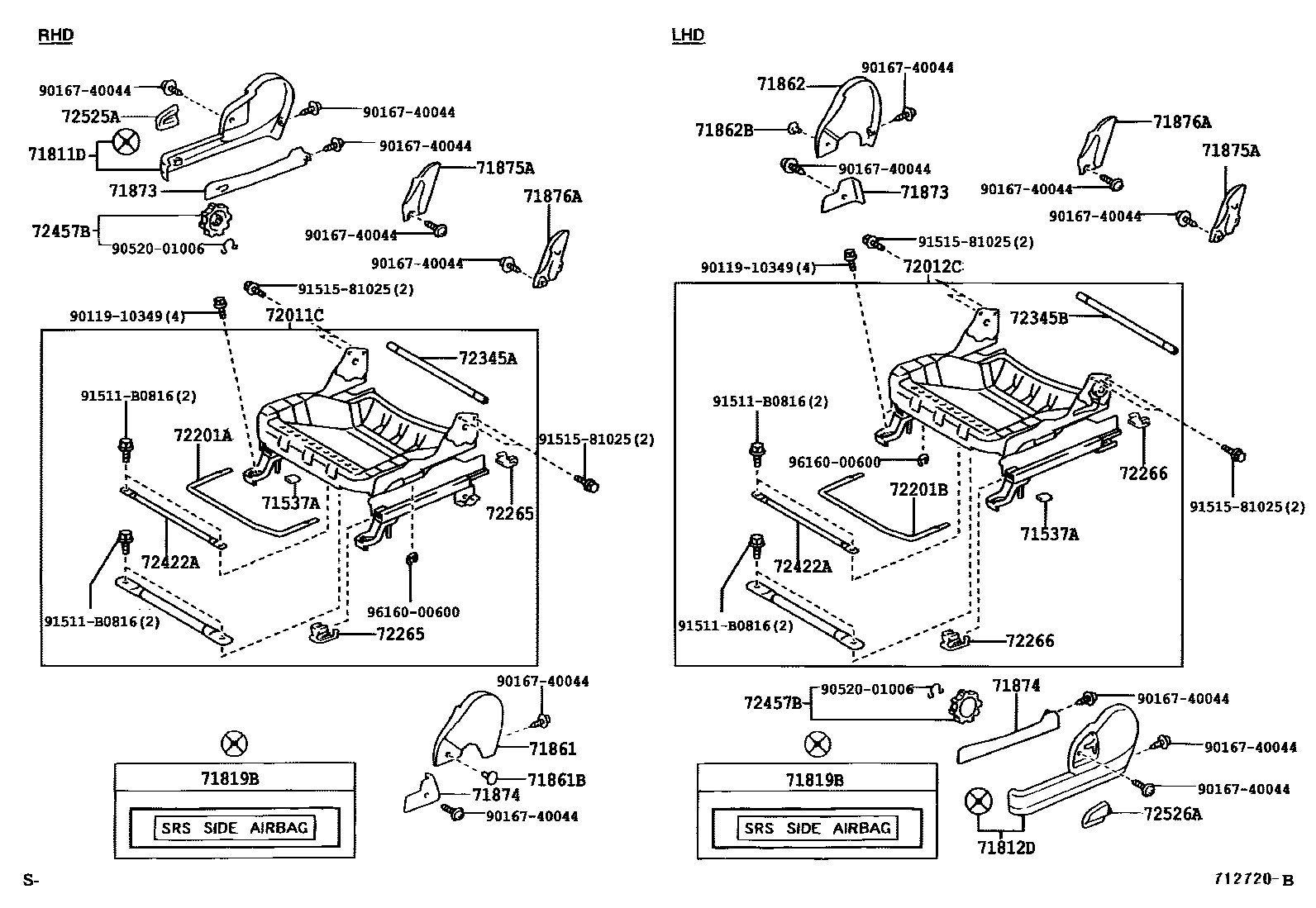

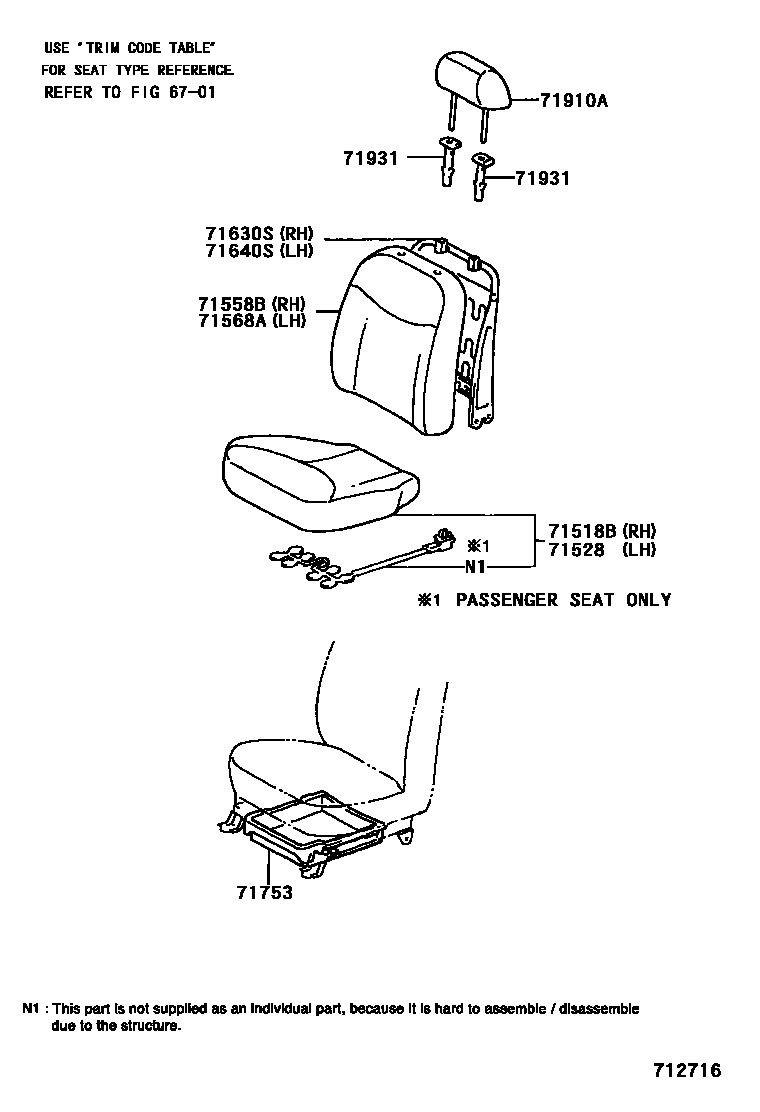

Toyota YARIS 前排座椅和座椅滑轨 — Figure 7101

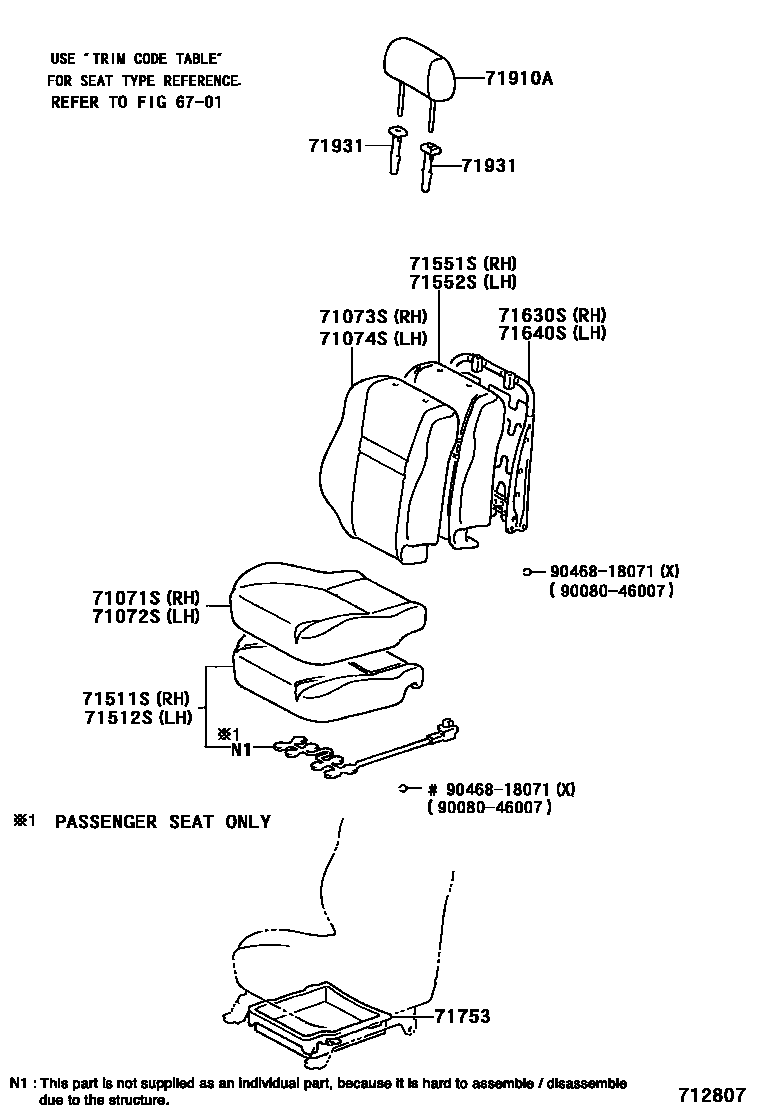

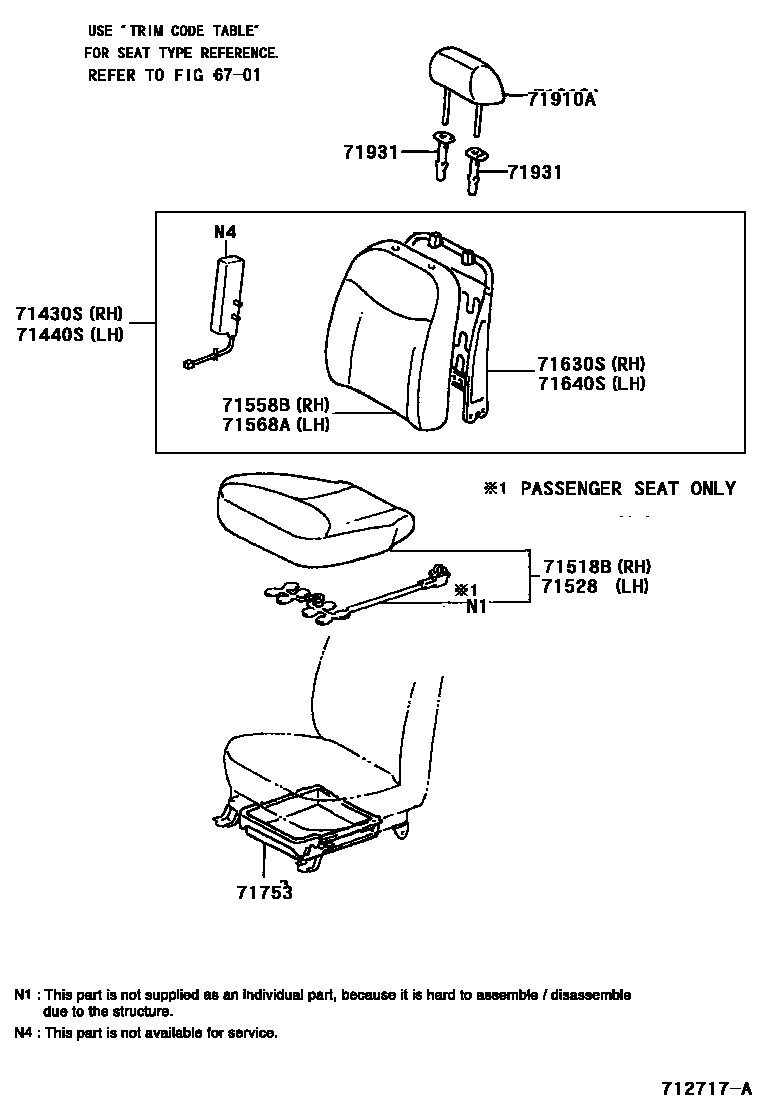

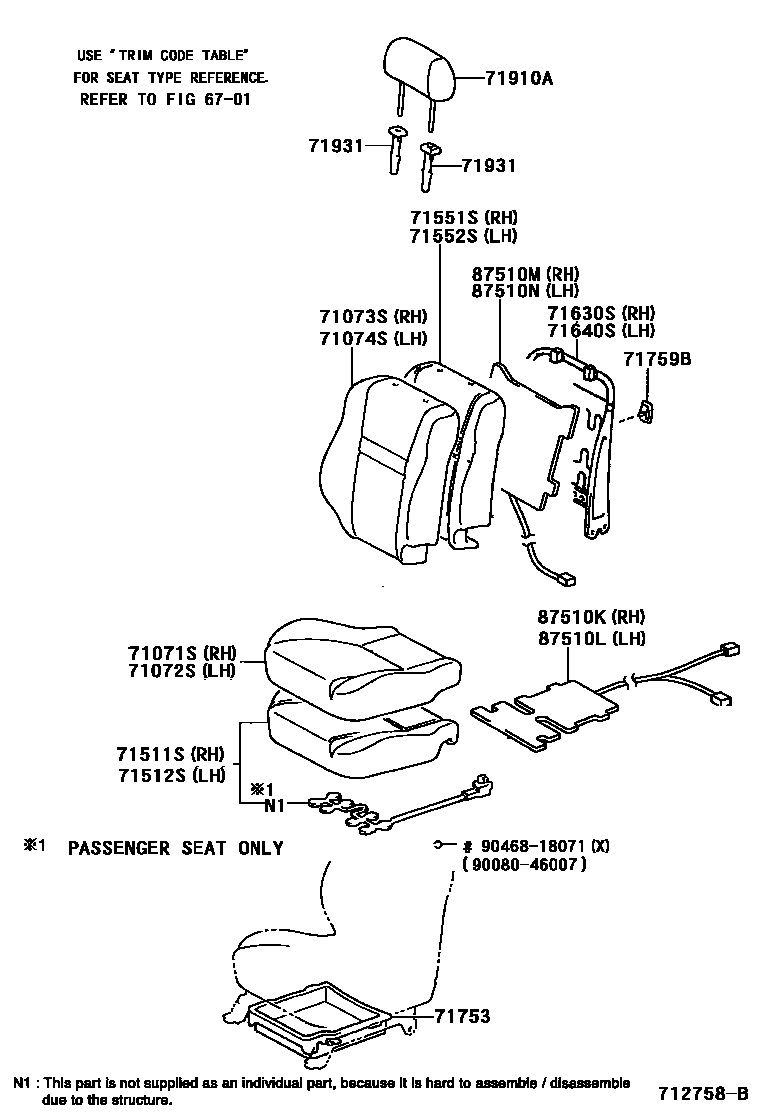

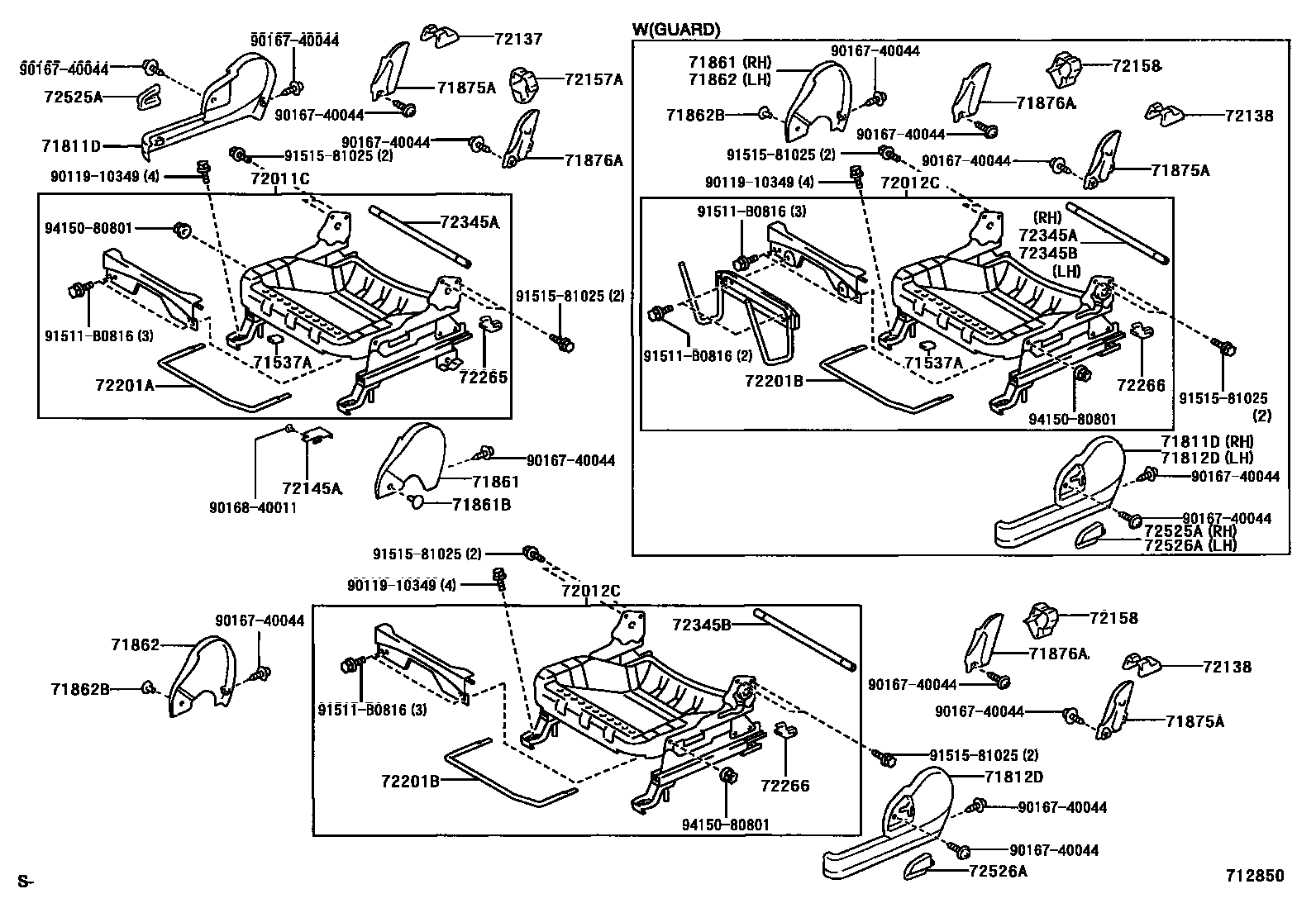

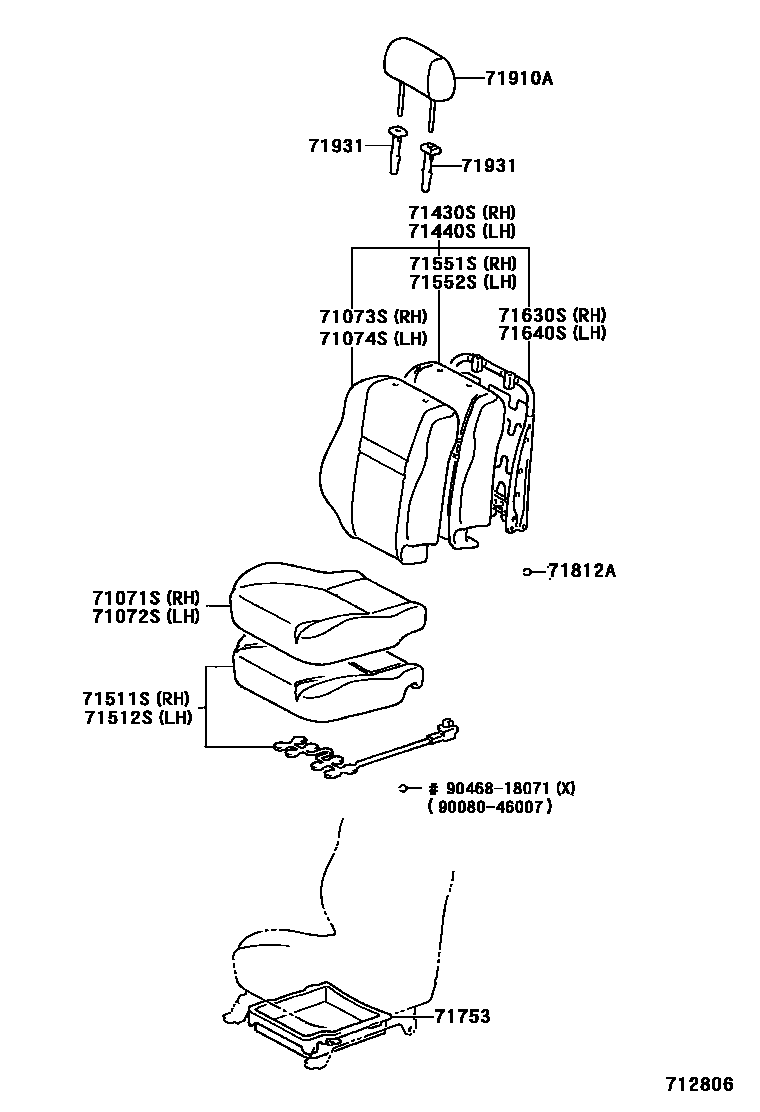

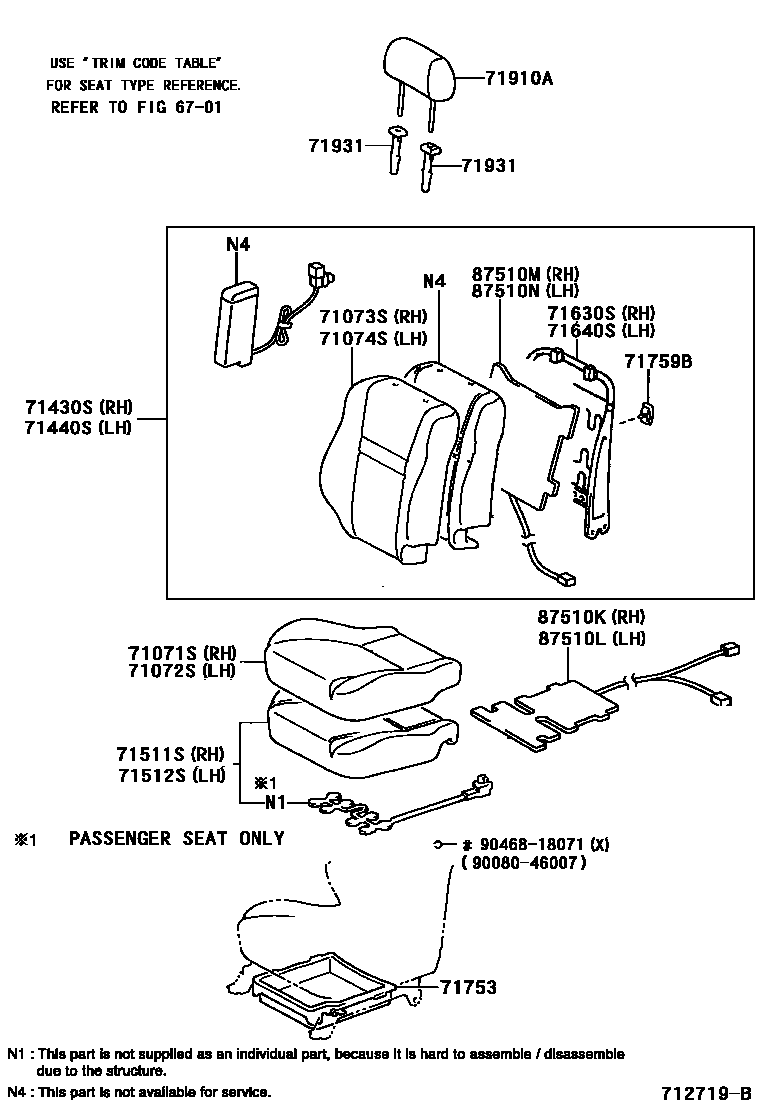

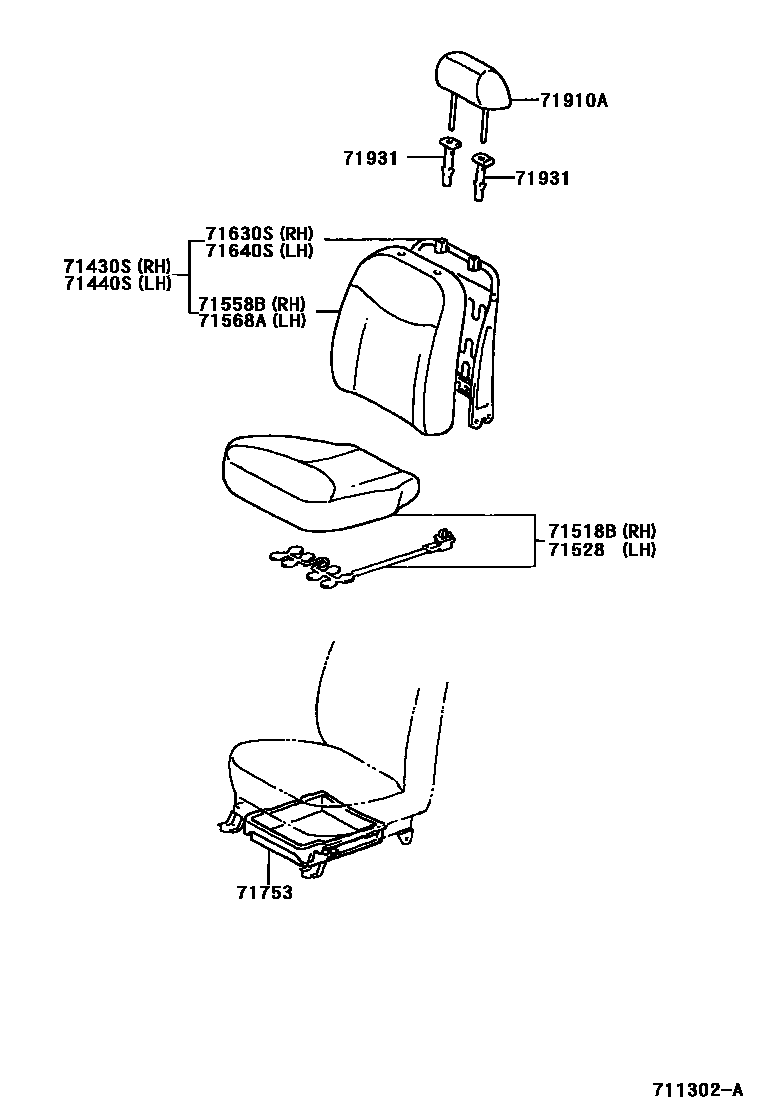

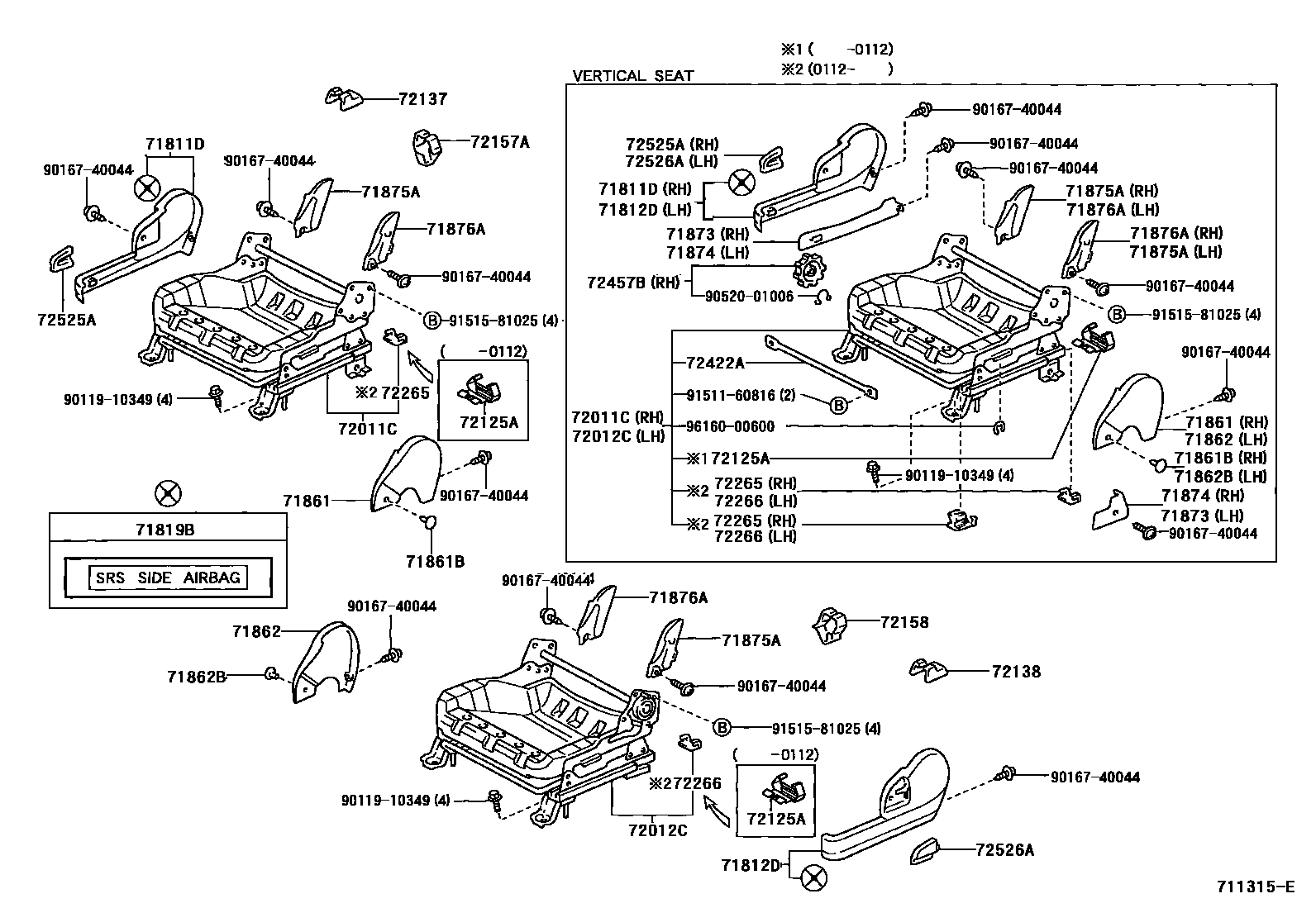

Toyota YARIS EPC diagram 7101, 前排座椅和座椅滑轨, with 11 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71511S | Front right seat cushion cushion (for split seats) | 71511-63020 |
| 71512S | Front left seat cushion cushion (for split seats) | 71511-63020 |
| 71518B | Front right-hand seat cushion with cover | 71518-52160 |
| 71537A | Front seat cushion protective cover | 71537-26010 |
| 71551S | Front right seat back cushion (for split seats) | 71551-63031 |
| 71552S | Front left seat back cushion (for split seats) | 71551-63031 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-52010 · 71630-52020 · 71630-52240 · 71630-63030 |
| 71640S | Front left seat back spring assembly (for split seats) | 71630-52010 · 71630-52020 · 71630-52240 · 71630-63030 |
| 71753 | Front seat bottom bracket | 71753-52010 |
| 71812A | Small clamp ring (for front seats) | 90468-18071 |
| 71819B | Side airbag nameplate | 71819-12020 |
| 71861 | Front right seat cushion inner guard | 71861-52020 |
| 71873 | Front right seat cushion lower guard panel | 71873-52010 · 71873-52020 |
| 72011C | Front right seat adjuster sub-assembly | 72010-52010 · 72010-52011 · 72010-52020 · 72010-52021 · 72010-52030 · 72010-52031 · 72010-52040 · 72010-52041 · 72010-52200 · 72010-52201 · 72010-52210 · 72010-52211 · 72010-52220 · 72010-52221 · 72010-52230 · 72010-52231 · 72010-52280 · 72010-52281 · 72010-52290 · 72010-52291 · 72010-52640 · 72010-52650 · 72010-52740 · 72010-52750 |
| 72012C | Front left seat adjuster sub-assembly | 72020-52010 · 72020-52011 · 72020-52020 · 72020-52021 · 72020-52040 · 72020-52041 · 72020-52050 · 72020-52051 · 72020-52060 · 72020-52061 · 72020-52070 · 72020-52071 · 72020-52080 · 72020-52081 · 72020-52190 · 72020-52191 · 72020-52500 · 72020-52620 · 72020-52630 · 72020-52640 |
| 72125A | Rear seat upper slide rail cover | 72125-28030 |
| 72137 | Right seat outer slide rail cover | 72137-52010 |
| 72138 | Left seat outer slide rail cover | 72137-52010 |
| 72145A | Front right seat slide rail front lower bracket | 72145-52010 |
| 72157A | Right seat inner slide rail bracket cover | 72157-52010 |
| 72158 | Left seat inner slide rail bracket cover | 72158-52010 |
| 72201A | Right seat slide rail handle sub-assembly | 72201-52010 |
| 72201B | Left seat slide rail handle sub-assembly | 72201-52010 |
| 72265 | Right seat rail upper rail cover | 72265-44070 · 72265-63010 |
| 72266 | Left seat rail upper rail cover | 72265-44070 · 72265-63010 |
| 72345A | Seat back recliner connecting tube | 72345-52010 |
| 72345B | Seat back recliner connecting tube | 72345-52010 |
| 72422A | Front seat adjuster lever | 72422-52010 |
| 72457B | Right seat height adjuster knob | 72457-18010 |
| 87510K | Front right seat cushion heater assembly | 87510-52040 |
| 87510L | Front left seat cushion heater assembly | 87510-52050 |
| 87510M | Front right seat back heater assembly | 87510-52030 |
| 87510N | Front left seat back heater assembly | 87510-52030 |
