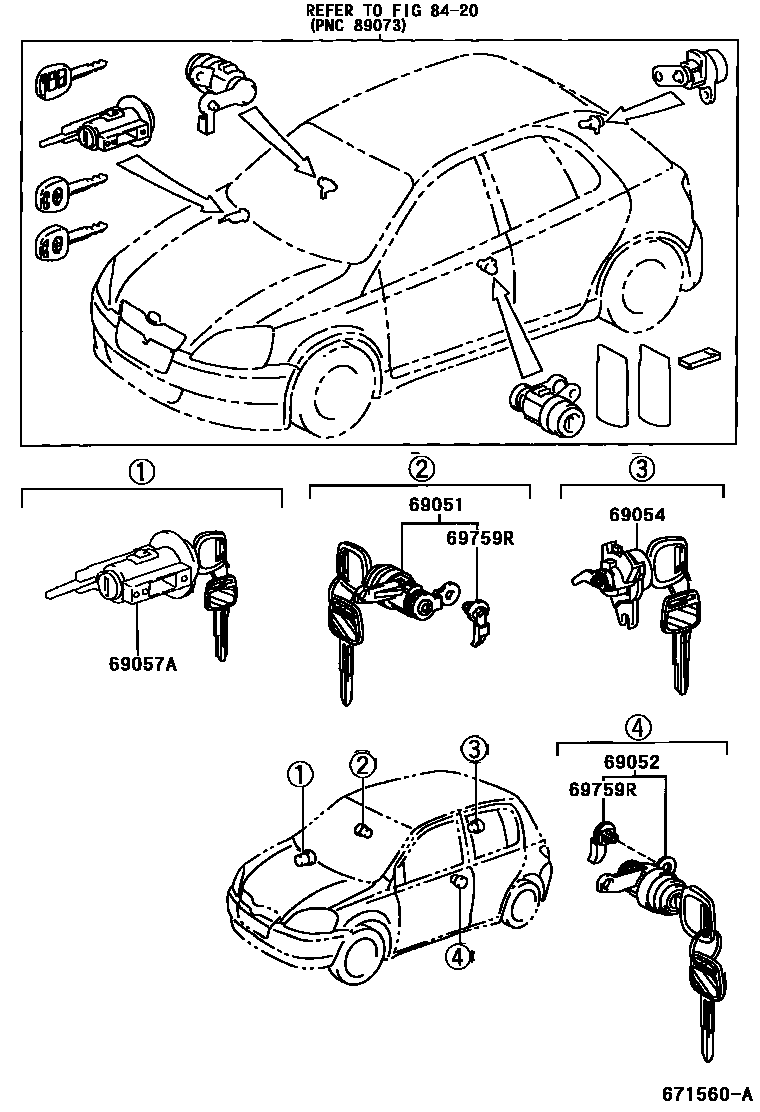

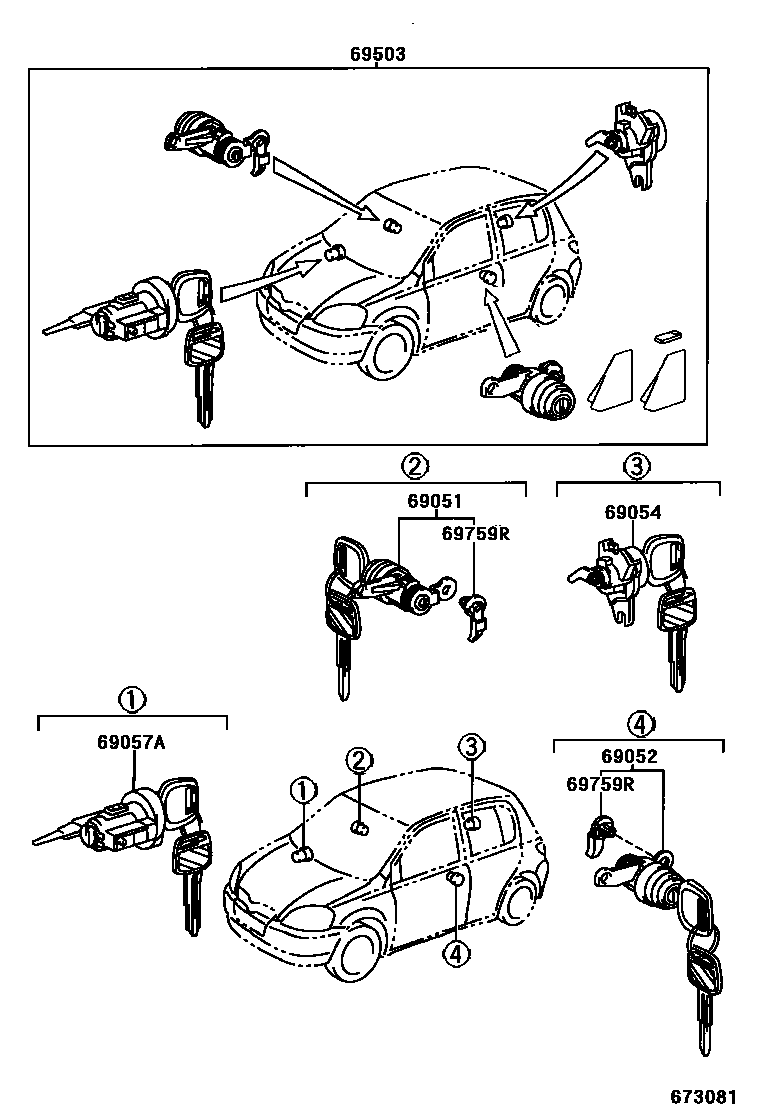

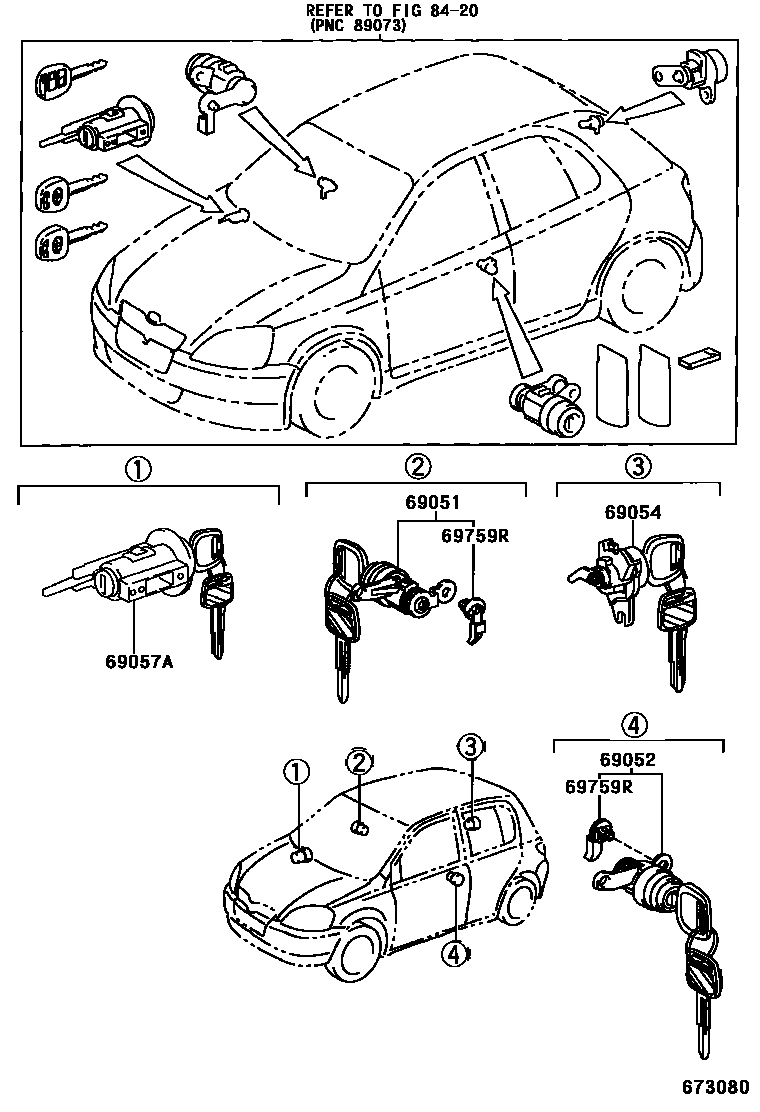

Toyota YARIS 锁芯组件 — Figure 6712
Toyota YARIS EPC diagram 6712, 锁芯组件, with 3 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-52040 · 69051-52310 |
| 69052 | Left door lock cylinder and key assembly | 69052-52040 · 69052-52260 · 69520-52070 |
| 69054 | Rear door lock cylinder and key assembly | 69055-52040 · 69055-52350 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-12580 · 69057-12590 · 69057-52200 · 69057-52280 · 69057-52290 |
| 69503 | Door lock cylinder components | 69005-52890 |
| 69759R | Front door lock cylinder buckle | 69759-32090 · 69759-32100 |
