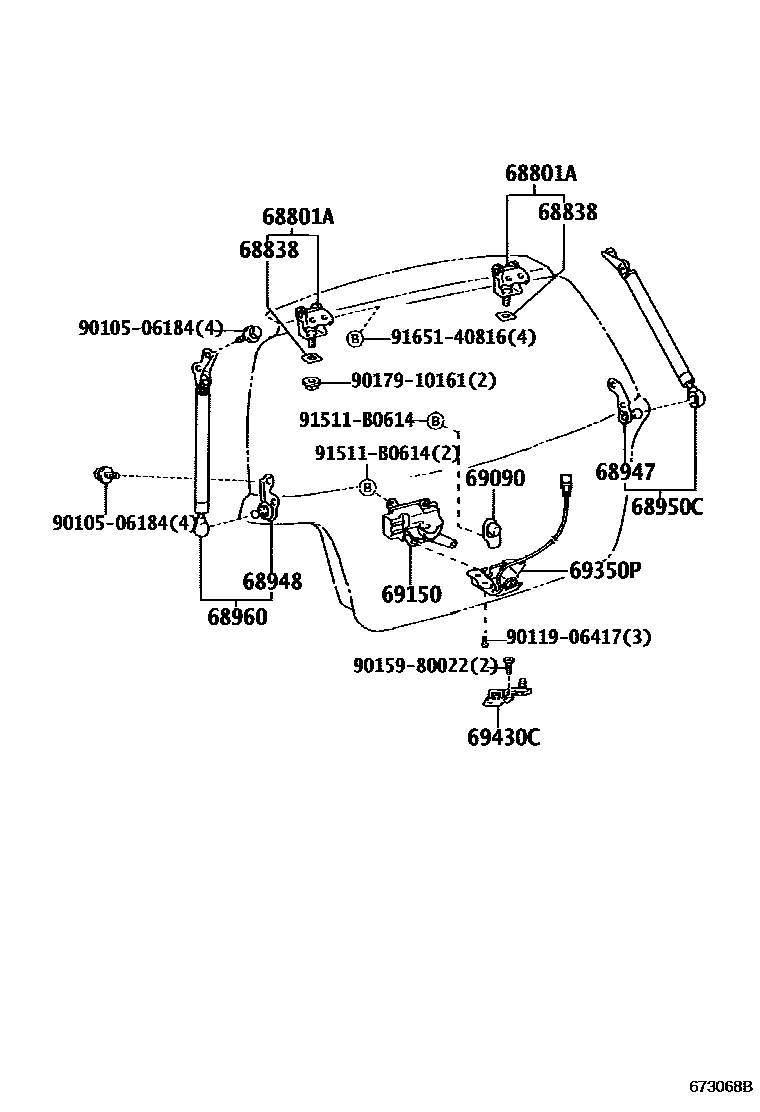

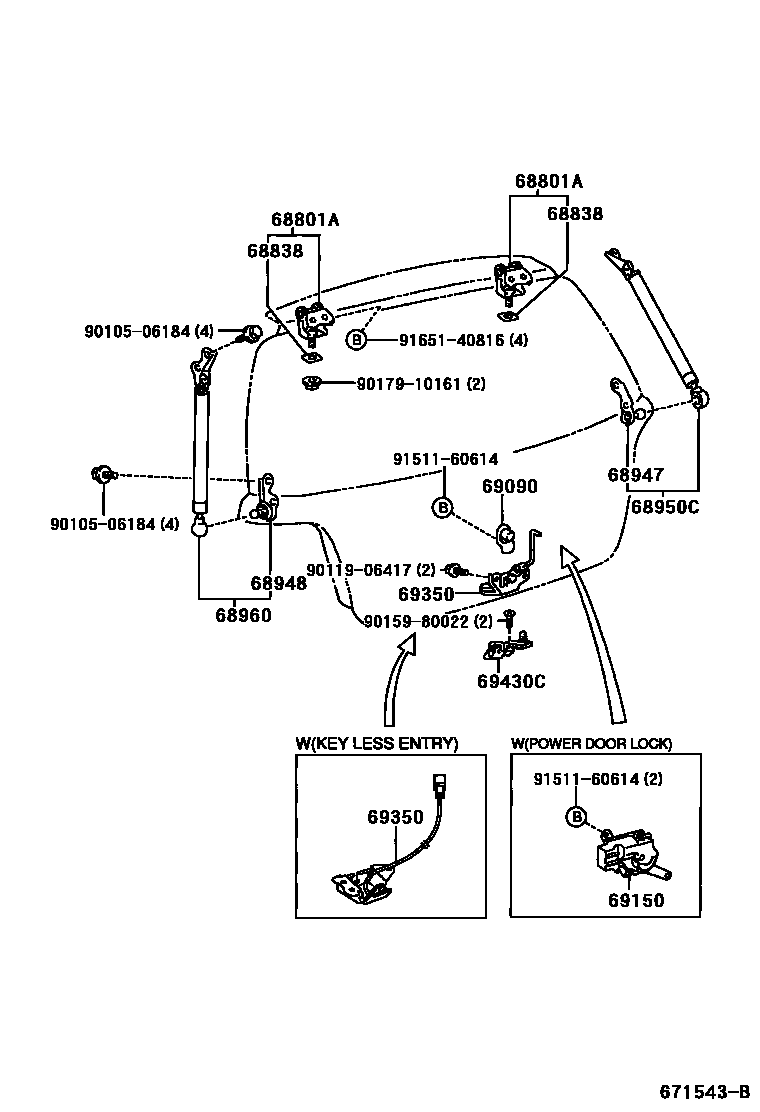

Toyota YARIS 背门锁和背门把手 — Figure 6709
Toyota YARIS EPC diagram 6709, 背门锁和背门把手, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68801A | Back door upper hinge sub-assembly | 68801-52010 |
| 68838 | Back door hinge No. 1 gasket | 68838-10020 · 68838-52010 |
| 68947 | Back door right damping strut lower bracket | 68947-52010 |
| 68948 | Rear door left damping strut lower bracket | 68948-52010 |
| 68950C | Back door right support rod assembly | 68950-59025 · 68950-59065 · 68950-59066 |
| 68960 | Back door left support rod assembly | 68960-59025 · 68960-59026 |
| 69090 | Rear door outer handle assembly | 69090-52010 · 69090-52040 |
| 69150 | Rear door lock actuator assembly | 69150-52010 · 69150-52011 |
| 69350 | Rear door lock assembly | 69350-52020 · 69350-52090 |
| 69350P | ENS. VERR, HAYON, AV COMM PLAFONNIER | 69350-52170 |
| 69430C | Back door lock assembly | 69430-52020 |
