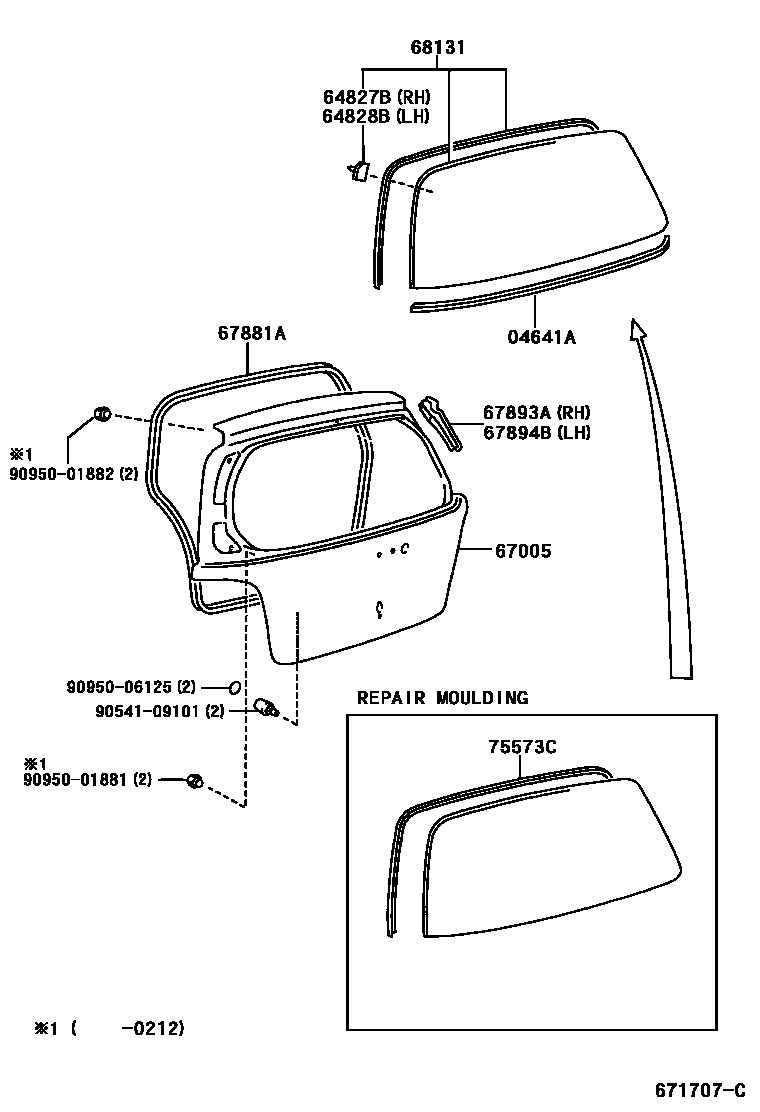

Toyota YARIS 背门板和背门玻璃 — Figure 6708
Toyota YARIS EPC diagram 6708, 背门板和背门玻璃, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04641A | Rear window glass adhesive sealing strip assembly | 64813-52010 |
| 64827B | Catch on the right side of the back window glass | 64827-52010 |
| 64828B | Catch on the left side of the back window glass | 64828-52010 |
| 67005 | Rear door panel sub-assembly | 67005-52010 · 67005-52011 · 67005-52012 · 67005-52370 · 67005-52371 |
| 67881A | Back door seal | 67881-52010 · 67881-52011 |
| 67893A | Back door panel No. 1 protective piece | 67893-52010 |
| 67894B | Back door panel No. 2 protective piece | 67894-52010 |
| 68131 | back door glass | 68105-52010 · 68105-52011 · 68105-52020 · 68105-52021 |
| 75573C | Protective strip for rear window | 75573-52110 · 75573-52111 |
