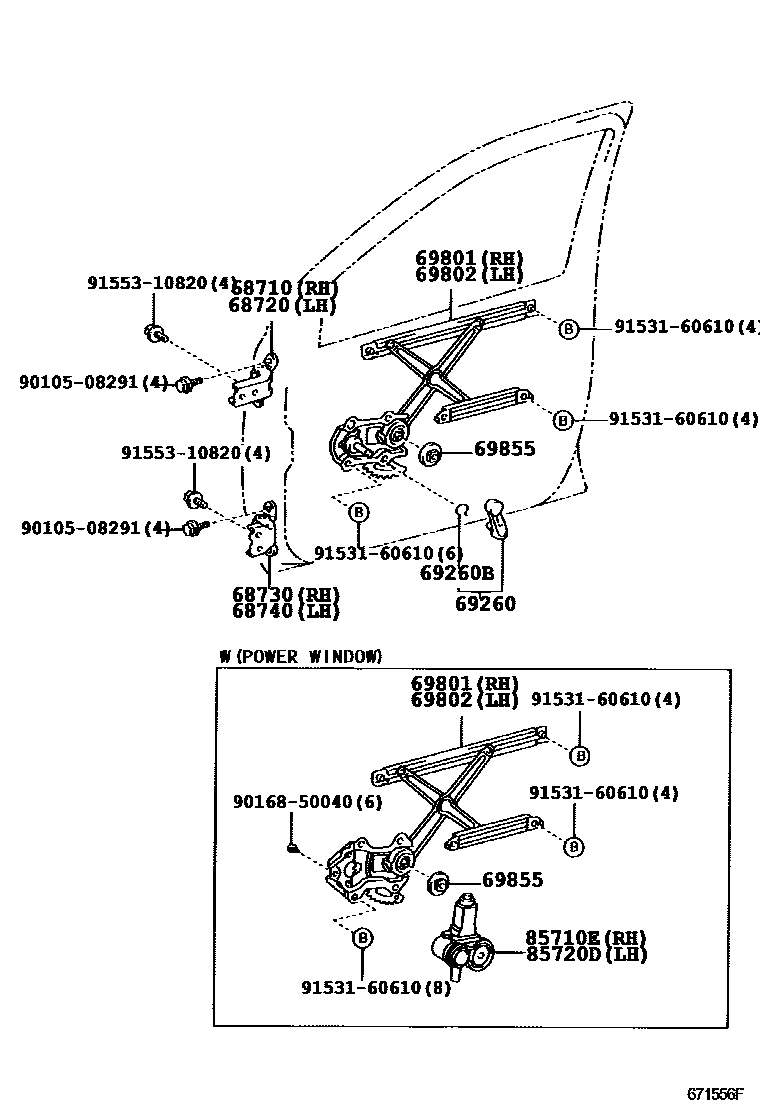

Toyota YARIS 前门车窗升降器和合页 — Figure 6704
Toyota YARIS EPC diagram 6704, 前门车窗升降器和合页, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68710 | Right front door upper hinge assembly | 68710-52010 |
| 68720 | Left front door upper hinge assembly | 68720-52010 |
| 68730 | Right front door lower hinge assembly | 68730-52010 |
| 68740 | Left front door lower hinge assembly | 68740-52010 |
| 69260B | Shaft snap ring (for front door window regulator handle) | 90520-01005 |
| 69801 | Right front door window lifter sub-assembly | 69801-52010 · 69810-52020 |
| 69802 | Left front door window lifter sub-assembly | 69802-52010 · 69820-52020 |
| 69855 | Door window regulator gear cover | 69855-20010 |
| 85710E | Right power window lift motor assembly | 85710-52030 |
| 85720D | Left electric window lift motor assembly | 85720-52020 |
