Toyota YARIS 前门锁和车门把手 — Figure 6703

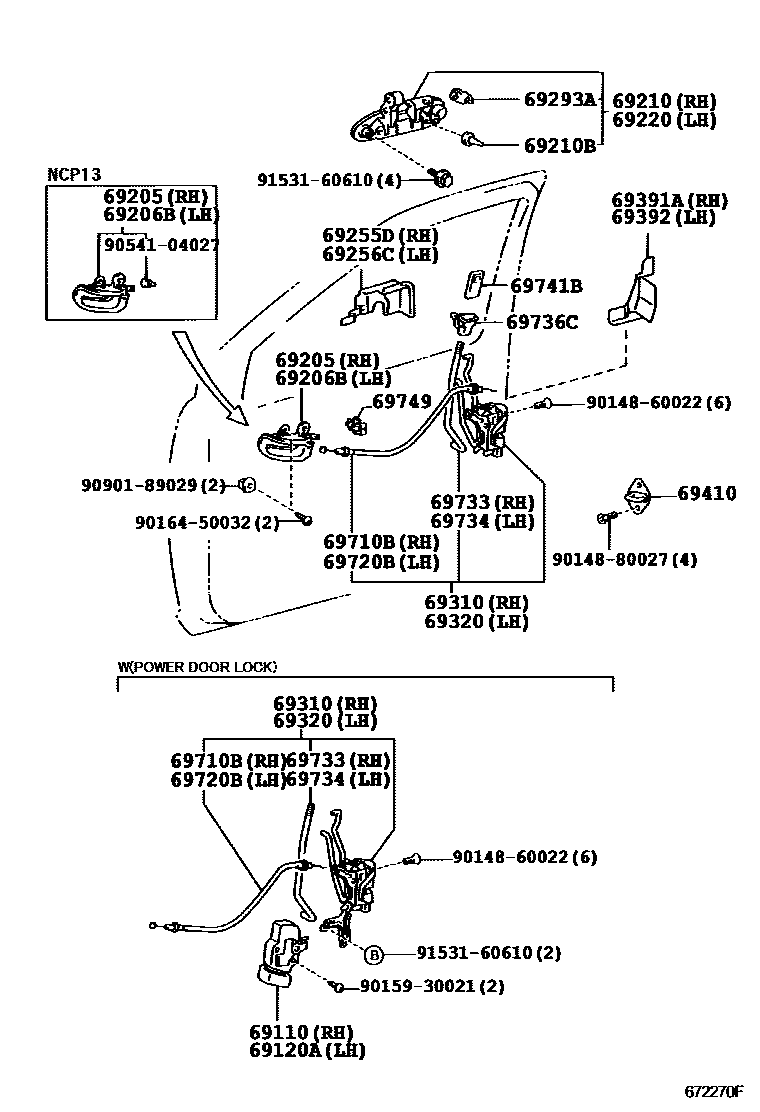

Toyota YARIS EPC diagram 6703, 前门锁和车门把手, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69110 | Right front door lock actuator assembly | 69110-52010 · 69110-52020 · 69110-52080 · 69110-52090 |
| 69120A | Left front door lock actuator assembly | 69120-52010 · 69120-52030 · 69120-52060 · 69120-52070 |
| 69210 | Right front door outer handle assembly | 69210-52010 |
| 69210B | Cushion pad (for front door outer handle) | 90541-04018 |
| 69220 | Left front door outer handle assembly | 69220-52010 |
| 69255D | Car door outer handle protector | 69255-52010 · 69255-52020 |
| 69256C | Left door outer handle protector | 69256-52030 · 69256-52040 |
| 69293A | Front door outer handle buckle | 69293-12030 · 69293-12040 |
| 69310 | Right front door lock assembly | 69310-52010 · 69310-52030 · 69310-52070 · 69310-52080 · 69310-52170 · 69310-52180 · 69310-52300 |
| 69320 | Left front door lock assembly | 69320-52010 · 69320-52030 · 69320-52070 · 69320-52080 · 69320-52200 · 69320-52210 · 69320-52280 |
| 69391A | Right front door lock outer cover | 69391-52010 |
| 69392 | Left front door lock outer cover | 69392-52010 |
| 69410 | Front door lock plate assembly | 69410-47010 |
| 69710B | Right front door lock remote control cable assembly | 69710-52010 · 69710-52020 |
| 69720B | Left front door lock remote control cable assembly | 69710-52010 · 69710-52020 |
| 69733 | Right front door inner locking link | 69733-52010 · 69733-52020 |
| 69734 | Left front door inner locking link | 69734-52010 · 69734-52020 |
| 69736C | Front door locking link guide block | 69736-12130 |
| 69749 | Front door lock link clip | 69749-52010 |
