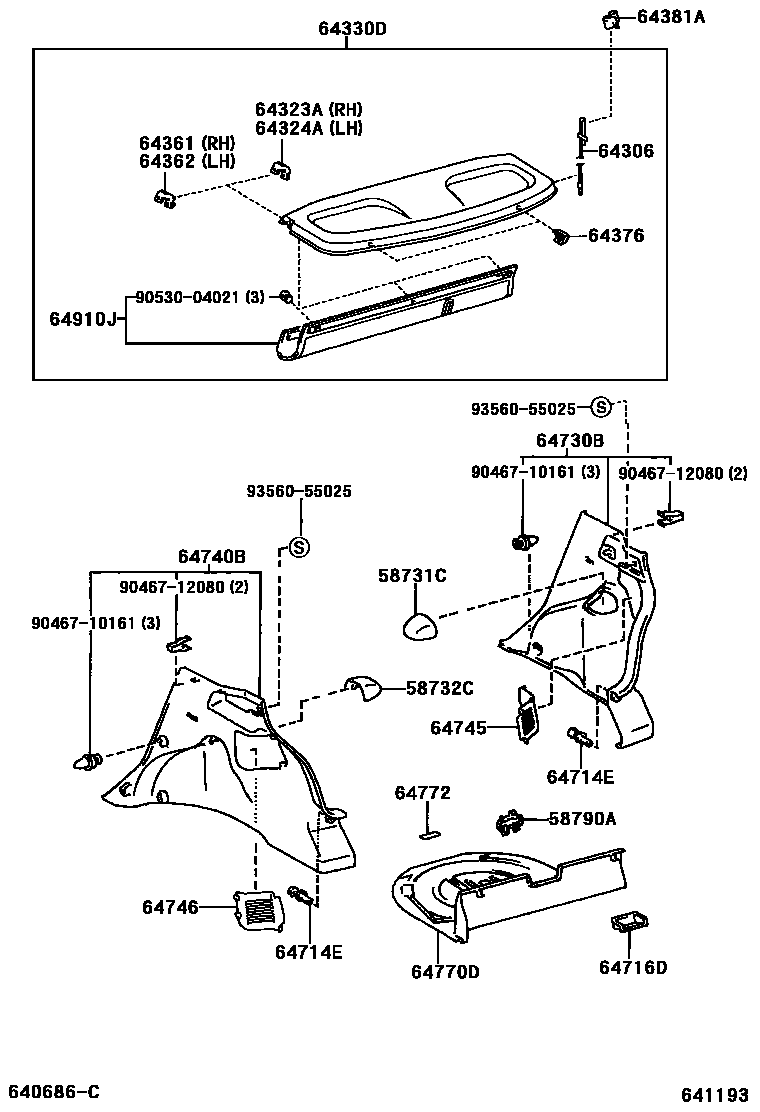

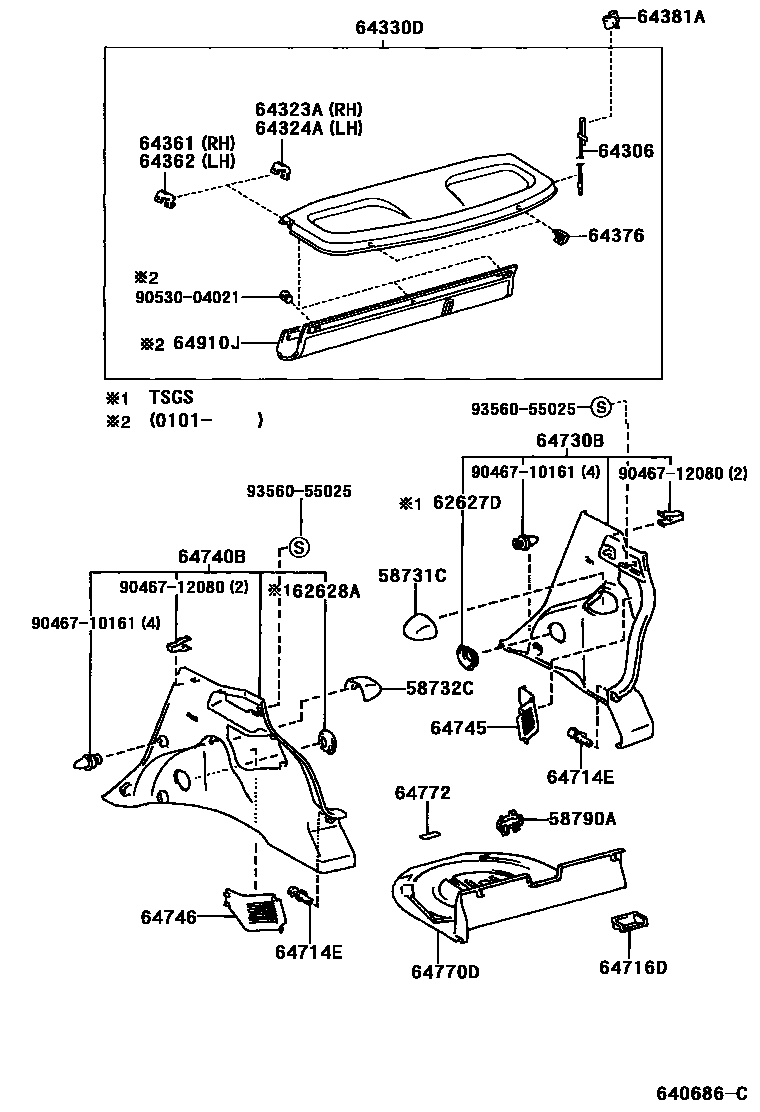

Toyota YARIS 底板和底板装饰罩 — Figure 6404
Toyota YARIS EPC diagram 6404, 底板和底板装饰罩, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58790A | Jack bracket assembly | 58790-52010 |
| 64306 | Glove box decorative panel fixed rod sub-assembly | 64306-52010 |
| 64323A | Glove box decorative panel right clip | 64323-52010 |
| 64324A | Glove box decorative panel left clip | 64323-52010 |
| 64361 | Glove box decorative panel right hinge | 64361-52010 |
| 64362 | Glove box decorative panel left hinge | 64362-52010 |
| 64376 | No. 2 glove box decorative panel spacer | 64376-52010 |
| 64381A | Glove box decorative panel hanger | 64381-52010 |
| 64716D | Rear floor decorative cover | 64716-52010 |
| 64770D | Spare tire cover assembly | 64771-52010 · 64771-52011 |
| 64772 | Spare tire cover liner | 64772-52010 |
| 64910J | Trunk cover assembly | 64910-52010 |
