Toyota YARIS 仪表板和手套箱 — Figure 5501

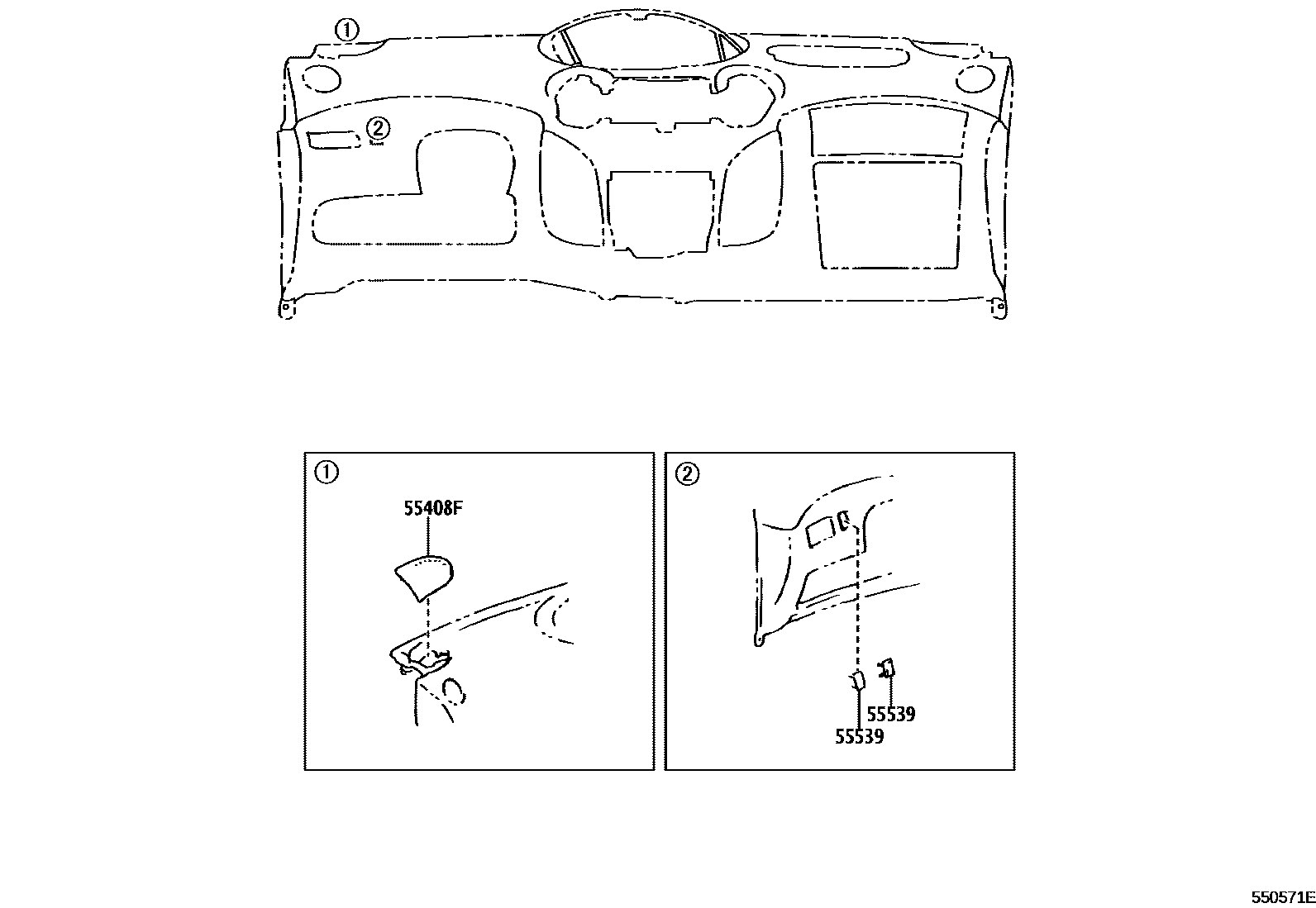

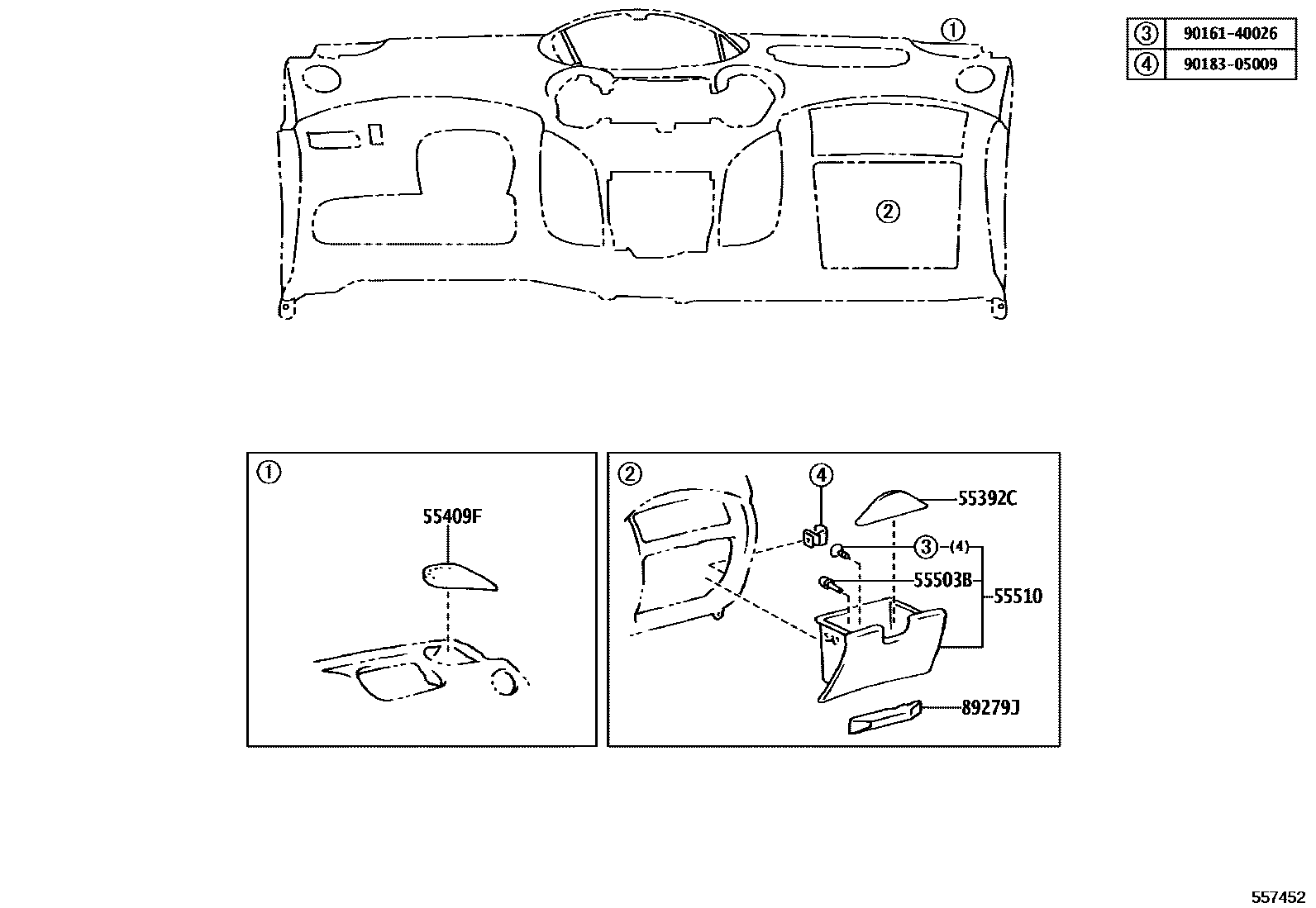

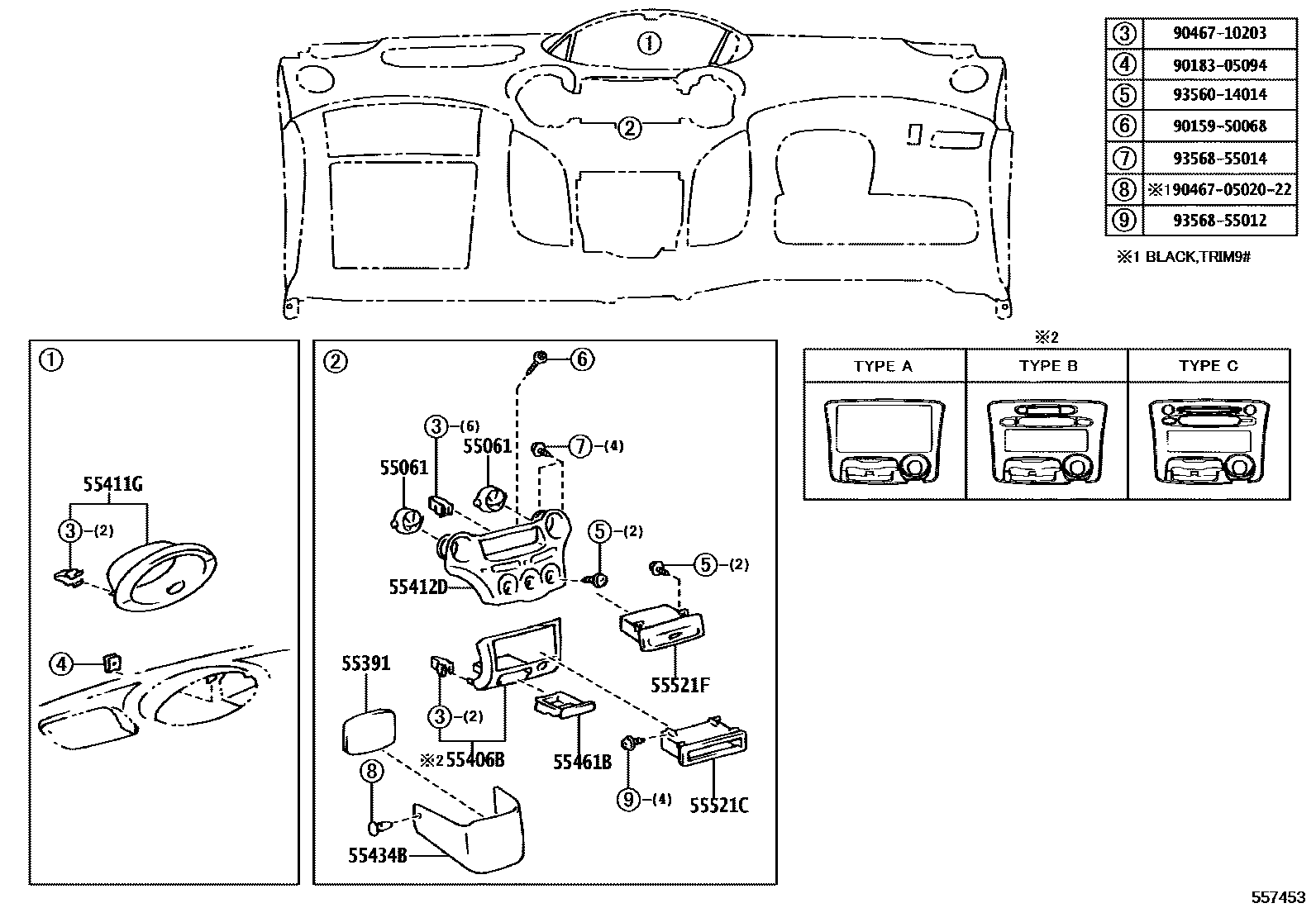

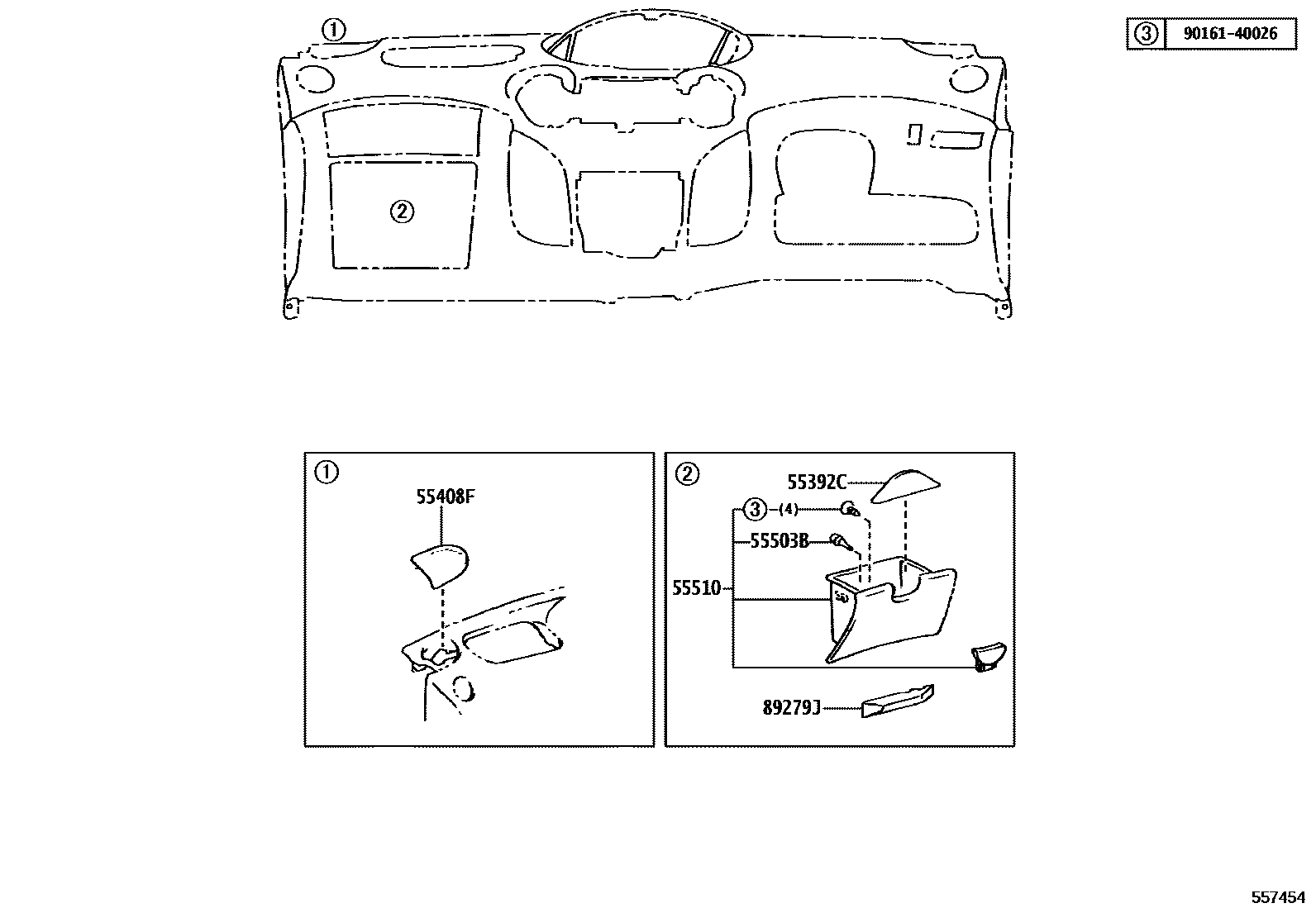

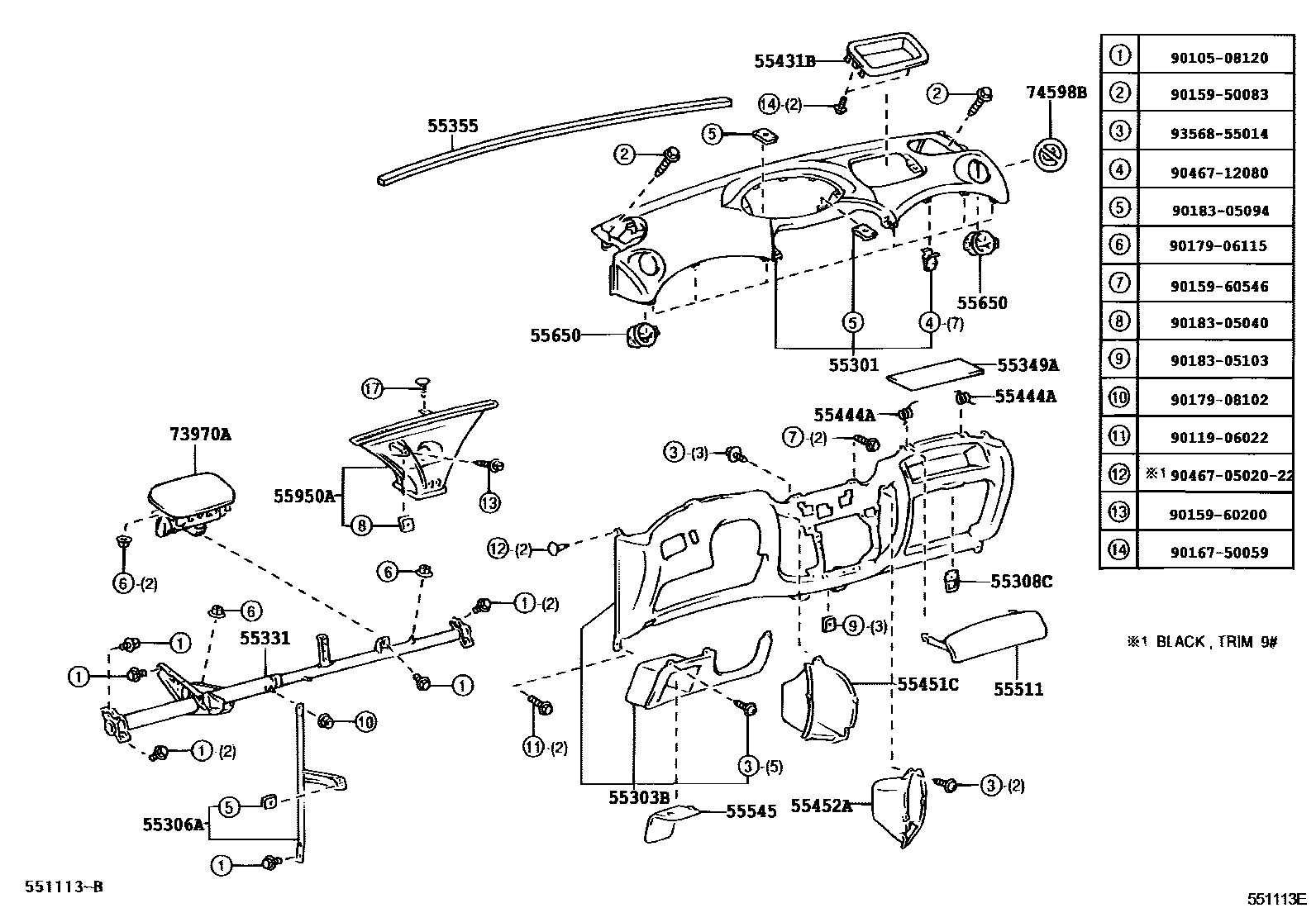

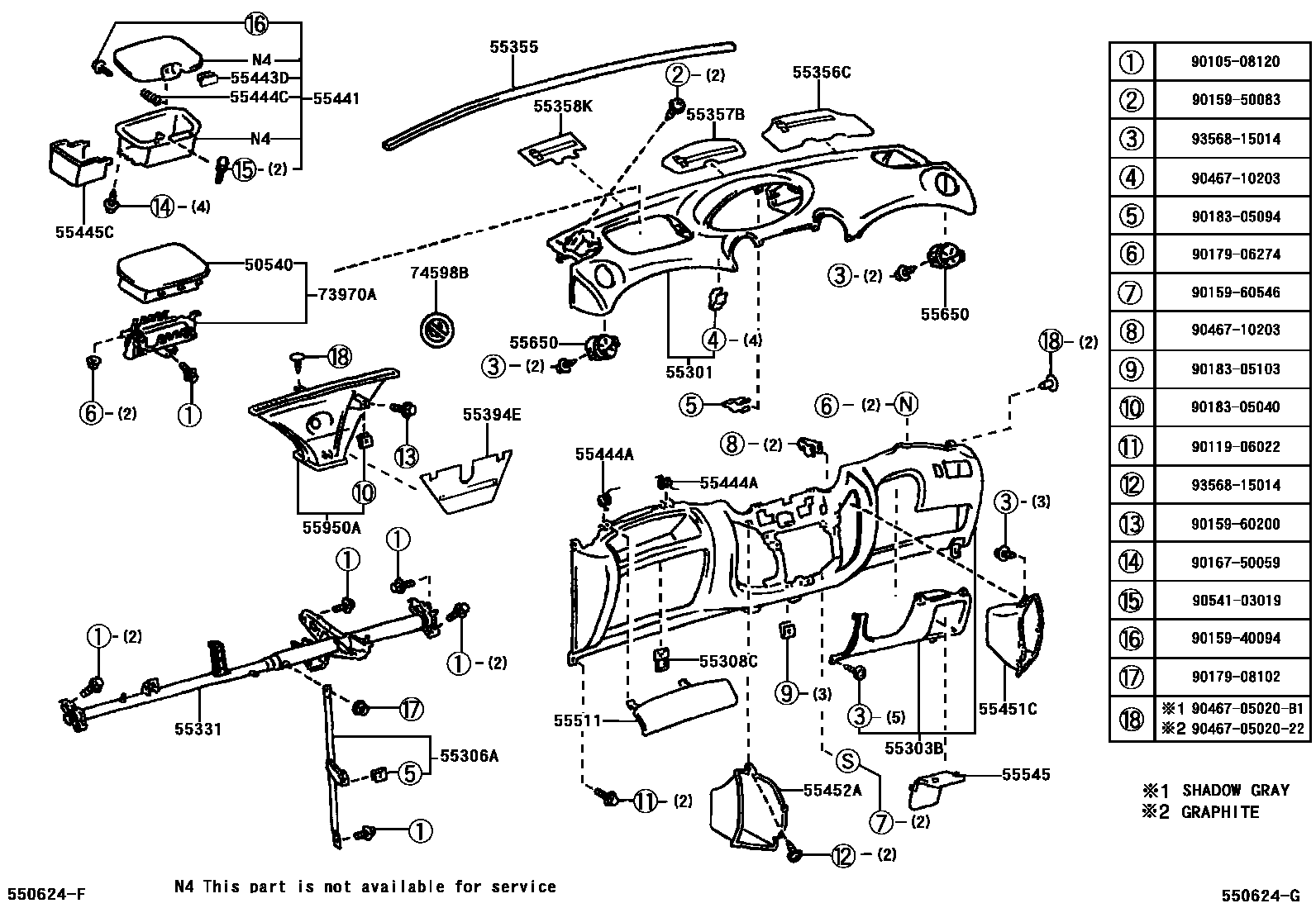

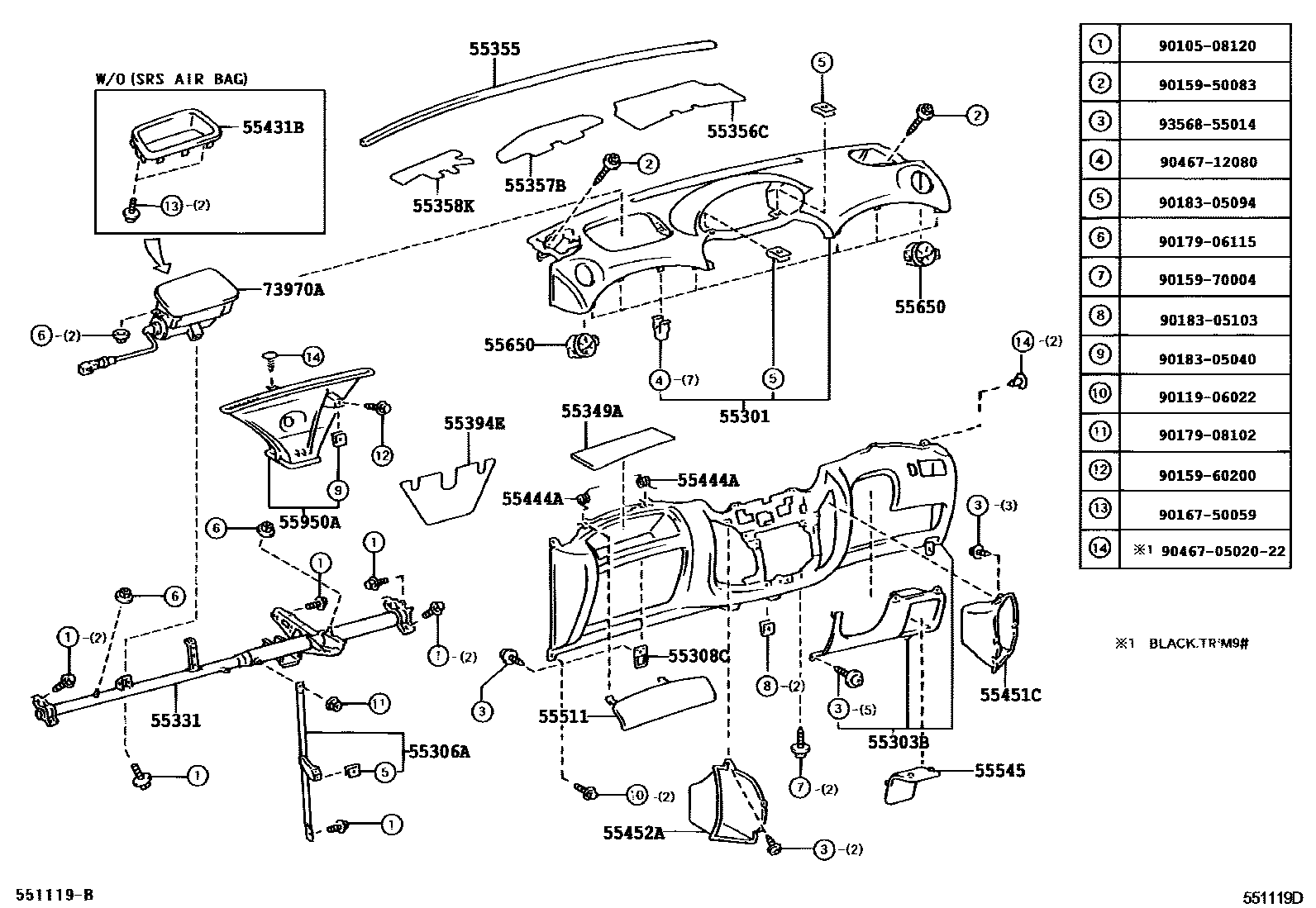

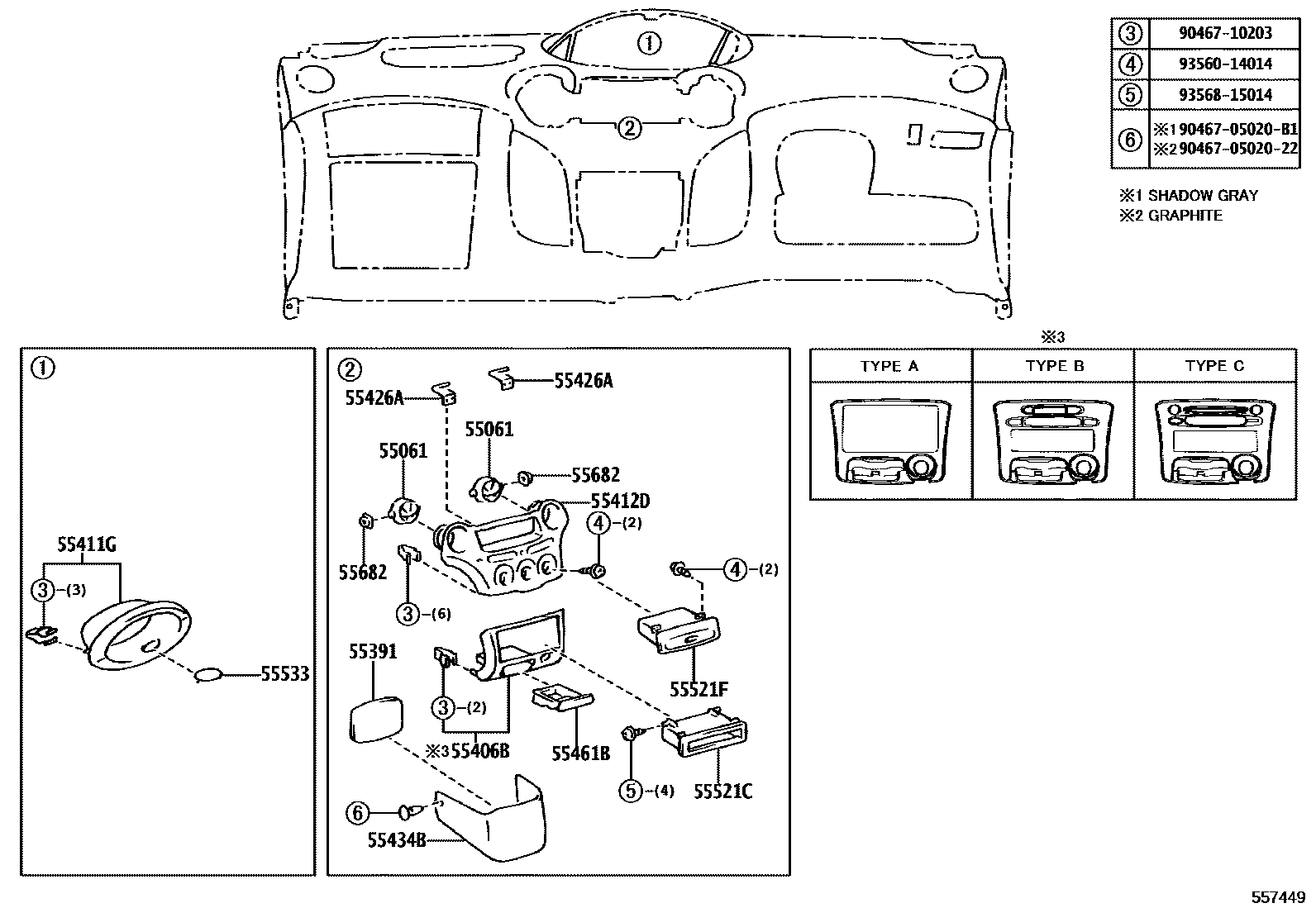

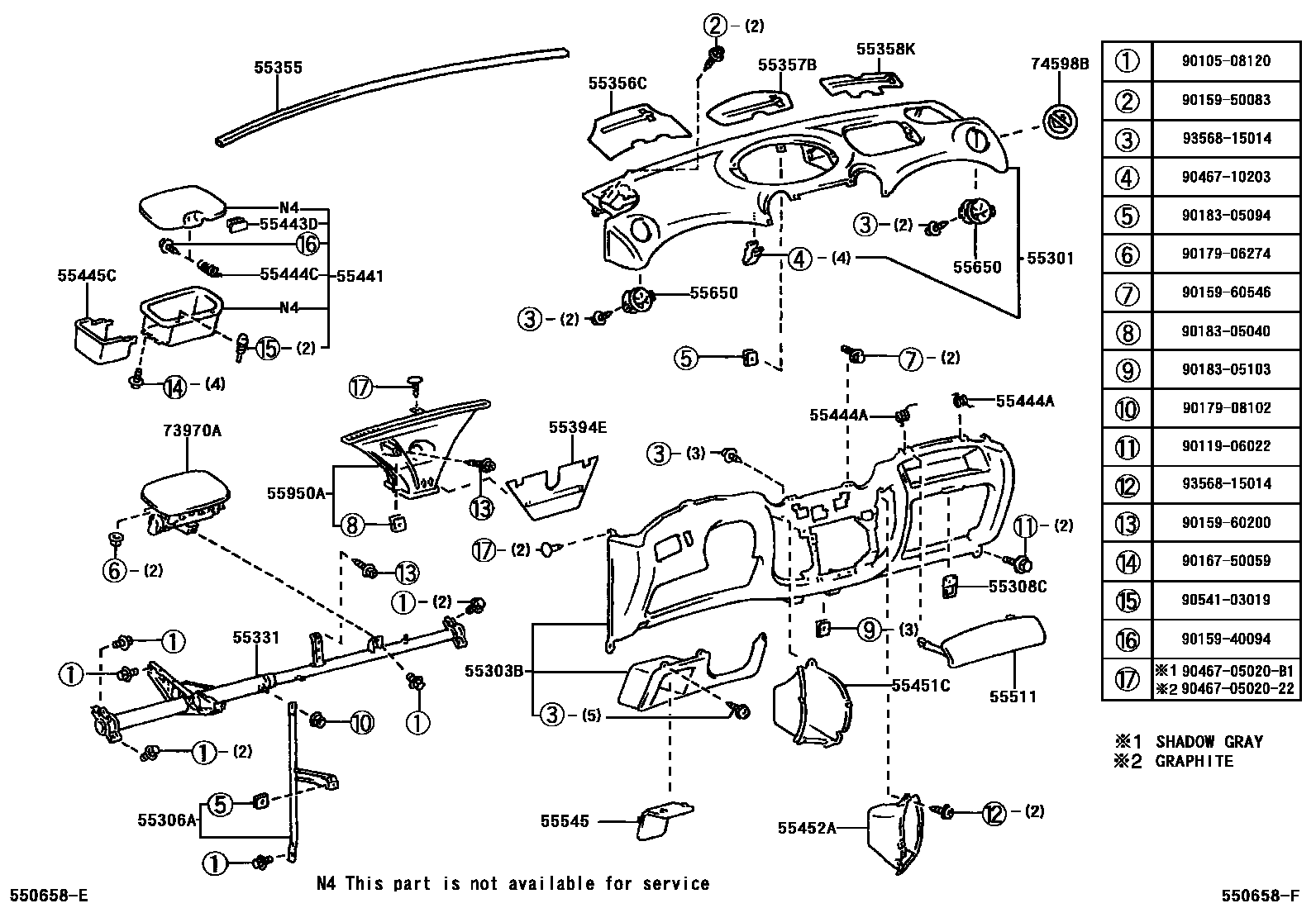

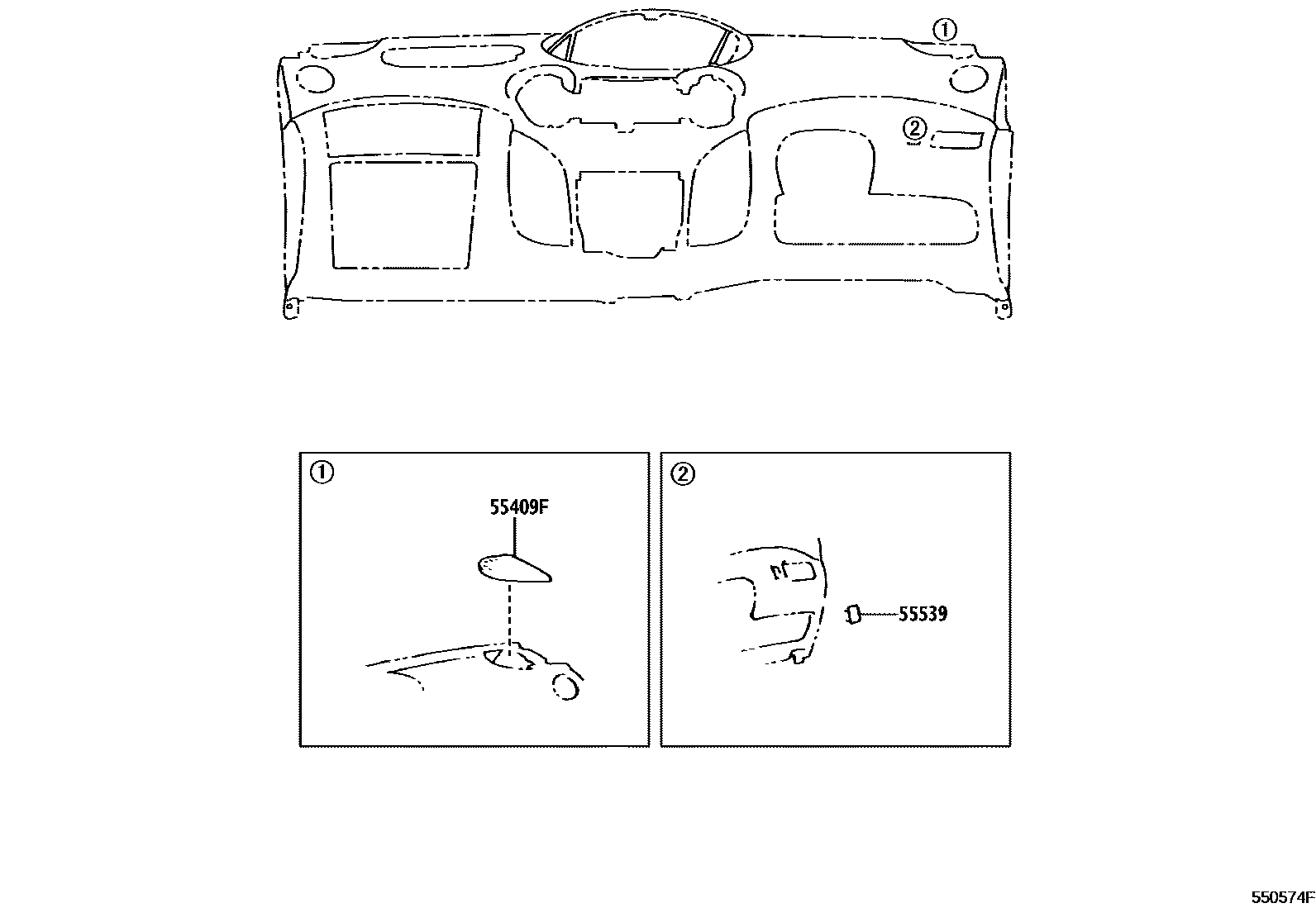

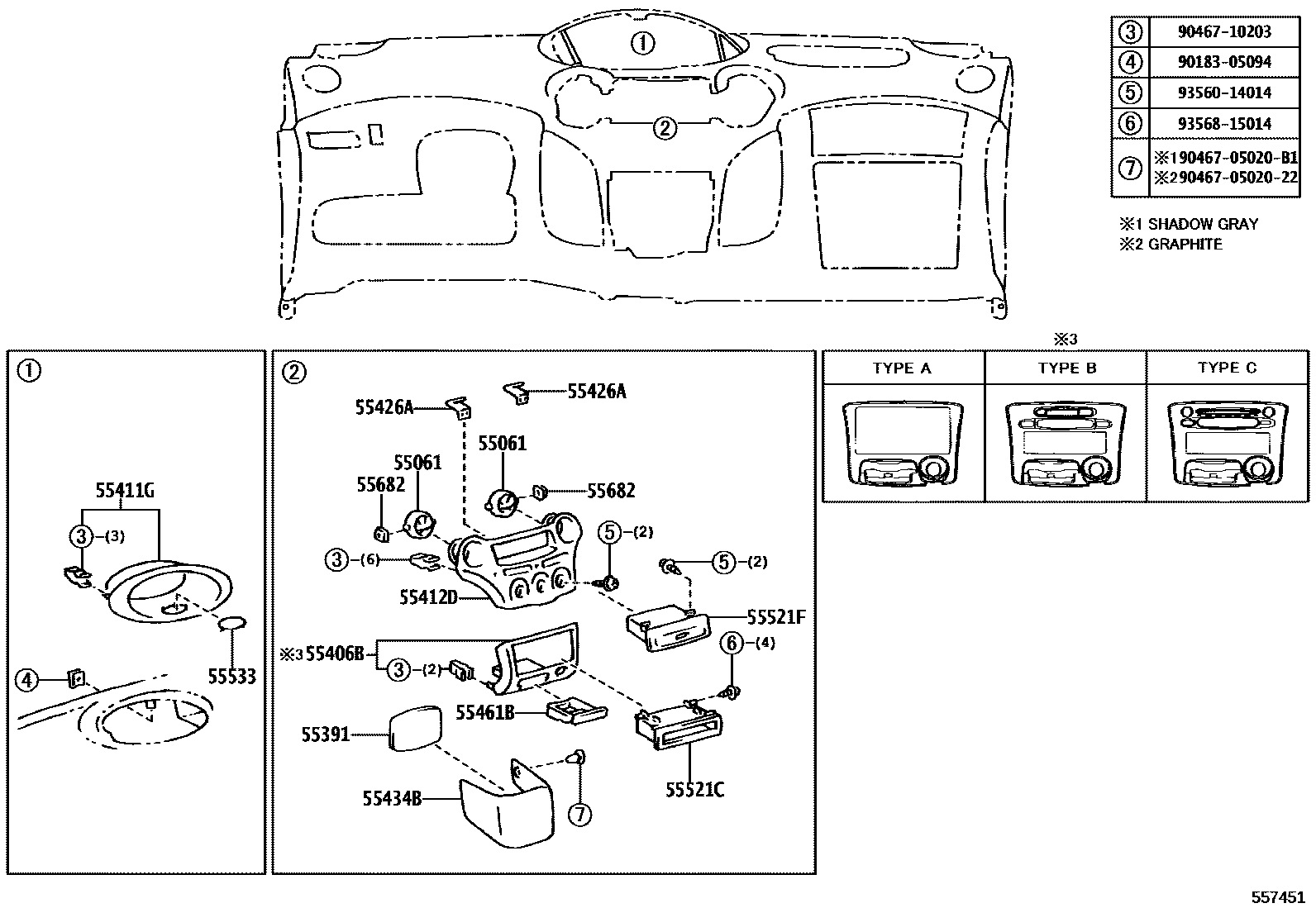

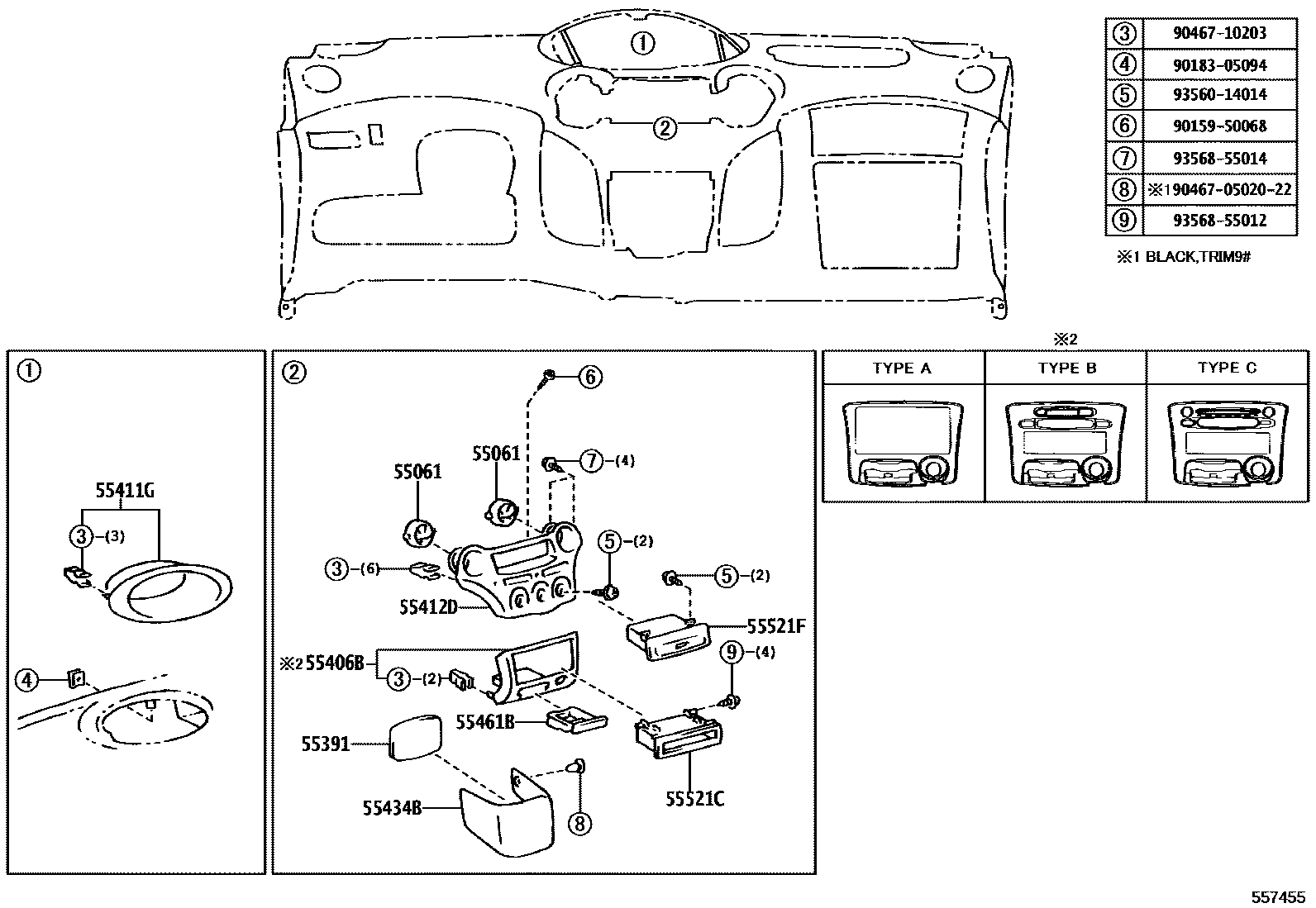

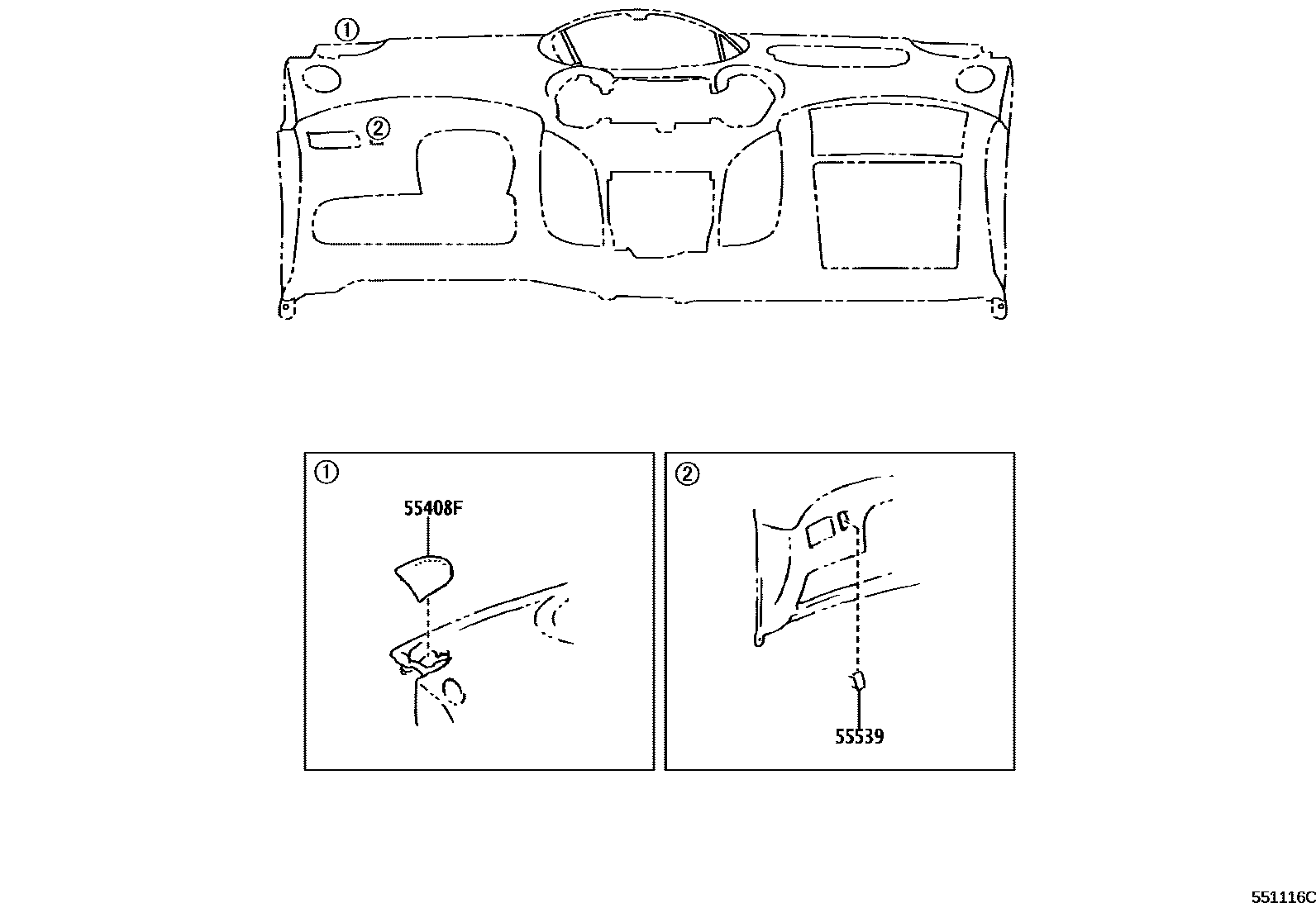

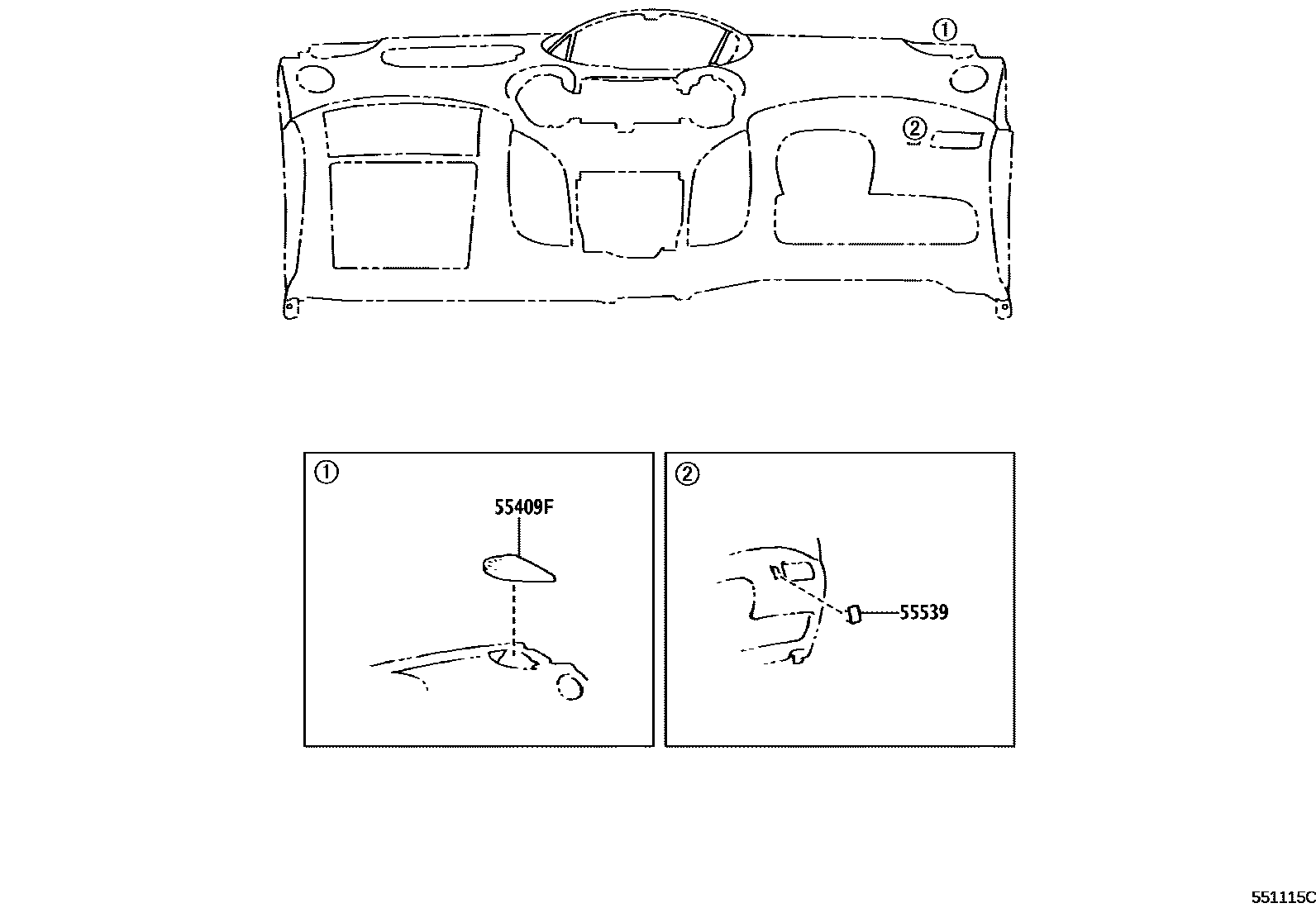

Toyota YARIS EPC diagram 5501, 仪表板和手套箱, with 16 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-52010 · 55306-52011 · 55306-52020 · 55306-52021 |
| 55308C | Center instrument panel bracket sub-assembly | 55308-52010 · 55308-52080 |
| 55331 | Dashboard reinforcement | 55330-52010 · 55330-52020 · 55330-52030 · 55330-52040 · 55330-52041 · 55330-52280 · 55330-52350 |
| 55349A | Dashboard cushion | 55349-52010 · 55349-52020 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-52010 · 55355-52011 · 55355-52012 · 55355-52150 |
| 55356C | Dashboard No. 2 Cushion Pad | 55356-52040 |
| 55357B | Dashboard No. 3 Cushion Pad | 55357-52030 · 55357-52060 |
| 55358K | Dashboard No. 4 Cushion Pad | 55358-52020 · 55358-52030 |
| 55391 | Dashboard No. 1 lower cushion | 55391-52010 |
| 55392C | Dashboard No. 2 lower cushion | 55392-52010 |
| 55394E | Dashboard No. 4 lower cushion | 55979-52010 |
| 55426A | Instrument cluster No. 1 decorative panel bracket | 55426-52010 |
| 55444A | Dashboard storage box spring | 55444-52020 · 55444-52040 |
| 55444C | Dashboard storage box spring | 55444-52080 |
| 55503B | Cushion pad (for glove box) | 90541-05020 · 90541-05080 |
| 55521C | stereo system hole cover | 55521-16030 |
| 55682 | Dashboard air register bracket spring | 55682-52010 |
| 55950A | Defroster nozzle assembly | 55950-52010 · 55950-52020 |
| 74598B | Passenger air bag warning label | 74598-20010 |
| 89279J | cover | 89279-52010 · 89279-52020 |
