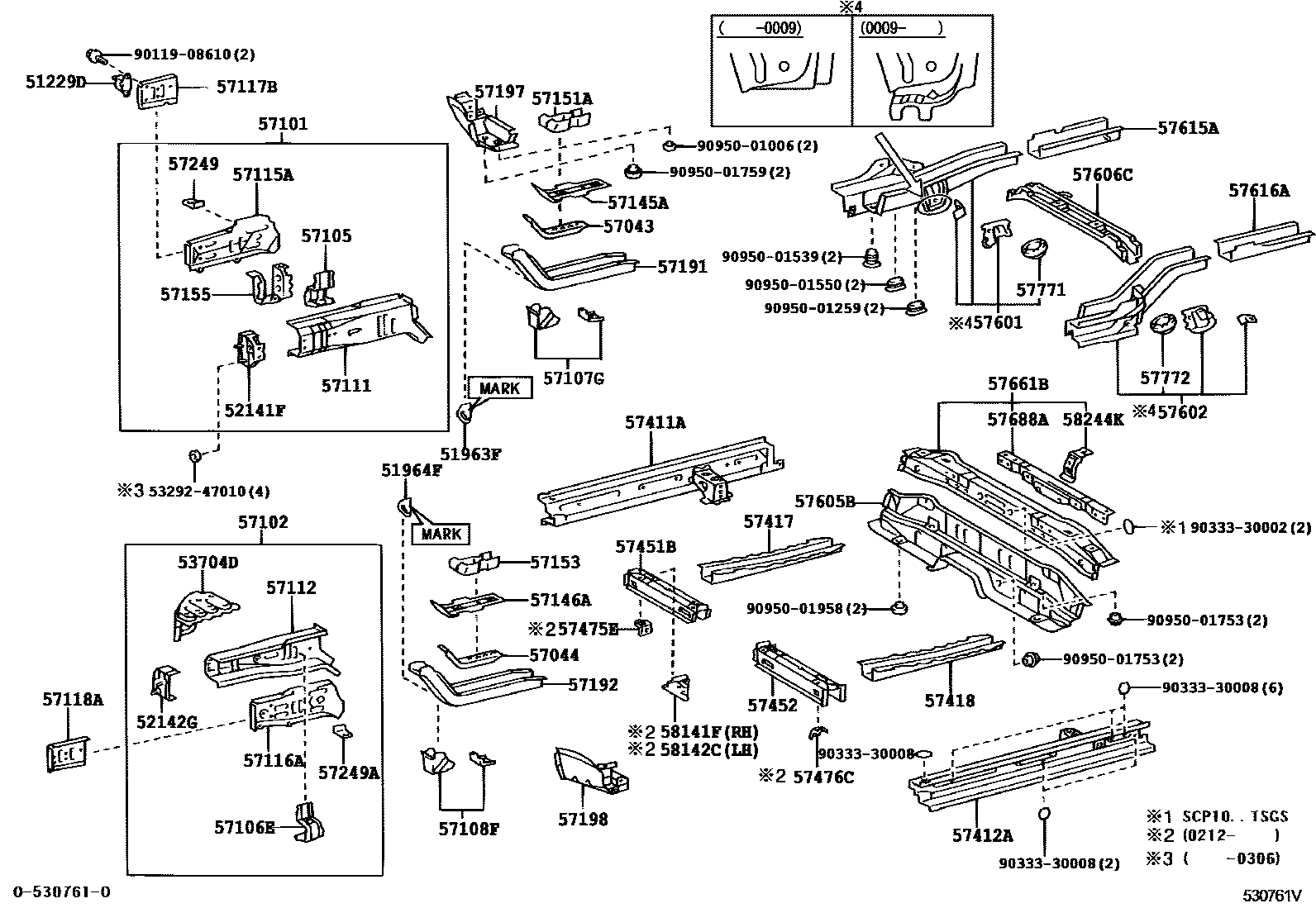

Toyota YARIS Floor stringers — Figure 5305
Toyota YARIS EPC diagram 5305, Floor stringers, with 1 images and 52 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51229D | No. 2 frame cross member dynamic damper | 51229-52010 |
| 51963F | transport hook | 51963-52010 · 51963-52020 |
| 51964F | left transport hook | 51963-52010 · 51964-52020 |
| 52141F | Front bumper right arm | 52141-52010 · 52141-52070 |
| 52142G | Front bumper left arm | 52142-52010 |
| 53704D | Battery left side bracket sub-assembly | 53704-52010 |
| 57043 | Right front longitudinal beam rear reinforcement sub-assembly | 57044-52010 |
| 57044 | Left front longitudinal beam rear reinforcement sub-assembly | 57044-52010 |
| 57101 | Right front longitudinal beam sub-assembly | 57101-52901 · 57101-52904 · 57101-52908 · 57101-52917 |
| 57102 | Left front longitudinal beam sub-assembly | 57102-52902 · 57102-52903 |
| 57105 | Right front suspension cross member front mounting bracket sub-assembly | 57105-52010 |
| 57106E | Left front suspension cross member front mounting bracket sub-assembly | 57105-52010 |
| 57107G | Right front suspension cross member rear mounting bracket sub-assembly | 57107-52010 · 57107-52020 |
| 57108F | Left front suspension cross member rear mounting bracket sub-assembly | 57108-52010 · 57108-52020 |
| 57111 | Right front longitudinal beam | 57111-52010 |
| 57112 | Left front longitudinal beam | 57112-52010 · 57112-52020 |
| 57115A | Right front longitudinal beam outer panel | 57115-52010 |
| 57116A | Left front longitudinal beam outer panel | 57116-52010 |
| 57117B | Install reinforcement on the right side of the front bumper | 57117-52010 · 57117-52020 |
| 57118A | Install reinforcement on the left side of the front bumper | 57118-52010 |
| 57145A | Right front longitudinal beam rear reinforcement | 57145-52010 · 57145-52011 |
| 57146A | Left front longitudinal beam rear reinforcement | 57145-52010 · 57145-52011 |
| 57151A | No. 1 right front longitudinal beam reinforcement | 57151-52010 |
| 57153 | No. 2 right front longitudinal beam reinforcement | 57153-52010 |
| 57155 | No. 3 right front longitudinal beam reinforcement | 57155-52010 · 57155-52011 · 57155-52012 |
| 57191 | Right front longitudinal beam outer rear panel | 57191-52900 |
| 57192 | Left front longitudinal beam outer rear panel | 57192-52010 · 57192-52011 |
| 57197 | Right front torsion box section piece | 57077-52020 |
| 57198 | Left front anti-torsion box section piece | 57078-52020 |
| 57249 | No. 1 Flexible Hose Bracket | 57249-10040 |
| 57249A | No. 1 Left Flexible Hose Bracket | 57249-10040 |
| 57411A | Floor right inner longitudinal beam | 57401-52011 · 57401-52020 · 57401-52021 |
| 57412A | Floor left inner longitudinal beam | 57402-52011 · 57402-52020 · 57402-52021 |
| 57417 | Front floor lower right reinforcement | 57417-52010 · 57417-52011 |
| 57418 | Front floor lower left reinforcement | 57417-52010 · 57417-52011 |
| 57451B | Front floor right cross member | 57451-52010 · 57451-52011 · 57451-52070 |
| 57452 | Front floor left cross member | 57452-52010 · 57452-52011 · 57452-52012 · 57452-52081 |
| 57475E | Front floor right cross member panel | 57475-52010 |
| 57476C | Front floor left cross member panel | 57476-52010 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-52900 · 57601-52909 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-52900 · 57602-52906 · 57602-52910 |
| 57605B | Rear floor No. 1 cross member sub-assembly | 57605-52010 |
| 57606C | Rear floor No. 2 cross member sub-assembly | 57606-52010 · 57606-52030 |
| 57615A | Rear floor right rear longitudinal member | 57615-52010 · 57801-52010 |
| 57616A | Rear floor left rear longitudinal member | 57616-52900 · 57802-52010 |
| 57661B | rear floor front cross member | 58202-52010 · 58202-52020 · 58202-52030 |
| 57688A | Rear floor cross member reinforcement | 57688-52010 |
| 57771 | Right rear spring plate | 51301-52010 · 51301-52020 |
| 57772 | Left rear spring plate | 51302-52010 · 51302-52020 |
| 58141F | Floor longitudinal beam to floor bottom plate right reinforcement | 58141-52010 |
| 58142C | Floor longitudinal beam to floor bottom left reinforcement | 58142-52010 |
| 58244K | Rear right seat cushion mounting bracket | 58244-52010 · 58244-52020 |
