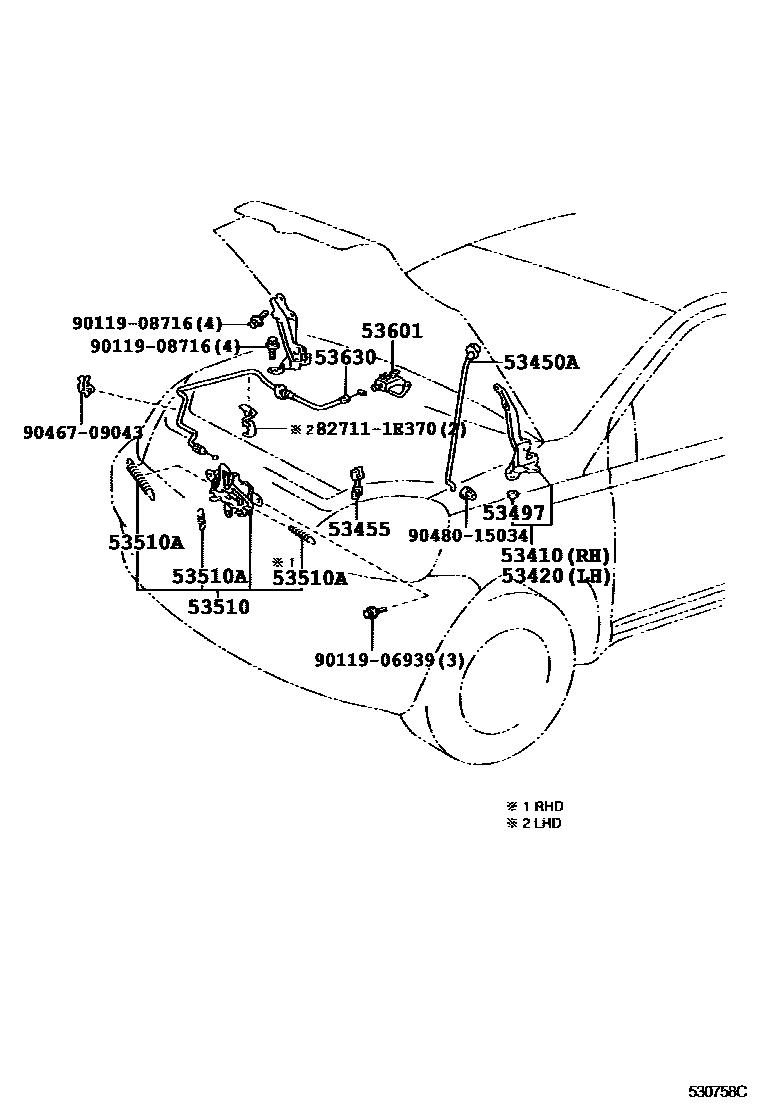

Toyota YARIS 发动机盖锁和铰链 — Figure 5303
Toyota YARIS EPC diagram 5303, 发动机盖锁和铰链, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-52010 |
| 53420 | Engine cover left hinge assembly | 53420-52010 |
| 53450A | Engine cover left support rod assembly | 53440-52010 · 53440-52100 |
| 53455 | Engine cover support rod clip | 53455-52010 |
| 53497 | No. 1 engine cover hinge gasket | 53497-10020 · 53497-12050 · 53497-42010 |
| 53510 | Engine cover lock assembly | 53510-52010 · 53510-52030 · 53510-52220 · 53510-52230 |
| 53510A | Tension spring (for hood lock) | 90506-09052 · 90506-09055 · 90506-12063 · 90506-16077 · 90506-18067 · 90905-06005 |
| 53630 | Engine hood lock control cable assembly | 53630-52010 · 53630-52090 |
