Toyota YARIS radiator grille — Figure 5301

Toyota YARIS EPC diagram 5301, radiator grille, with 3 images and 2 PNC and OE references.

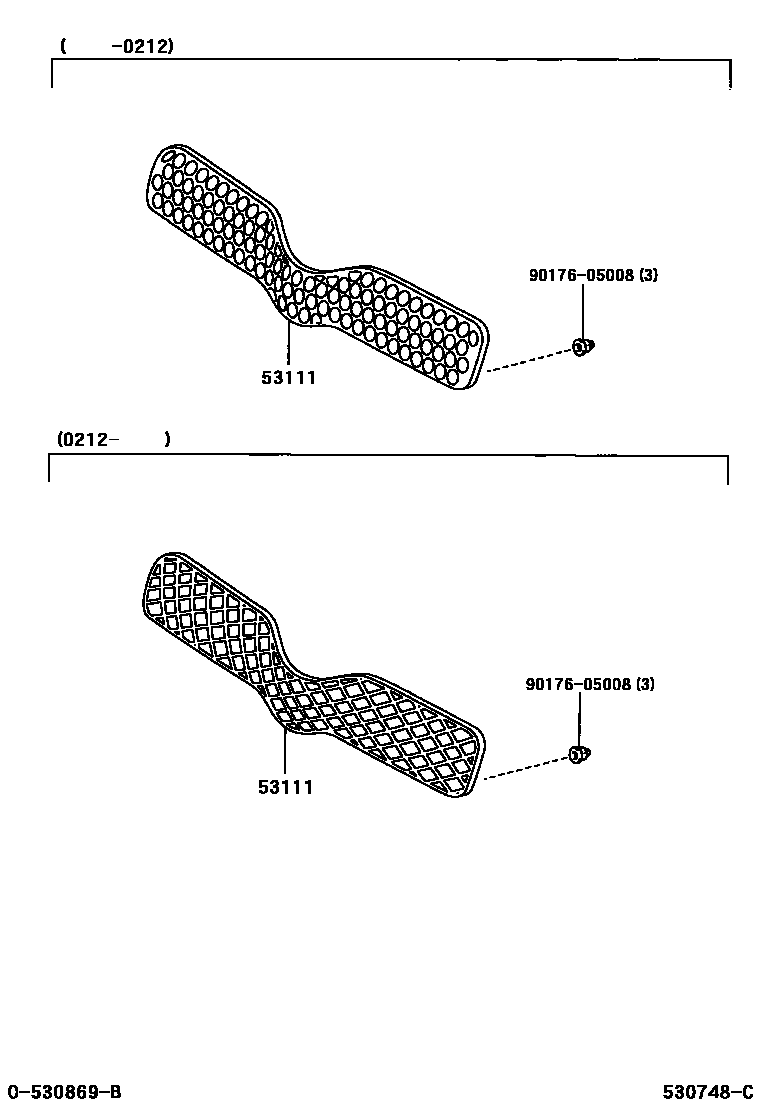

Toyota YARIS radiator grille EPC diagram — 530748C
radiator grille — 530748C (199901 – 999999)

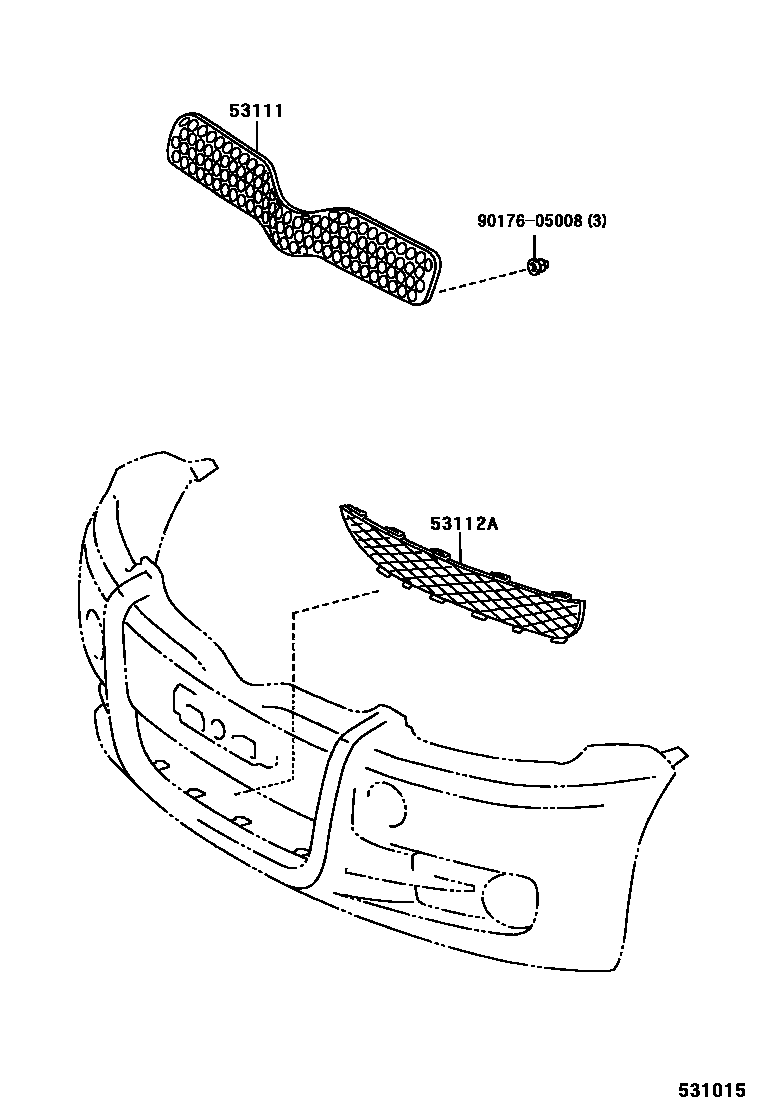

Toyota YARIS radiator grille EPC diagram — 531015
radiator grille — 531015 (200101 – 200212)

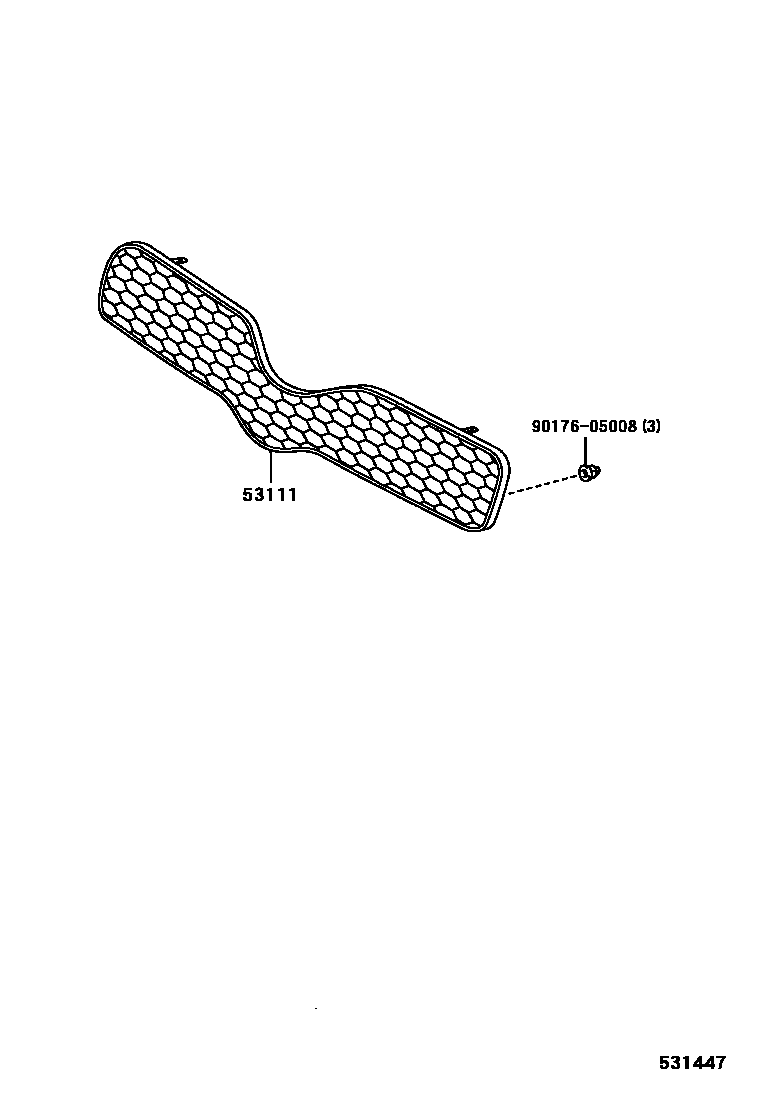

Toyota YARIS radiator grille EPC diagram — 531447
radiator grille — 531447 (200212 – 999999)

PNC and OE references

PNCPart nameOE numbers
53111radiator grille53101-52010 · 53101-52020 · 53101-52030 · 53101-52070 · 53101-52080 · 53101-52110 · 53101-52140 · 53101-52150
53112ALower radiator grille53112-52020
