Toyota YARIS 悬架横梁和发动机底罩 — Figure 5102

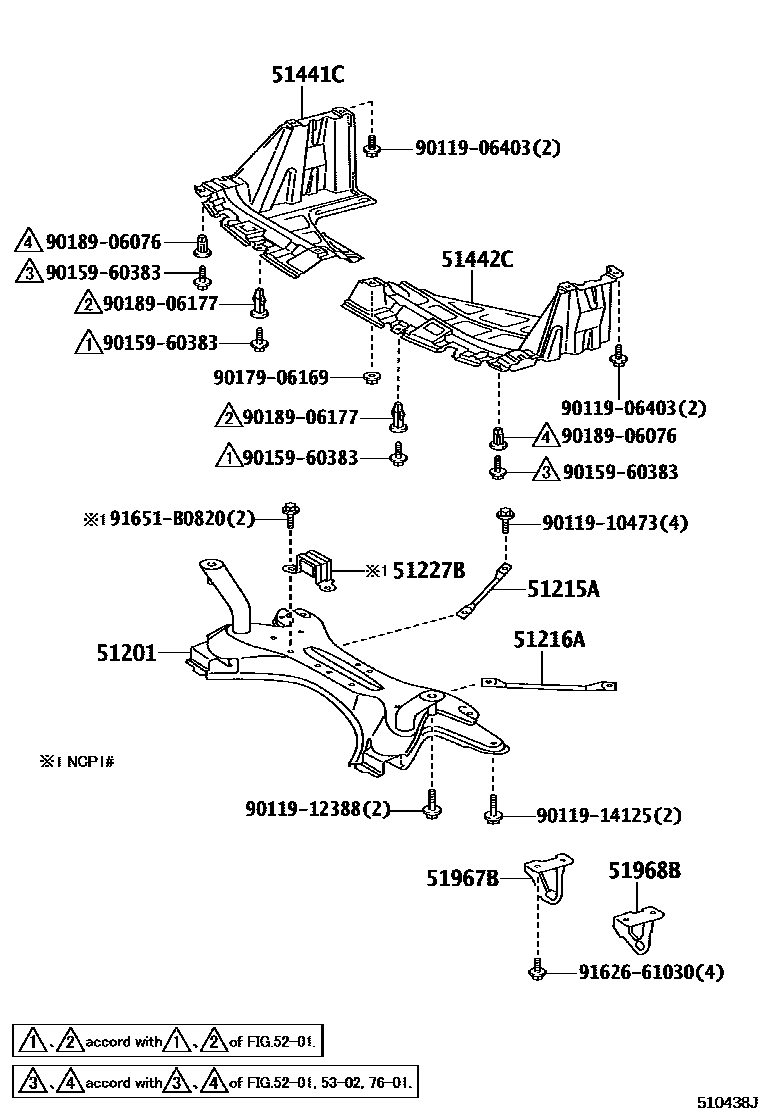

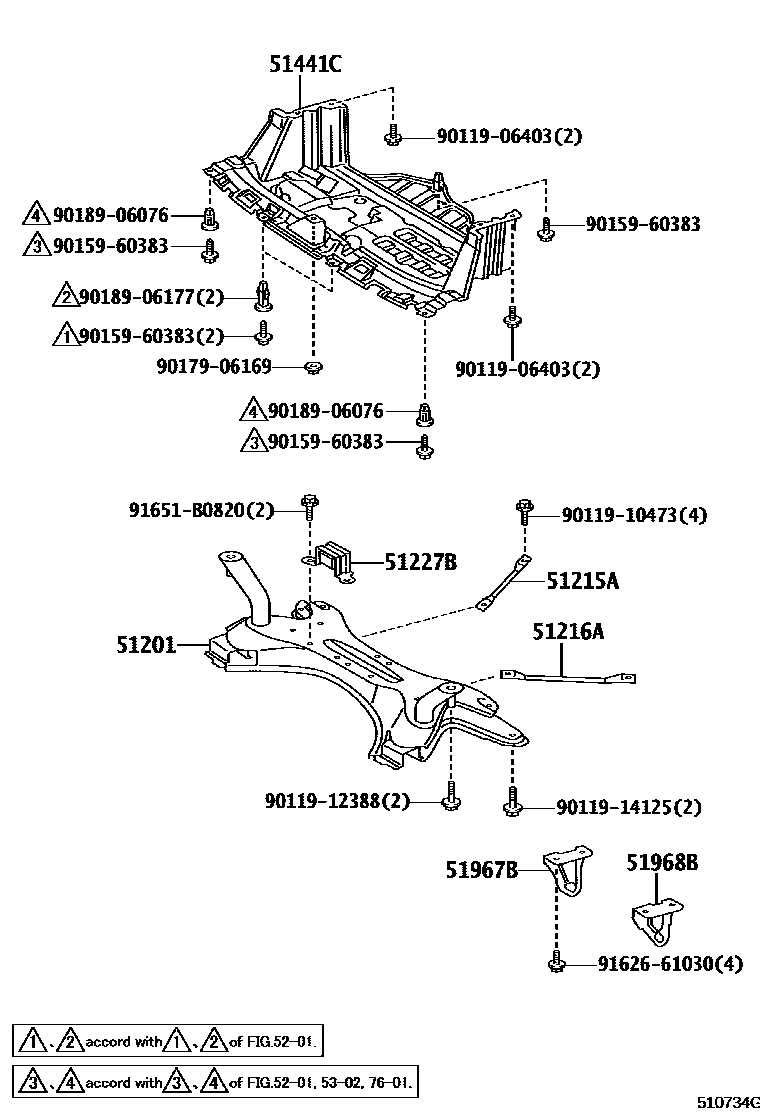

Toyota YARIS EPC diagram 5102, 悬架横梁和发动机底罩, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-52010 · 51201-52011 · 51201-52012 · 51201-52013 · 51201-52014 |
| 51215A | Right front suspension cross member reinforcement | 51215-52010 |
| 51216A | Left front suspension cross member reinforcement | 51215-52010 |
| 51227B | Front suspension beam dynamic damper | 51227-52010 · 51227-52030 |
| 51441C | Engine right bottom cover | 51410-52010 · 51441-52010 · 51441-52030 · 51441-52040 |
| 51442C | Engine left bottom cover | 51442-52010 · 51442-52030 · 51442-52040 |
| 51967B | right rear transport hook | 51967-10100 |
| 51968B | Left rear transport hook | 51967-10090 |
