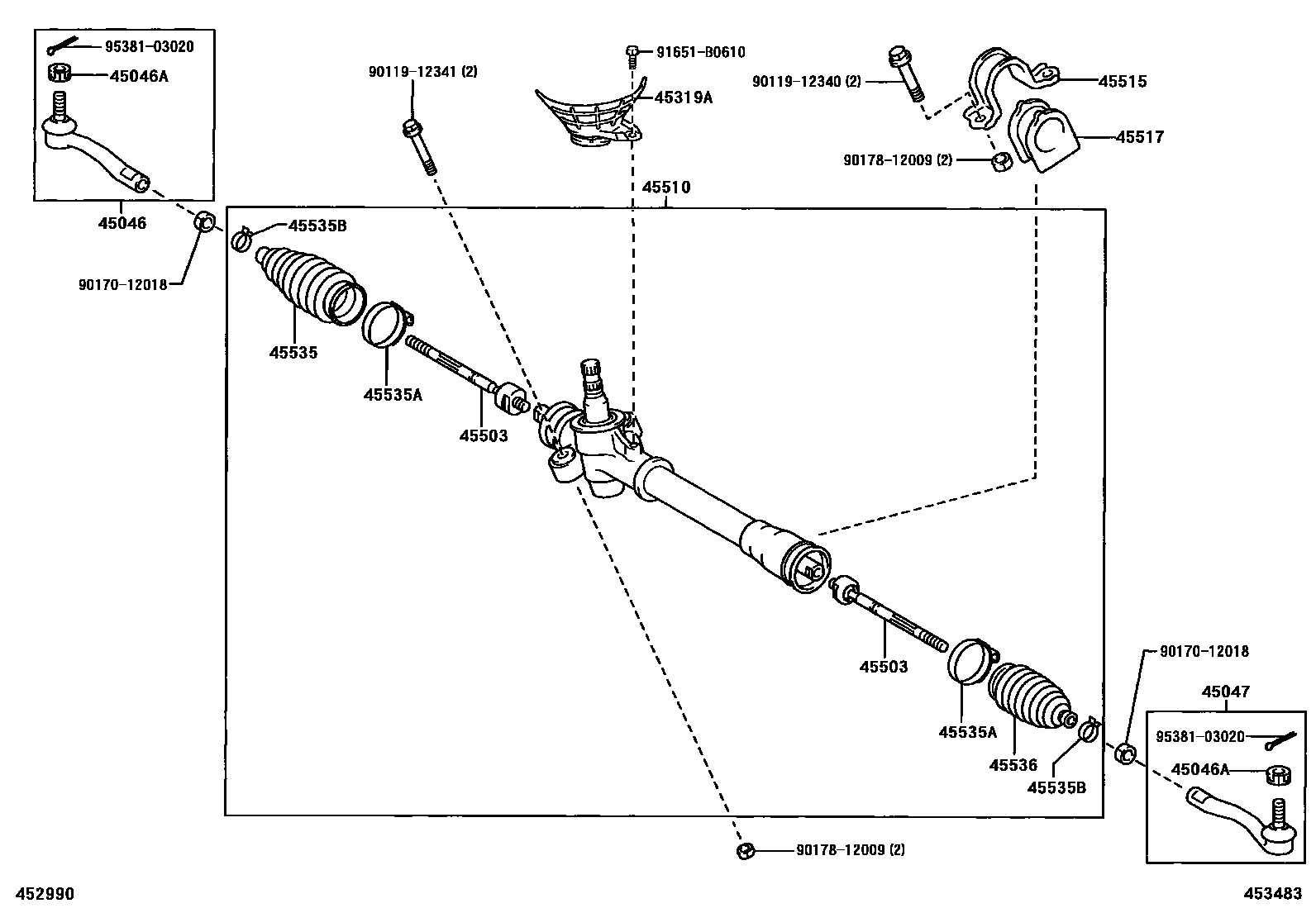

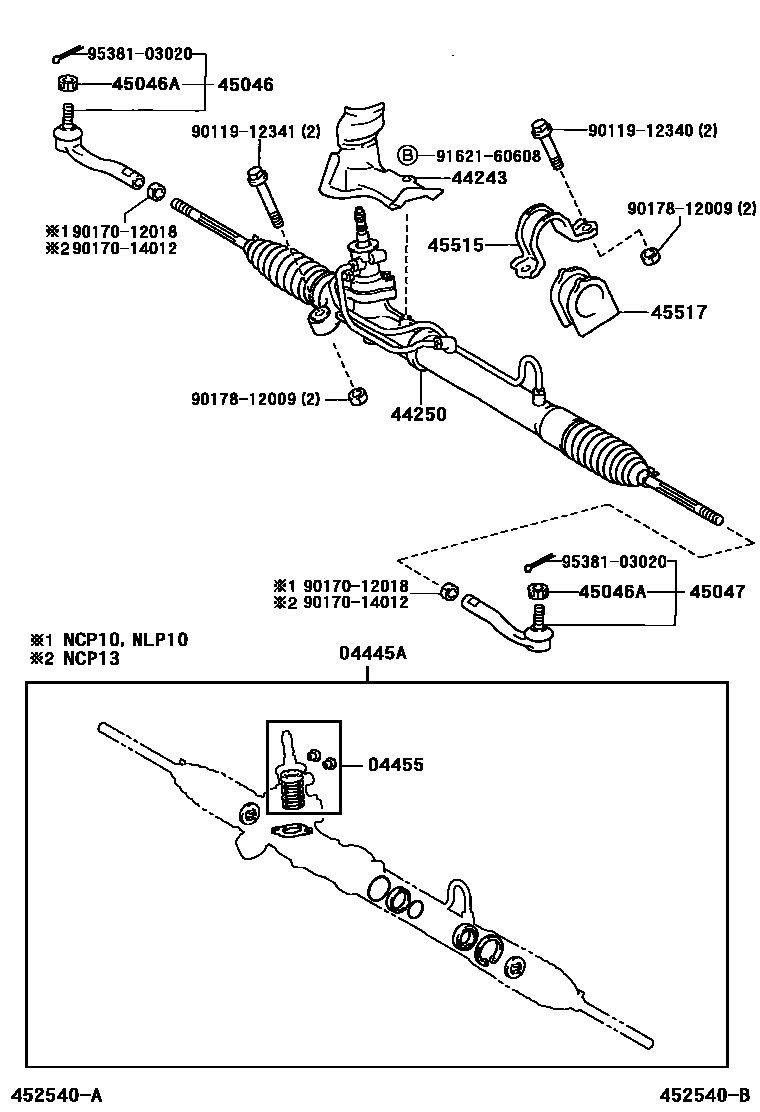

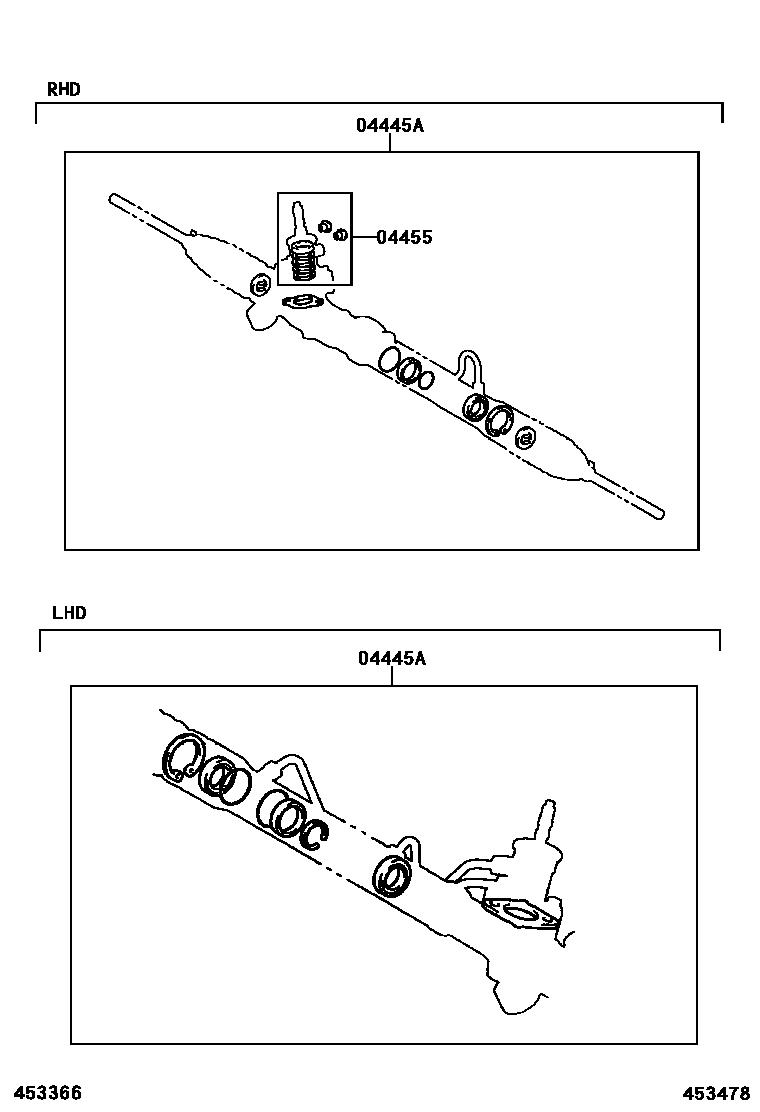

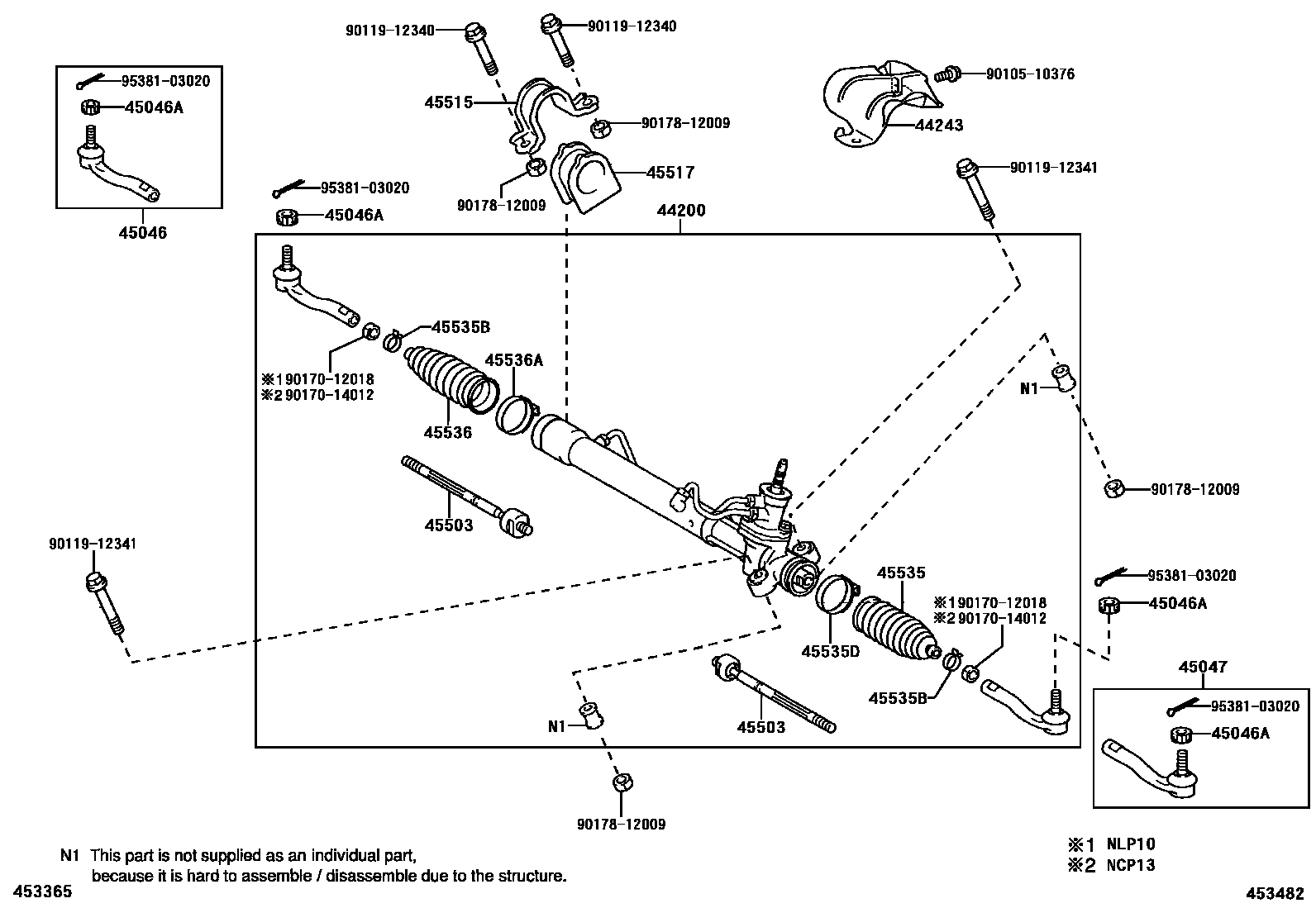

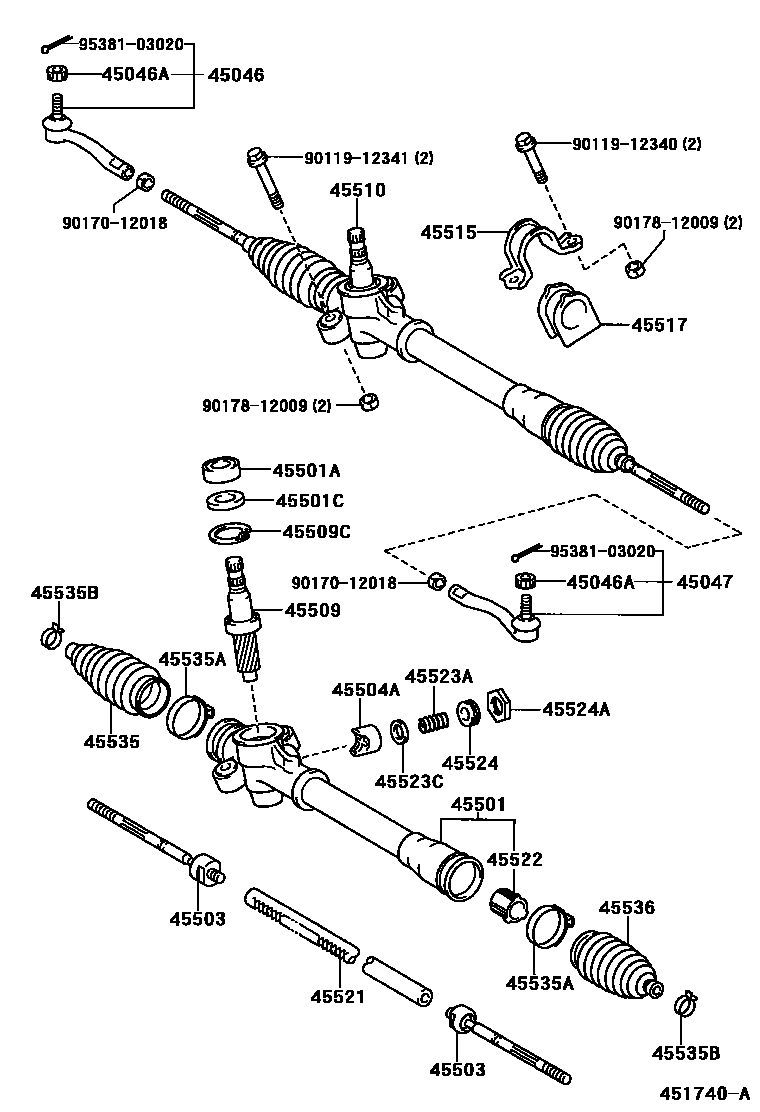

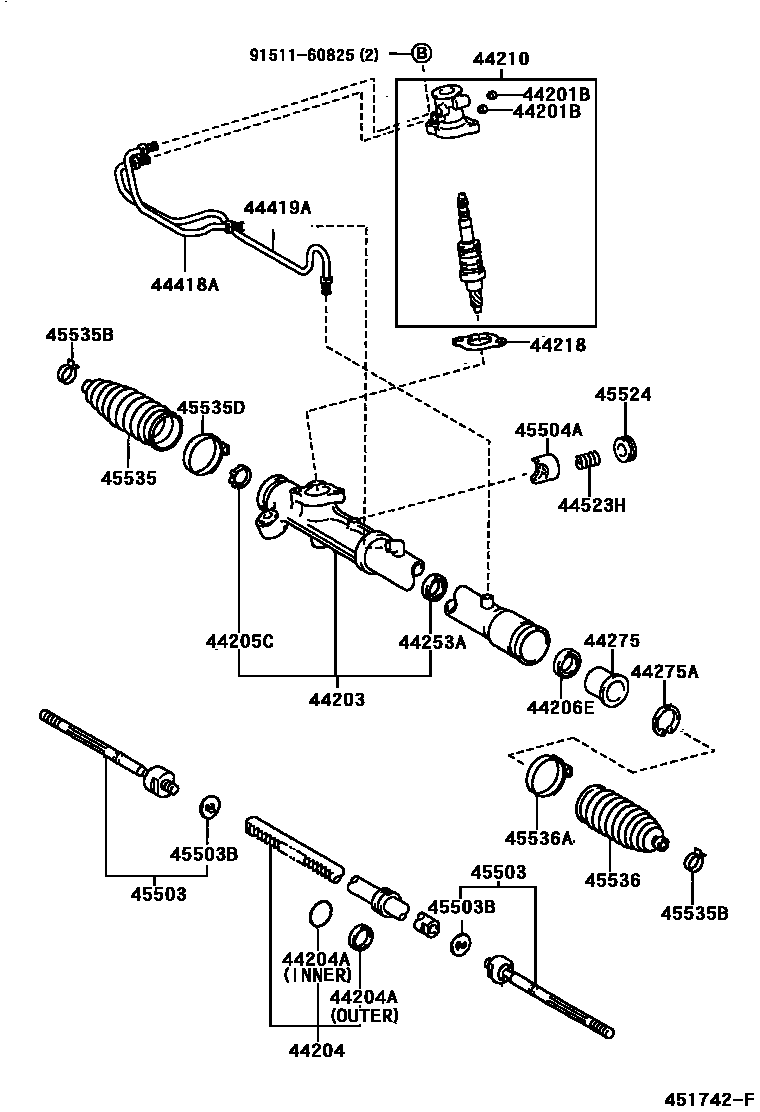

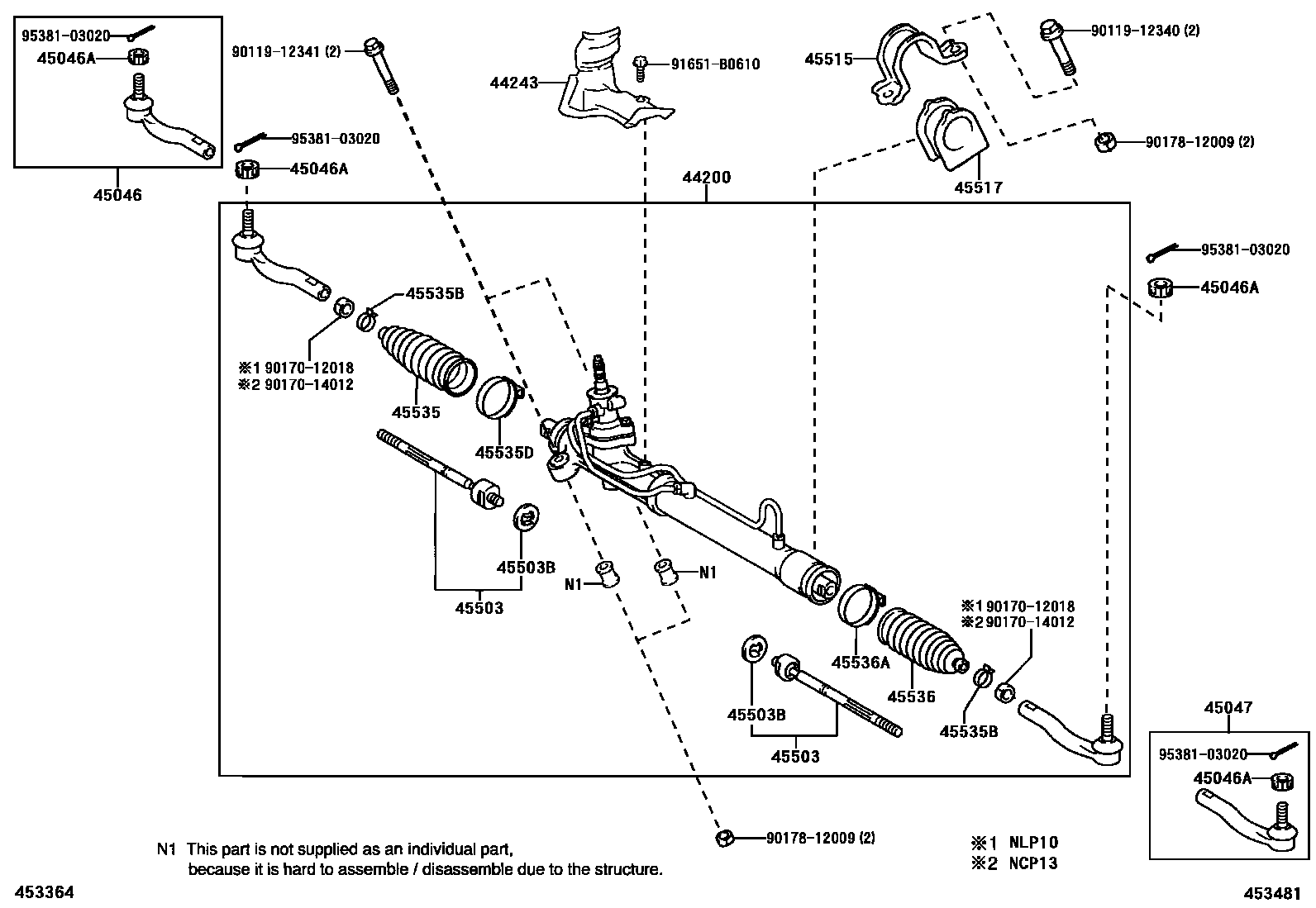

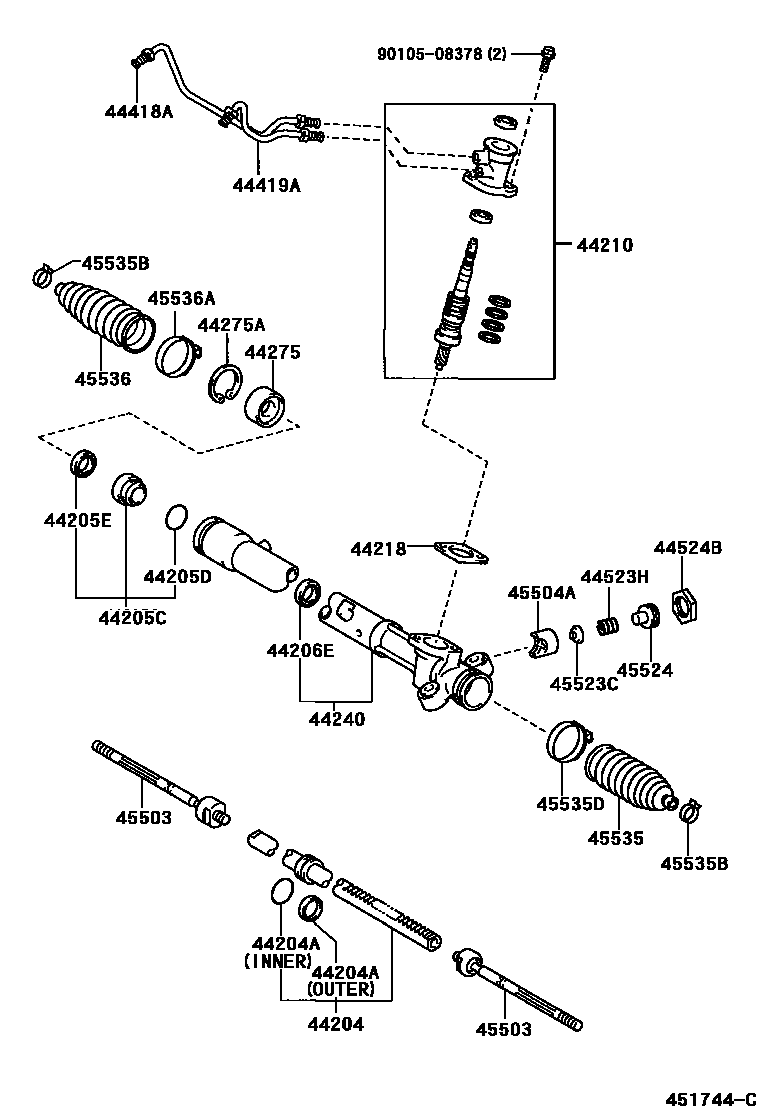

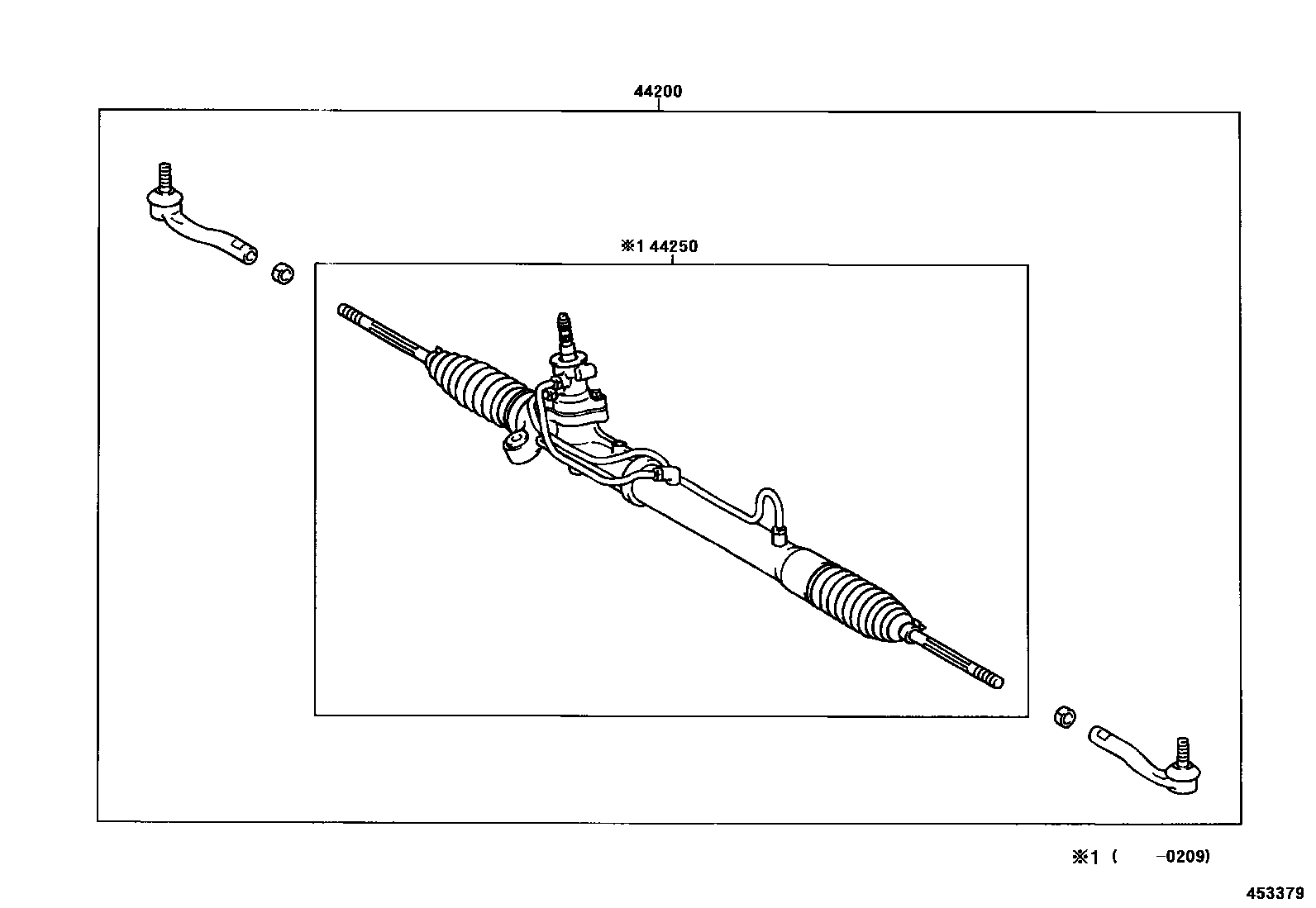

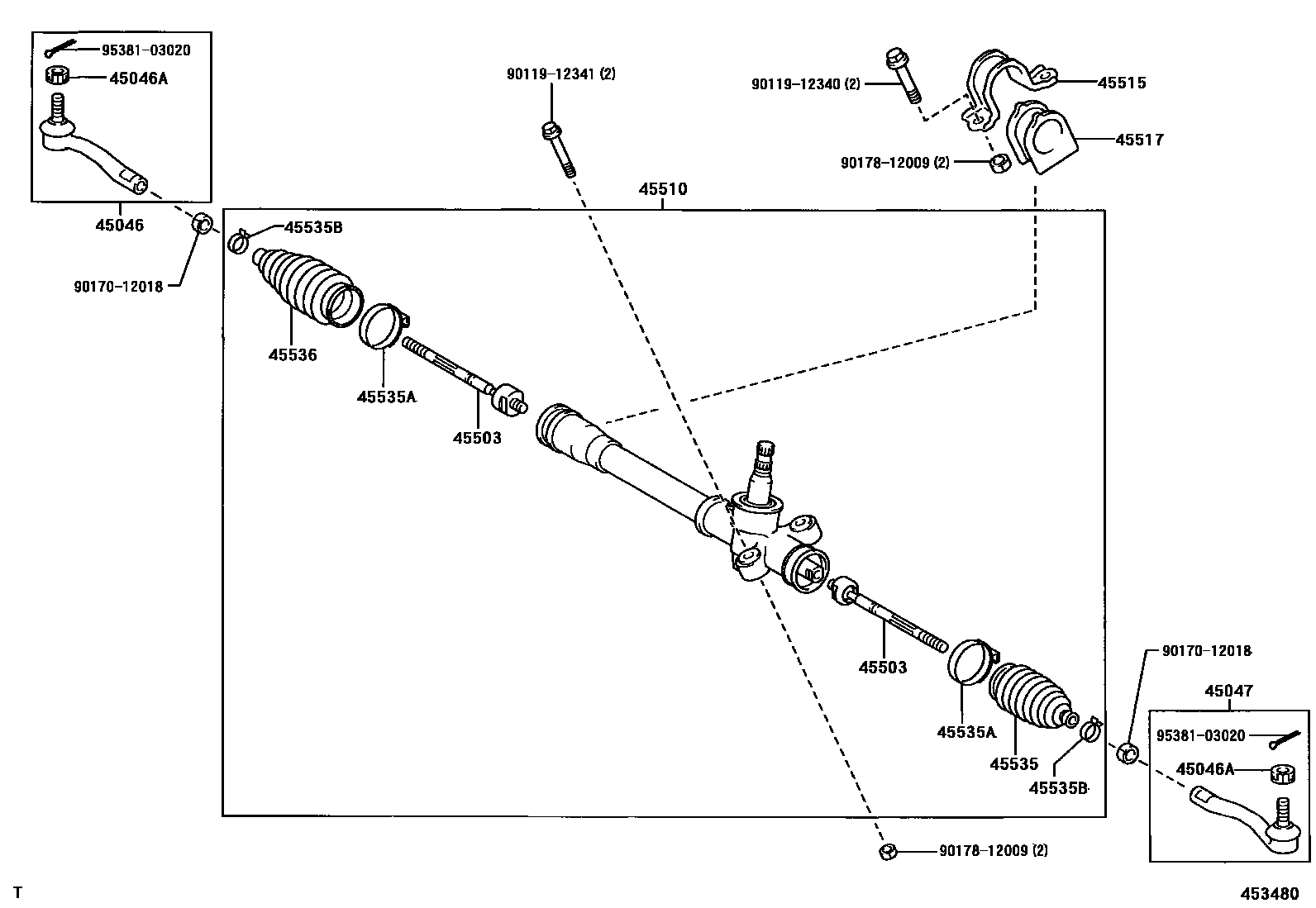

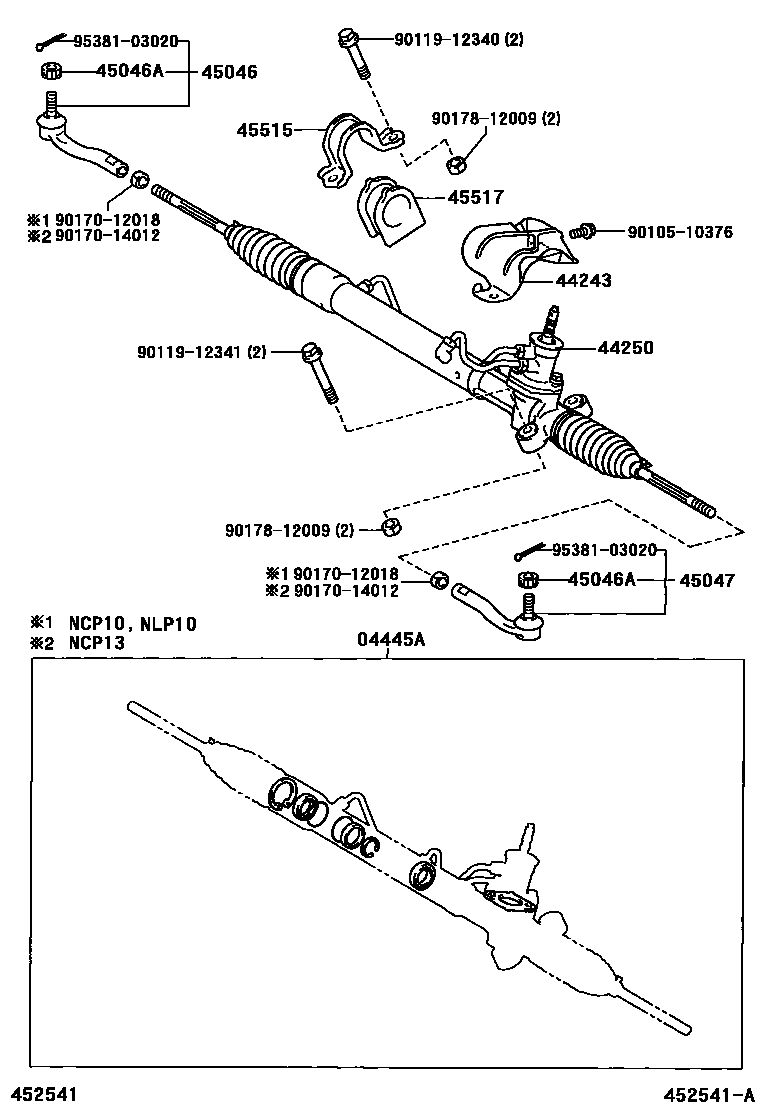

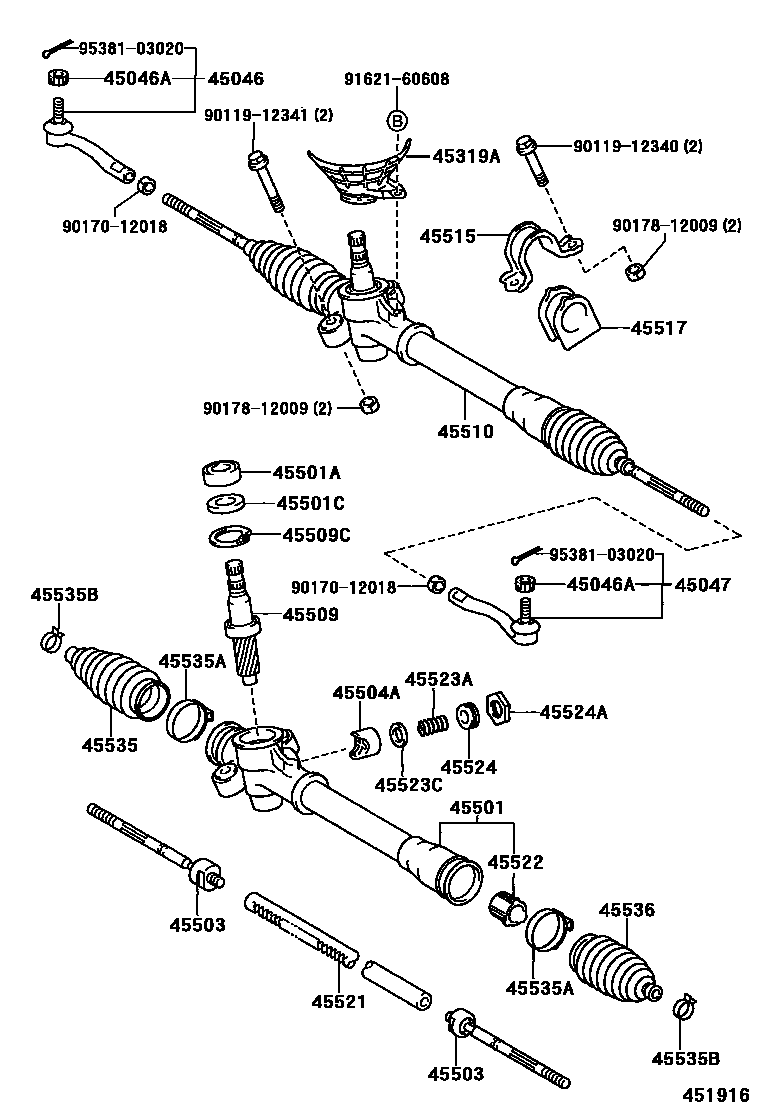

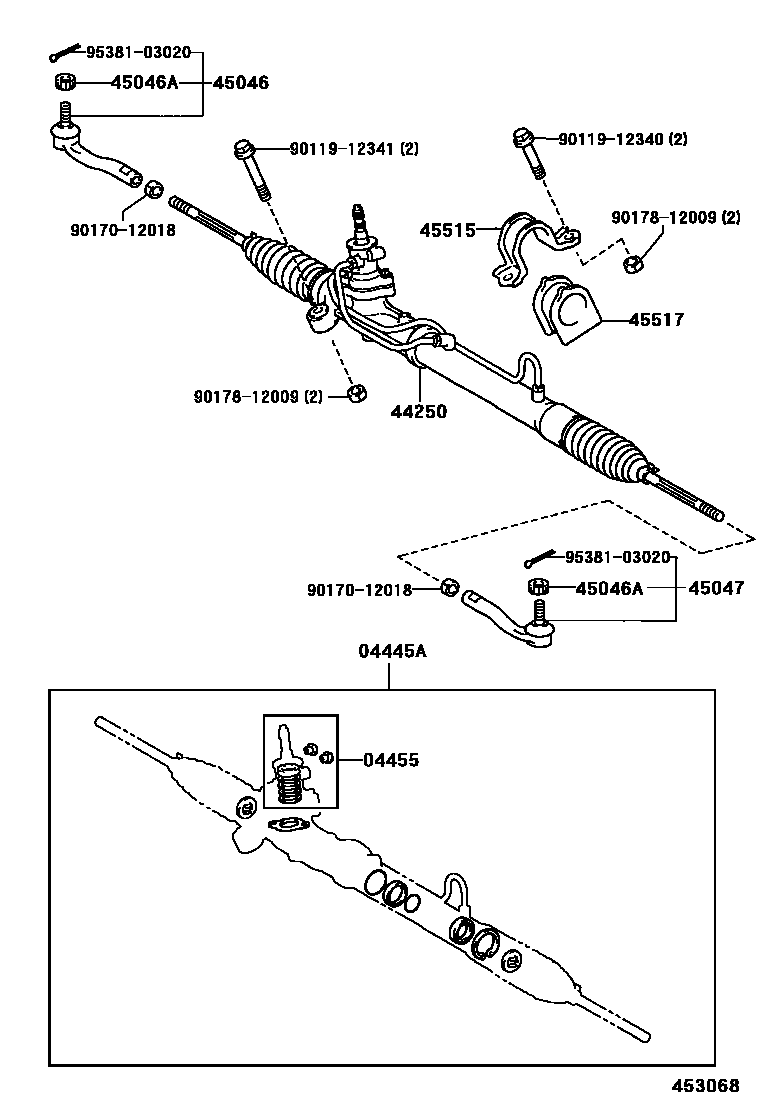

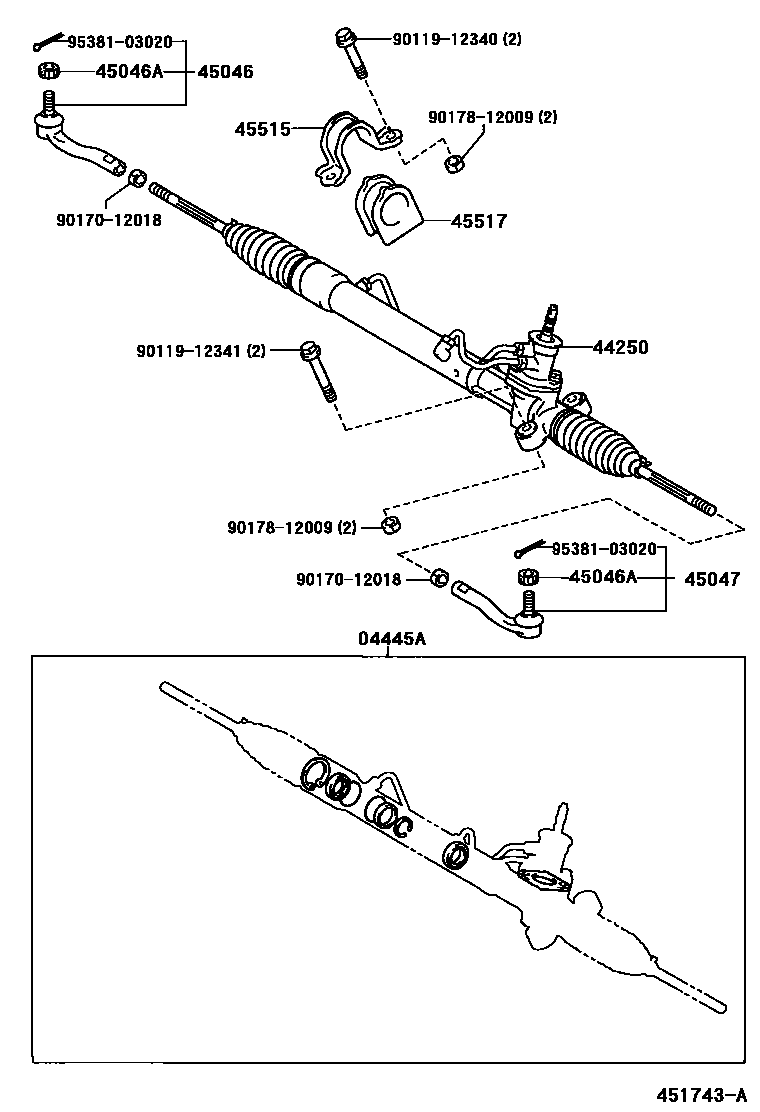

Toyota YARIS 前转向齿轮和连杆 — Figure 4505
Toyota YARIS EPC diagram 4505, 前转向齿轮和连杆, with 15 images and 50 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04445A | Power steering gear gasket assembly (for rack and pinion) | 04445-52010 · 04445-52020 · 04445-52050 · 04445-59020 |
| 04455 | Power steering control valve overhaul gasket assembly | 04455-52010 |
| 44200 | Power steering tie rod assembly | 44200-52010 · 44200-52052 · 44200-52110 · 44200-52230 |
| 44201B | Spacer (for power steering control valve) | 90410-06005 |
| 44203 | Power steering rack housing sub-assembly | 44203-52030 · 44203-52031 |
| 44204 | Power steering rack sub-assembly | 44204-52010 · 44204-52050 · 44204-52060 · 44204-52080 |
| 44204A | Ring (for steering rack piston) | 90301-29005 · 90301-31005 · 90562-34002 · 90562-35002 |
| 44205C | Power steering rack bushing sub-assembly | 44205-52010 · 90903-89017 |
| 44205D | O-ring (for power steering rack bushing) | 90301-33004 |
| 44205E | Oil seal (for power steering rack bushing) | 90311-22019 |
| 44206E | No. 1 oil seal (for power steering cylinder barrel) | 90310-22004 · 90311-22020 |
| 44210 | Power steering control valve assembly | 44210-52010 · 44210-52041 |
| 44218 | valve housing gasket | 44218-52010 · 44218-52020 |
| 44240 | Power steering rack housing assembly | 44240-52010 |
| 44243 | Power steering rack housing heat insulation pad | 44243-52010 · 44243-52030 · 44243-52031 · 44243-52032 |
| 44250 | Power steering gear assembly (for rack and pinion) | 44250-52010 · 44250-52051 · 44250-52052 · 44250-52080 · 44250-52120 |
| 44253A | Oil seal (for power steering rack housing) | 90310-22004 |
| 44275 | Cylinder end stop | 44275-52010 · 44275-52020 |
| 44275A | Bore snap ring (for cylinder end stop) | 90521-52004 · 90521-52005 |
| 44418A | Right steering pressure oil pipe | 44418-52010 · 44418-52030 |
| 44419A | Left steering pressure oil pipe | 44419-52010 · 44419-52030 |
| 44523H | Spring (for power steering rack guide) | 90501-29044 · 90501-29047 |
| 44524B | Nut (for power steering rack guide cover) | 90179-30002 |
| 45046 | Right tie rod end sub-assembly | 45046-19175 · 45046-59025 · 45046-59026 |
| 45046A | Castle nuts (for tie rod ends) | 90171-12028 |
| 45047 | Left tie rod end sub-assembly | 45046-19175 · 45047-59025 · 45047-59026 |
| 45319A | Steering gear heat insulation pad | 45319-52010 |
| 45501 | Steering rack housing sub-assembly | 45501-52010 · 45501-52011 · 45501-52020 |
| 45501A | T-type oil seal (for steering rack housing) | 90311-17009 |
| 45501C | Spacer (for steering rack housing) | 90561-20003 |
| 45503 | Steering rack end sub-assembly | 45503-52010 · 45503-52030 · 45503-59045 · 45503-59055 |
| 45503B | Jaw washer (for steering rack end) | 90214-14010 |
| 45504A | Rack guide block sub-assembly | 45504-16060 · 45504-52010 · 45504-52020 |
| 45509 | Steering pinion sub-assembly | 45509-52010 · 45509-52020 |
| 45509C | Hole snap ring (for steering pinion) | 90521-35002 |
| 45510 | Steering gear assembly | 45510-52010 · 45510-52011 · 45510-52020 |
| 45515 | No. 2 steering rack housing bracket | 45515-52010 |
| 45517 | No. 2 steering rack housing seal | 45517-52010 · 45517-52020 |
| 45521 | steering rack | 45521-52010 · 45521-52020 |
| 45522 | steering rack bushing | 45522-52010 |
| 45523A | Spring (for steering gear rack guide block) | 90501-29050 |
| 45523C | Spacer (for rack guide block) | 45542-12010 · 45542-52010 |
| 45524 | Steering rack guide block spring cover | 45524-16050 · 45524-52010 · 45524-52020 |
| 45524A | Nut (for steering rack guide spring cover) | 90177-30002 |
| 45535 | No. 1 steering rack dust cover | 45535-13010 · 45535-52010 · 45535-52030 · 45535-52040 · 45535-52050 · 45535-52060 |
| 45535A | Clamp (for steering rack dust boot) | 90904-67039 |
| 45535B | Clamp (for steering rack dust boot) | 90466-17001 · 90466-17002 · 90467-17021 · 90467-19012 · 90467-19017 · 90467-19019 · 90467-19021 |
| 45535D | Clamp (for No. 1 steering rack dust boot) | 90460-55016 · 90460-58008 |
| 45536 | No. 2 steering rack dust cover | 45535-13010 · 45535-52010 · 45535-52030 · 45535-52040 · 45535-52050 · 45535-52060 |
| 45536A | Clamp (for No. 2 steering rack dust boot) | 90460-55016 · 90460-58008 |
