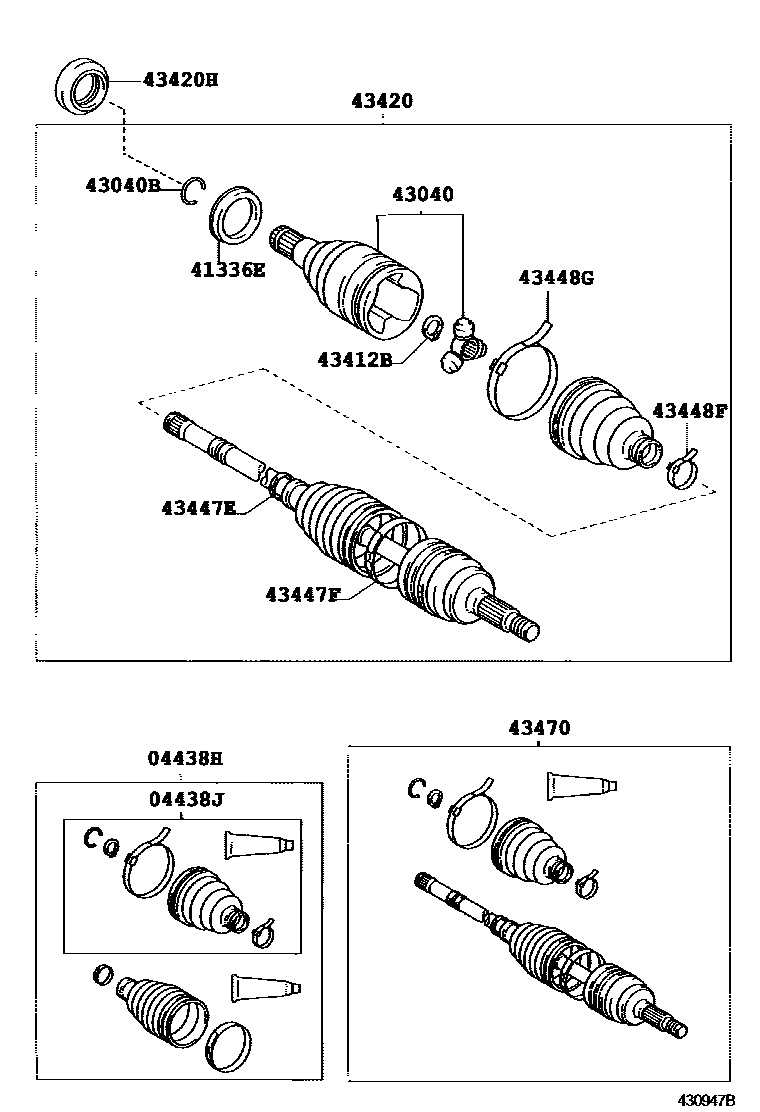

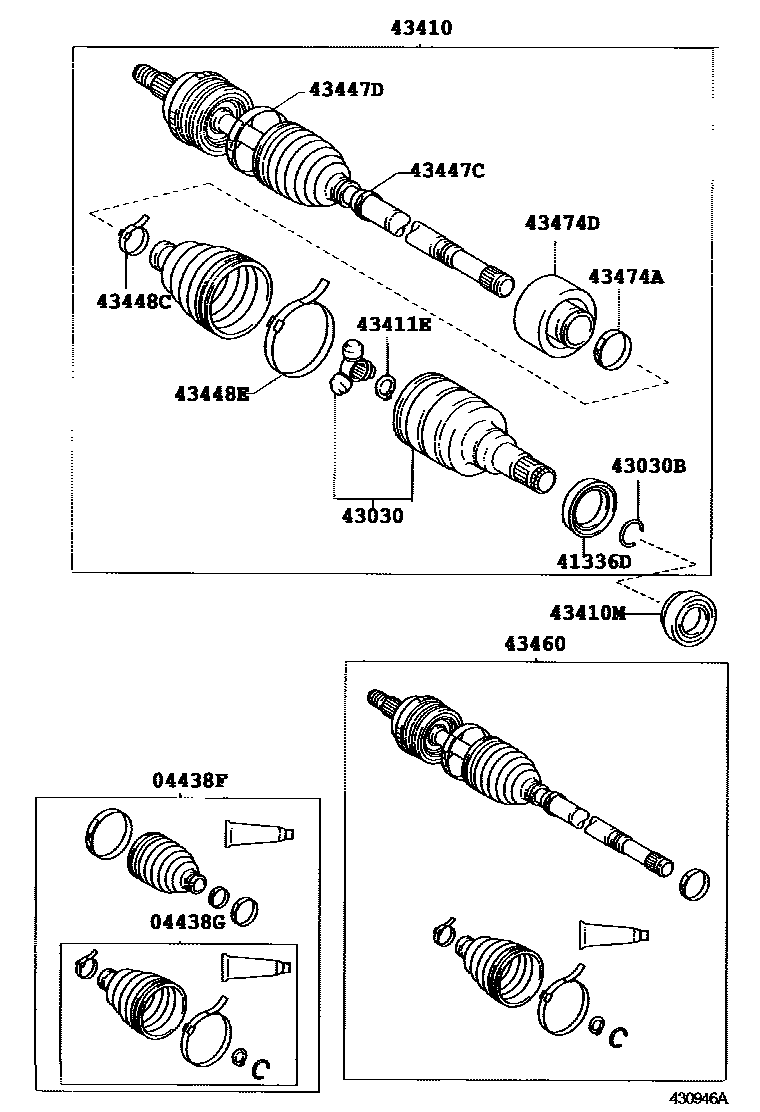

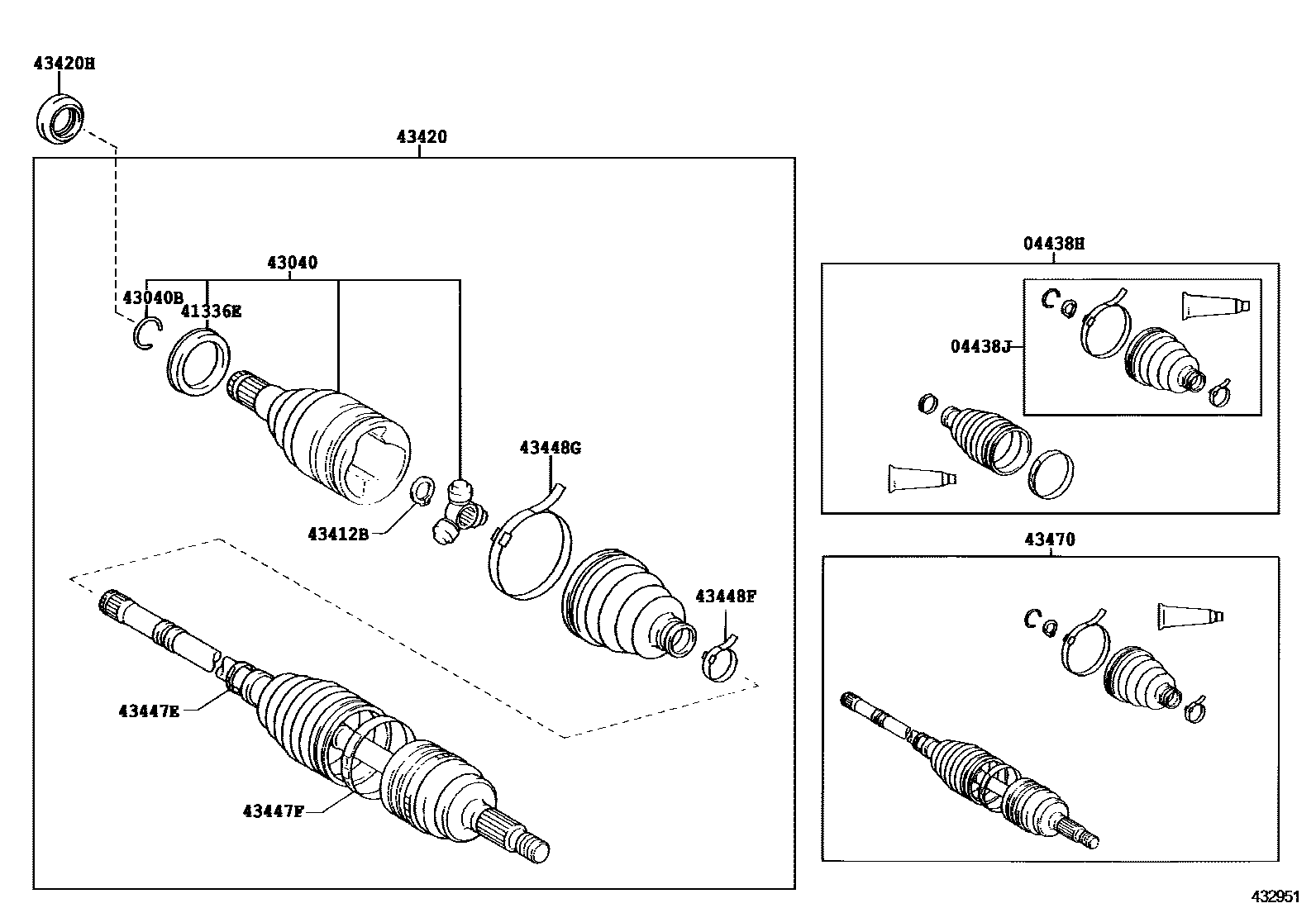

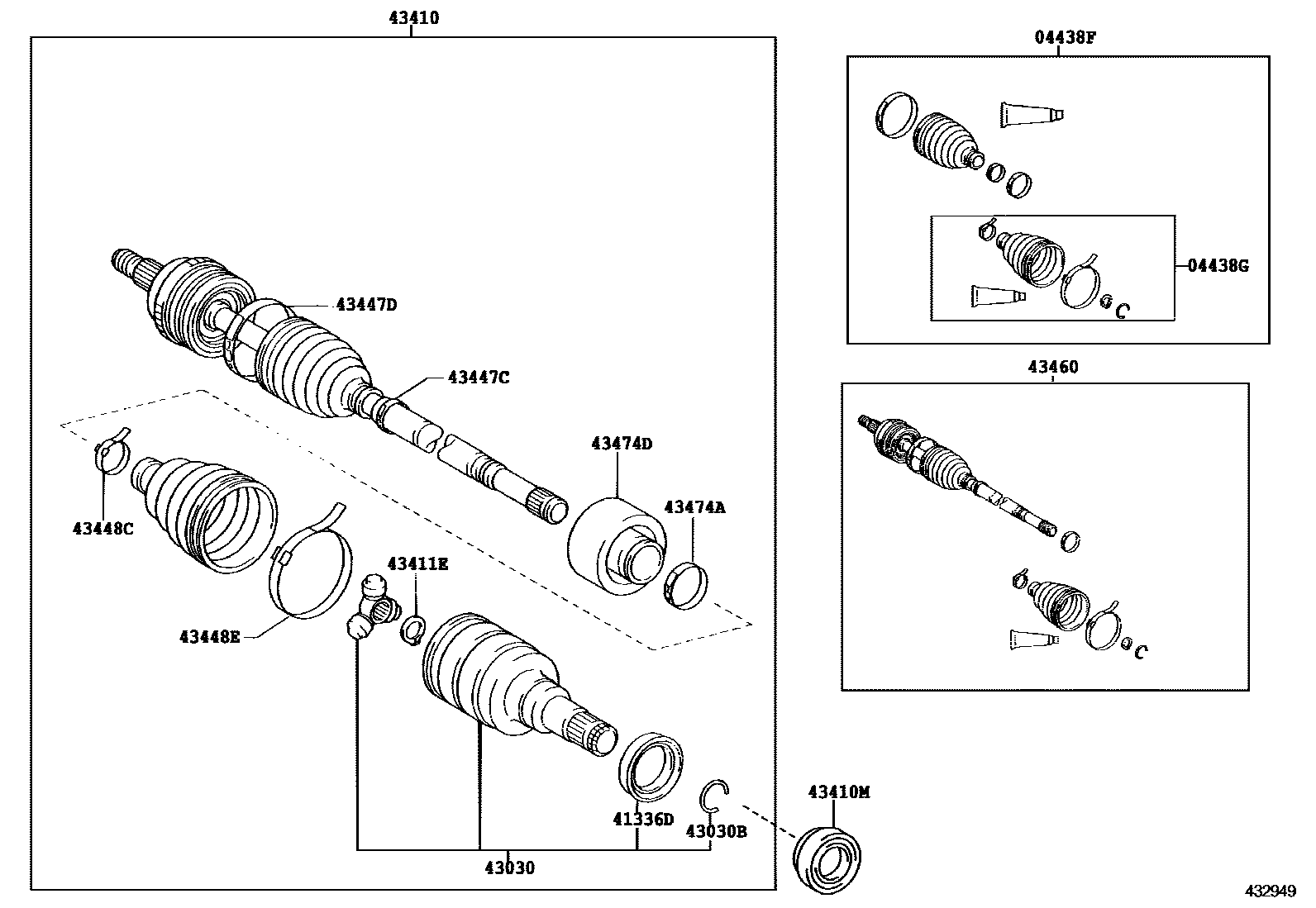

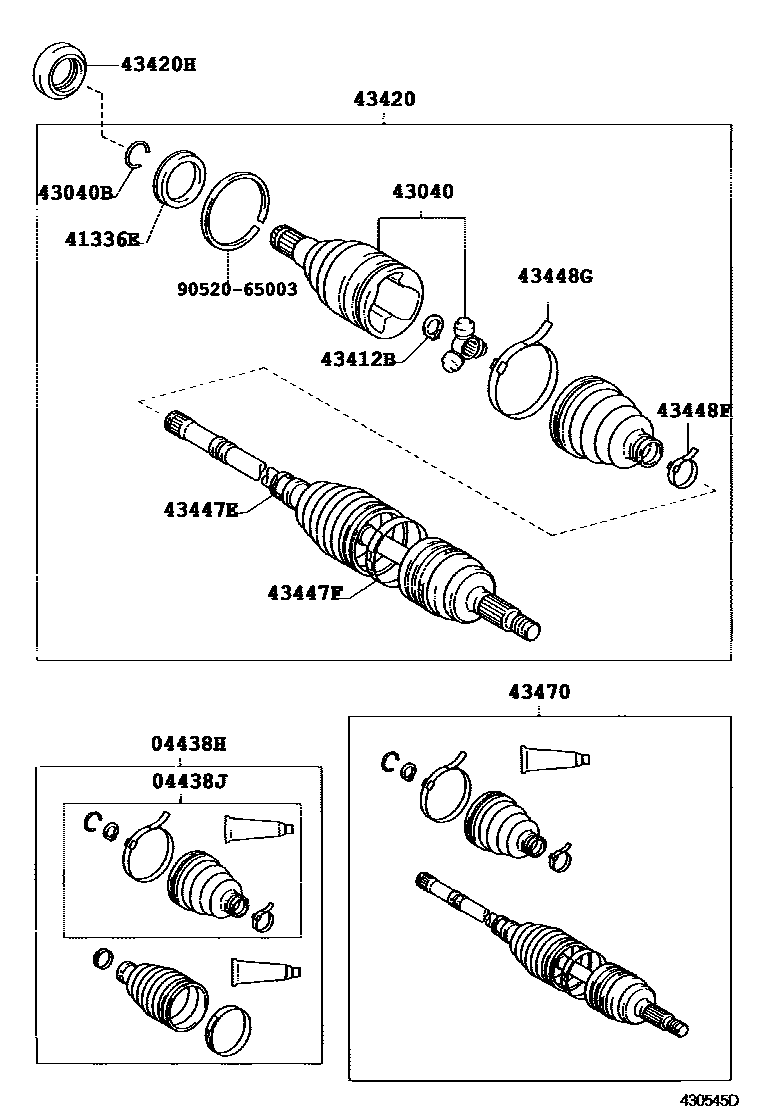

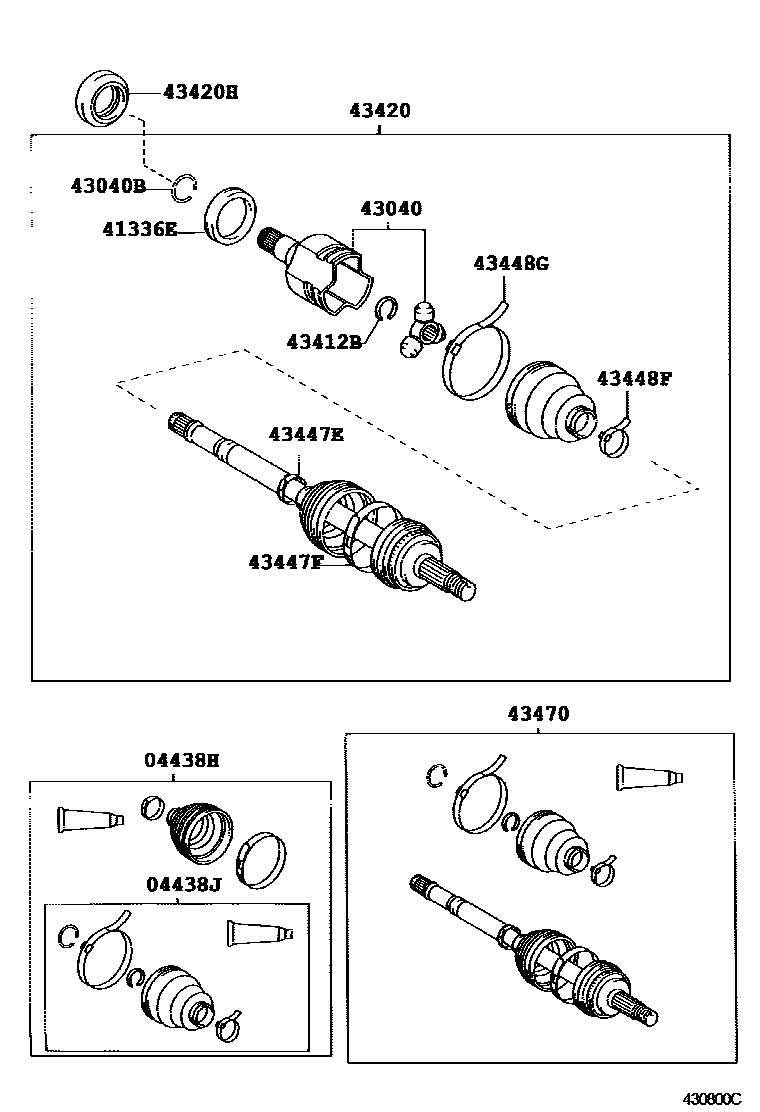

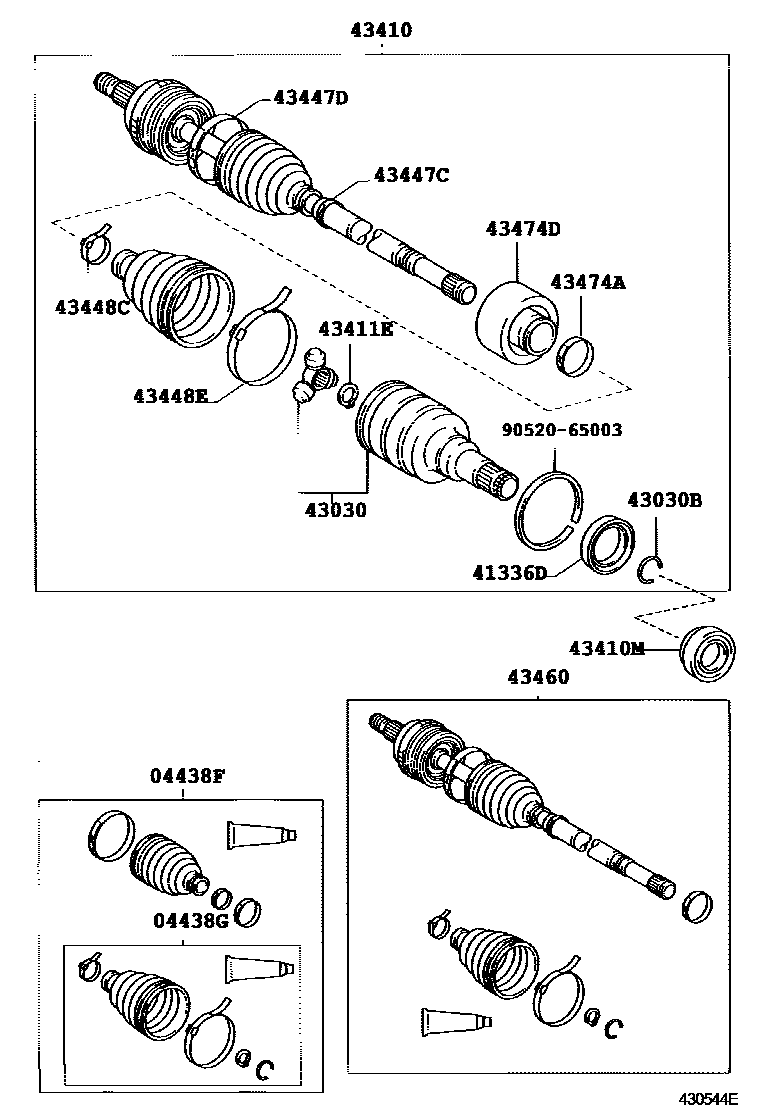

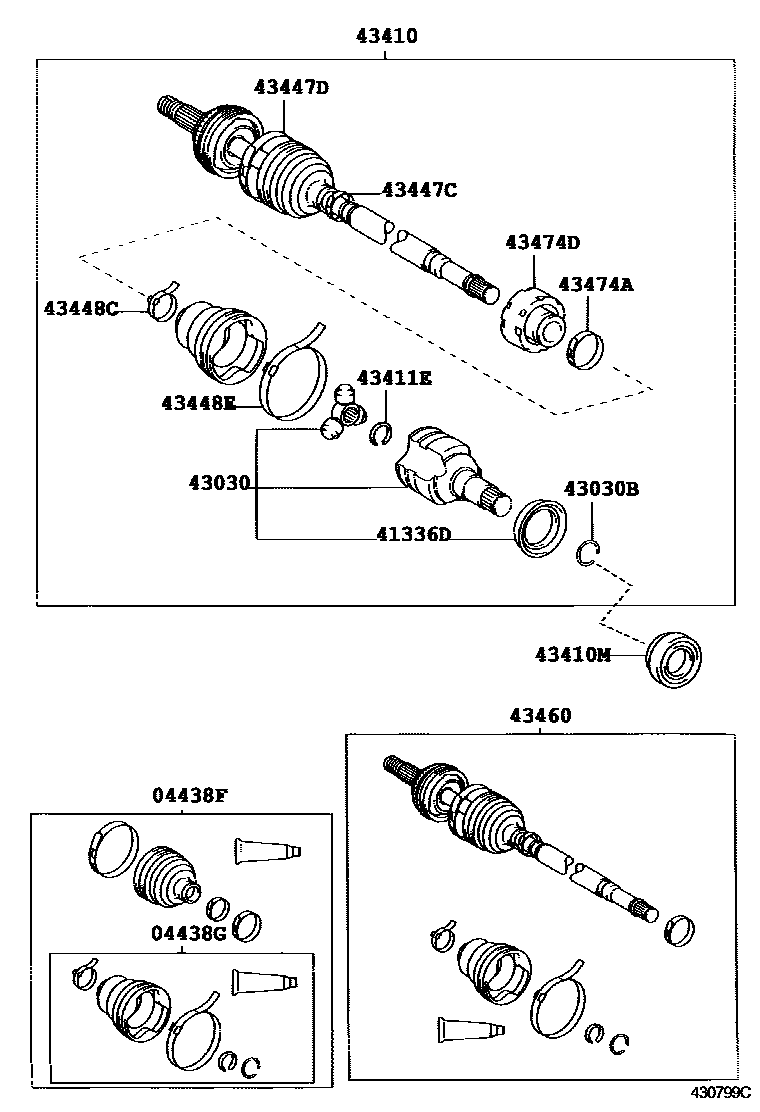

Toyota YARIS Front Drive Shaft — Figure 4302
Toyota YARIS EPC diagram 4302, Front Drive Shaft, with 8 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04427-52260 · 04438-52020 · 04438-52040 · 04438-52041 · 04438-52071 · 04438-52110 · 04438-52121 · 04438-52122 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04438-16101 · 04438-52010 · 04438-52030 · 04438-52100 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04427-52260 · 04438-52020 · 04438-52040 · 04438-52041 · 04438-52071 · 04438-52110 · 04438-52121 · 04438-52122 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04437-52190 · 04438-16101 · 04438-52010 · 04438-52030 · 04438-52100 |
| 41336D | Right front driveshaft dust cover | 41336-12010 · 41336-52010 |
| 41336E | Left front driveshaft dust cover | 41336-12010 · 41336-52010 |
| 43030 | Right front drive shaft inner universal joint assembly | 43030-52020 · 43030-52030 · 43403-10011 · 43403-16020 |
| 43030B | Hole snap ring (for right front drive shaft inboard universal joint) | 90521-26004 |
| 43040 | Left front drive shaft inner universal joint assembly | 43030-52020 · 43030-52030 · 43403-10011 · 43403-16020 |
| 43040B | Hole snap ring (for left front drive shaft inboard universal joint) | 90521-26004 |
| 43410 | Right front driveshaft assembly | 43410-52010 · 43410-52020 · 43410-52040 · 43410-52050 · 43410-52060 · 43410-52070 · 43410-52100 · 43410-52110 · 43410-52120 · 43410-52130 |
| 43410M | JOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MD | 90311-34016 · 90311-34023 · 90311-38072 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-16020 · 43425-52010 · 90520-18010 · 90520-22001 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-16020 · 43425-52010 · 90520-18010 · 90520-22001 |
| 43420 | Left front drive shaft assembly | 43420-52010 · 43420-52020 · 43420-52040 · 43420-52050 · 43420-52060 · 43420-52070 · 43420-52100 · 43420-52110 · 43420-52120 · 43420-52130 |
| 43420H | JOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MG | 90311-34017 · 90311-34026 · 90311-34028 · 90311-38073 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-16170 · 42345-52040 · 42345-52110 · 42345-52150 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-16180 · 42345-52030 · 42345-52100 · 42345-52170 · 42345-52180 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-16170 · 42345-52040 · 42345-52110 · 42345-52150 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-16180 · 42345-52030 · 42345-52100 · 42345-52170 · 42345-52180 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-16140 · 42345-52060 · 42345-52130 · 90949-01078 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-16150 · 42345-52050 · 42345-52120 · 90949-01146 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-16140 · 42345-52060 · 42345-52130 · 90949-01078 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-16150 · 42345-52050 · 42345-52120 · 90949-01146 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-59015 · 43460-59025 · 43460-59035 · 43460-59045 · 43460-59055 · 43460-59065 · 43460-59066 · 43460-59085 · 43460-59105 · 43460-59115 · 43460-59125 · 43460-59365 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-59015 · 43470-59025 · 43470-59035 · 43470-59045 · 43470-59055 · 43470-59065 · 43470-59085 · 43470-59095 · 43470-59105 · 43470-59115 · 43470-59455 |
| 43474A | Clamp (for securing driveshaft damper) | 42345-14010 · 42345-16140 |
| 43474D | Right front driveshaft shock absorber | 43474-52010 · 43474-52020 · 43474-52030 · 43474-52040 |
