Toyota YARIS 阀体和滤油网(ATM) — Figure 3512

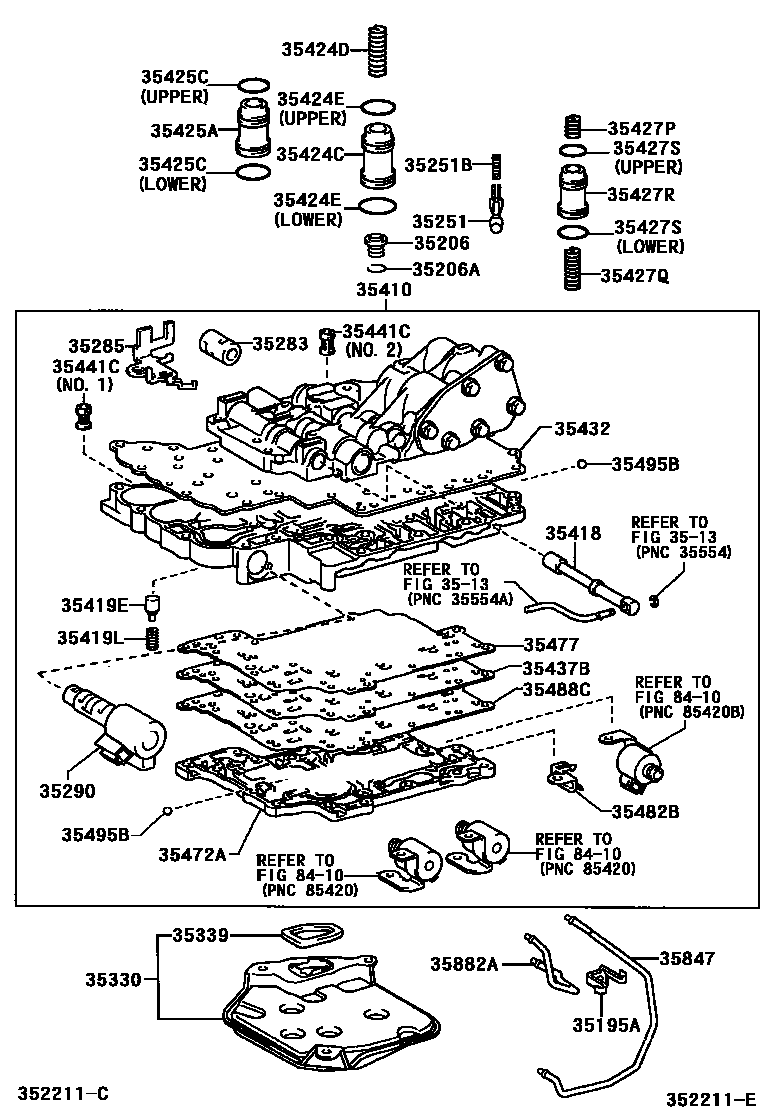

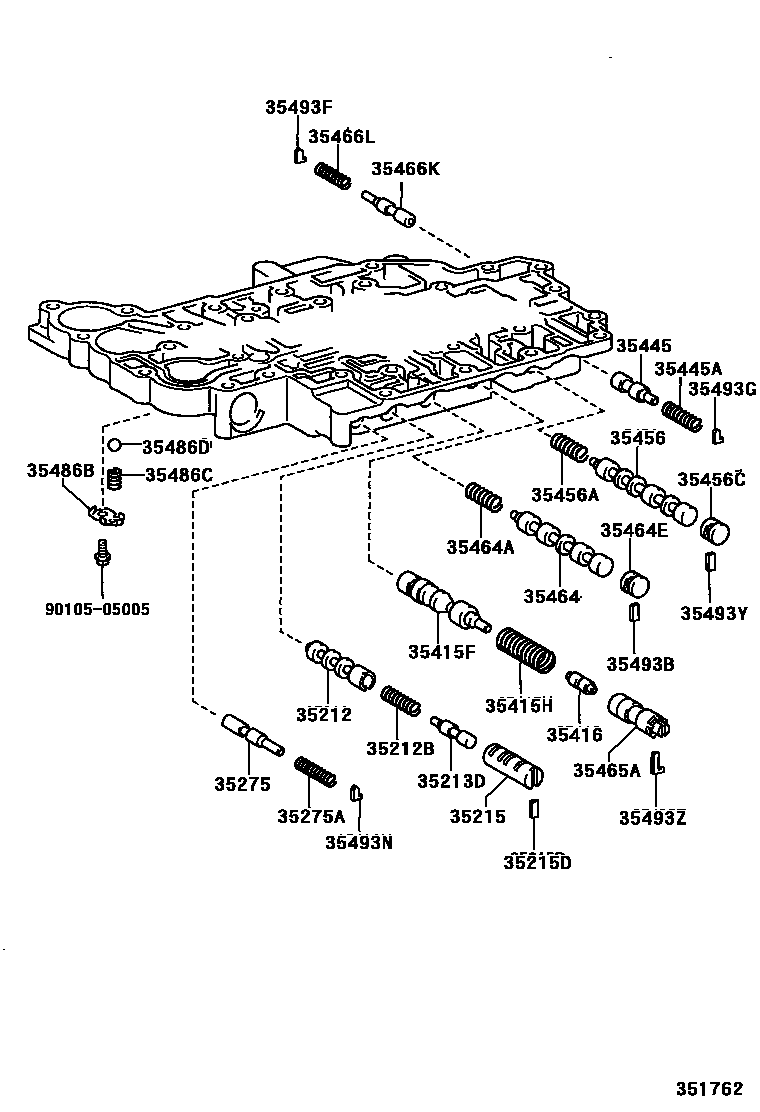

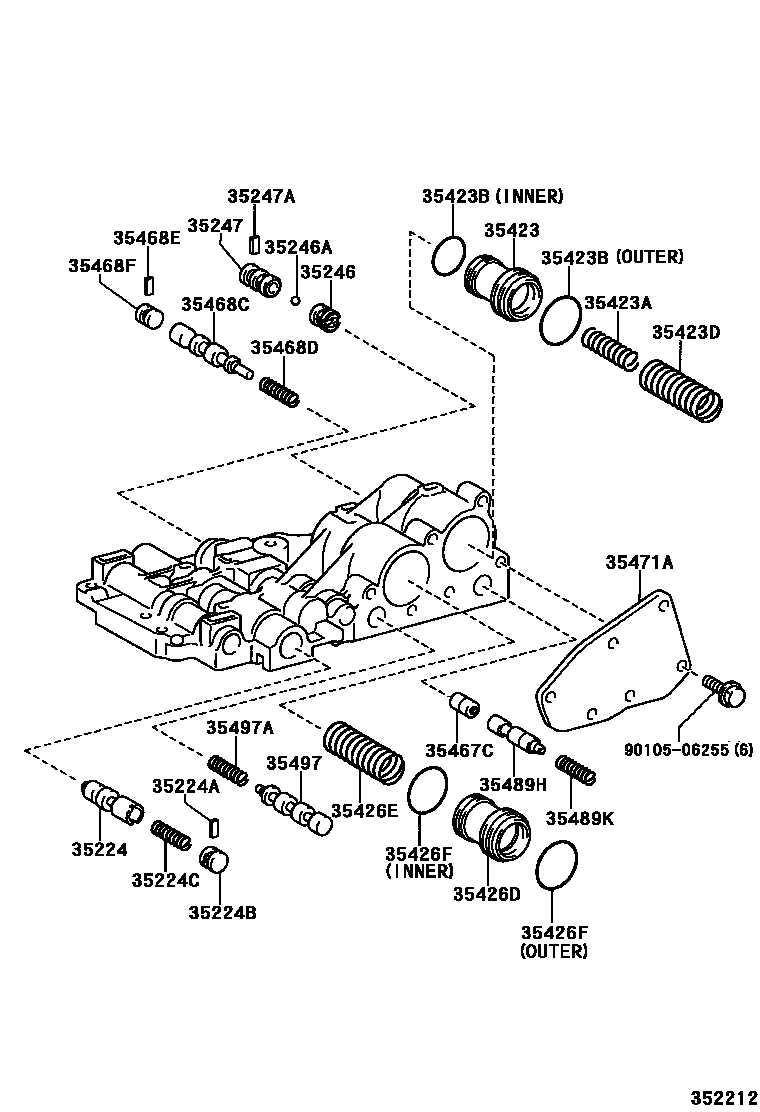

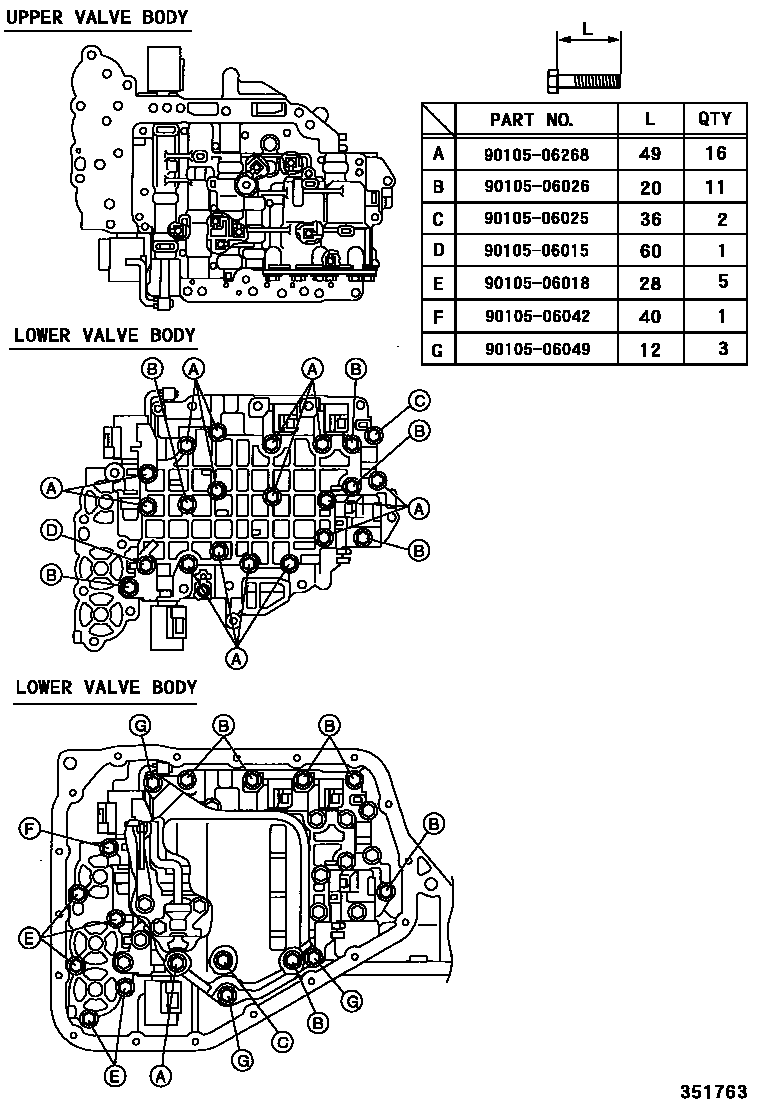

Toyota YARIS EPC diagram 3512, 阀体和滤油网(ATM), with 4 images and 88 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35195A | No. 1 transmission axle fuel supply pipe clamp | 35195-52010 |
| 35206 | C-1 Accumulator spring sub-assembly | 35206-52010 |
| 35206A | Hole snap ring (for C-1 accumulator spring) | 90521-22004 |
| 35212 | lock relay valve | 35212-52010 |
| 35212B | Compression spring (for locking relay valve) | 90501-06057 |
| 35213D | Lock relay valve plunger | 35213-24010 |
| 35215 | Locking relay valve sleeve | 35215-52010 |
| 35215D | Straight key (for locking relay valve sleeve) | 90282-03010 |
| 35224 | reverse gear control valve | 35224-50010 |
| 35224A | Straight key (for reverse gear control valve) | 90282-03002 |
| 35224B | Plunger (for reverse control valve) | 90339-05020 |
| 35224C | Compression spring (for reverse control valve) | 90501-06056 |
| 35246 | No. 1 one-way valve | 35246-30010 |
| 35246A | Reverse gear shift positioning steel ball (for No. 1 check valve) | 90360-06004 |
| 35247 | No. 2 one-way valve | 35247-30010 |
| 35247A | Straight key (for No. 2 check valve) | 90282-03002 |
| 35251 | Ball check valve body | 35251-30020 |
| 35251B | Compression spring (for ball check valve body) | 90501-03005 |
| 35275 | Solenoid regulator valve | 35275-52010 |
| 35275A | Compression spring (for solenoid regulator valve) | 90501-12143 |
| 35283 | Lock control solenoid valve sleeve | 35283-52010 |
| 35285 | Solenoid valve lock plate | 35285-52010 |
| 35290 | Pipe pressure control solenoid valve assembly | 35290-52010 |
| 35330 | Valve body oil filter assembly | 35330-52010 |
| 35339 | Oil filter gasket | 35339-52010 |
| 35410 | Transmission valve body assembly | 35410-52030 |
| 35415F | Main regulator valve | 35415-52010 |
| 35415H | Compression spring (for main regulator valve) | 90501-13052 |
| 35416 | No. 1 main regulator valve plunger | 35416-52010 |
| 35418 | Manual valve | 35418-52010 |
| 35419E | No. 3 one-way valve | 35419-52010 |
| 35419L | Compression spring (for No. 3 check valve) | 90501-08187 |
| 35423 | B-2 Accumulator Piston | 35423-52010 |
| 35423A | Compression spring (for B-2 accumulator piston) | 90501-19033 |
| 35423B | O-ring (for B-2 accumulator piston) | 90301-19016 · 90301-29012 |
| 35423D | Compression spring (for B-2 accumulator piston) | 90501-22047 |
| 35424C | C-1 Accumulator Piston | 35424-52010 |
| 35424D | Compression spring (for C-1 accumulator piston) | 90501-22046 |
| 35424E | O-ring (for C-1 accumulator piston) | 90301-21011 · 90301-29012 |
| 35425A | C-2 Accumulator Piston | 35425-52010 |
| 35425C | O-ring (for C-2 accumulator piston) | 90301-21011 · 90301-29012 |
| 35426D | C-3 Accumulator Piston | 35426-52010 |
| 35426E | Compression spring (for C-3 accumulator piston) | 90501-23148 |
| 35426F | O-ring (for C-3 accumulator piston) | 90301-21011 · 90301-24013 |
| 35427P | No. 1 compression spring (for B-1 accumulator piston) | 90501-16165 |
| 35427Q | No. 2 compression spring (for B-1 accumulator piston) | 90501-21029 |
| 35427R | B-1 Accumulator Piston | 35427-52010 |
| 35427S | O-ring (for B-1 accumulator piston) | 90301-19016 · 90301-29012 |
| 35432 | No. 1 valve body plate | 35432-52030 |
| 35437B | Valve body cover | 35437-52010 |
| 35441C | Solenoid valve oil filter | 35441-12020 · 35441-30030 |
| 35445 | Low speed regulator valve | 35445-12020 |
| 35445A | Compression spring (for low speed regulator valve) | 90501-08186 |
| 35456 | 2nd-3rd gear shift valve | 35456-52010 |
| 35456A | Compression spring (for 2-3 gear shift valve) | 90501-08135 |
| 35456C | Plunger (for 2-3 gear shift valve) | 90339-05019 |
| 35464 | 1-2 gear shift valve | 35464-52010 |
| 35464A | Compression spring (for 1-2 gear shift valve) | 90501-08135 |
| 35464E | Plunger (for 1-2 gear shift valve) | 90339-05019 |
| 35465A | Main regulator valve plunger sleeve | 35465-52010 |
| 35466K | clutch engagement control valve | 35483-52020 |
| 35466L | Compression spring (for clutch engagement control valve) | 90501-07113 |
| 35467C | Throttle control valve plunger | 35467-52010 |
| 35468C | Secondary regulator valve | 35468-52010 |
| 35468D | Compression spring (for secondary regulator valve) | 90501-12182 |
| 35468E | Straight key (for secondary regulator valve) | 90282-03010 |
| 35468F | Plunger (for secondary regulator valve) | 90339-05020 |
| 35471A | Upper valve body cover | 35474-52020 |
| 35472A | Lower valve body cover | 35472-52010 |
| 35477 | Valve body cover gasket | 35477-52011 |
| 35482B | temperature sensor clip | 35482-52010 |
| 35486B | Pressure reducing valve spring seat | 35486-50010 |
| 35486C | Compression spring (for pressure reducing valve) | 90501-10143 |
| 35486D | Ball (for pressure reducing valve) | 90360-08003 |
| 35488C | No. 2 valve body cover gasket | 35488-52020 |
| 35489H | C-1 Throttle Control Valve | 35466-52010 |
| 35489K | Compression spring (for C-1 throttle control valve) | 90501-07131 |
| 35493B | 1-2 gear shift valve plunger seat | 35493-30030 |
| 35493F | Shift valve plunger seat | 35469-52010 |
| 35493G | Low gear coast regulator valve plunger seat | 35478-52020 |
| 35493N | Solenoid regulator valve plunger seat | 35478-52020 |
| 35493Y | 2-3 gear shift valve plunger seat | 35493-30030 |
| 35493Z | No. 1 shift valve plunger seat | 35479-52020 |
| 35495B | One-way ball No. 1 | 35495-22020 |
| 35497 | 3rd-4th gear shift valve | 35497-52010 |
| 35497A | Compression spring (for 3-4 gear shift valve) | 90501-08135 |
| 35847 | Transmission lubricant supply pipe | 35847-52010 |
| 35882A | Differential gear lubricant oil supply pipe | 35882-52010 |
