Toyota YARIS 换档拨叉和换档杆轴(MTM) — Figure 3307

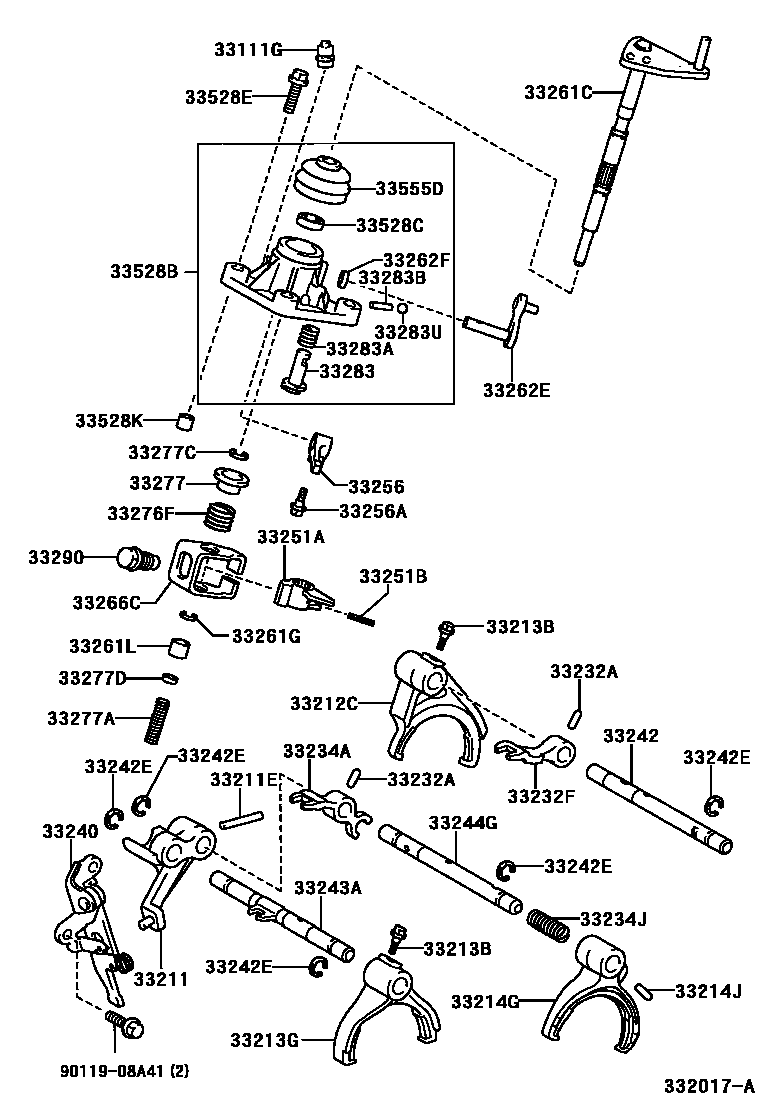

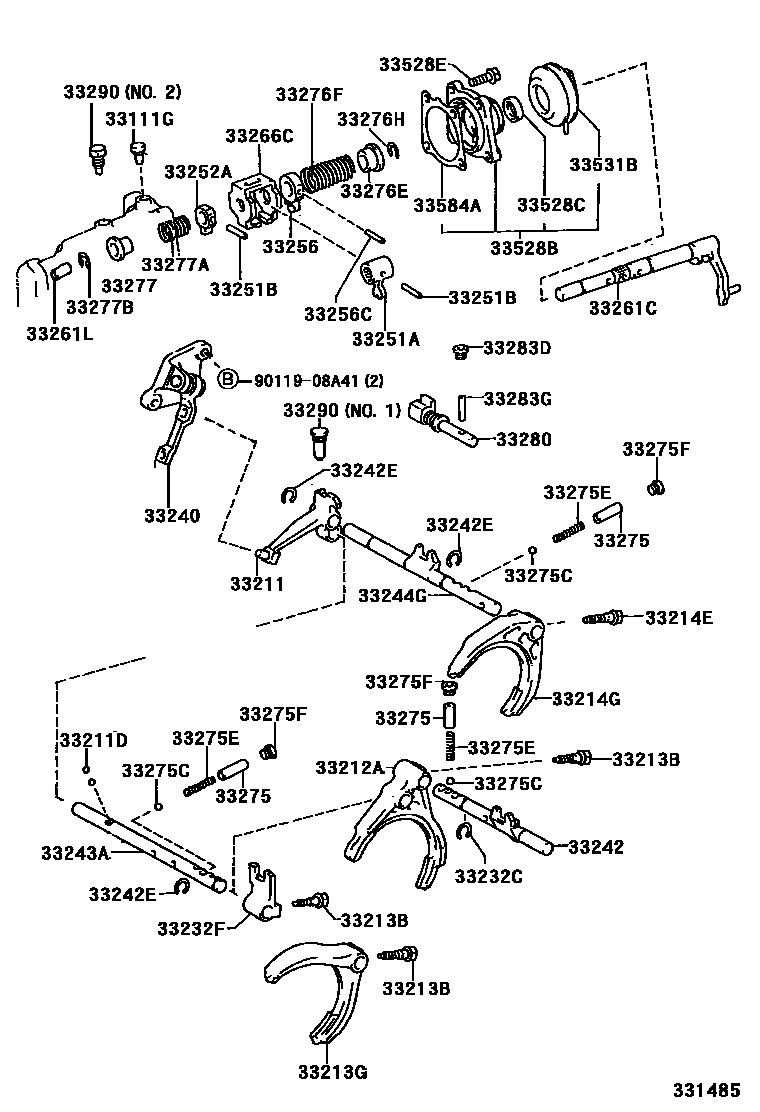

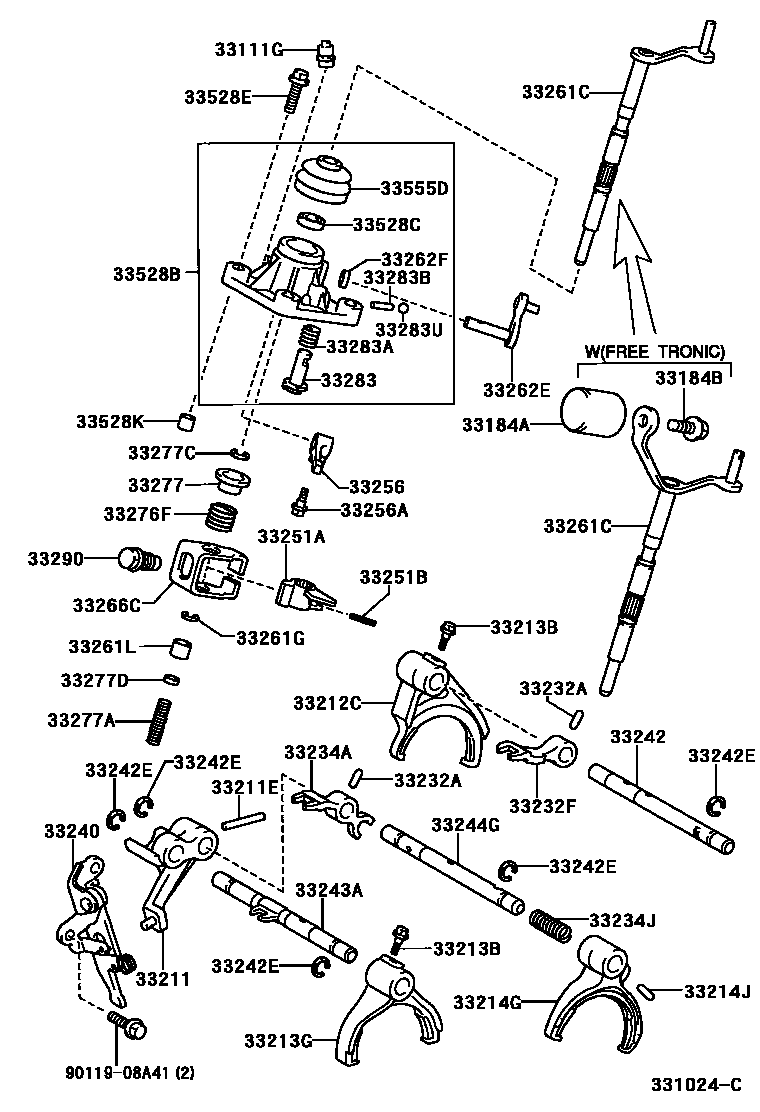

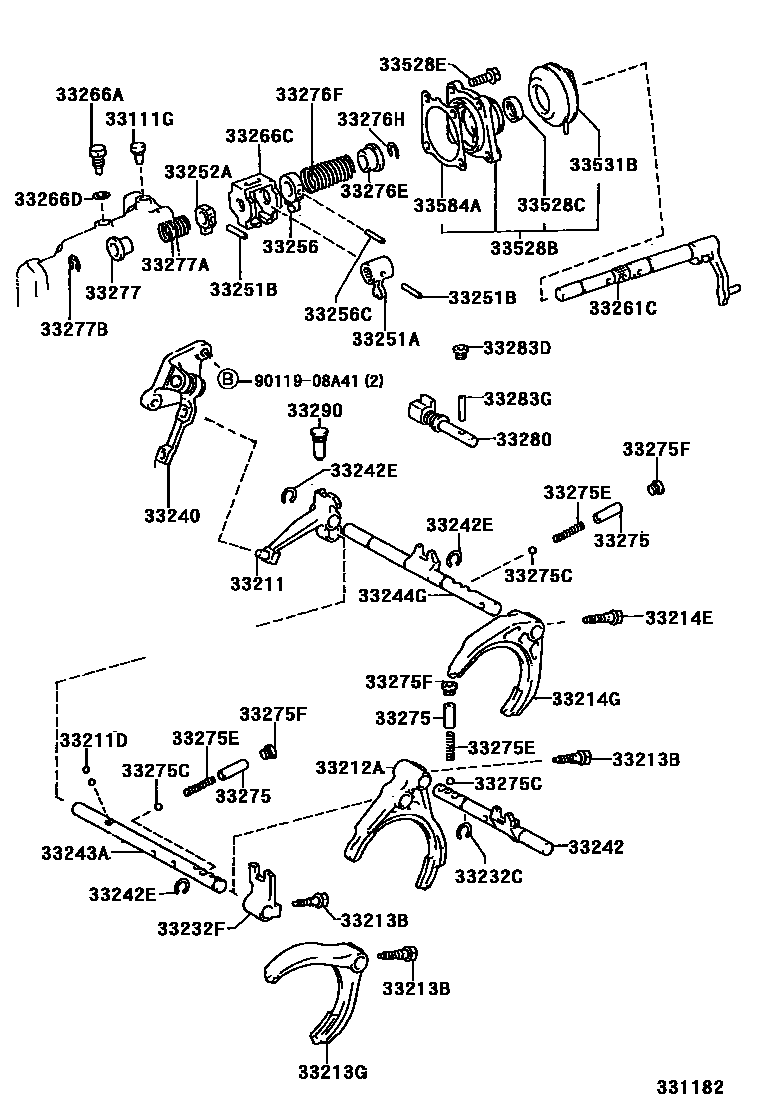

Toyota YARIS EPC diagram 3307, 换档拨叉和换档杆轴(MTM), with 4 images and 64 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33111G | Breather plug (for manual transmission) | 90930-03114 · 90930-03133 |
| 33184A | Dynamic damper balance weight (for shift lever shaft) | 33184-52010 |
| 33184B | Bolt (for shift lever shaft) | 90105-08385 |
| 33211 | Reverse Shift Fork | 33211-12021 · 33211-52010 |
| 33211D | Steel ball (for reverse shift fork) | 90360-06004 |
| 33211E | Direct sales (for reverse shift fork) | 90250-06032 |
| 33212A | No. 1 shift fork | 33212-10013 |
| 33212C | No. 1 shift fork | 33212-52010 |
| 33213B | Bolt (for securing shift fork) | 90105-06115 |
| 33213G | No. 2 shift fork | 33213-20050 · 33213-52010 |
| 33214E | Bolt (for shift fork lock) | 90105-06115 |
| 33214G | No. 3 shift fork | 33214-20050 · 33214-52010 |
| 33214J | Direct sales (for fifth-speed shift fork) | 90250-06031 |
| 33232A | Slotted spring pin (for securing shift guide block) | 90254-05001 |
| 33232C | Snap ring (for first and second gear shift guide blocks) | 90520-12003 |
| 33232F | No. 1 transmission guide block | 33232-10021 · 33232-12012 · 33232-20030 · 33232-52010 |
| 33234A | No. 3 speed change guide block | 33234-52010 |
| 33234J | Compression spring (for shift return) | 90501-14161 |
| 33240 | Reverse shift arm bracket assembly | 33240-16020 · 33240-52010 |
| 33242 | No. 1 shift fork shaft | 33205-12060 · 33205-20030 · 33205-20040 · 33205-52010 · 33242-52010 · 33242-52020 |
| 33242E | Shaft snap ring (for shift fork shaft) | 90520-12003 |
| 33243A | No. 2 shift fork shaft | 33243-12130 · 33243-20070 · 33243-52010 |
| 33244G | No. 3 shift fork shaft | 33244-12110 · 33244-20060 · 33244-20070 · 33244-52010 · 33244-52030 |
| 33251A | Internal shift lever No. 1 | 33251-10050 · 33251-12080 · 33251-20070 · 33251-52010 · 33251-52020 |
| 33251B | Slotted spring pin (for inner shift lever) | 90254-05016 |
| 33252A | Internal shift lever No. 2 | 33252-12011 |
| 33256 | Internal gear selector | 33256-12022 · 33256-52010 |
| 33256A | Fixing bolt (for interior gear selector) | 90105-08079 |
| 33256C | Slotted spring pin (for interior selector lever) | 90254-05016 |
| 33261C | shift lever shaft | 33261-52010 · 33261-52011 · 33261-52020 · 33261-52030 · 33261-52040 · 33261-52050 · 33261-52070 |
| 33261G | Snap ring (for shift lever shaft) | 90520-13002 |
| 33261L | Bimetallic bushing (for gear selector shaft) | 90384-15002 · 90389-15009 |
| 33262E | gear selector shaft | 33262-52010 |
| 33262F | Oil seal (for selector lever shaft) | 90311-16006 |
| 33266A | Bolt (for shift interlock plate) | 90109-18005 |
| 33266C | shift interlock plate | 33266-12021 · 33266-20020 · 33266-52010 |
| 33266D | Pad (for shift interlock plate) | 90430-18008 |
| 33275 | No. 1 shift lock steel ball spring seat | 33275-12041 |
| 33275C | Steel ball (for shift lock) | 90360-10003 |
| 33275E | Compression spring (for shift lock steel ball) | 90501-12168 · 90501-12173 · 90501-12187 |
| 33275F | Screw plug (for gear shift lock steel ball) | 90341-12004 |
| 33276E | No. 1 gear selector spring seat | 33276-12022 |
| 33276F | No. 1 compression spring (for gear selector return) | 90501-12195 · 90501-16142 · 90501-16164 · 90501-17040 |
| 33276H | Shaft snap ring (for No. 1 gear selector spring seat) | 90520-15003 |
| 33277 | No. 2 gear selector spring seat | 33277-12011 · 33277-52010 |
| 33277A | No. 2 compression spring (for gear selector return) | 90501-12180 · 90501-12186 · 90501-15042 · 90501-16136 |
| 33277B | E-ring (for No. 2 gear selector spring seat) | 90523-12003 |
| 33277C | Shaft snap ring (for No. 2 gear selector spring seat) | 90520-15003 |
| 33277D | Spacer (for gear selector return spring) | 90560-08105 |
| 33280 | Reverse gear positioning pin assembly | 33280-10021 · 33280-12061 |
| 33283 | No. 1 reverse gear positioning pin | 33283-28020 |
| 33283A | Compression spring (for reverse gear pin) | 90508-10071 |
| 33283B | Direct selling (for reverse gear positioning pin) | 90250-04109 |
| 33283D | Screw plug (for reverse gear positioning pin) | 90341-10065 |
| 33283G | Slotted spring pin (for reverse gear locating pin) | 90254-05003 |
| 33283U | Reverse gear positioning pin steel ball | 90360-06004 |
| 33290 | No. 1 locking steel ball assembly | 33290-12011 · 33290-33011 · 33290-52010 · 33290-52020 · 33290-52040 |
| 33528B | control shaft cover | 33506-12061 · 33506-17091 · 33506-52010 |
| 33528C | Oil seal (for control shaft cover) | 90311-18013 |
| 33528E | Bolt (for control shaft cover) | 90119-08429 · 90119-10288 · 91611-61025 · 91612-61025 |
| 33528K | Ring pin (for controlling shaft housing retaining bolts) | 90253-11001 |
| 33531B | Dust boot (for shift lever shaft) | 33531-12020 |
| 33555D | Gear shift lever dust cover | 33555-28010 |
| 33584A | Shift lever stopper gasket | 33584-12050 · 33584-12060 |
