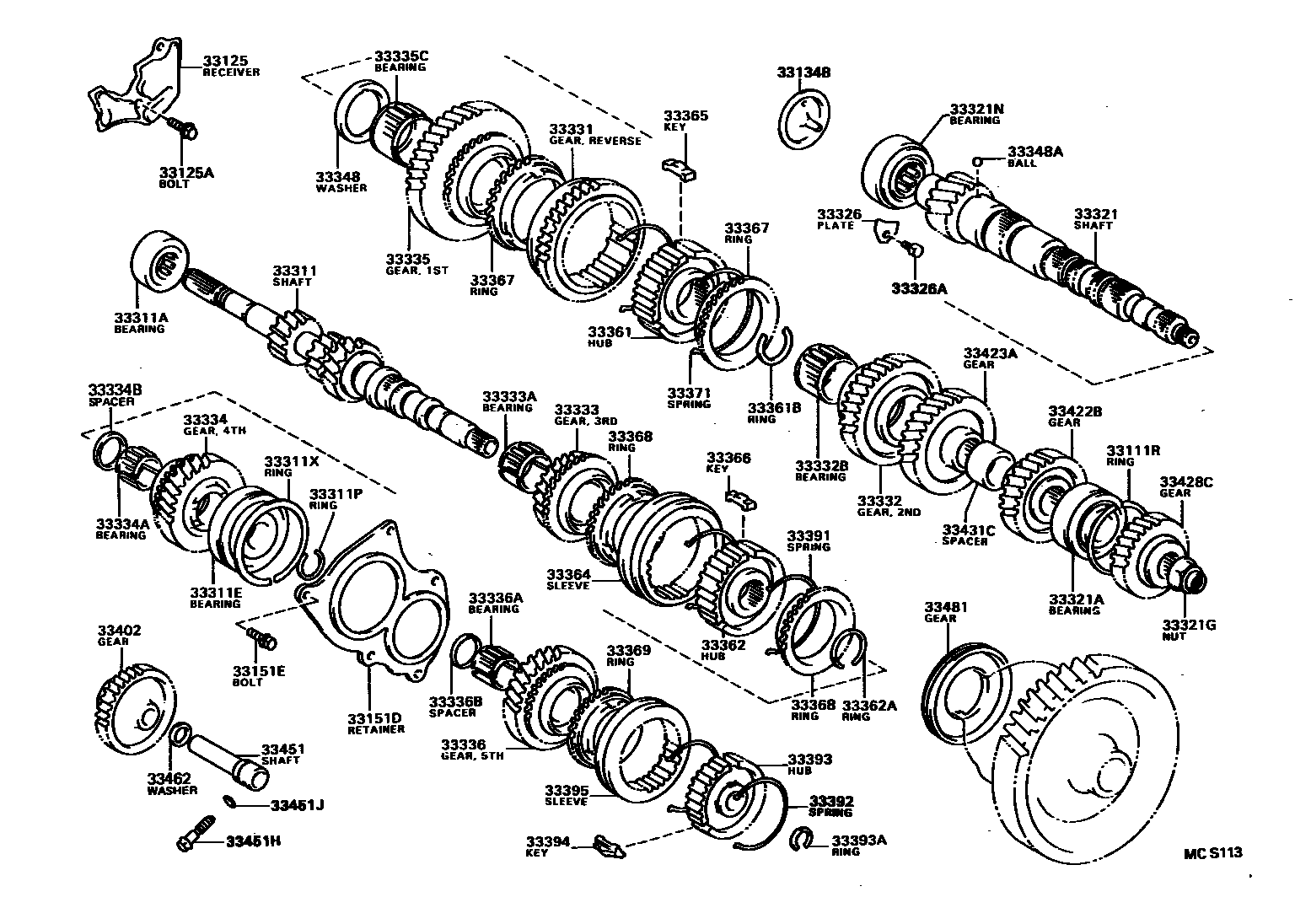

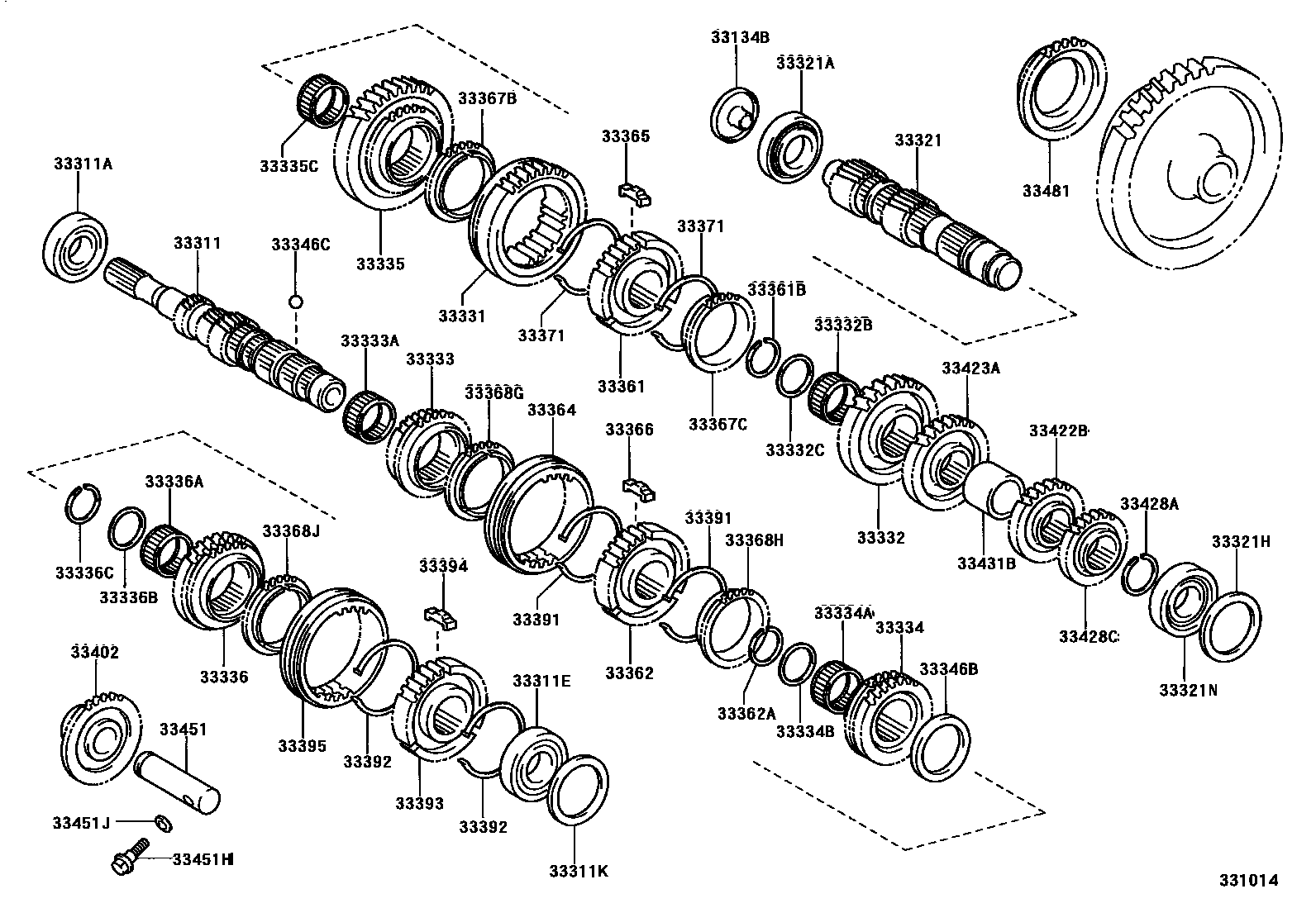

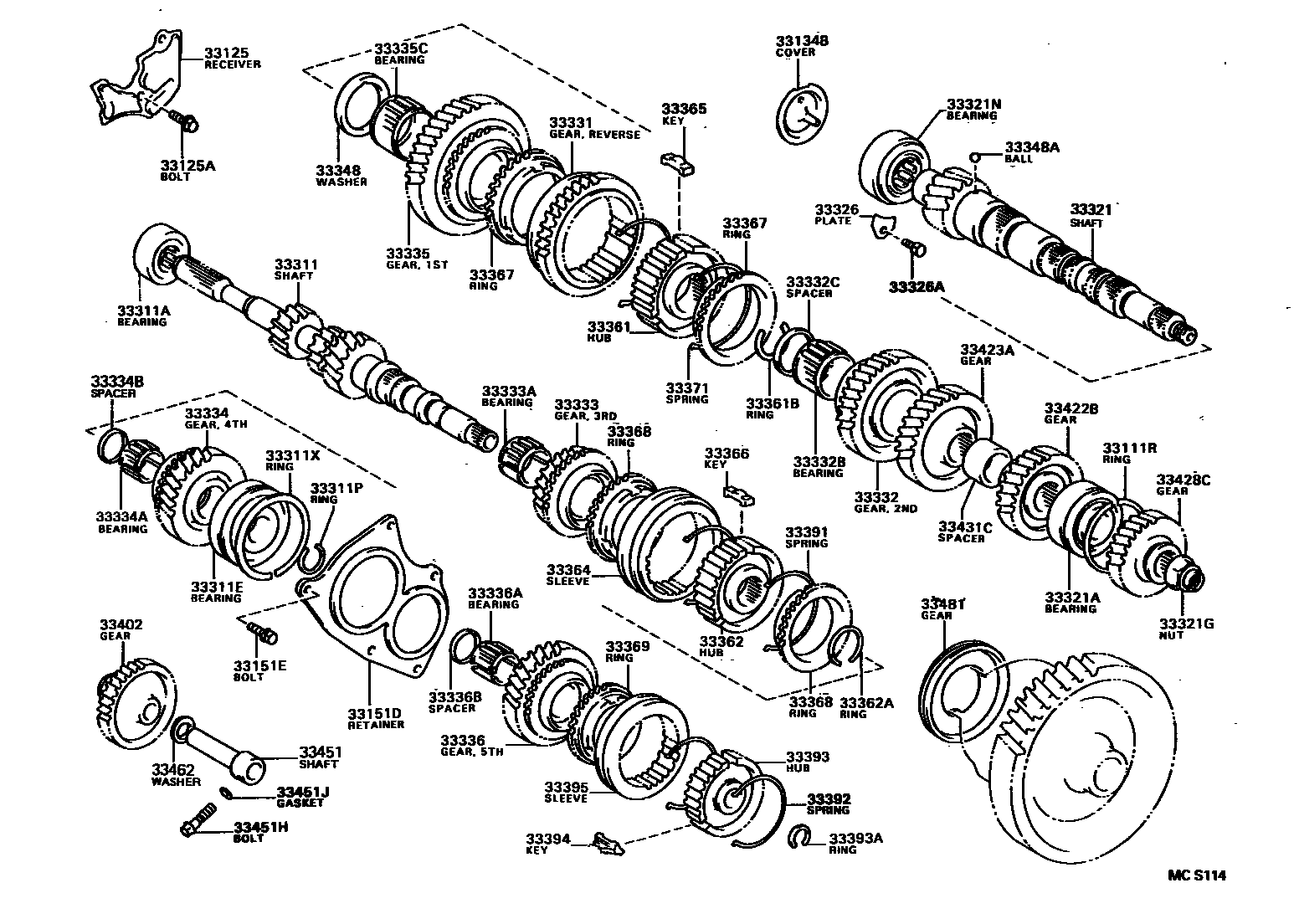

Toyota YARIS 变速器齿轮(MTM) — Figure 3305
Toyota YARIS EPC diagram 3305, 变速器齿轮(MTM), with 3 images and 72 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33111R | Hole snap ring (for output shaft rear bearing) | 90520-57002 |
| 33125 | Manual transmission axle housing oil collection tank | 33125-12011 |
| 33125A | Bolt (for transaxle housing oil sump) | 91611-60812 · 91611-B0812 |
| 33134B | Output shaft cover (MTM) | 33134-12022 · 33134-52010 |
| 33151D | Rear bearing retainer (MTM) | 33151-12021 · 33151-52010 |
| 33151E | Bolt (for rear bearing retainer) | 90119-08944 |
| 33311 | input shaft | 33311-10061 · 33311-10062 · 33311-12180 · 33311-12181 · 33311-52010 |
| 33311A | Bearing (for front input shaft) | 90363-23001 · 90365-25021 |
| 33311E | Radial ball bearing (for rear input shaft) | 90363-25035 · 90363-25048 · 90363-25065 · 90363-25073 |
| 33311K | Spacer (for input shaft rear bearing) | 90564-38006 · 90564-38007 · 90564-38008 · 90564-38009 · 90564-38010 · 90564-38011 · 90564-38012 · 90564-38013 · 90564-38014 · 90564-38015 · 90564-38016 · 90564-38017 · 90564-38018 |
| 33311P | Shaft snap ring (for input shaft rear bearing) | 90520-22006 · 90520-22007 · 90520-22008 · 90520-22009 · 90520-22010 · 90520-22011 |
| 33311X | Hole snap ring (for input shaft rear bearing) | 90520-64002 |
| 33321 | output shaft | 33321-10051 · 33321-10091 · 33321-17011 · 33321-52010 · 33321-52020 |
| 33321A | Bearings (for rear output shaft) | 90363-25034 · 90363-25067 · 90366-25012 · 90903-63009 · 90903-63010 |
| 33321G | Nut (used to secure the manual transmission rear output shaft) | 90179-18005 |
| 33321H | Spacer (for output shaft rear bearing) | 90564-38001 · 90564-38002 · 90564-38003 · 90564-38004 · 90564-38005 · 90564-38006 · 90564-38007 · 90564-38008 · 90564-38009 · 90564-38010 · 90564-38011 · 90564-38012 · 90564-38013 · 90564-38014 · 90564-38015 |
| 33321N | Bearing (for front output shaft) | 90365-33005 · 90366-23001 |
| 33326 | Bearing locking plate | 33326-12010 |
| 33326A | Bolt (for bearing locking plate) | 91611-60812 · 91611-B0812 |
| 33331 | reverse gear | 33331-12060 · 33331-52010 |
| 33332 | Second gear | 33033-10030 · 33033-12060 · 33332-52010 |
| 33332B | Needle roller bearing (for second gear gear) | 90364-32014 · 90364-32017 · 90364-34009 |
| 33332C | Spacer (for second gear bearing) | 90560-32008 · 90560-34005 |
| 33333 | Third gear | 33034-10050 · 33034-10051 · 33034-12130 · 33034-12131 · 33034-52010 |
| 33333A | Needle roller bearing (for third gear) | 90364-31002 · 90364-31004 · 90364-34008 |
| 33334 | fourth gear | 33035-20090 · 33035-20160 · 33035-20161 · 33035-20170 · 33035-20171 · 33035-52020 |
| 33334A | Needle roller bearing (for fourth gear) | 90364-29002 · 90364-34008 |
| 33334B | Spacer (for fourth gear bearing) | 90560-29001 · 90560-34005 |
| 33335 | first gear | 33032-10040 · 33032-12070 · 33335-52010 |
| 33335C | Needle roller bearing (for first gear) | 90364-34007 · 90364-38007 · 90364-38008 |
| 33336 | fifth gear | 33036-12100 · 33036-12110 · 33036-20060 · 33036-20070 · 33036-20090 · 33036-52020 |
| 33336A | Needle roller bearings (for fifth gear) | 90364-24006 · 90364-31008 |
| 33336B | Spacer (for fifth gear bearing) | 90560-25006 · 90560-31003 |
| 33336C | Shaft snap ring (for fifth gear) | 90520-29049 · 90520-29050 · 90520-29052 · 90520-29053 · 90520-29054 · 90520-29055 |
| 33346B | Fifth gear thrust washer | 33346-52010 |
| 33346C | Steel ball (for fifth gear thrust washer) | 90360-05012 |
| 33348 | First gear thrust washer | 33348-12010 |
| 33348A | Pin or steel ball (for first gear thrust washer) | 90360-05012 |
| 33361 | No. 1 transmission clutch hub | 33361-12030 · 33361-52010 · 33361-52011 · 33361-52012 |
| 33361B | Shaft snap ring (for clutch hub No. 1) | 90520-29018 · 90520-29019 · 90520-29020 · 90520-29021 · 90520-29022 · 90520-29023 · 90520-32014 · 90520-32015 · 90520-32016 · 90520-32017 · 90520-32018 · 90520-32019 |
| 33362 | No. 2 transmission clutch hub | 33362-12020 · 33362-52010 · 33362-52011 |
| 33362A | Shaft snap ring (used to secure No. 2 clutch hub) | 90520-27046 · 90520-27047 · 90520-27048 · 90520-27049 · 90520-27050 · 90520-27051 · 90520-32014 · 90520-32015 · 90520-32016 · 90520-32017 · 90520-32018 · 90520-32019 |
| 33364 | No. 2 transmission hub sleeve | 33364-12050 · 33364-20030 · 33364-20031 · 33364-52010 |
| 33365 | No. 1 synchromesh shift key | 33365-12021 · 33365-52010 · 33365-52020 |
| 33366 | No. 2 synchromesh shift key | 33366-12020 · 33366-52010 · 33366-52020 |
| 33367 | Synchronizer lock ring No. 1 | 33367-12140 · 33367-12150 |
| 33367B | Synchronizer locking ring (for first gear) | 33367-52010 |
| 33367C | Synchronizer locking ring (for second gear) | 33367-52020 |
| 33368 | Synchronizer lock ring No. 2 | 33368-12130 · 33368-12140 · 33368-12200 |
| 33368G | Synchronizer locking ring (for third gear) | 33368-52010 |
| 33368H | Synchronizer ring (for fourth gear) | 33368-52020 |
| 33368J | Synchronizer ring (for fifth gear) | 33369-52010 |
| 33369 | No. 3 synchronizer lock ring | 33369-20040 |
| 33371 | No. 1 synchromesh shift key spring | 33371-12020 · 33371-52010 · 33371-52020 |
| 33391 | No. 2 synchromesh shift key spring | 33371-52010 · 33391-12020 · 33391-52010 |
| 33392 | No. 3 synchromesh shift key spring | 33371-52010 · 33391-12030 |
| 33393 | No. 3 transmission clutch hub | 33393-12040 · 33393-52010 · 33393-52011 |
| 33393A | Shaft snap ring (for No. 3 transmission clutch hub) | 90520-18002 · 90520-18003 · 90520-18004 · 90520-18006 · 90520-18007 · 90520-18008 · 90520-18009 |
| 33394 | No. 3 synchromesh shift key | 33394-12011 · 33394-52010 · 33394-52020 |
| 33395 | No. 3 transmission hub sleeve | 33395-20040 · 33395-20041 · 33395-52010 |
| 33402 | Reverse idler gear sub-assembly | 33402-10030 · 33402-10031 · 33402-12041 · 33402-12042 · 33402-52010 |
| 33422B | Fourth gear driven gear | 33422-10040 · 33422-12050 · 33422-52020 |
| 33423A | Third gear driven gear | 33423-10011 · 33423-12040 · 33423-52010 |
| 33428A | Shaft snap ring (for countershaft fifth gear) | 90520-27070 · 90520-27071 · 90520-27072 · 90520-27073 · 90520-27074 · 90520-27075 · 90520-27076 · 90520-27077 · 90520-27078 |
| 33428C | fifth speed driven gear | 33428-10040 · 33428-12050 · 33428-12060 · 33428-12070 · 33428-12080 · 33428-52020 |
| 33431B | Output shaft spacer | 33431-52010 |
| 33431C | Output gear spacer | 33431-12010 |
| 33451 | Reverse gear idler shaft | 33451-10021 · 33451-12021 · 33451-52010 |
| 33451H | Bolt (for reverse idler shaft) | 90109-08097 |
| 33451J | Gasket (for reverse idler shaft) | 90430-08010 |
| 33462 | Reverse idler thrust washer | 33462-12010 |
| 33481 | Speedometer driving gear (MTM) | 33481-10080 · 33481-12040 · 33481-52010 |
