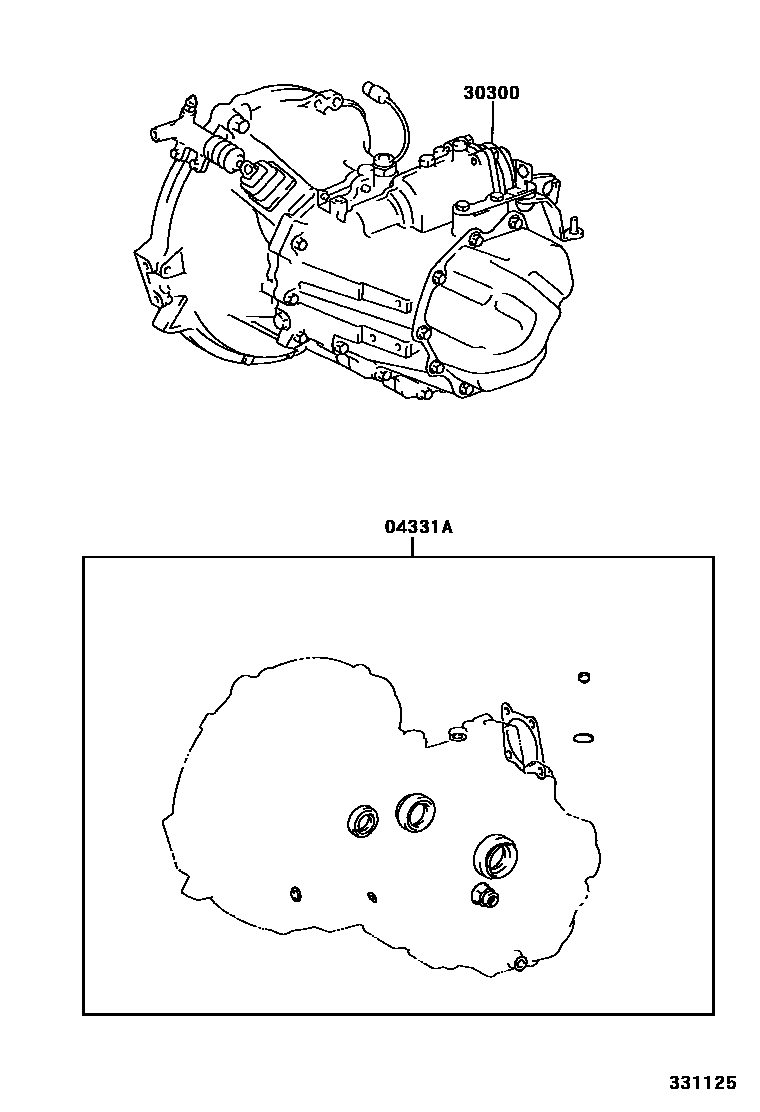

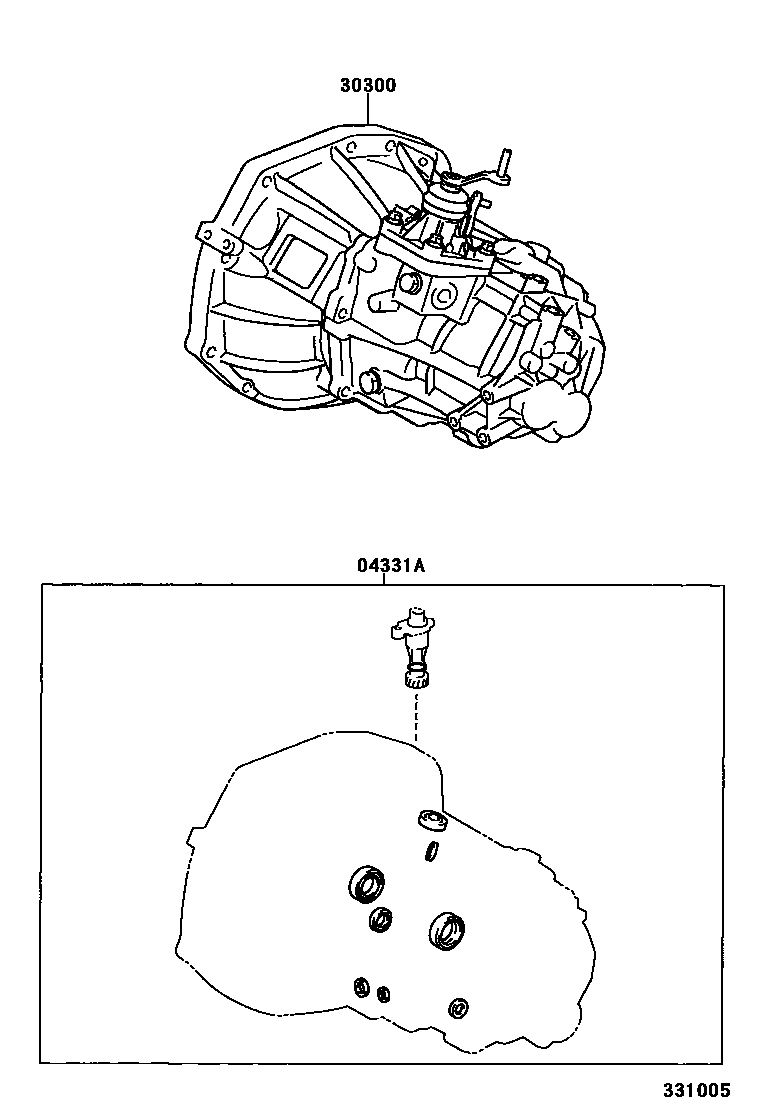

Toyota YARIS 传动桥或变速器总成和衬垫组件(MTM) — Figure 3301
Toyota YARIS EPC diagram 3301, 传动桥或变速器总成和衬垫组件(MTM), with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04331A | Transaxle overhaul pad assembly (MTM) | 04331-02060 · 04331-52010 · 04331-52020 · 04331-52040 · 04331-52050 · 04331-52120 · 04331-52270 |
| 30300 | Manual transmission axle assembly | 30300-52020 · 30300-52021 · 30300-52060 · 30300-52061 · 30300-52070 · 30300-52071 · 30300-52180 · 30300-52181 · 30300-52200 · 30300-52201 · 30300-52230 |
